Hot-pluggable SFP28 footprint
Built-in digital diagnostic functions
Oxide VCSEL/EML/DFB transmitter
Compliant with single lane 100G Ethernet applications
Duplex LC connector
Up to 40km on 9/125μm SMF, 100m(150m) over MMF (50/125μm OM4), 70m(100m) over MMF (50/125μm OM3)
Single 3.3V power supply operating
TX input and RX output CDR retiming
RoHS-6 Compliant
| P/N | Data Rate | Reach | Wavelength | Rx | Output Power | Sensitivity |
|---|---|---|---|---|---|---|

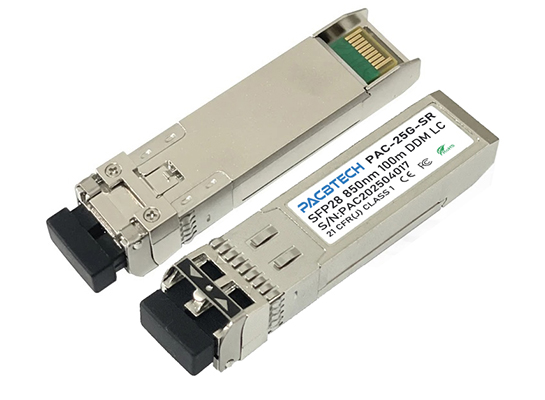

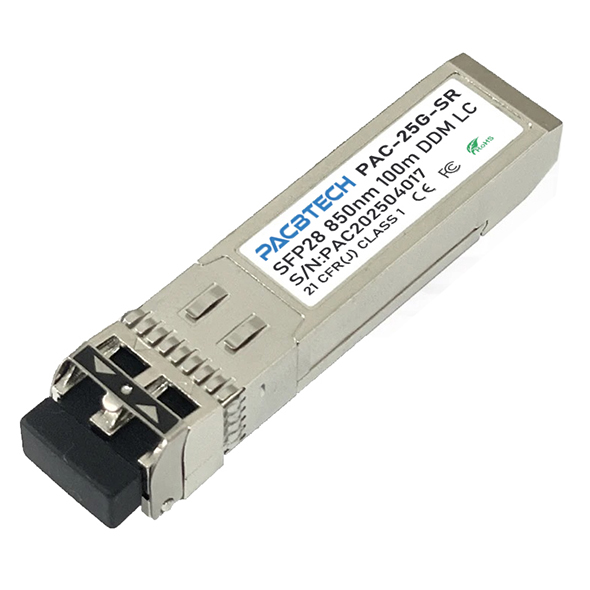

| PAC-SFP28-SR | 25Gbps | 100M | 850nm VCSEL | PIN | -7.6~2.4dBm | ≤-10.3dBm |
| PAC-SFP28-CSR | 25Gbps | 300M | 850nm VCSEL | PIN | -7.0~2.2dBm | ≤-8.0dBm |
| PAC-SFP28-LR | 25Gbps | 10KM | 1310nm DFB | PIN | -3.8~3.0dBm | ≤-13.0dBm |
| PAC-SFP28-CLRxxxX | 25Gbps | 10KM | CWDM DFB 1270~1370nm | PIN | 0~6.0dBm | ≤-14.0dBm |
| PAC-SFP28-CLRxxxx | 25Gbps | 10KM | CWDM EML 1470~1570nm | PIN | -3.0~6.0dBm | ≤-12.0dBm |
| PAC-SFP28-ER | 25Gbps | 40KM | 1310nm EML | APD | -3.0~6.0dBm | ≤-19.0dBm |
| PAC-SFP28-LER | 25Gbps | 40KM | LAN-WDM EML | APD | 2.0~7.0dBm | ≤-20.0dBm |
| PAC-SFP28-LRA/B | 25Gbps | 10KM | 1270/1330nm DFB | PIN | -2.0~4.0dBm | ≤-13.0dBm |
