100G Single Lambda Series_Shenzhen Pacific Technology Co.,Ltd

100G Single Lambda Series

100G single lambda series packaged in QSFP28, and fully compatible with existing 100G switch interfaces. Mainly used in data centers, enterprise networks, and 5G applications

Model:

100G Single Lambda Series

Inquiry

Optical Transceivers

10G SFP+ Transceiver

SFP Transceiver

40G QSFP Transceiver

100G QSFP28 Transceiver

16/25/32G Transceiver

200/400/800G Transceiver

PON SFP

1*9 Transceiver

DAC/AOC Cable

DAC-Direct Attach Cable

AOC-Active Optical Cable

Fiber Converter

Fiber Media Converter

Fiber Switch

Industrial Fiber Switch

OLT

ONU/ONT

1.25G/2.5G XPON STICK

Accessory

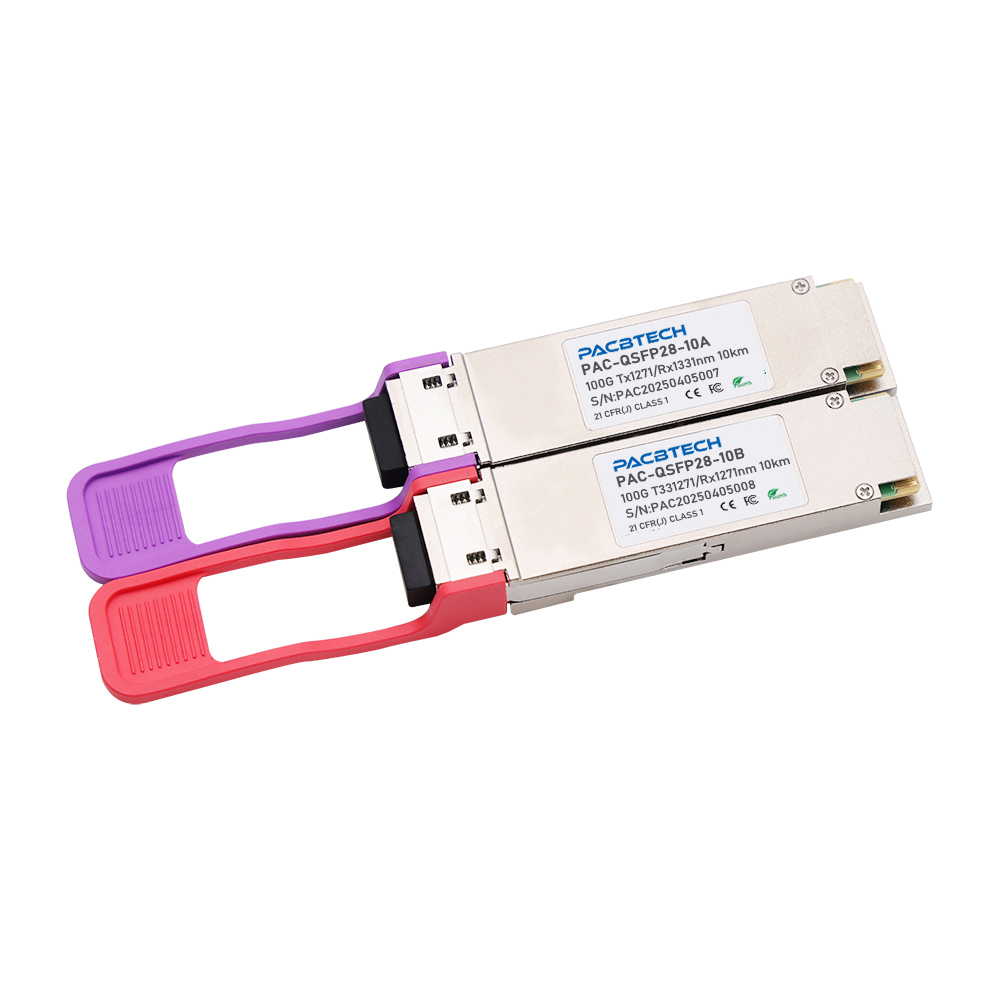

100G BIDI QSFP28 Transceiver Module

Features

Hot-pluggable QSFP28
Compliant with 100G Lambda MSA
Single channel design, supports 106.25Gb/s data rate
Maximum link up to 80km
Single +3.3V power supply
Operating temperature range: 0~70℃
Built-in digital diagnostic functions
Support KP4 FEC inside

Standard Part

P/N	Data Rate	Reach	Tx	Rx	Output Power	Sensitivity
PAC-QSFP28-DR1	100Gb/s	500m	1310nm EML	PIN	-2.9~+4.0dBm	≤-3.9dBm
PAC-QSFP28-FR1	100Gb/s	2Km	1310nm EML	PIN	-3.1~+4.0dBm	≤-4.5dBm
PAC-QSFP28-LR1	100Gb/s	10Km	1310nm EML	PIN	-1.4~+4.5dBm	≤-6.1dBm
PAC-QSFP28-ER1	100Gb/s	30Km	1310nm EML	APD	0~+5.6dBm	≤-12.5dBm
PAC-QSFP28-10A	100Gb/s	10Km	1270nm EML	PIN	-1.4~+4.5dBm	≤-6.1dBm
PAC-QSFP28-10B	100Gb/s	10Km	1330nm EML	PIN	-1.4~+4.5dBm	≤-6.1dBm
PAC-QSFP28-20A	100Gb/s	20Km	1290nm EML	PIN	-1.4~+4.5dBm	≤-14dBm
PAC-QSFP28-20B	100Gb/s	20Km	1310nm EML	PIN	-1.4~+4.5dBm	≤-14dBm
PAC-QSFP28-40A	100Gb/s	40Km	1304nm EML	APD	0~+5.6dBm	≤-14dBm
PAC-QSFP28-40B	100Gb/s	40Km	1309nm EML	APD	0~+5.6dBm	≤-14dBm
PAC-QSFP28-80A	100Gb/s	80Km	1282nm EML	PIN+SOA	2~+6.5dBm	≤-28dBm
PAC-QSFP28-80B	100Gb/s	80Km	1304nm EML	PIN+SOA	2~+6.5dBm	≤-28dBm
