Quality first, customer supreme, crafting high-quality products for the communication industry.
Home > Product > Accessory > Fiber Patch Cord
Fiber Patch Cord
All patch cords undergo stringent testing for both insertion loss and return loss at the
factory before shipment to ensure that only quality product is delivered to the customer.

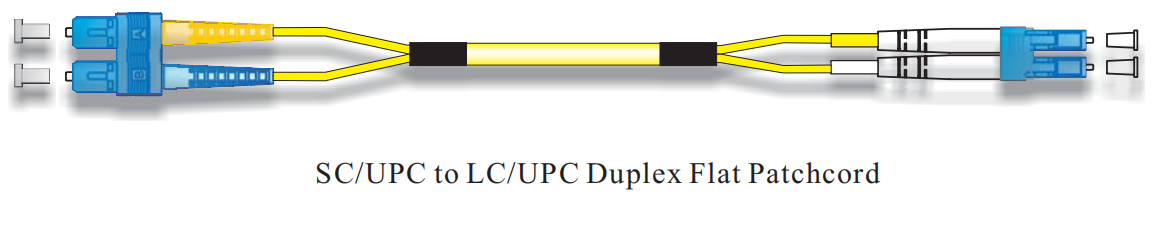

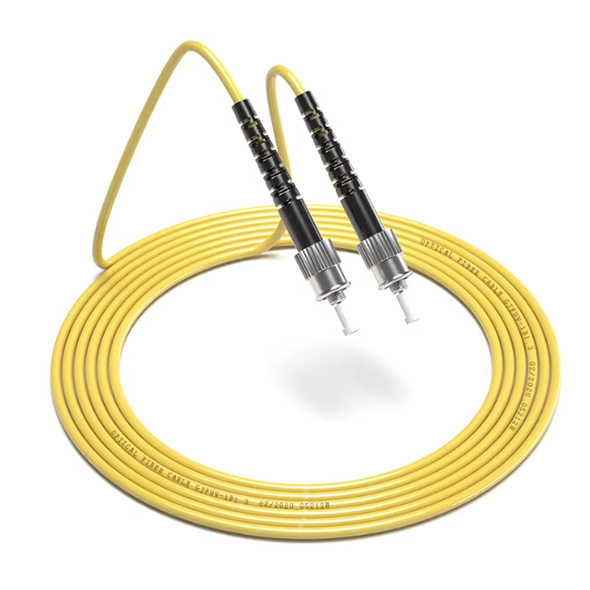

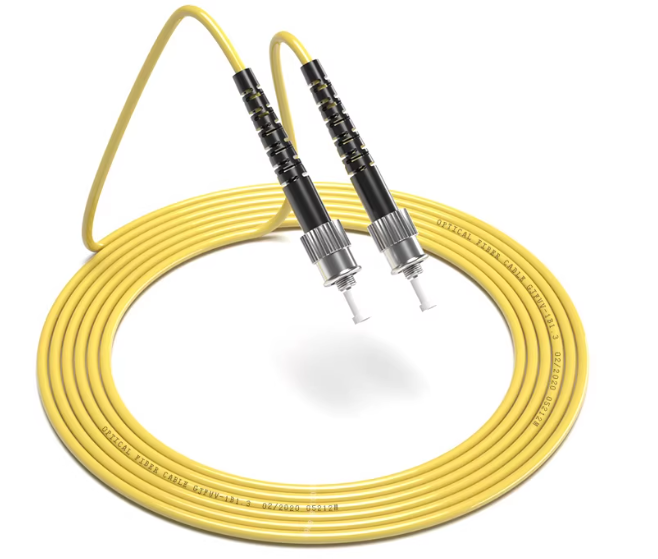

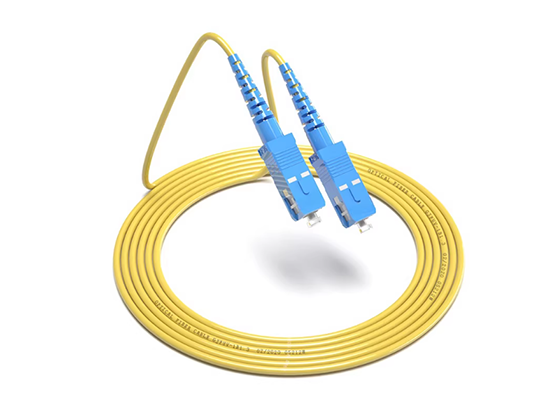

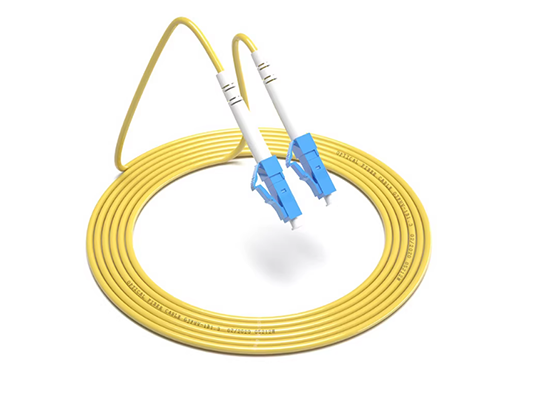

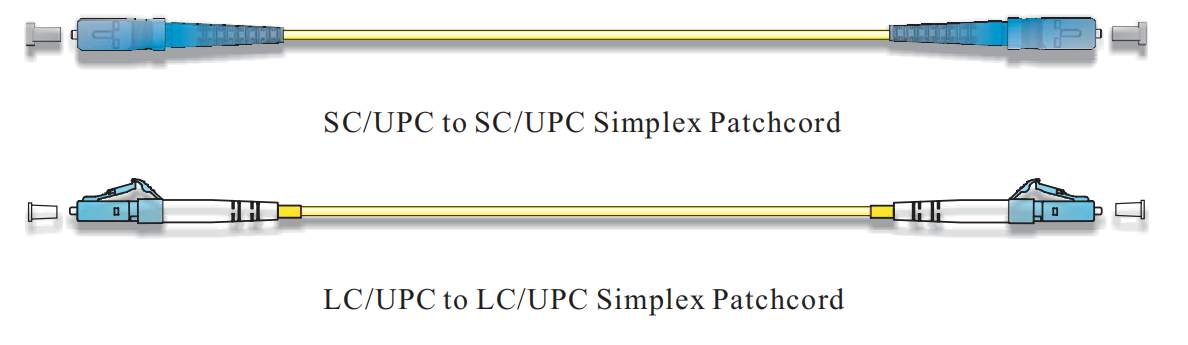

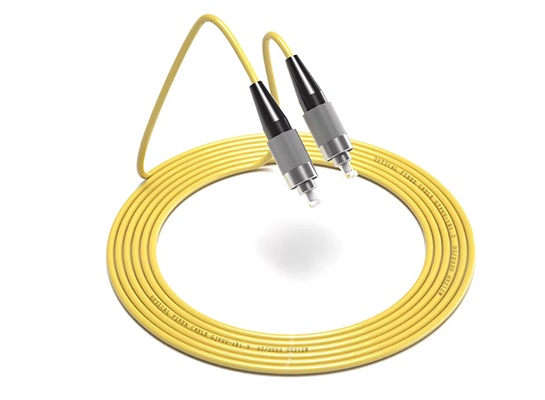

ANAT offers ultra physical contact (UPC) polish on the LC,SC, FC,ST ,E2000 and MU
connector styles.

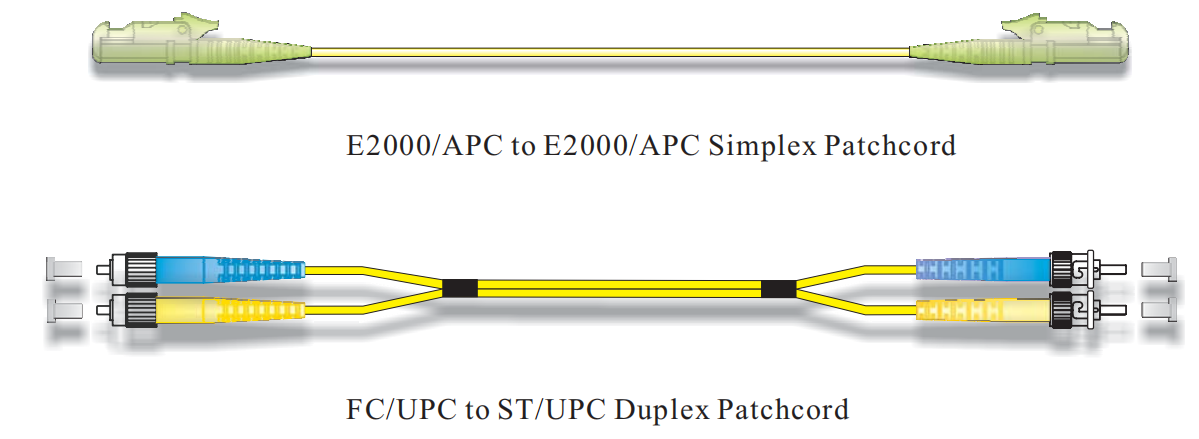

Angled polish is available on the LC connector FC connector ,E2000 connector
and the SC connector styles. Angled polish should be used in applications that require
better control of return loss. ANAT has tight tolerances regarding the rotation of the
ferrule to maintain low insertion loss values
Model:
Fiber Patch Cord
Inquiry
Optical Transceivers
DAC/AOC Cable
Fiber to Ethernet
OLT
ONU/ONT
Accessory

Features

  • Low insertion loss

  • High return loss

  • Excellent mechanical endurance

  • High credibility and stability

  • Good repeatability and exchangeability

Applications

  • Fiber optic communication networks

  • Optical access network

  • Data processing networks

  • Premise installations

Specification

ItemParameters
Connector TypeFC, SC, LC, ST, MU, MTRJ, MPO, E2000
Fiber TypeSM (G.652D/G.657A), MM (OM1/OM2/OM3/OM4)
Ferrule End-facePC, UPC, APC
Insertion LossPC ≤0.3dB, UPC ≤0.2dB, APC ≤0.3dB, PC ≤0.2dB
Return LossPC ≥45dB, UPC ≥50dB, APC ≥60dB, PC ≥35dB
Exchangeability≤0.2dB
Repeatability≤0.1dB (1000 times)
Durability>1000 times
Operating Temperature-40°C ~ +85°C

Fiber Optical Performance

Fiber TypeWavelengthMin. BandwidthDistanceAttenuation
62.5/125850/1300nm200/500 MHz/Km@100Mbps 2km, @1Gig 220m3.0/1.0dB/km
50/125850/1300nm500/500 MHz/Km@100Mbps 2km, @1Gig 500m3.0/1.0dB/km
50/125 10Gig Optimized850/1300nm2000/500 MHz/Km@100Gig typical 300m by Vesel Typical 300m 850nm3.0/1.0dB/km
9/125 (SM)1310/1550nmApprox 100 TerahertzUp to 100km Varies by Transceiver0.4/0.3dB/km
