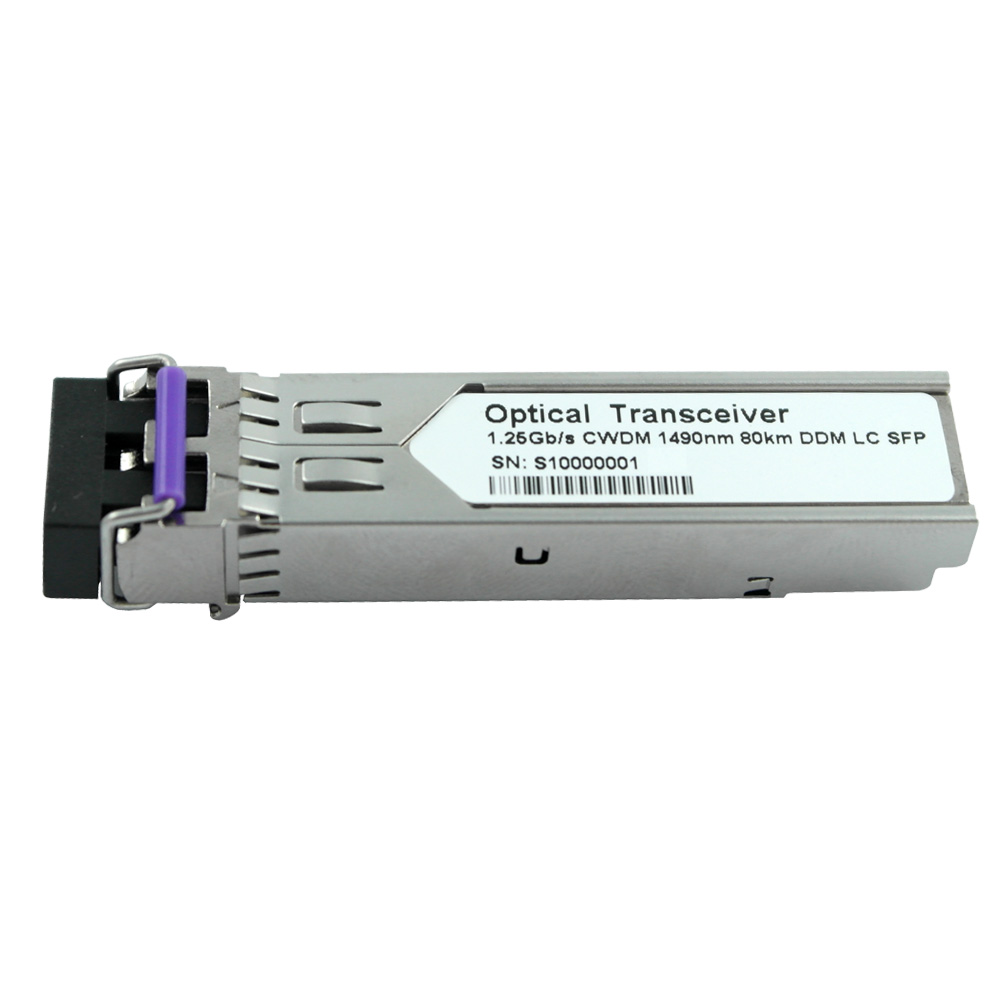

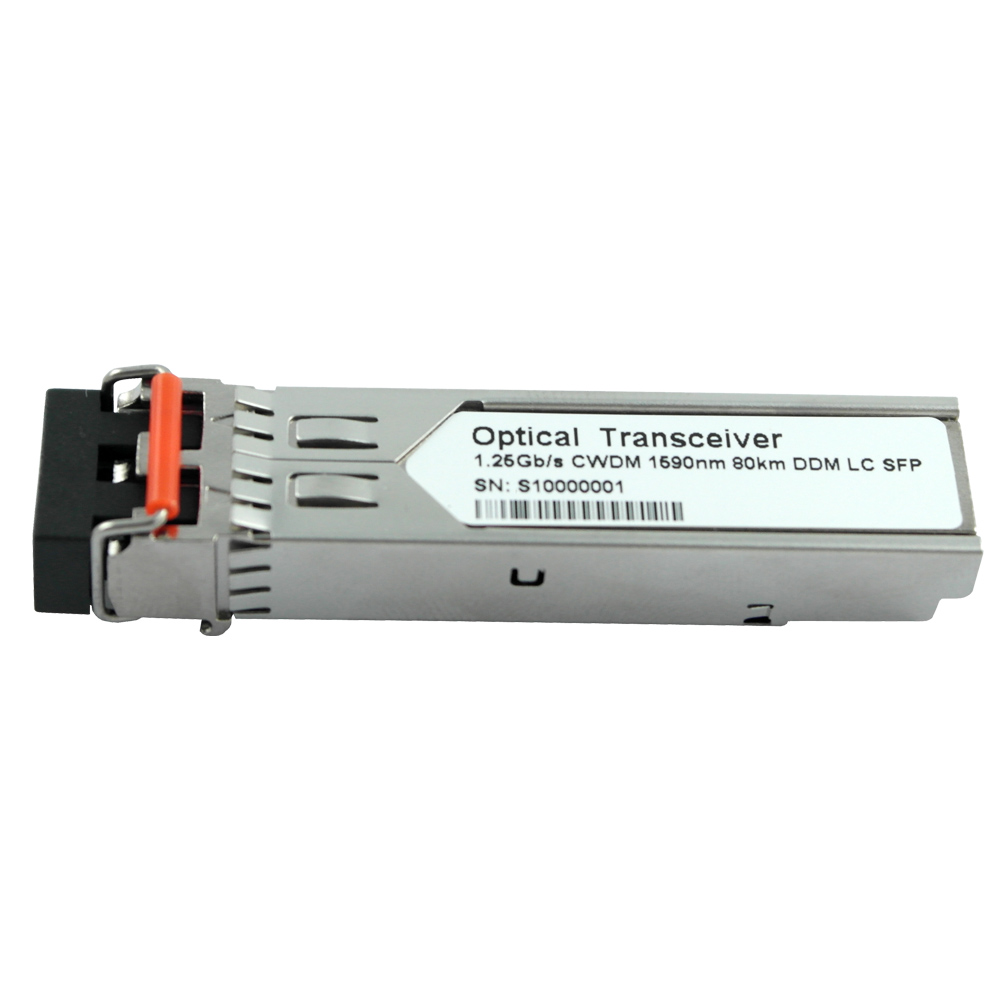

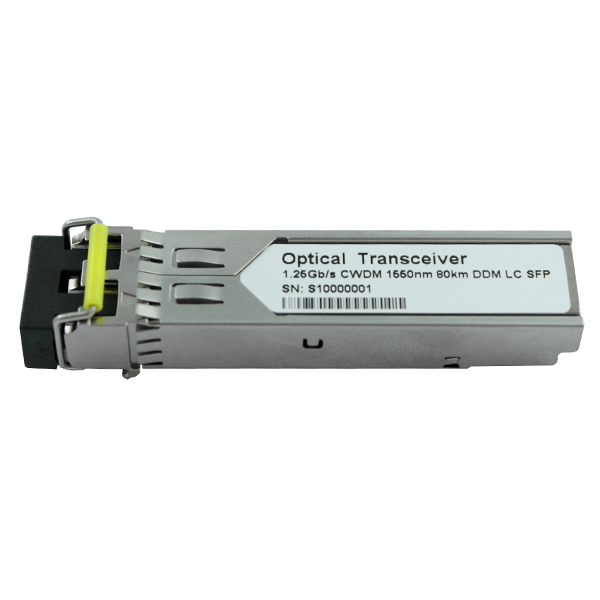

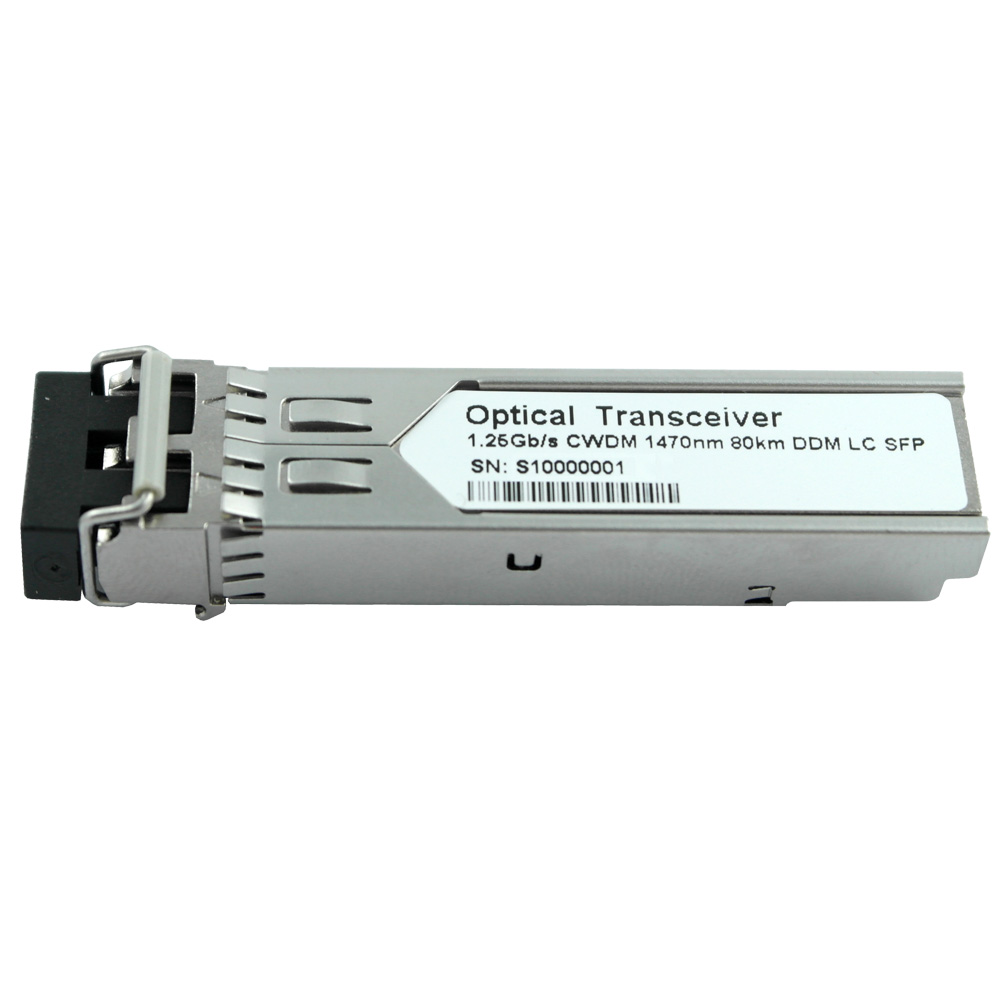

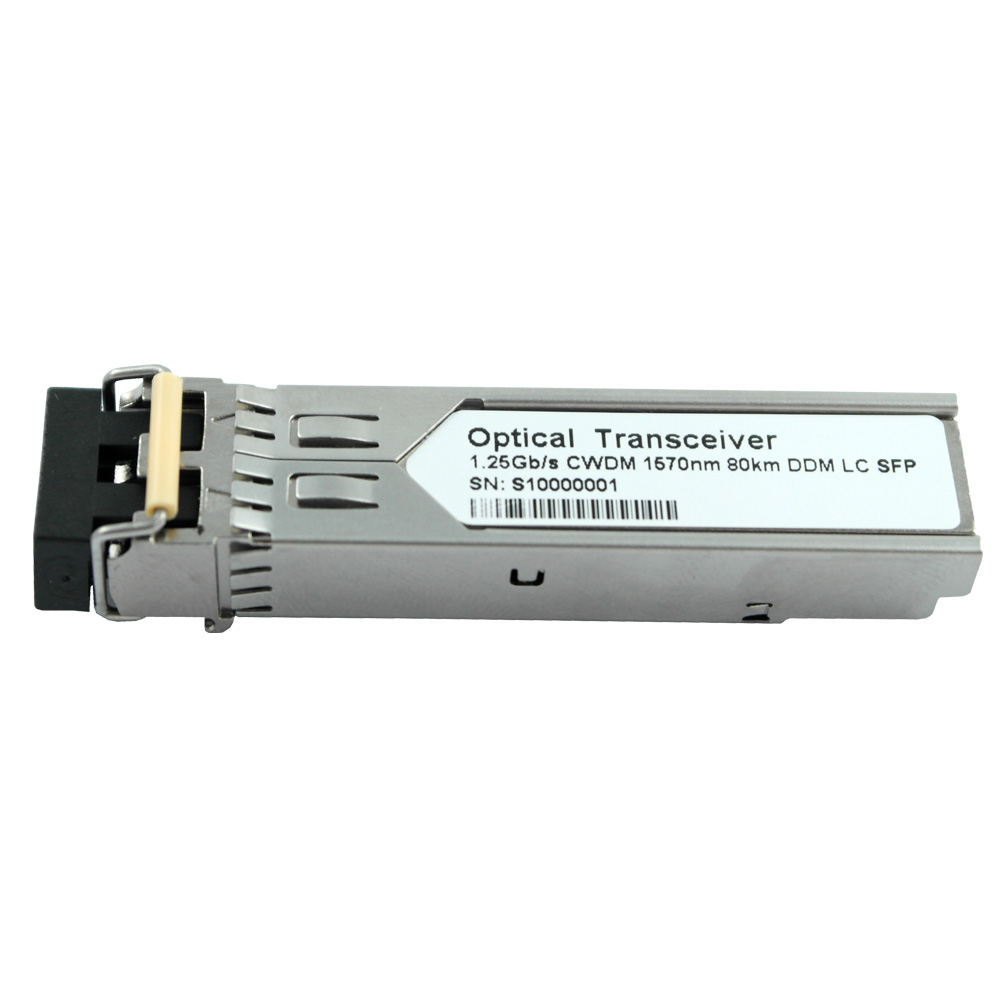

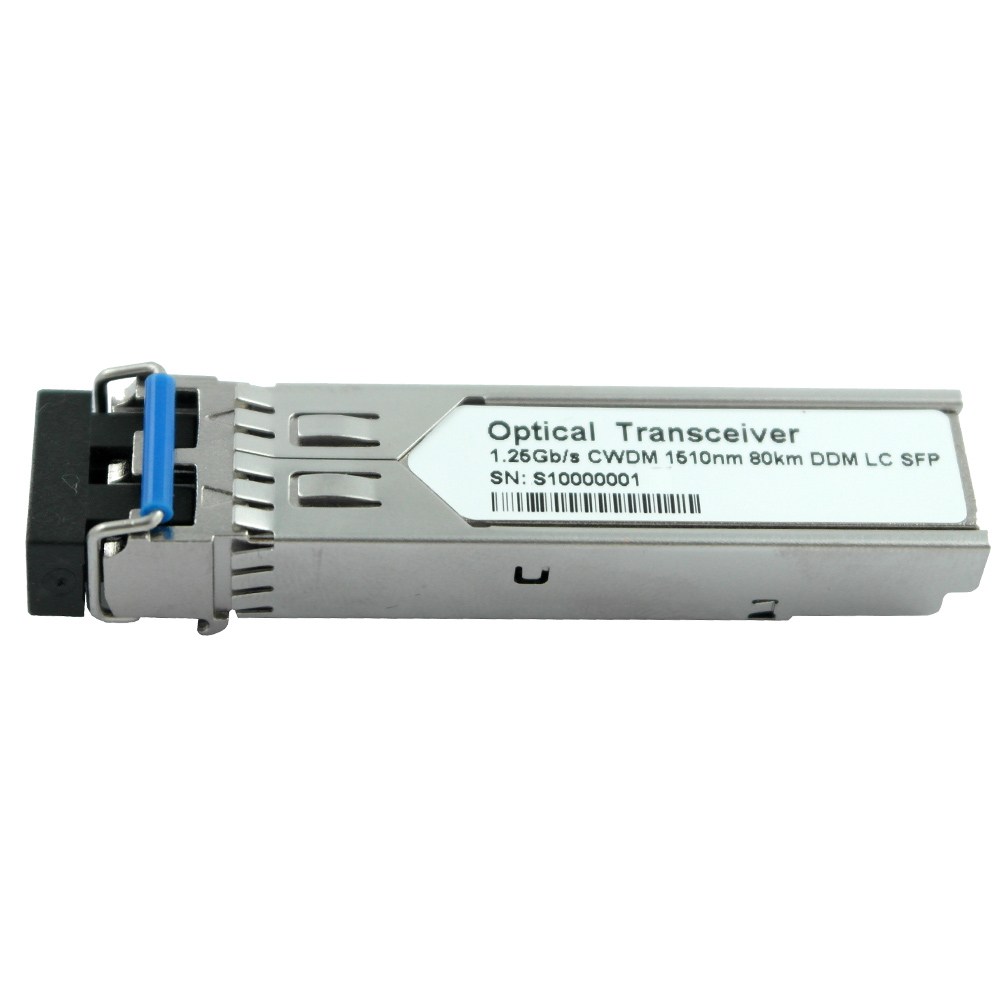

1.25G/2.5G CWDM SFP

1.25G/2.5G CWDM SFP transceiver module with 18 wavelengths 1270–1610nm, transmission up to 120km, DDM optional, dual LC, SFP MSA & RoHS compliant for telecom and data center.

Model:

1.25G/2.5G CWDM SFP Module 40~120KM

Inquiry

Optical Transceivers

10G SFP+ Transceiver

SFP Transceiver

40G QSFP Transceiver

100G QSFP28 Transceiver

16/25/32G Transceiver

200/400/800G Transceiver

PON SFP

1*9 Transceiver

DAC/AOC Cable

DAC-Direct Attach Cable

AOC-Active Optical Cable

Fiber Converter

Fiber Media Converter

Fiber Switch

Industrial Fiber Switch

OLT

ONU/ONT

1.25G/2.5G XPON STICK

Accessory

Features

Hot-pluggable SFP package
Dual LC Connector
Wide distance supported from 40km to 120km
Built-in Digital Diagnostic Monitor functions optional
Metal Enclosure for Lower EMI
Compliant with SFP MSA / SDH/SONET
Compliant with IEEE Std 802.3
18-Wavelength CWDM 1270nm to 1610nm available
Operation Temperature Range 0~70°C or -40~85°C optional
Single +3.3V Power Supply
Low Power Dissipation
RoHS-6 Compliant

Standard Part

155Mbps~2.5Gbps CWDM SFP

P/N	Data Rate	Reach	Wavelength	Rx	Output Power	Sensitivity
PAC-OC3-80Cxxxx	155Mbps	80KM	CWDM DFB	PIN	-5~0dbm	≦-34dbm
PAC-OC12-80Cxxxx	622Mbps	80KM	CWDM DFB	PIN	0~5dbm	≦-28dbm
PAC-1G-40Cxxxx	1.25Gbps	40KM	CWDM DFB	PIN	-5~0dbm	≦-24dbm
PAC-1G-80Cxxxx	1.25Gbps	80KM	CWDM DFB	PIN	0~4dbm	≦-24dbm
PAC-1G-120Cxxxx	1.25Gbps	120KM	CWDM DFB	APD	0~4dbm	≦-32dbm
PAC-2.5G-80Cxxxx	2.5Gbps	80KM	CWDM DFB	PIN	-2~-3dbm	≦-18dbm
PAC-2.5G-120Cxxxx	2.5Gbps	120KM	CWDM DFB	APD	0~5dbm	≦-28dbm

Note: xxxx defines CWDM central wavelength of 1270~1610nm range, such as xxxx=1270nm,1290nm,…1610nm.

18 Standard CWDM Wavelengths:

1270nm / 1290nm / 1310nm / 1330nm / 1350nm / 1370nm / 1390nm / 1410nm / 1430nm / 1450nm / 1470nm / 1490nm / 1510nm / 1530nm / 1550nm / 1570nm / 1590nm / 1610nm
