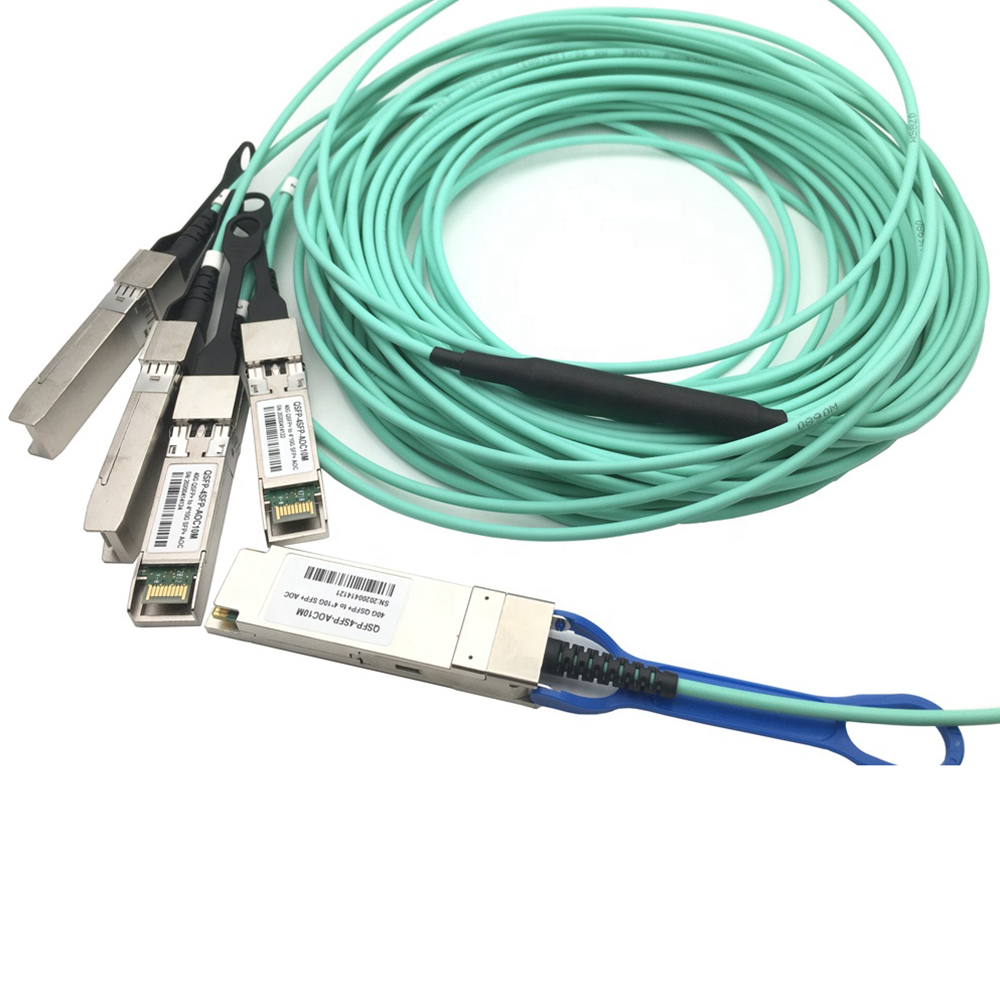

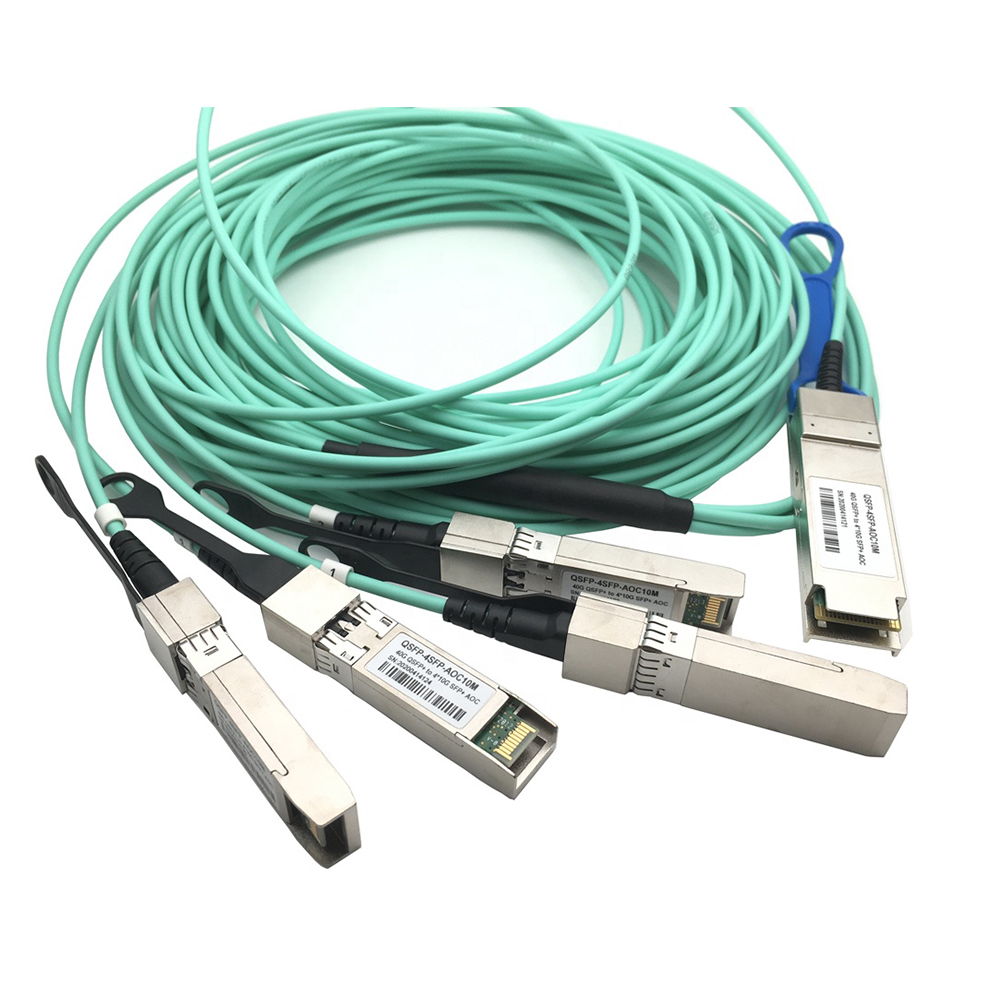

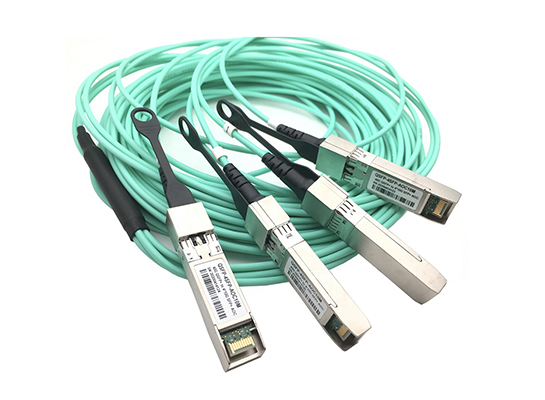

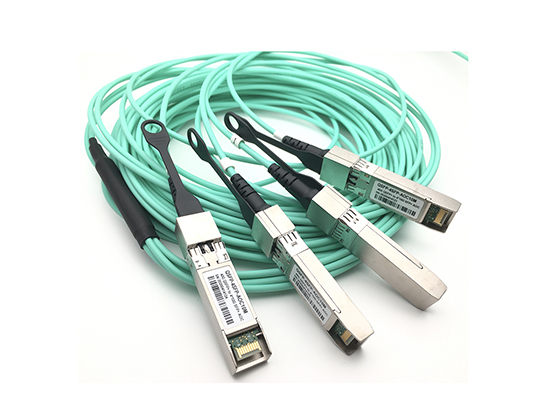

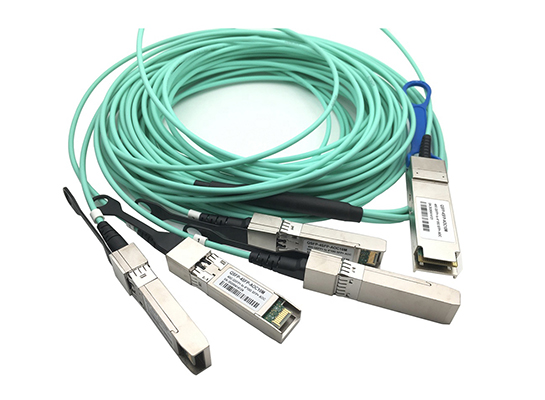

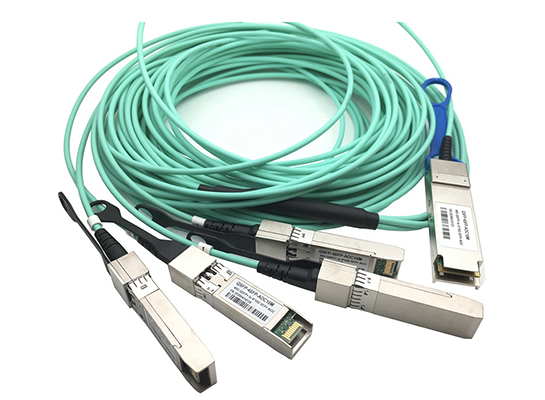

40Gbps QSFP+ to 4*SFP+ Active Optical Cable

Applications

• Low-latency and high-speed interconnections for high performance computing (HPC)

• 40G Ethernet SR4

• Other high-throughput data transmission network

• Storage area Network (SAN)

Features

• QSFP+ to 4*SFP+ module

• QSFP+ Maximum Aggregate Data Rate 40Gbps

• 4*SFP+ Maximum Aggregate Data Rate 4*10Gbps

• QDR, DDR, SDR (Infiniband)

• Bi-directional parallel link

• 10Gb/s per lane, X4 channels

• Up to 100m

• Low profile connectors

• Low power consumption

• Bundle multi-mode fiber array

• 850nm VCSEL four array

• PIN diode four array

• Hot-Pluggable

• I2C management interface

• From 0 to 70 degree case temperature

• 3.3V power supply voltage

• Electrical 38-pin connector

Description

QSFP+ to 4x SFP+ AOC Cable series are active optical cables (AOC) that allows bi-directional 40Gbps to 10Gbps transmission suitable for high performance computing (HPC) clustering and other high-throughput data network, with advantages such as high speed, high density, low latency, low power consumption and light weight.
