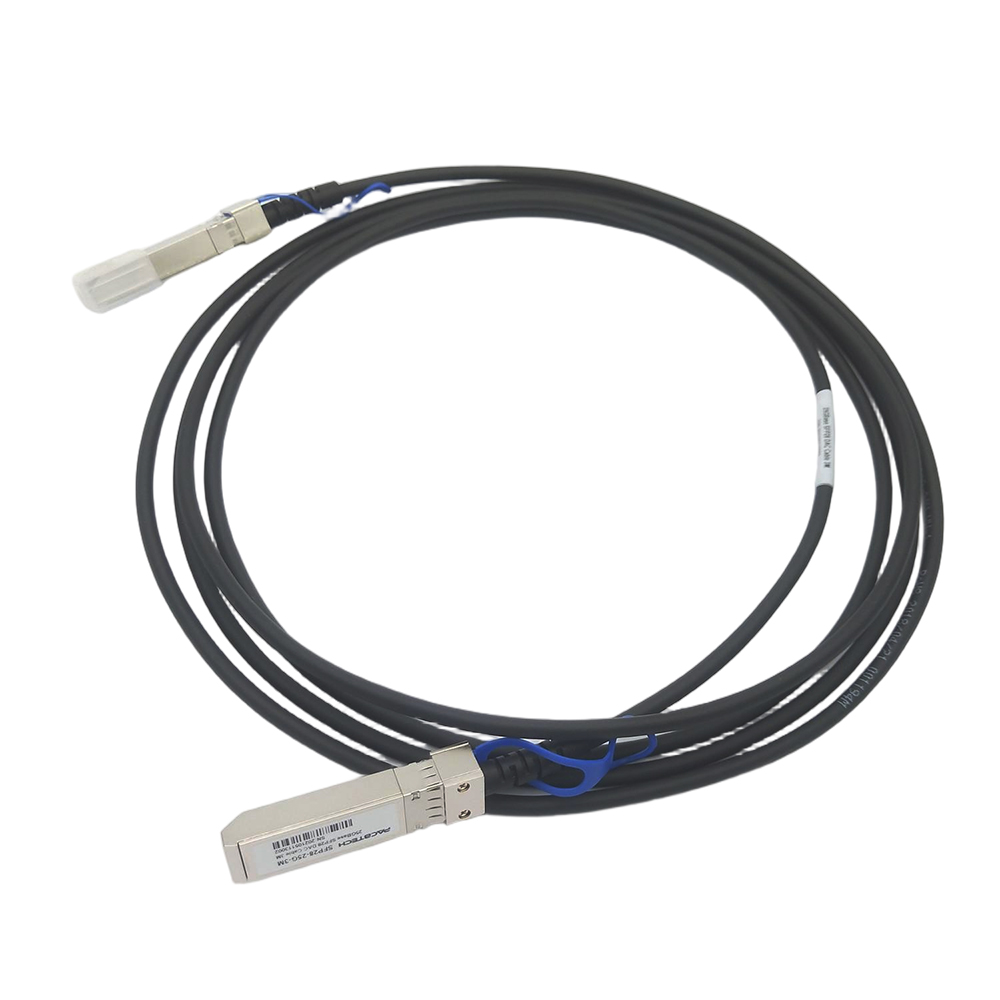

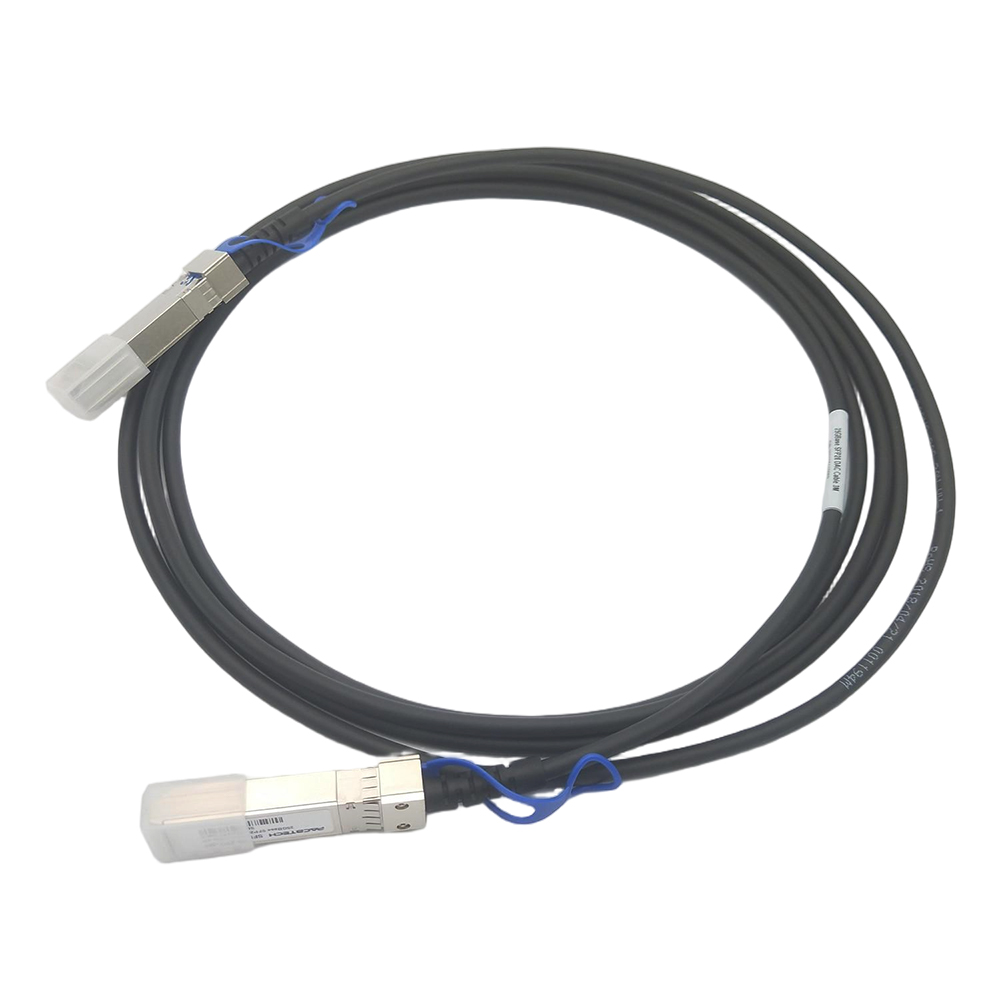

25G SFP28 Direct Attach Cable (DAC)

Description

SFP28 Direct Attach Cables are compliant with SFF-8432 and SFF-8402 specifications. Various choices of wire gauge are available from 30 to 26 AWG with various choices of cable length (up to 5m).

Features

• Up to 25.78125 Gbps data rate

• Up to 5 meter transmission

• Hot-pluggable SFP 20PIN footprint

• Improved Pluggable Form Factor (IPF) compliant for enhanced EMI/EMC performance

• Compatible to SFP28 MSA

• Compatible to SFF-8402 and SFF-8432

• Temperature Range: 0~70 °C

• RoHS Compatible

Benefits

• Cost-effective copper solution

• Lowest total system power solution

• Lowest total system EMI solution

• Optimized design for Signal Integrity

Applications

• 25G Ethernet

Product Description

The SFP28 passive cable assemblies are high performance, cost effective I/O solutions for 25G Ethernet. SFP28 copper cables allow hardware manufactures to achieve high port density, configurability and utilization at a very low cost and reduced power budget.

Standard Part
