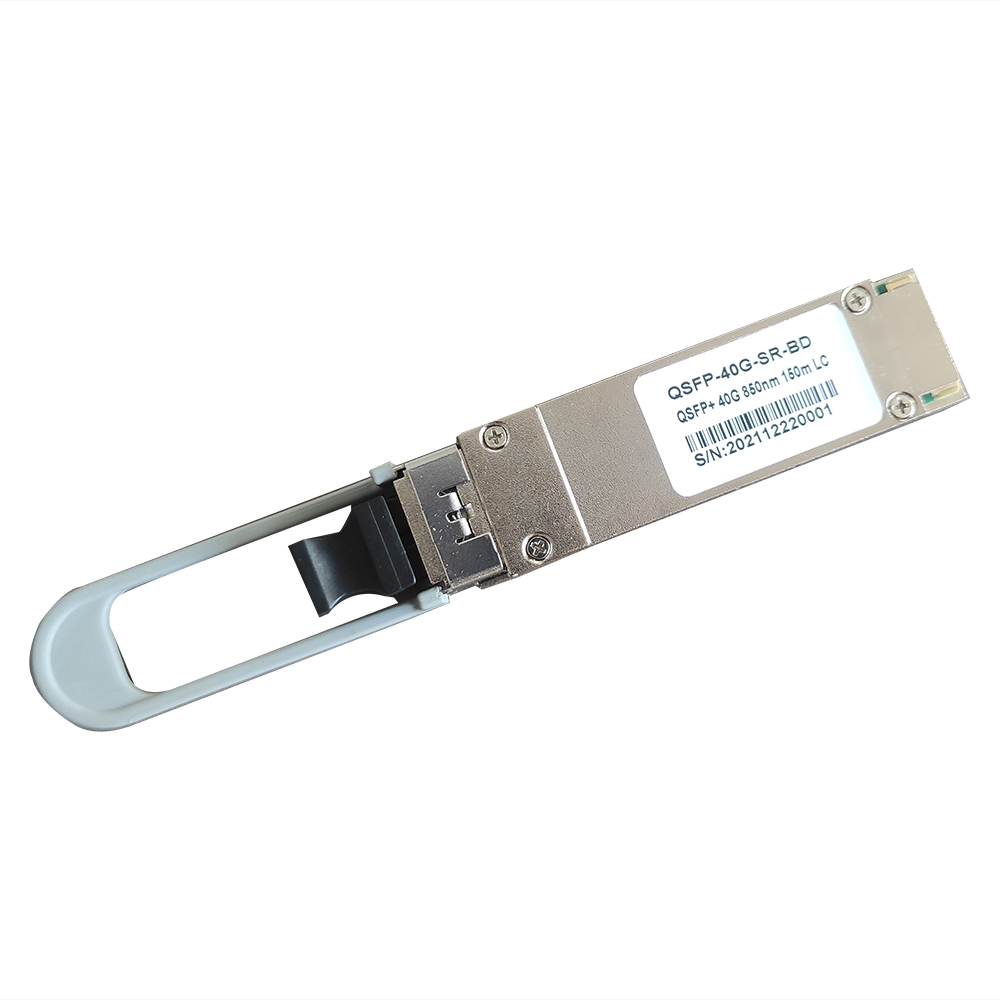

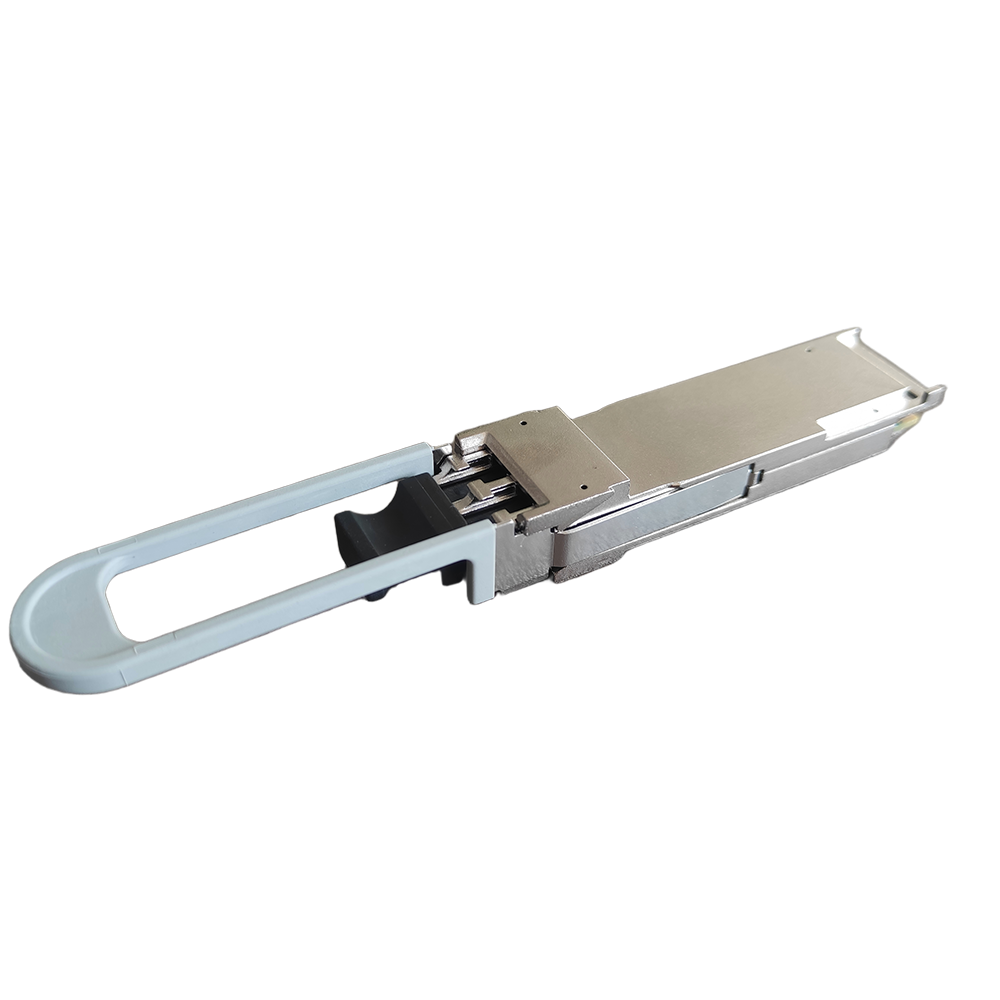

40G QSFP SRBD
40G QSFP SRBD BiDi transceiver, duplex LC, 850/900nm, 150m OM4 MMF, low power, DDM, RoHS compliant for data center 40G Ethernet
Model:
QSFP 40GBASE SR Duplex BIDI 850nm 100M DDM
Inquiry
Optical Transceivers
DAC/AOC Cable
Fiber to Ethernet Converter
OLT
ONU/ONT
Accessory
QSFP 40GBASE SR Duplex BIDI 850nm 100M DDM Transceiver

Features

  • Compliant to the 40GbE XLPPI electrical specification per IEEE 802.3ba-2010

  • Compliant to QSFP+ SFF-8436 Specification

  • Power Level 4: Max Power 3.5W

  • Class 1M Eye Safety

  • High port density: 21mm horizontal port pitch

  • Operates at 10.3125 Gbps per electrical channel with 64b/66b encoded data

  • Links up to 100m using OM3 and 150m using OM4 optical fiber

  • +10 to +70°C case temperature operating range

  • Proven High Reliability technology: VCSEL transmitters and PIN receiver

  • Hot pluggable transceiver for ease of installation and servicing

  • Two Wire Serial (TWS) Management Interface with maskable interrupts for expanded functionality

  • Utilizes a standard LC duplex fiber cable allowing reuse of existing cable infrastructure

Applications

  • 40 Gigabit Ethernet interconnects

  • Datacom/Telecom switch & router connections

  • Data aggregation and backplane applications

  • Proprietary protocol and density applications

Standard Part

P/NData RateReachConnectorWavelengthRxOutput PowerSensitivity
PAC-QSFP-SRBD40Gbps100MMMF LC850nm/910nmPIN-7.5~2.5dBm≤-10dBm
