1*9pin 2.5Gb/s

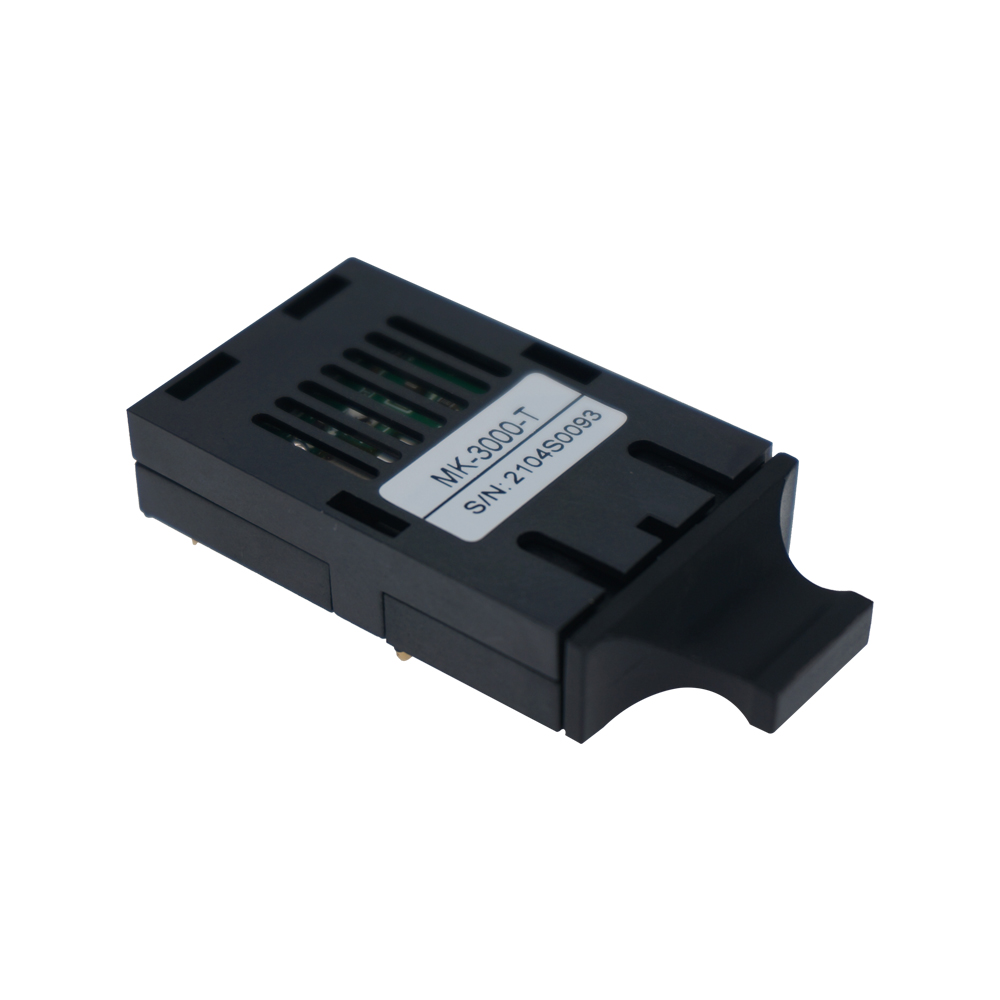

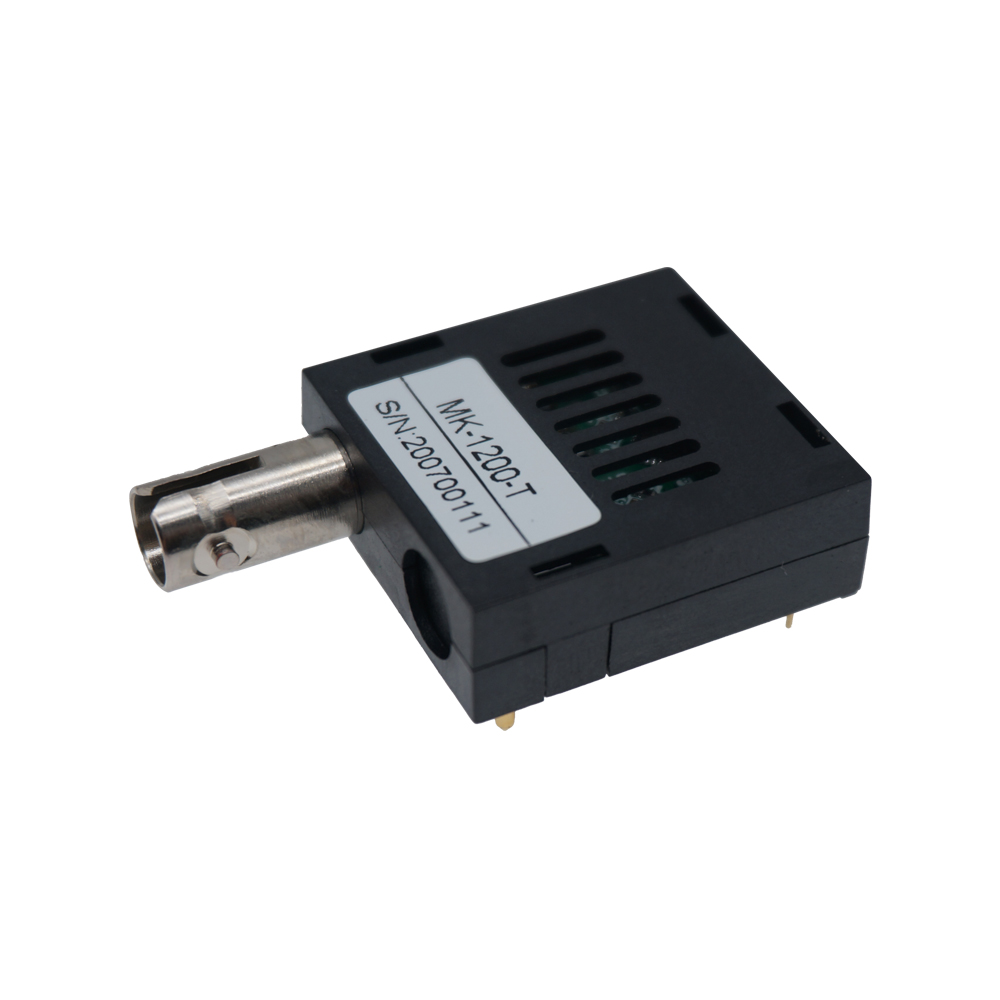

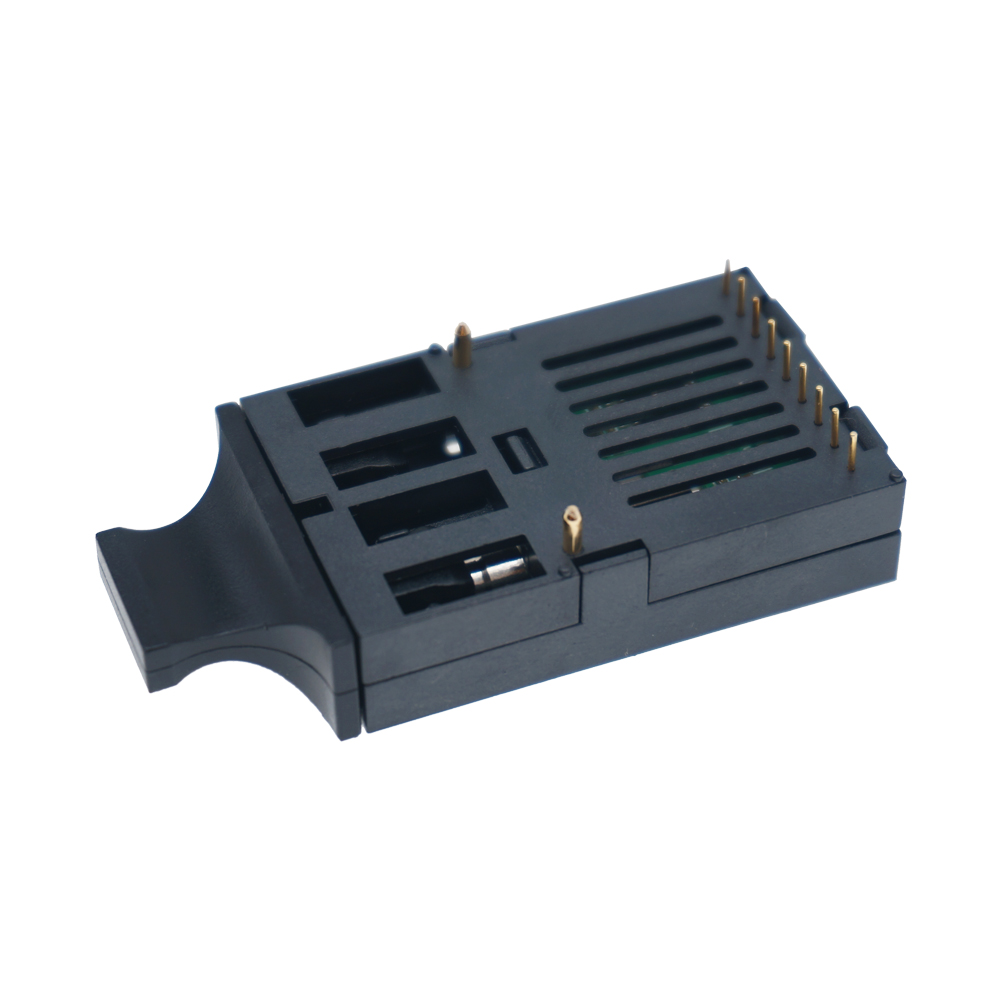

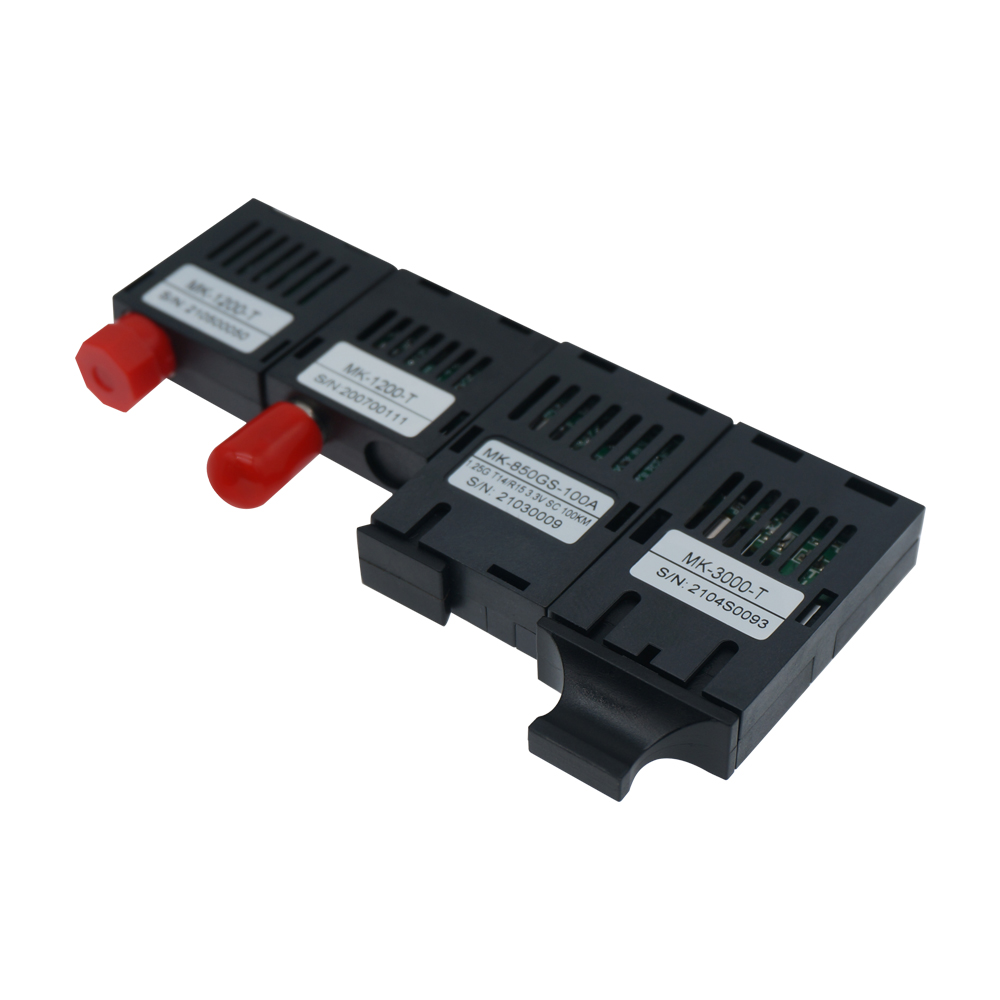

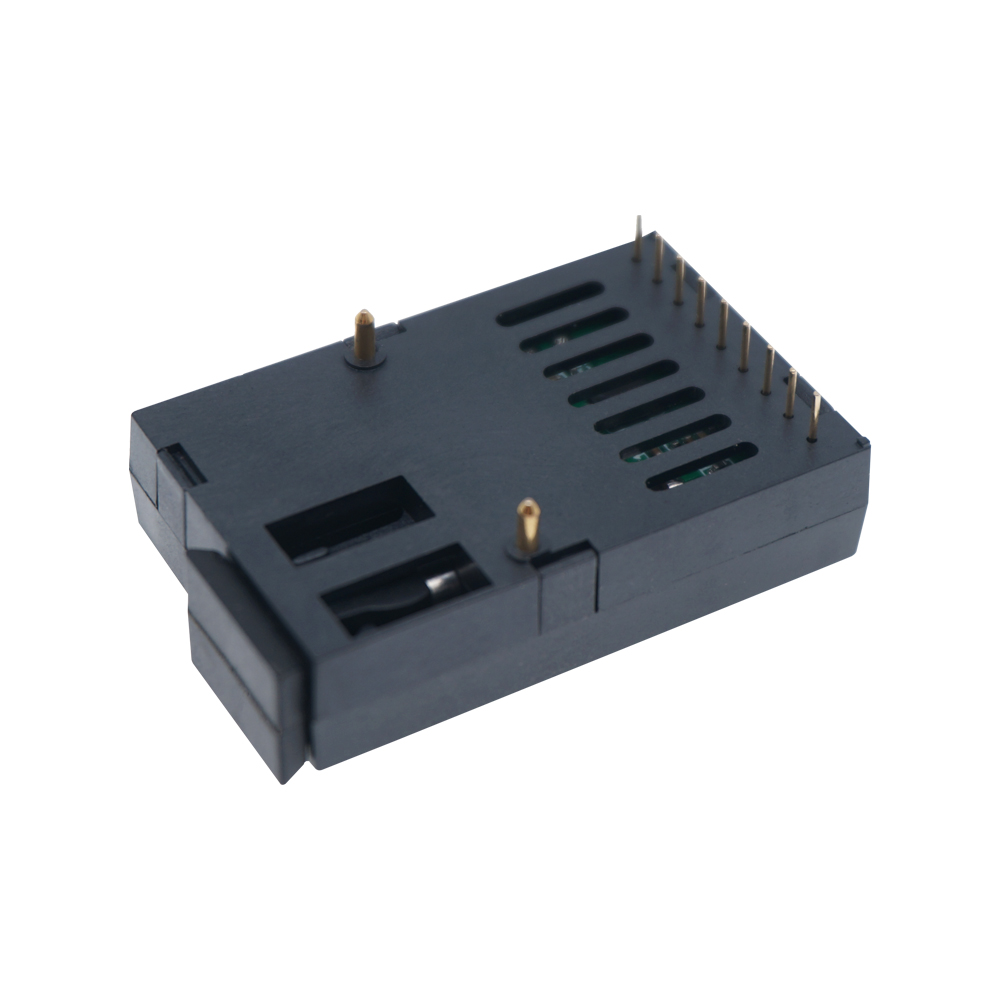

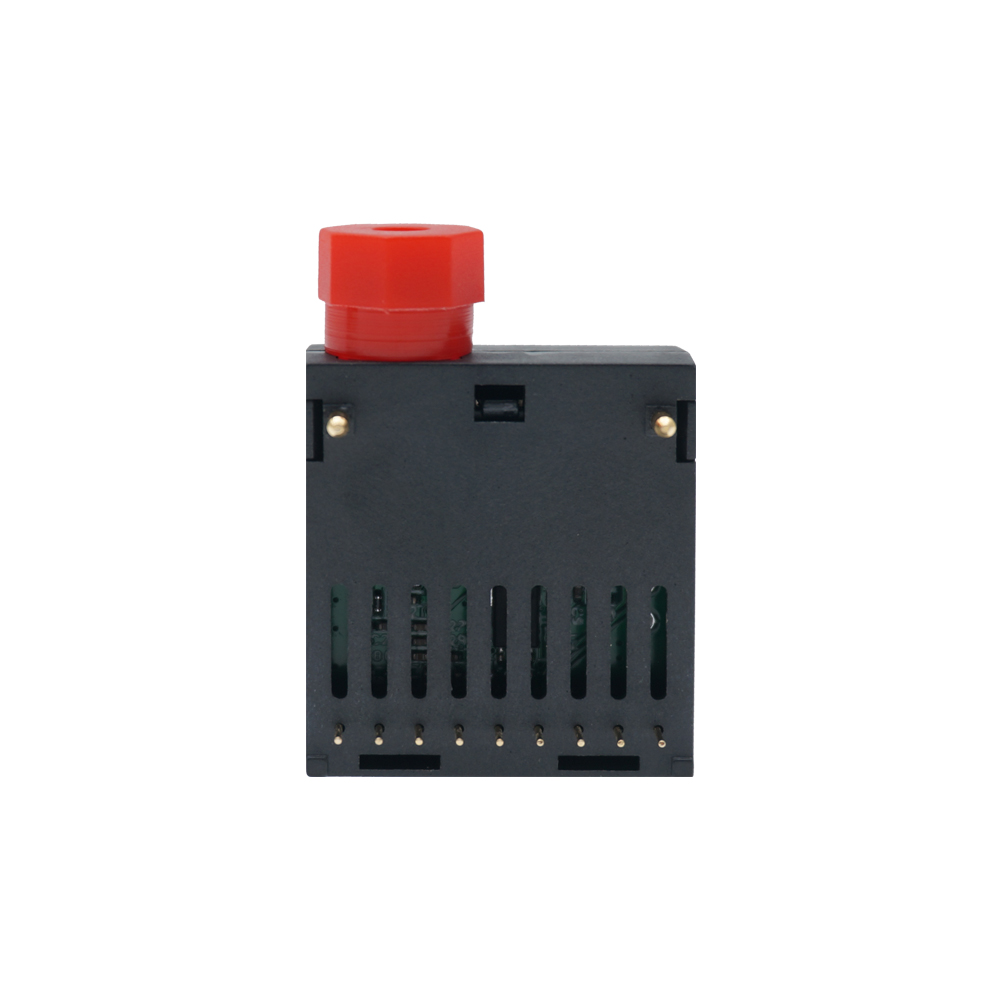

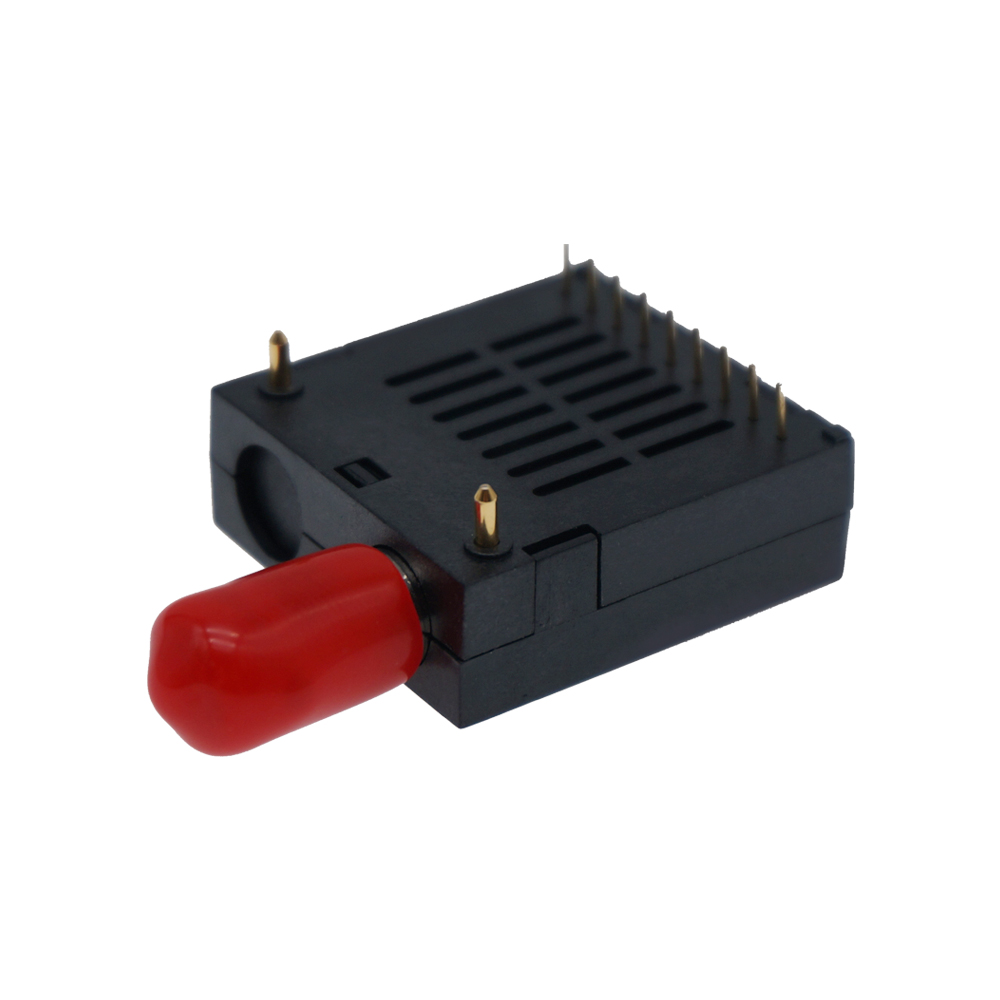

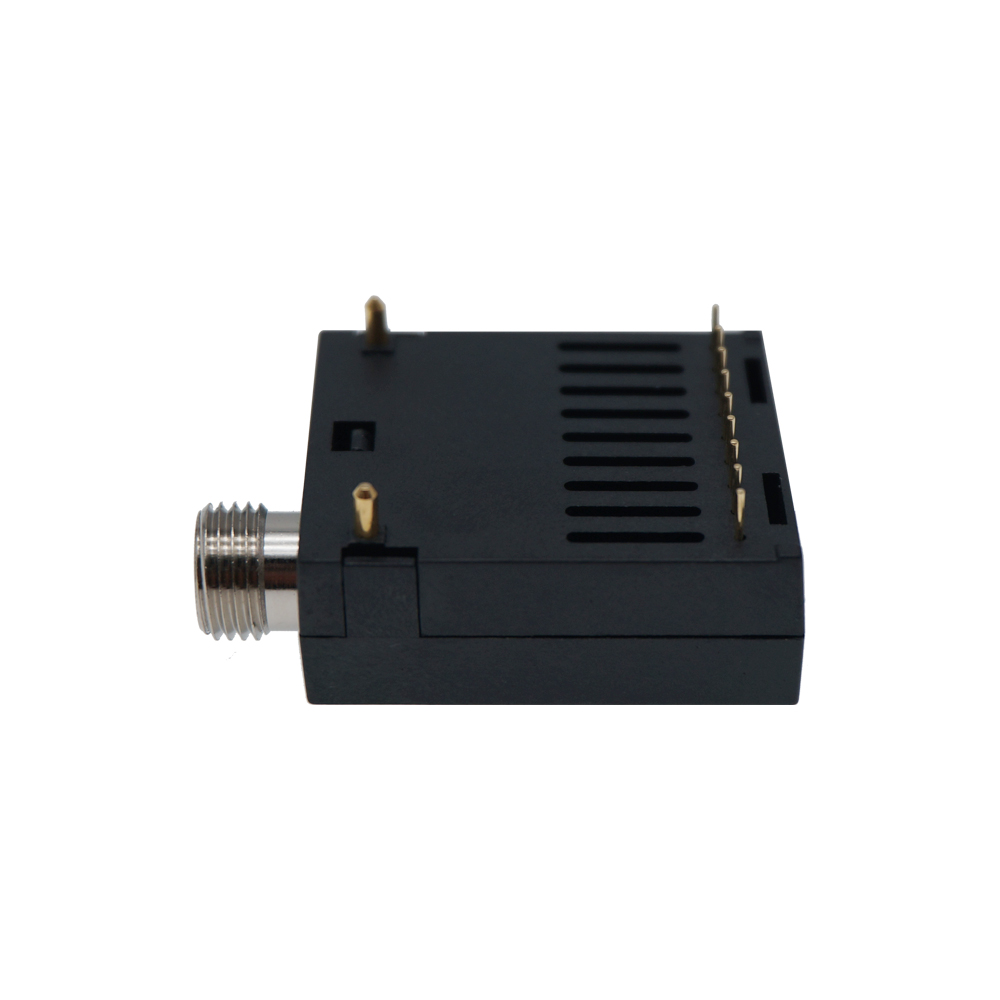

This 1x9 optical transceiver supports both dual fiber and single fiber (BiDi bidirectional) transmission, with wide compatibility of +5V / 3.3V power supply. Adopting standard 1x9 package, it features TTL/CMOS interface, SC/FC/ST connector options, single mode & multimode available, and stable performance for industrial communication, media converters, fiber data transmission and Ethernet equipment. RoHS compliant, low power consumption, high reliability, available in 155Mbps/1.25G/2.5G rates and 2km~120km transmission distance.
Model:

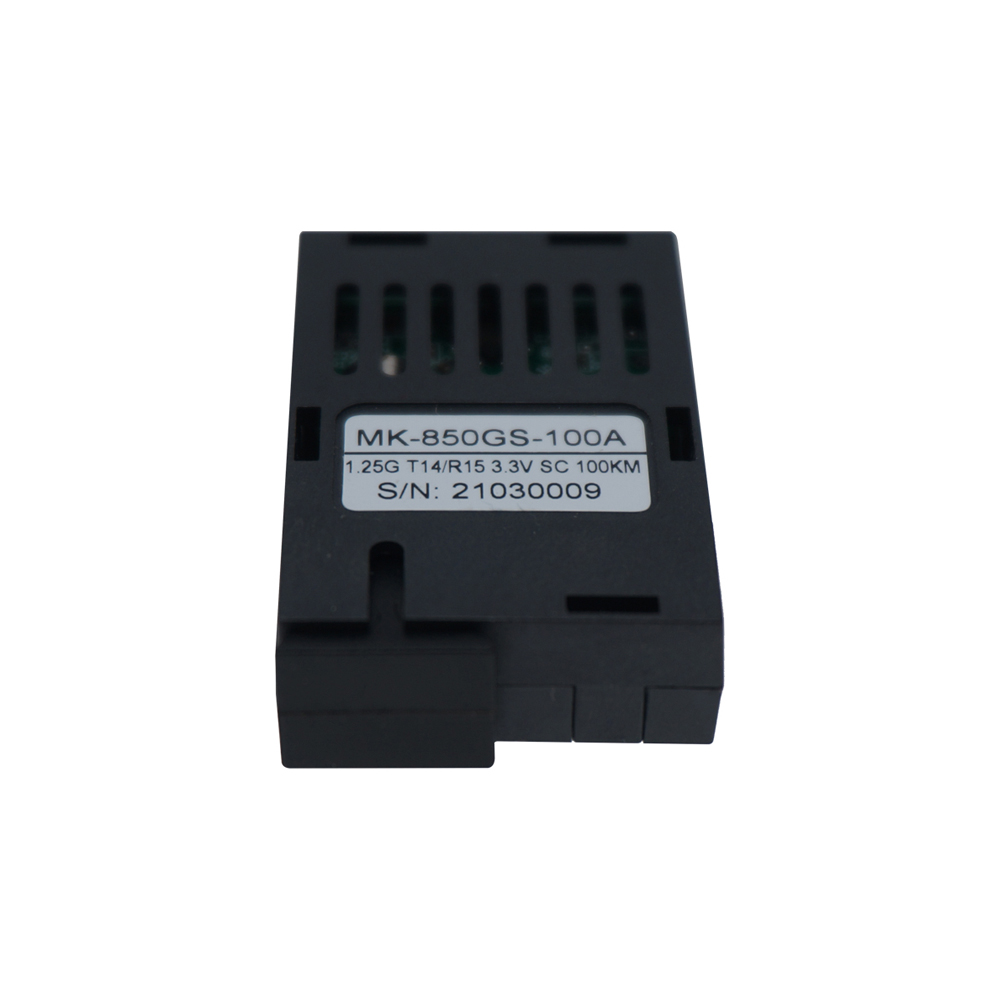

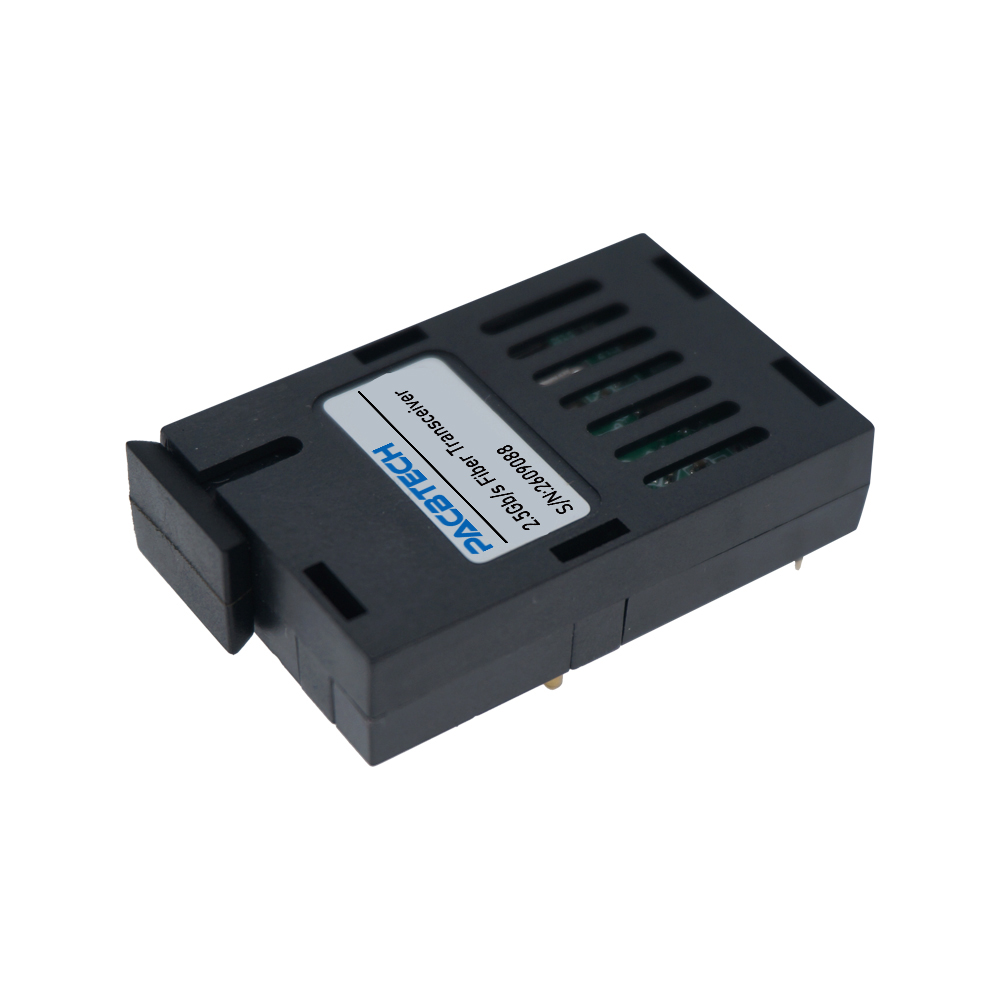

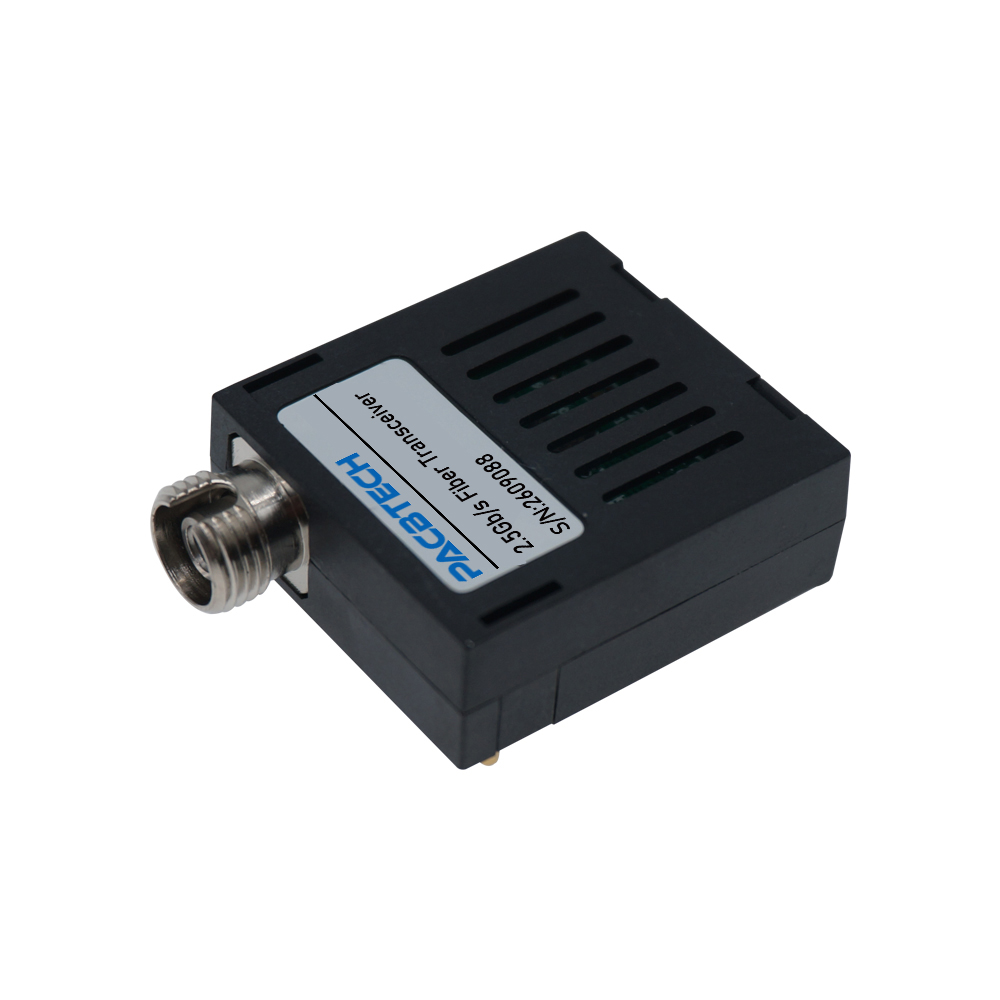

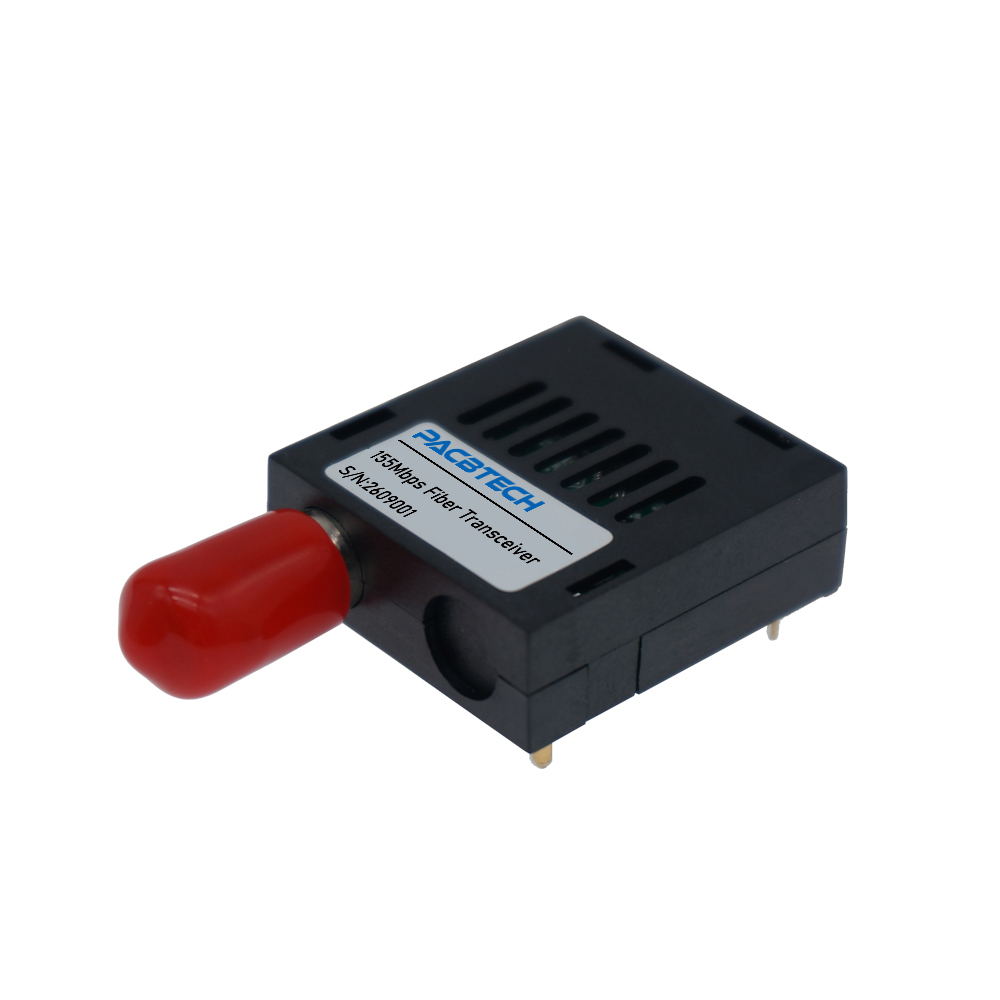

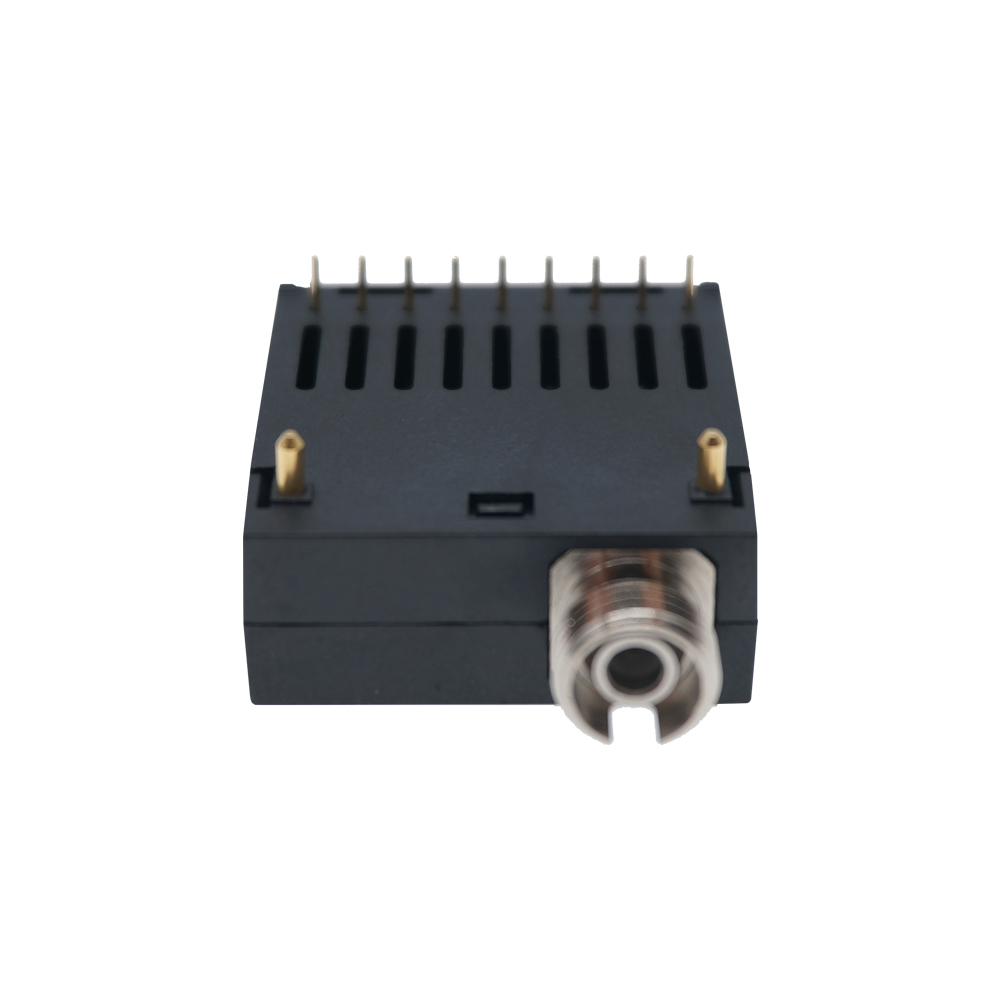

1x9 Optical Transceiver Dual Fiber and Single Fiber + 5V/3.3V

Features

  • Standard +3.3V / +5V Power Supply

  • SC/FC/ST and pigtail optical interface

  • Standard TTL data output with signal detect indication, compatible with CMOS level

  • Standard 1x9 package

  • Super low power consumption, applied to some special requirement

  • Optional transmission bit rate with down to 0bps and up to 10Mbps

Standard Part

Part NumberData RateWavelengthLDPower SupplyTx Power(dBm)Rx SensReach
2.5Gb/s Dual Fiber
PAC-1x92GE-102.5Gbps1310nmFP3.3V≥-9dBm≤-18dBm10km
PAC-1x92GE-202.5Gbps1550nmDFB3.3V≥-7dBm≤-18dBm20km
PAC-1x92GE-402.5Gbps1550nmDFB3.3V≥-3dBm≤-18dBm40km
2.5Gb/s Single Fiber
PAC-1x92GE-10T2.5GbpsT1310/R1550nmFP3.3V≥-8dBm≤-18dBm10km
PAC-1x92GE-10R2.5GbpsT1550/R1310nmDFB3.3V≥-9dBm≤-18dBm10km
PAC-1x92GE-20T2.5GbpsT1490/R1550nmDFB3.3V≥-1dBm≤-27dBm20km
PAC-1x92GE-20R2.5GbpsT1550/R1490nmDFB3.3V≥-1dBm≤-27dBm20km
PAC-1x92GE-40T2.5GbpsT1490/R1550nmDFB3.3V≥-1dBm≤-27dBm40km
PAC-1x92GE-40R2.5GbpsT1550/R1490nmDFB3.3V≥-1dBm≤-27dBm40km
