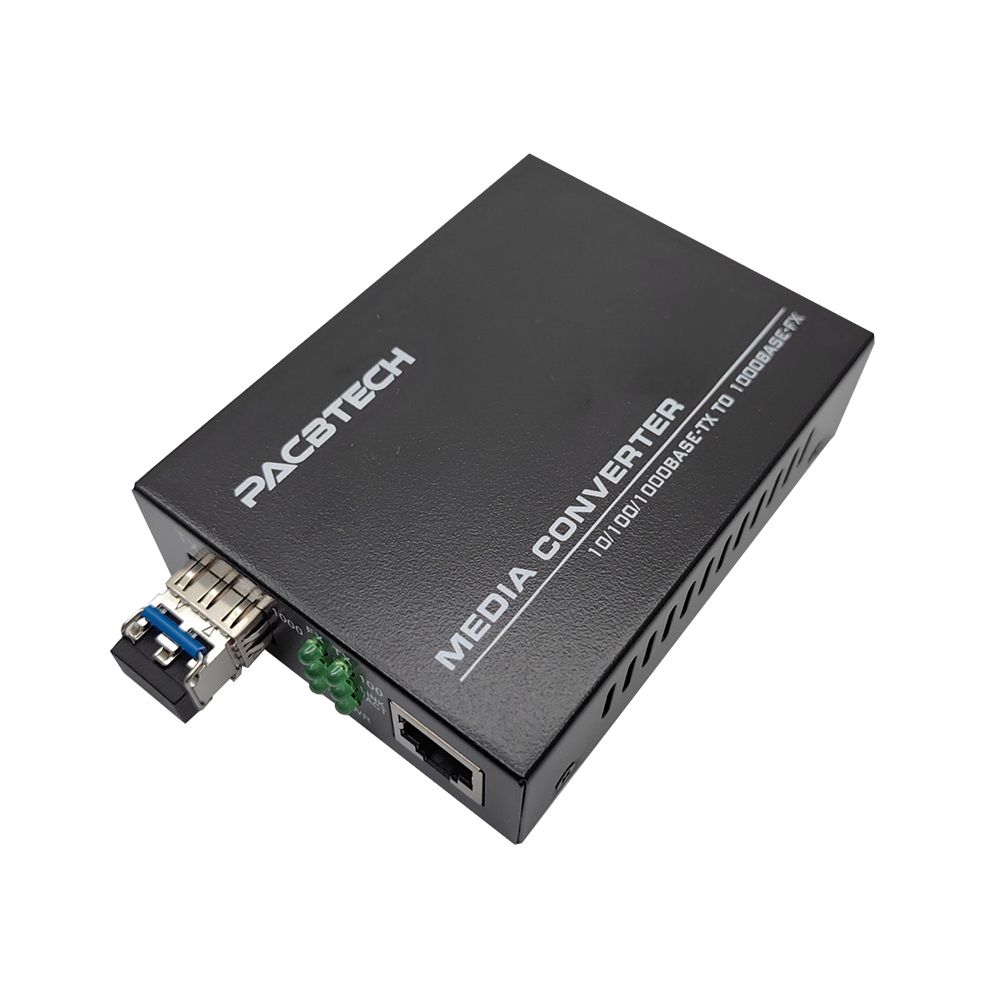

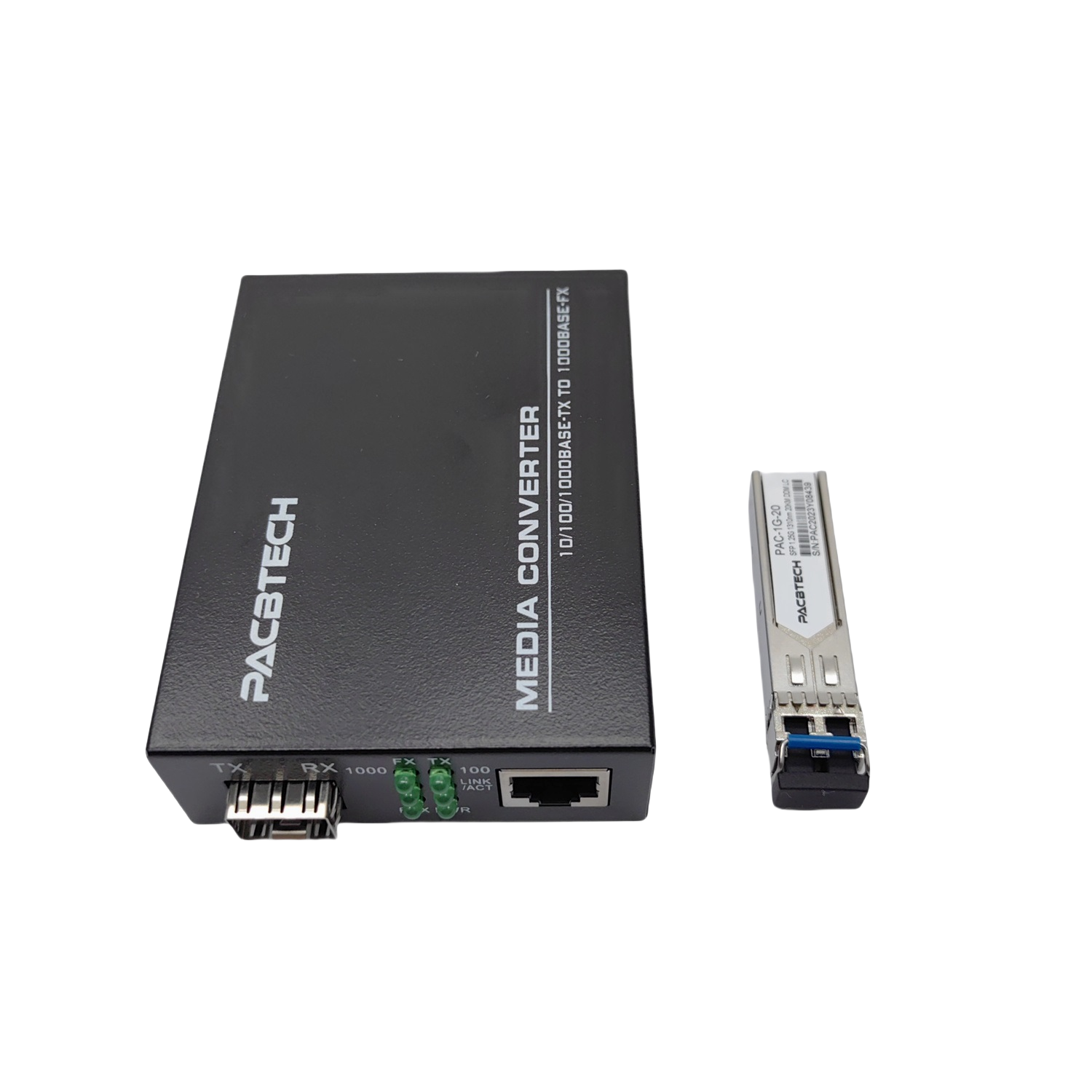

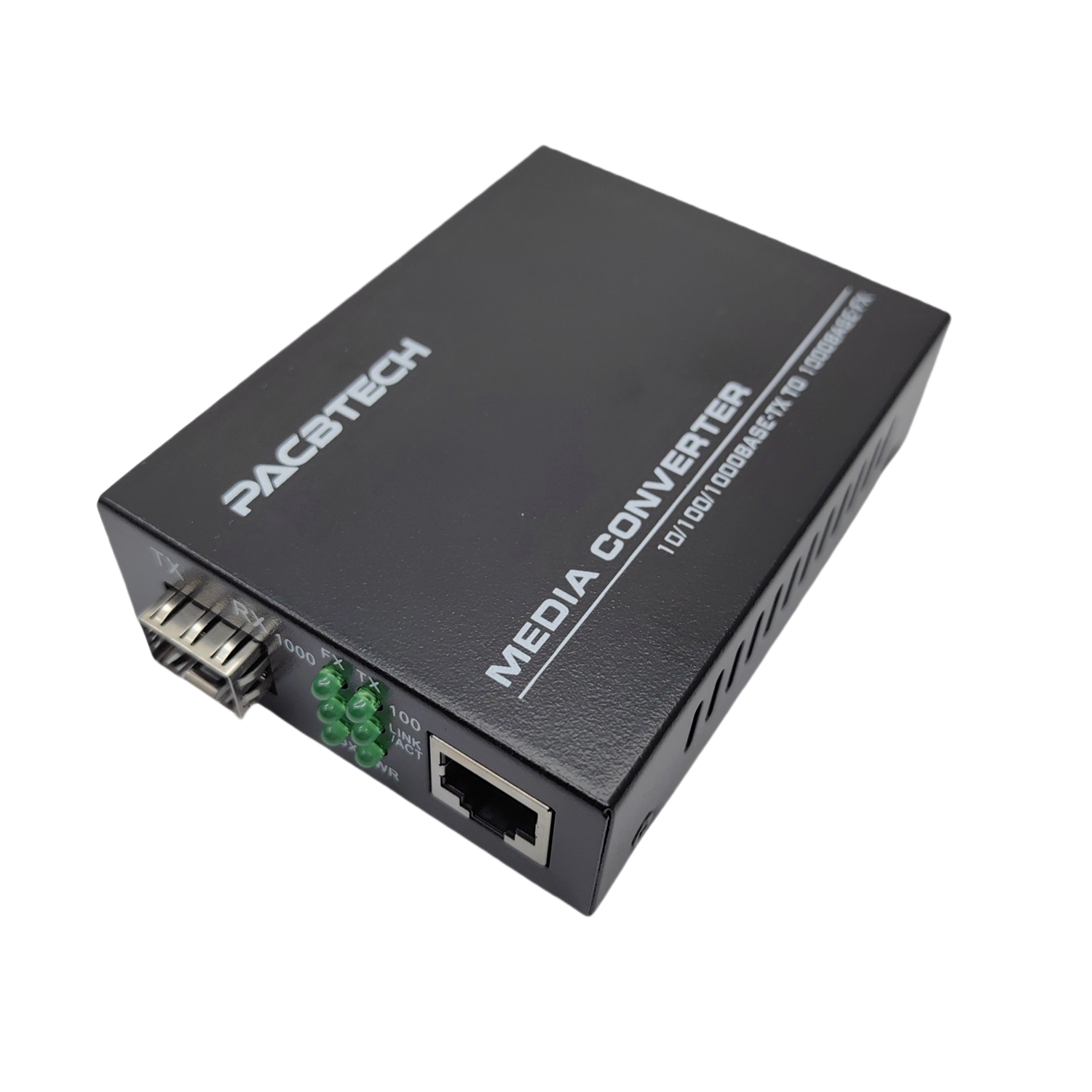

SFP Fiber Media Converter

The non-managed media converters, which give you economic solutions for media conversion between fiber and copper Ethernet.

Features

• In conformity to IEEE802.3 10base-T, IEEE802.3u 100 base-TX/FX, IEEE802.3ab 1000 base-T, IEEE802.3z, 1000base-SX/LX, IEEE802.1a, IEEE802.1PQ0S, IEEE802.1d Spanning Tree.

• Hot Plug-gable & Wall-Mountable.

• Stable performance more than 50 thousand hours with fault-free.

• Unique IC solution applied.

• Supports 10/100Mbps and 10/100/1000M full/half duplex, easy upgrades.

• Auto MDI/MDI-X.

• Auto Negotiation.

• Support flow control.

• Concentrated into EF16-D220 (16 slot for media converter cards) or EF14-D220 (14 slot for media converter standalone type) 2U rack-mount chassis.

• In conformity with safety code of FCC, CE and RoHS.

Specifications

Optical Interface

Connector: SFP Slot
Data Rate: 100Mbps, 1000Mbps
Duplex Mode: Full duplex

UTP Interface

Connector: RJ45
Data Rate: 10/100Mbps, 10/100/1000Mbps
Duplex Mode: Half/full duplex
Cable: Cat5, Cat6

Power Input

Adapter Type: DC5V
Power Built-in Type: AC100~240V
Power Consumption: ＜3W

Weight

Adapter Type: 0.39kg
Power Built-in Type: 0.67kg

Dimensions

Adapter Type: 94*70.5*26.5cm
Power Built-in Type: 140.5*111*30cm

Temperature: 0~50℃ Operating; -40~70℃ Storage
Humidity: 5~95% (no condensing)
MTBF: ≥100000h
Certification: CE, FCC, RoHS

Application

• Extend your Ethernet connection up to 0~120km away using fiber optics

• Creates an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber optic networks/backbones

• Converts Ethernet to fiber, fiber to copper/Ethernet, ensuring optimum network scalability for connecting two or more Ethernet network nodes (e.g. connecting two buildings on the same campus)

• Designed to provide high-speed bandwidth for demanding large scale work groups
