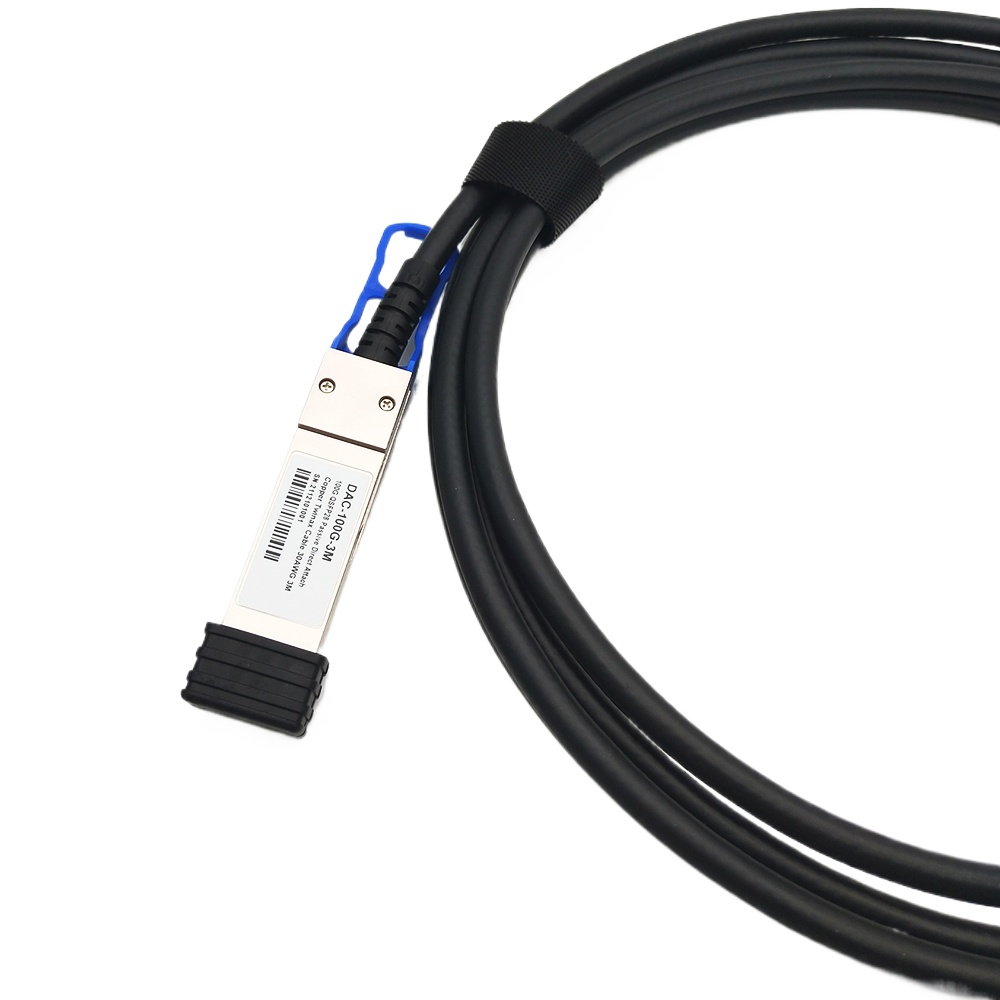

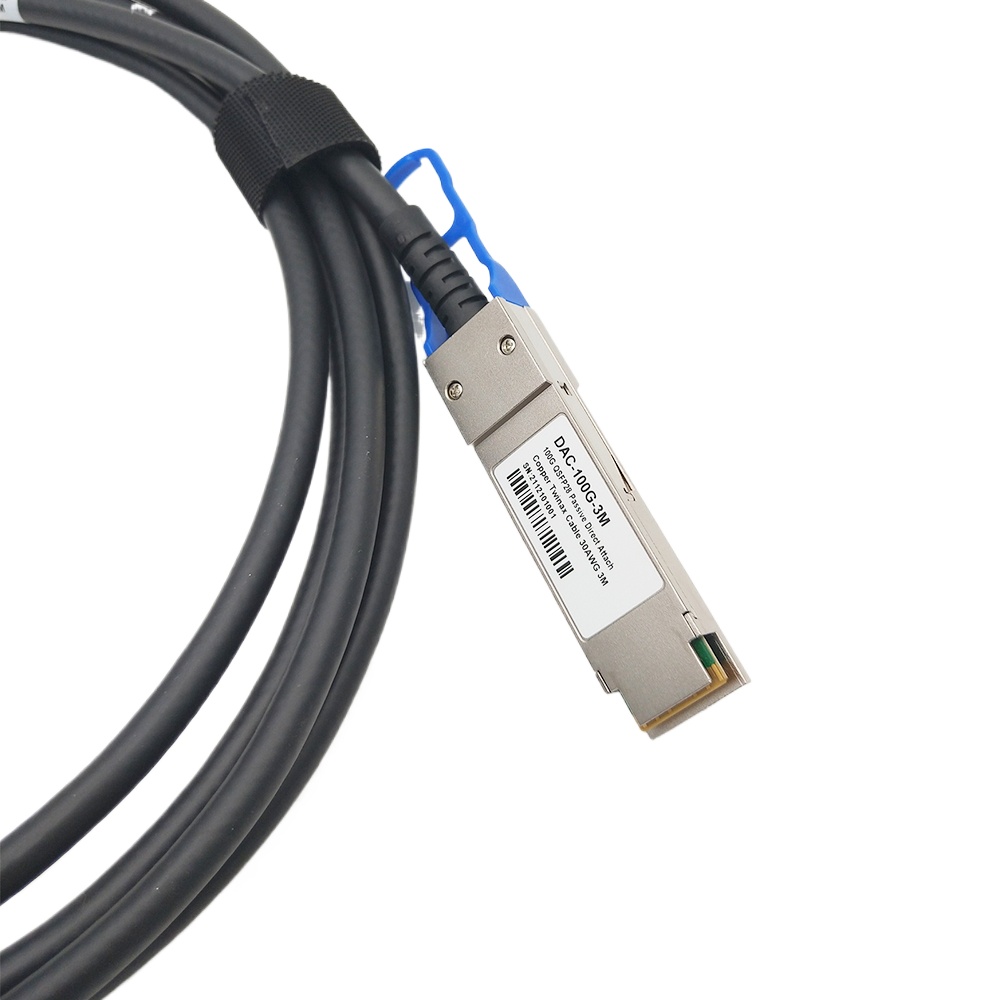

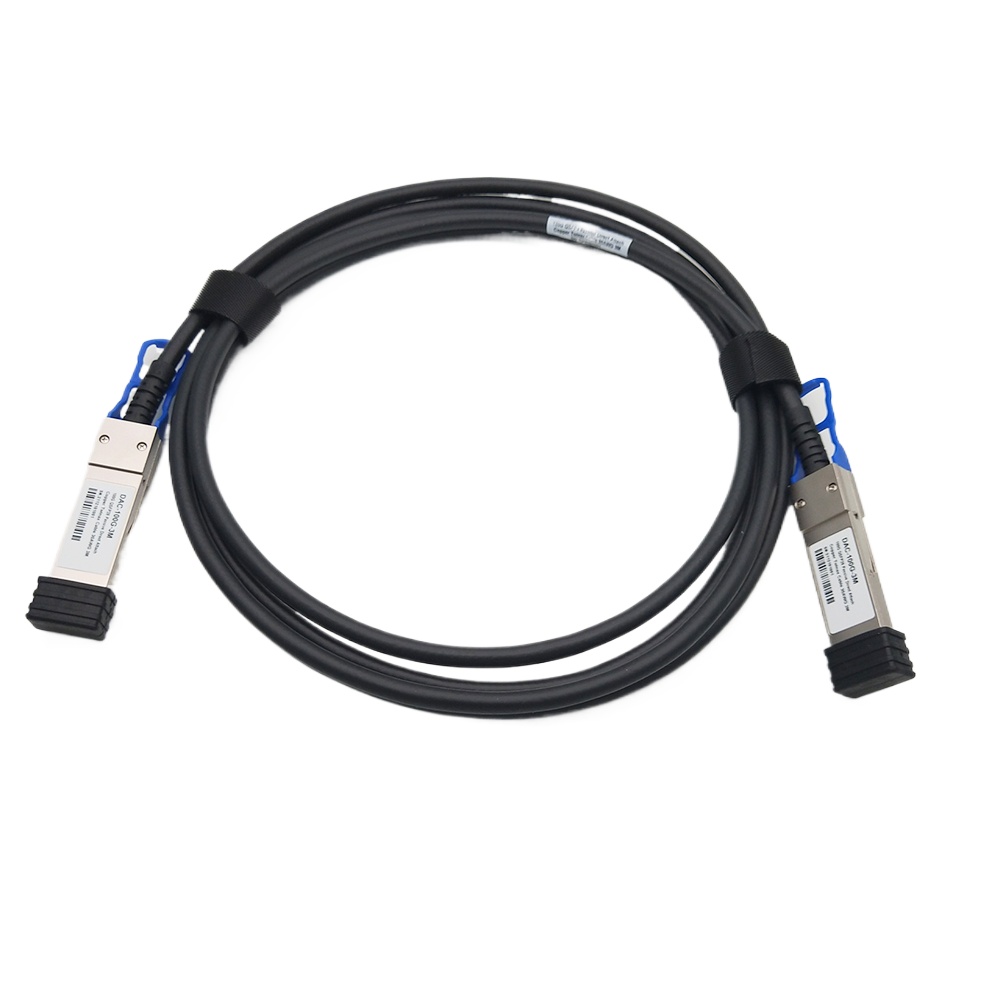

100G QSFP28 to QSFP28 Passive Direct Copper Cables

1. Applications

• 100 Gigabit Ethernet

• Fiber Channel over Ethernet

• Data storage and communication industry

• Switch/router/HBA

• Enterprise network

• SAN

• Data Center Network

2. Features

• QSFP28 conforms to the Small Form Factor SFF-8665

• 4-Channel Full-Duplex Passive Copper Cable Transceiver

• Support for multi-gigabit data rates: 25.78Gb/s (per channel)

• Maximum aggregate data rate: 100Gb/s (4 x 25.78Gb/s)

• Copper link length up to 3m (passive limiting)

• High-Density QSFP 38-PIN Connector

• Power Supply: +3.3V

• Low power consumption: 0.02 W (typ.)

• I2C based two-wire serial interface for EEPROM signature which can be customized

• Temperature Range: 0~70 °C

• ROHS Compliant

3. Description

100G QSFP28 Passive Copper Cables(ND-P7D30-XXX) are high performance, cost effective I/O solutions for 100G LAN, HPC and SAN applications. The QSFP28 passive copper cables are compliant with SFF-8436. It offers a low power consumption, short reach interconnect applications. The cable each lane is capable of transmitting data at rates up to 25.78Gb/s, providing an aggregated rate of 100Gb/s.
