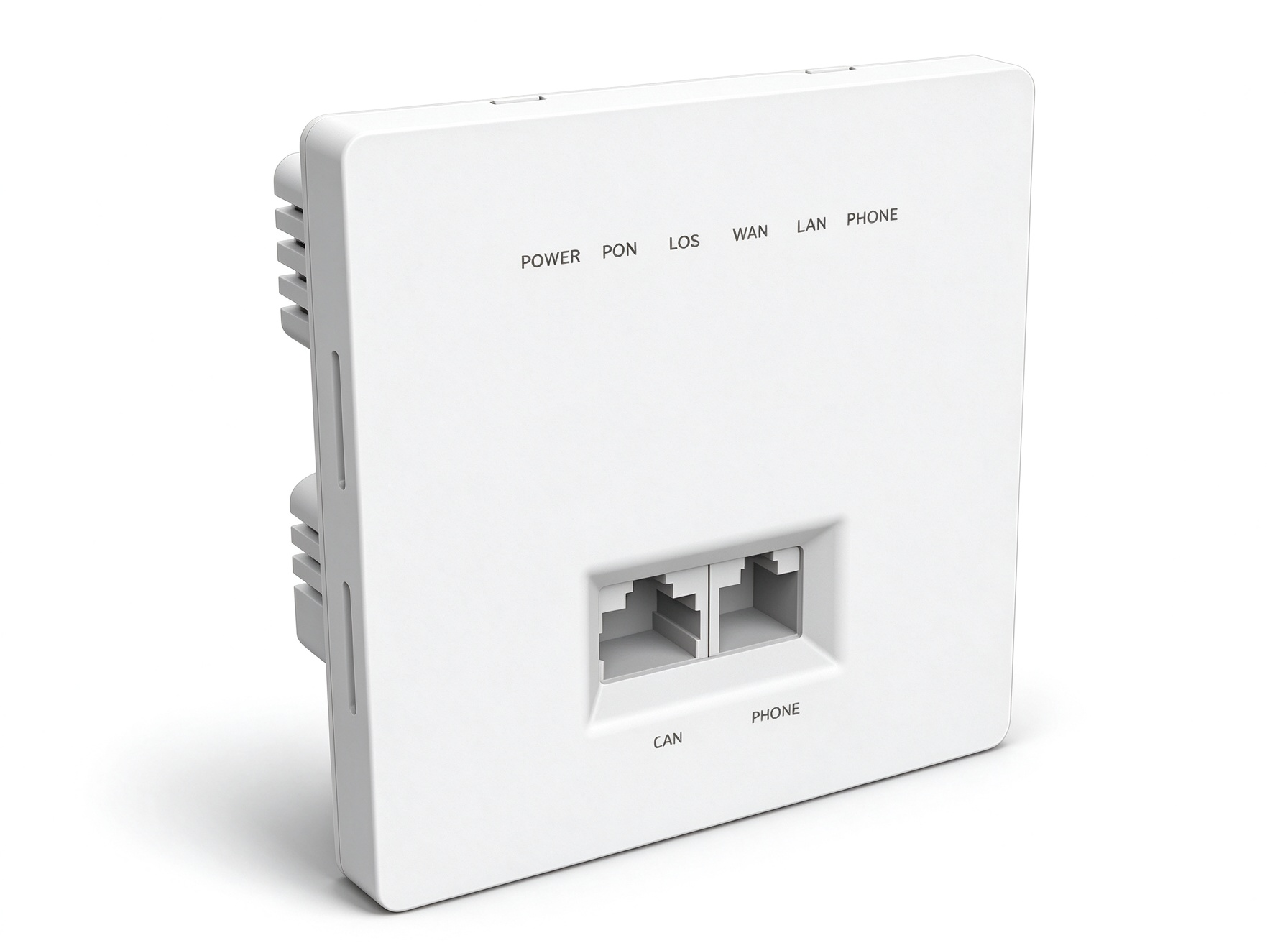

1XPON+1GE+1POTS Wall‑plate ONU
PACG322P is 86‑type panel‑mount built‑in XPON HGU ONT with 1×XPON(EPON PX20+ / GPON Class B+), 1×GE RJ45 and 1×POTS RJ11 voice port. XPON dual‑mode auto‑access EPON/GPON OLT, max 20KM transmission with SC/UPC connector. Supports SIP / IMS SIP VoIP, T.38 FAX, OMCI / CTC OAM / TR069 remote management, L2/L3 functions, IPv4/IPv6 dual‑stack, VLAN, IGMP multicast, 8‑queue QoS and ACL firewall. AC 100‑240V wide‑voltage power supply, fits standard 86‑type electrical box. Ideal for carrier‑grade FTTH triple‑play (data‑voice‑video), MDU, hotel and enterprise campus network deployment.
Model:
86‑Type Wall Plate XPON HGU ONT | 1GE+POTS EPON GPON ONU
Inquiry
Optical Transceivers
DAC/AOC Cable
Fiber Converter
OLT
ONU/ONT
Passive Fiber Accessory
Fiber Tools

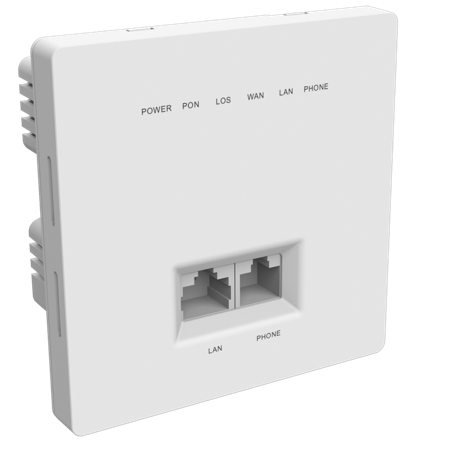

PACG322P 1*XPON+1GE+1POTS Built‑in ONT (86 Type)

Introduction

PACG322P (1*XPON+1GE+1POTS Built‑in ONT(86 Type)) is a broadband access device specially designed to meet the needs of fixed network operators for FTTH and triple play services. The panel‑type ONU can be easily installed in 86‑type electrical boxes on enterprise campuses.

The ONT is based on high‑performance chip solutions, supports XPON dual‑mode technology (EPON and GPON), and also supports Layer 2/Layer 3 functions, providing data service for carrier‑grade FTTH applications. In addition, the ONT also supports the OAM/OMCI protocol, and we can configure or manage various services of the ONT on the VSOL OLT.

The ONT has high reliability, is easy to manage and maintain, and has QoS guarantees for various services. It conforms to a series of international technical standards such as IEEE802.3ah and ITU‑T G.984.


Key Features

  • High‑performance chip solution for triple‑play service

  • 1×GE RJ45 data port + 1×POTS RJ11 VoIP telephone port

  • Compatible with standard 86‑Type installation panel for concealed wall‑mount

  • XPON dual‑mode: auto‑access EPON / GPON OLT

  • Professional VoIP function: SIP / IMS‑SIP, multiple voice codecs and T.38 FAX

  • Complete Layer2 / Layer3 function, IPv4 / IPv6 dual‑stack

  • Support OMCI / CTC OAM / TR069 remote management

  • Rich VLAN, Multicast, 8‑queue QoS, ACL and firewall security functions

  • AC 100‑240V wide‑voltage power supply, Reset button

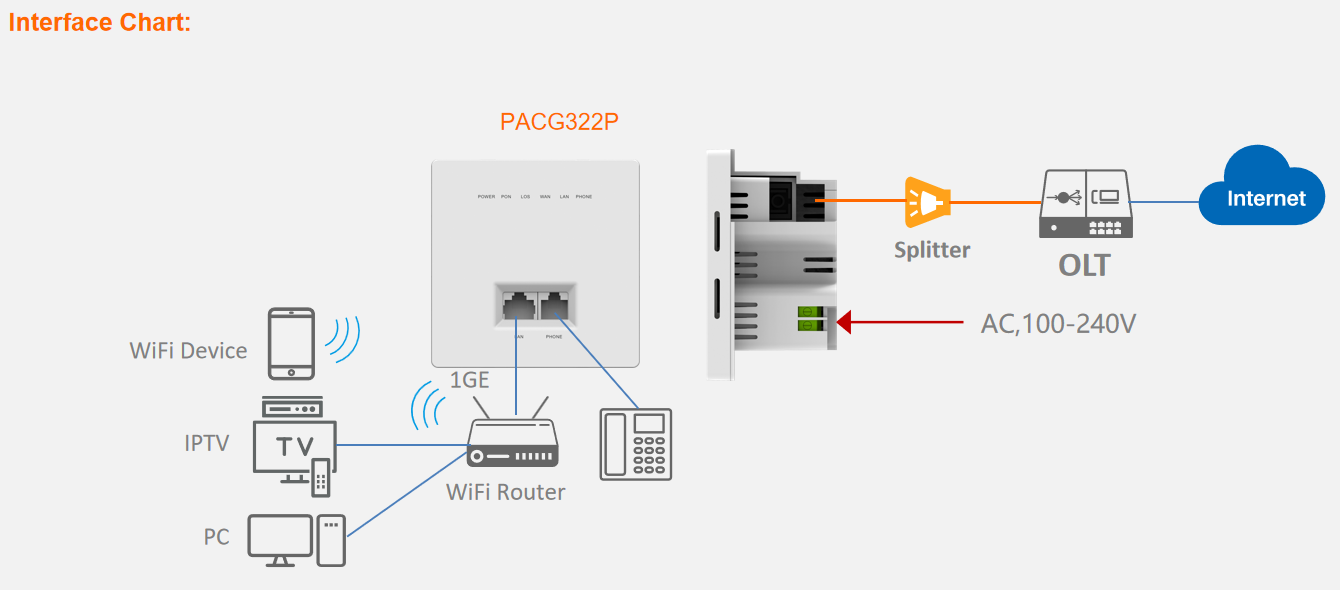

Application Diagram


Hardware Parameters

ItemDescription
Dimension86mm×86mm×48.4mm(L×W×H)
Net weight185g
Operating conditionOperating temp: -10 ~ +55°C
Operating humidity: 5 ~ 95% (non‑condensing)
Storing conditionStoring temp: -40 ~ +70°C
Storing humidity: 5 ~ 95% (non‑condensing)
Power supply100 ~ 240V AC, 50/60Hz
User Interface1×GE RJ45 auto‑negotiation, 1×POTS RJ11 voice port
ButtonRESET button
IndicatorsPOWER, PON, LOS, WAN, LAN, PHONE

PON Interface Parameters

ItemDescription
PON port1 XPON port(EPON PX20+ & GPON Class B+)
ConnectorSC/UPC single mode
TX optical power0～+4dBm
RX sensitivity-27dBm
Overload optical power-3dBm(EPON) / -8dBm(GPON)
Max transmission distance20KM
WavelengthTX 1310nm, RX 1490nm

Function Specifications

Function ModuleDescription
Internet ConnectionSupport Bridge & Routing Mode
VLANVLAN tag mode, VLAN trunk mode, VLAN translation
Data Service FunctionsFull speed non‑blocking switching,1K MAC address table,64 full‑range VLAN ID
Port monitoring, port mirroring, port rate limiting, port SLA, AUTO MDIX
IEEE802.1p QoS 4‑level priority queues, IGMP v1/v2/v3 snooping/proxy, MLD v1/v2 snooping/proxy
VoIPSIP & IMS‑SIP；G.711a/G.711u/G.722/G.729 Codec
Echo cancellation, VAD/CNG, DTMF Relay, T.30/T.38 FAX
Caller ID, Call Waiting, Call Forwarding, Call Transfer, Call Hold, 3‑way Conference, GR‑909 line testing
QoS8 queues, SP and WRR scheduling, 802.1P & DSCP priority
L3 FunctionIPv4 / IPv6 dual‑stack；DHCP/PPPOE/Static IP；Static route, DHCP Server
NAT / DMZ / DDNS / Virtual Server
SecurityFirewall, MAC filter, URL filter, ACL access control
MulticastIGMP v1/v2/v3, IGMP Proxy, MLD Proxy, IGMP & MLD Snooping
ManagementOAM/OMCI, TR069, WEB GUI, Telnet, CLI

Application Scenarios

  • Carrier‑grade FTTH triple‑play (Data‑Voice‑Video) access network

  • MDU, hotel room voice & broadband service deployment

  • Enterprise campus, office building optical access with telephone service

  • Operator IPTV & VoIP integrated service project
