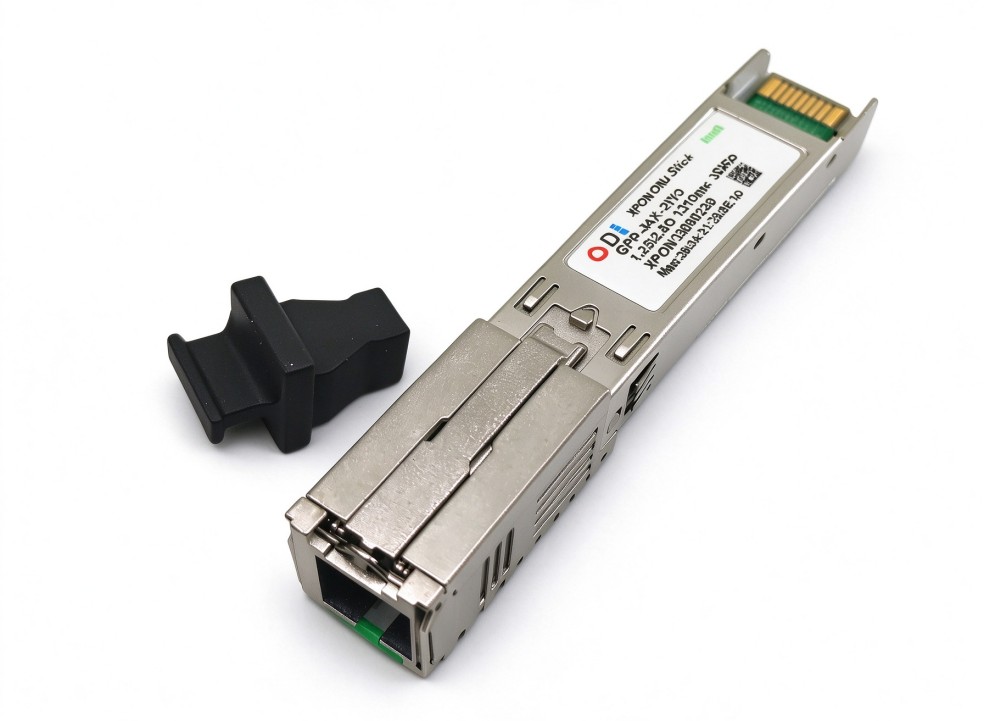

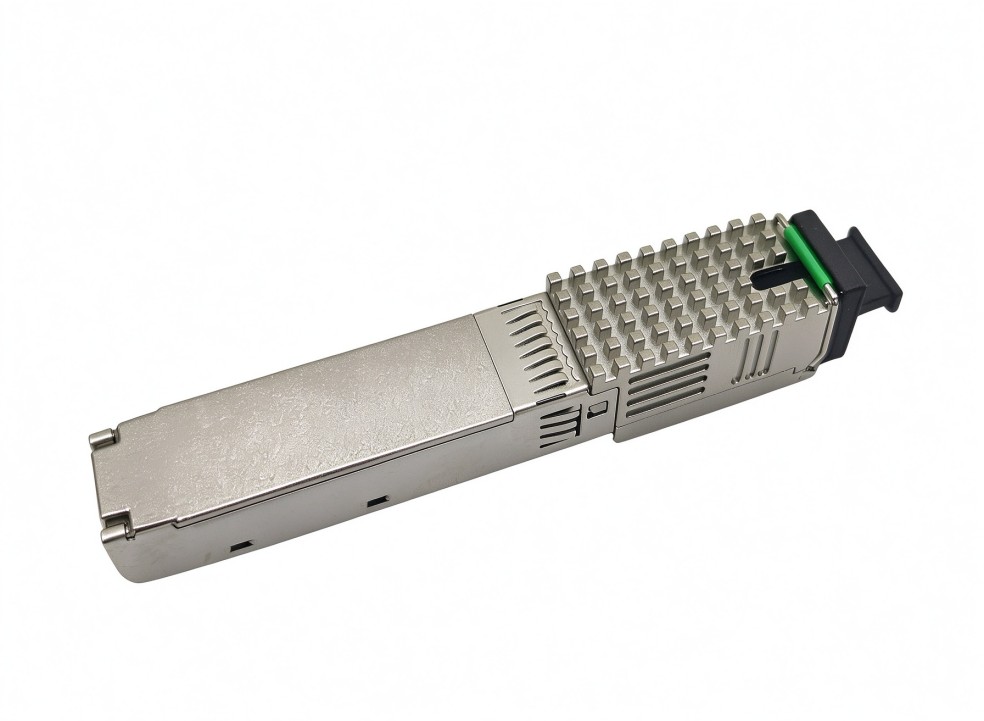

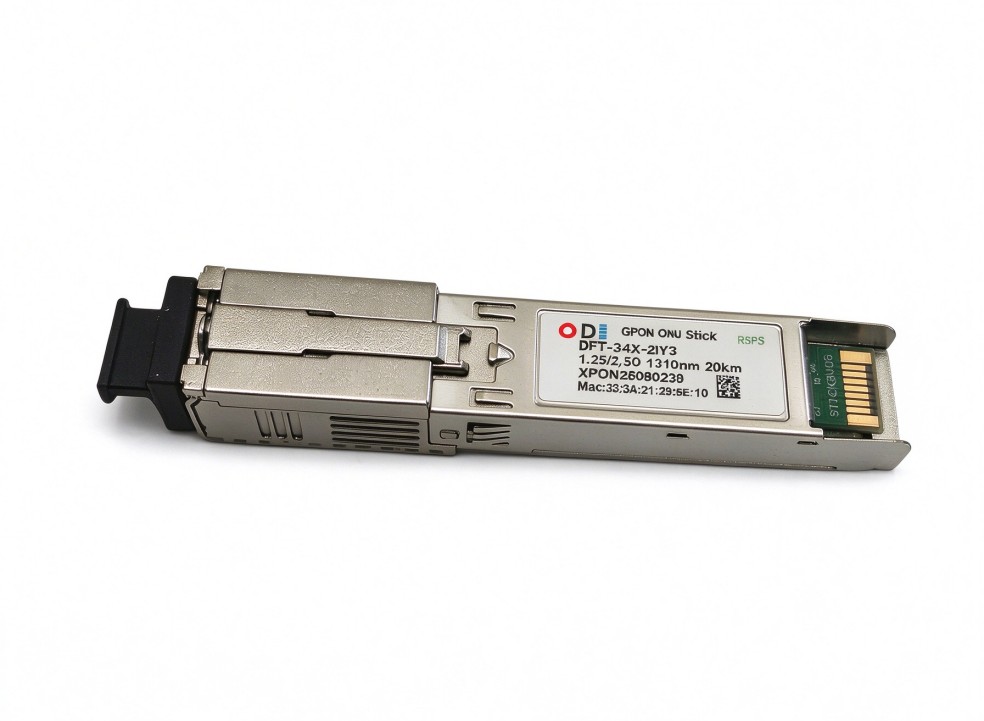

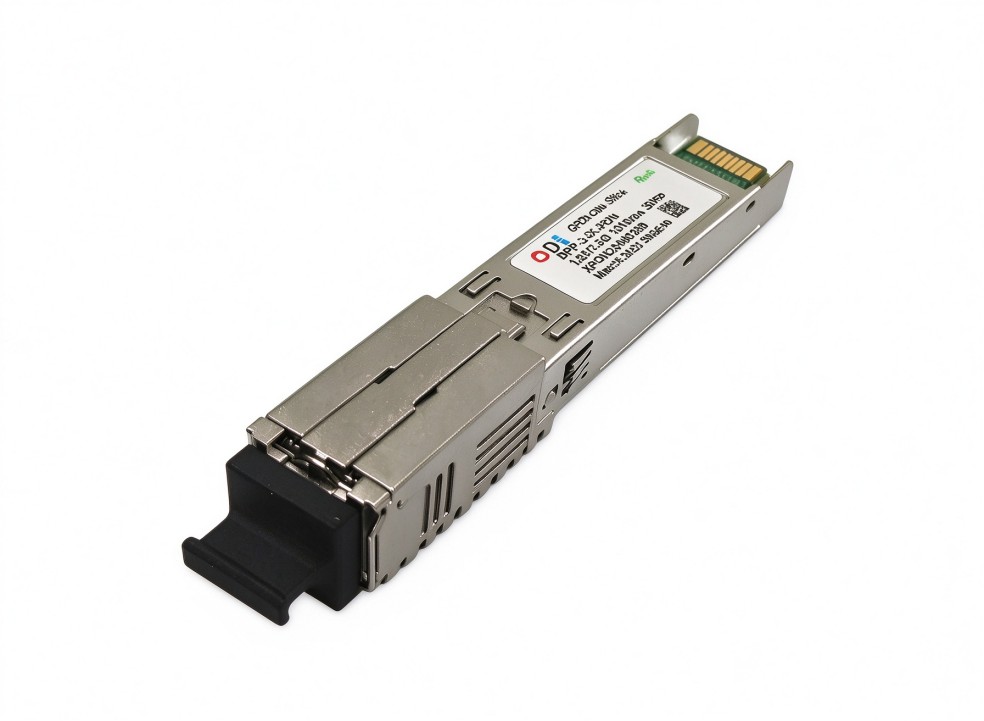

ODI XPON ONU STICK

High-Speed 2.5Gbps Data Rate
The HSGQ-XPON STICK delivers a blazing-fast 2.5Gbps data rate, ensuring smooth and reliable fiber connectivity for high-performance FTTH, FTTB, and FTTC networks.

Supports EPON & GPON Standards
Compatible with both EPON and GPON protocols, this XPON ONU STICK offers flexible deployment across diverse fiber networks with full interoperability.

Long-Range 20km Transmission
Designed for extended reach, this module supports up to 20km transmission over single-mode fiber, ideal for large-scale network installations and remote access.

Optimized Wavelengths: 1310/1490nm
Operating at 1310nm and 1490nm wavelengths, the SC/APC connector ensures low signal loss and high efficiency in bidirectional data transfer.

Universal Compatibility with Major Brands
Works seamlessly with leading brands including TP-Link, Ubiquiti, Foundry, and QSFPTEK, making it a versatile solution for various network setups.

Model:

ODI V8 XPON Stick 1.25G/2.5G XPON ONU Stick 1310/1490nm 20km EPON GPON SFP Module FTTH With MAC IPoE SC Connector

Inquiry Datasheet

Optical Transceivers

10G SFP+ Transceiver

SFP Transceiver

40G QSFP Transceiver

100G QSFP28 Transceiver

16/25/32G Transceiver

200/400/800G Transceiver

PON SFP

1*9 Transceiver

3G/12G SDI SFP

DAC/AOC Cable

DAC-Direct Attach Cable

AOC-Active Optical Cable

Fiber Converter

Fiber Media Converter

Fiber Switch

Industrial Fiber Switch

OLT

ONU/ONT

1.25G/2.5G XPON STICK

Passive Fiber Accessory

Fiber Tools

HSGQ GPON XPON ONU Stick SFP with MAC inside for XPON OLT

HSGQ XPON ONU Stick is an SFP form factor ONU transceiver with integrated MAC chip. It can be directly inserted into SFP slot of compatible devices to connect to XPON OLT, supporting both GPON and EPON network.

Product Features

Single fiber bi-directional data links, asymmetric TX 1244Mbps / RX 2488Mbps, integrated GPON MAC function for GPON ONU application.
SC/UPC receptacle SFP with built-in GPON ONU MAC, plug-and-play via auto-discovery and auto-configuration.
1310nm DFB burst mode transmitter, 1490nm TIA continuous mode receiver.
Single 3.3V power supply.
Digital diagnostic monitor interface compatible with SFF-8472 (DDM).
Compliant with SFP MSA (Multi-Source Agreement).
Low EMI and excellent ESD protection performance.
Class I laser safety standard, compliant with IEC-60825.
RoHS compliant.
EPON compatible, works for XPON network.
Complies with SFP Multi-Source Agreement (MSA) SFF-8074i.
Complies with ITU-T G.984.2, G.984.2 Amendment 1.
Supports ITU-T G.988 ONU management and control interface (OMCI) specification.

Application Scenarios

FTTB / FTTH fiber access network
Compatible XPON OLT system
Switch, router, media converter with SFP slot
Operator broadband & IPTV network deployment
