12G SDI SFP Module
12G-SDI Fiber Transmission for 4K Video The 12G SDI SFP supports ultra-high-speed 4K SDI video transmission over fiber, ensuring crisp, lag-free performance for professional broadcast and production environments.

Long-Distance 20km Transmission With a maximum transmission distance of 20km, this optical module enables reliable signal delivery across extended setups, ideal for large-scale video distribution system

Compatible with Blackmagic Design & Cisco Fully Blackmagic Compatible

LC/UPC Connectors for Reliable Link Equipped with LC/UPC connectors, the module offers secure, low-loss connections ideal for high-performance video and data transmission setups.
Model:
12G-SDI SD-SDI Video Tranceiver 4K Fiber Transmission Optical Module SFP for Blackmagic Design BMD Yellobrik
Inquiry Datasheet
Optical Transceivers
DAC/AOC Cable
Fiber Converter
OLT
ONU/ONT
Passive Fiber Accessory
Fiber Tools

4K Video SFP SD‑SDI HD‑SDI 12G Suitable for Blackmagic BMD Yellobrik

12G Video SFP+ Optical Transceiver supports 4K 60HZ Video, compatible with 3G/6G/12G.Note: This 12G SDI SFP can't use for pathological signal, it is not an error‑handling optical module.



Order Information


ModelDescriptionUnit

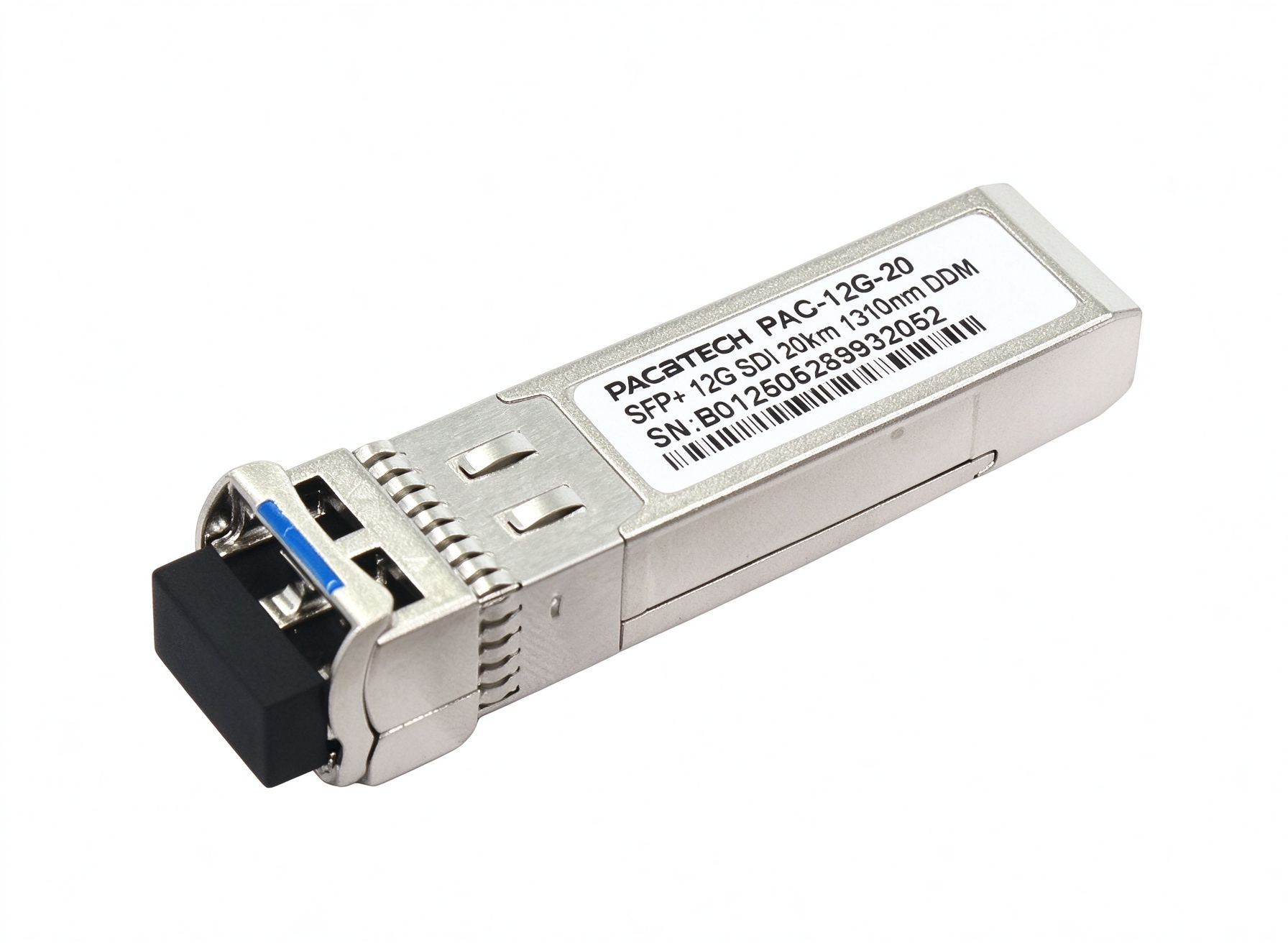

PAC‑12G‑203G/6G/12G SDI SFP Singlemode 1310nm Dual Fiber Bidirectional Transmission 20kmPiece

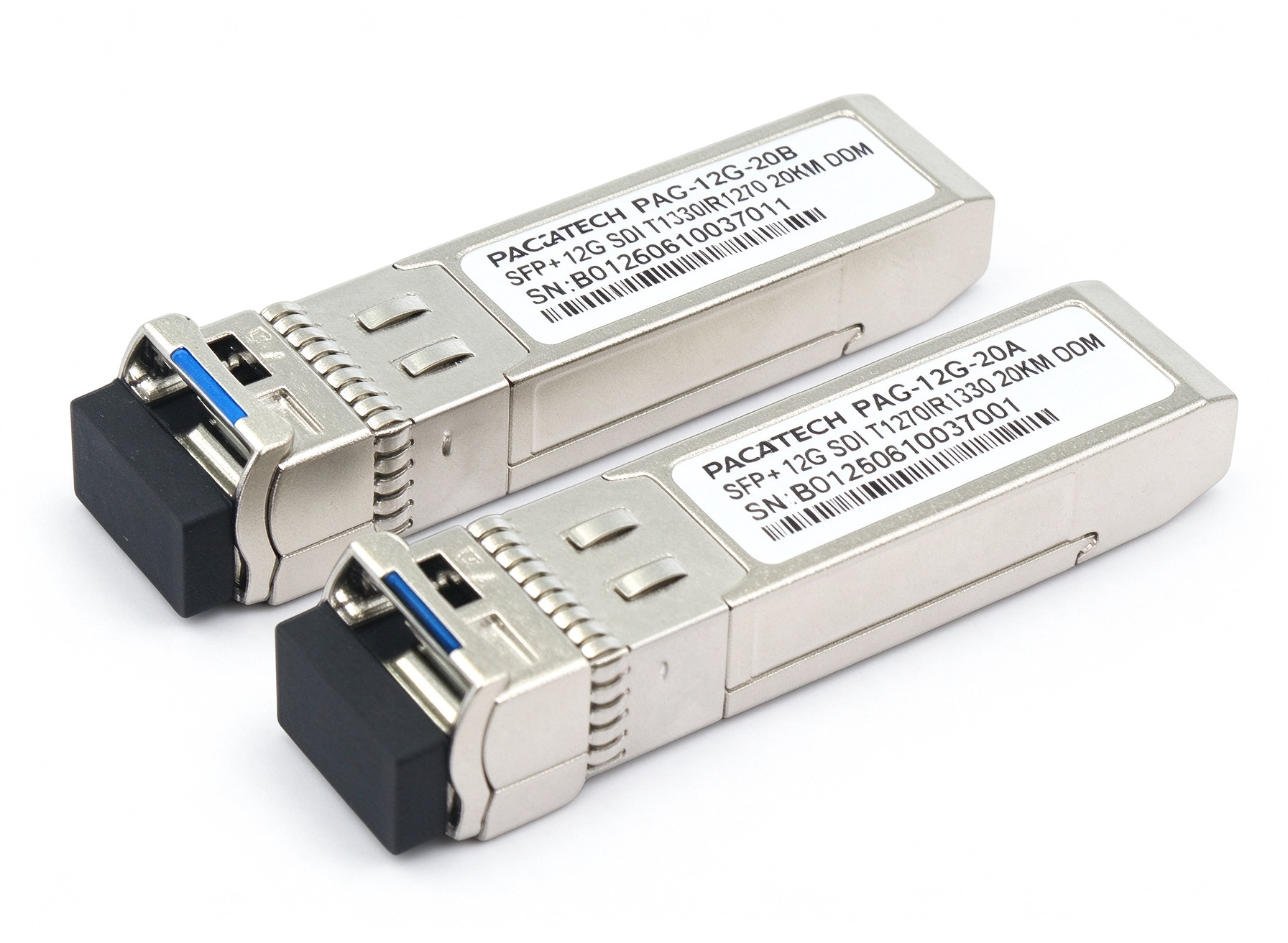

 PAC‑12G‑20A/B3G/6G/12G SDI SFP Singlemode 1270/1330nm 1 Fiber Bidirectional Transmission 20kmPair
PAC‑12G1W‑20A/B3G/6G/12G SDI SFP Singlemode 1270nm 1 Fiber 1Way Transmission (Signal only from Transmitter to Receiver) 20kmPair
PAC‑12G1W20‑XX3G/6G/12G SDI SFP CWDM Type 1 Fiber 1Way 20km
Wavelength Optional: 1270/1290/1310/1330/1350/1370/1390/1410/1430/1450/1470/1490/1510/1530/1550/1590/1610nm		Piece

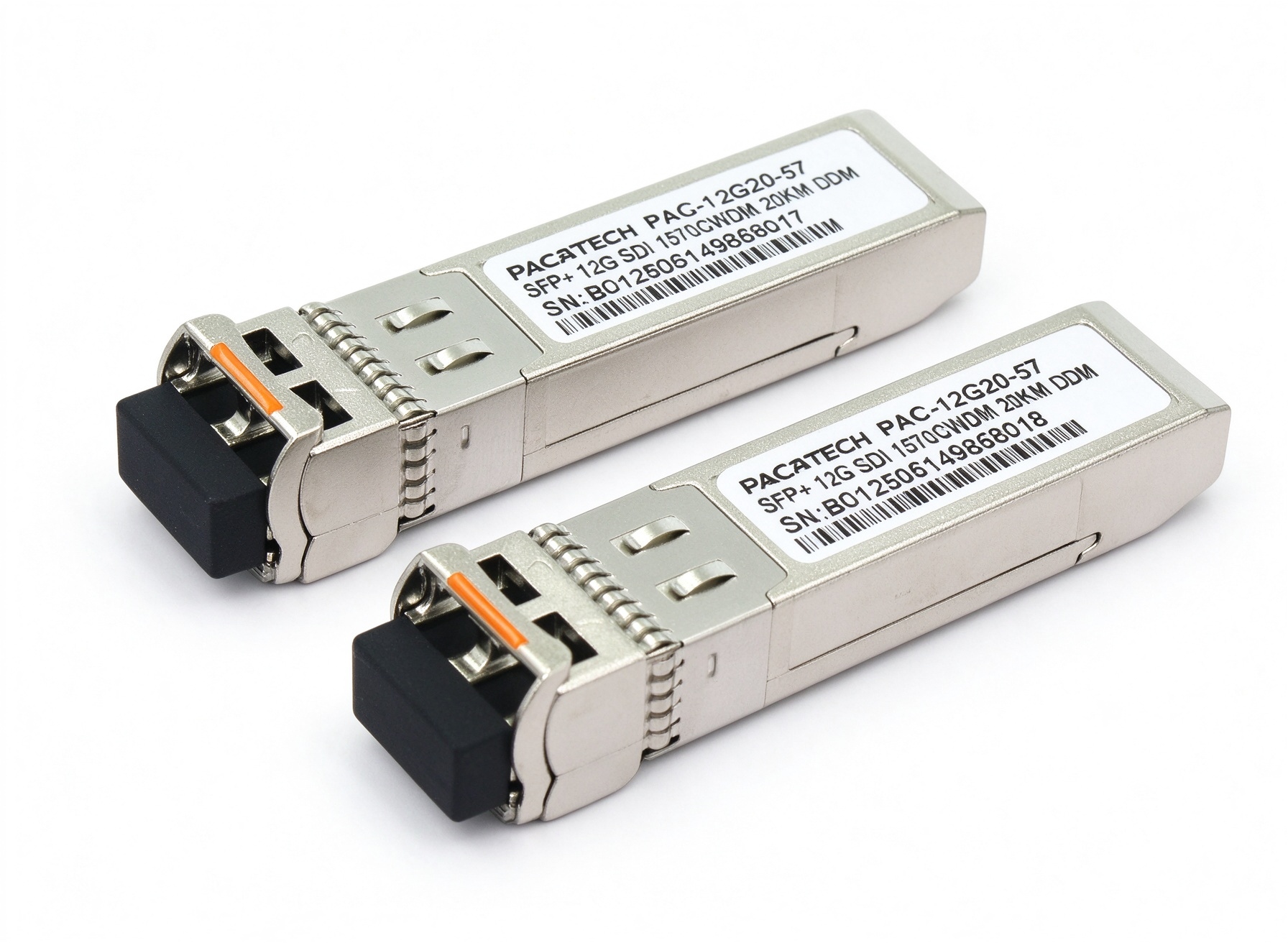

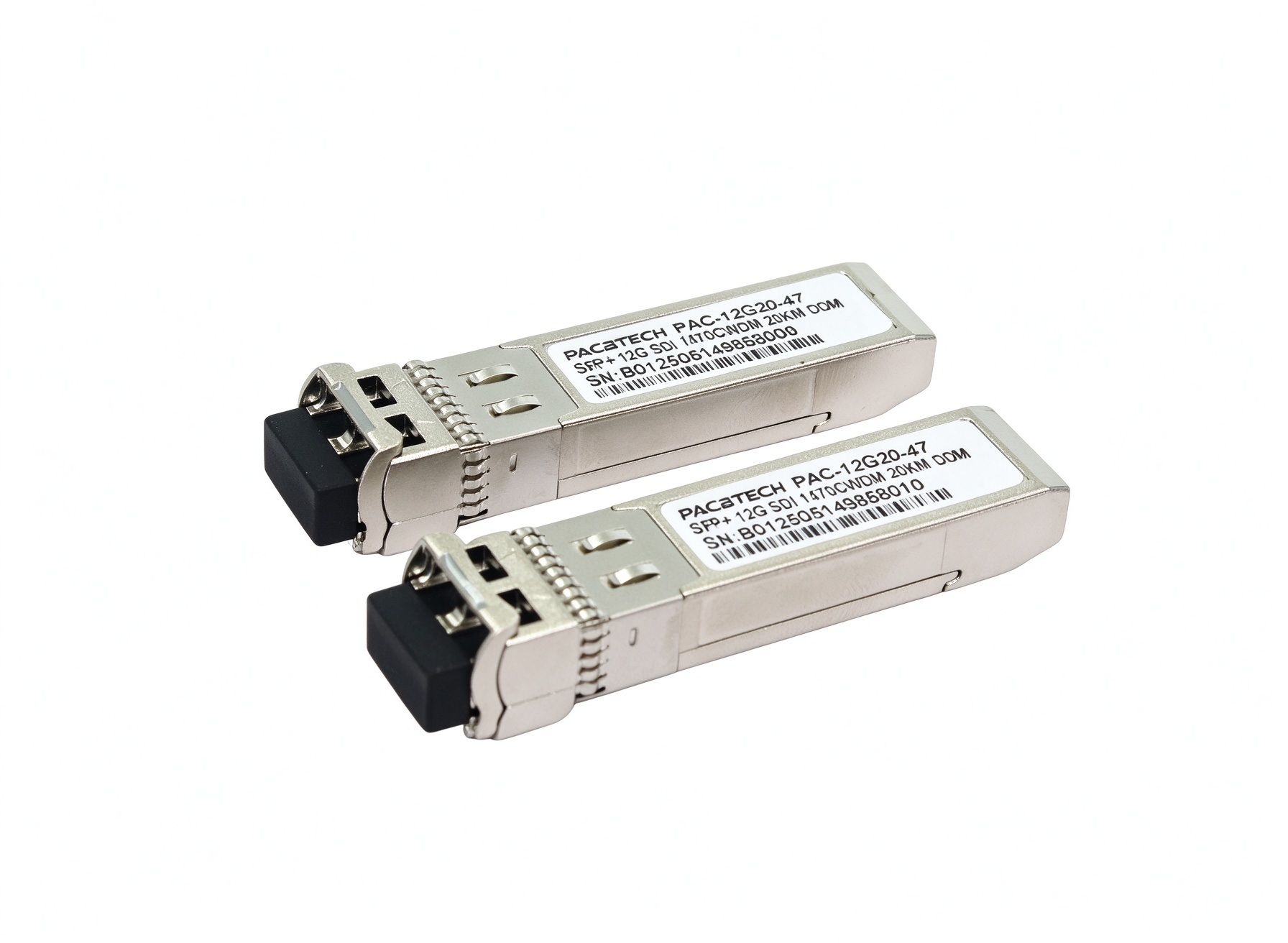

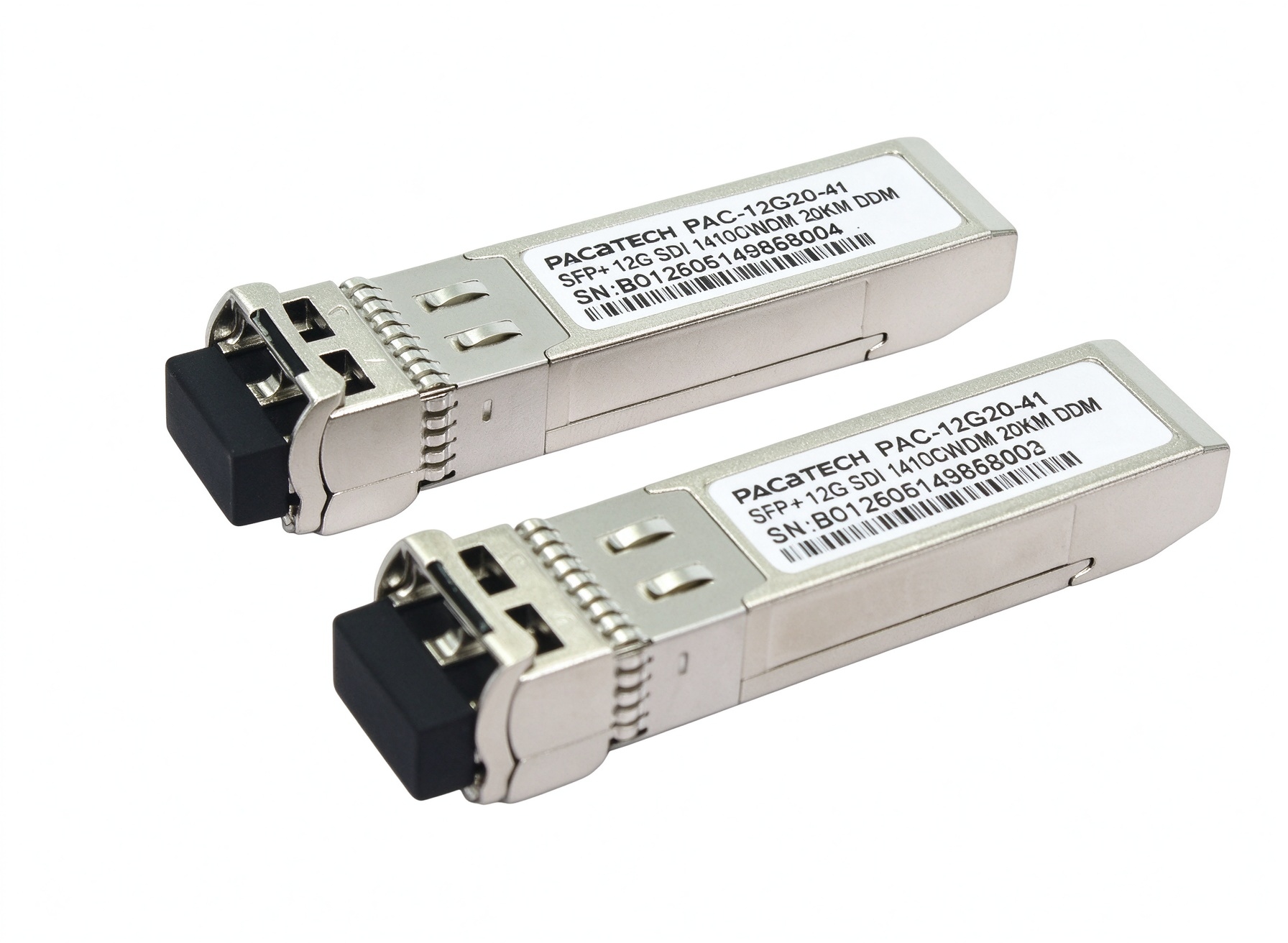

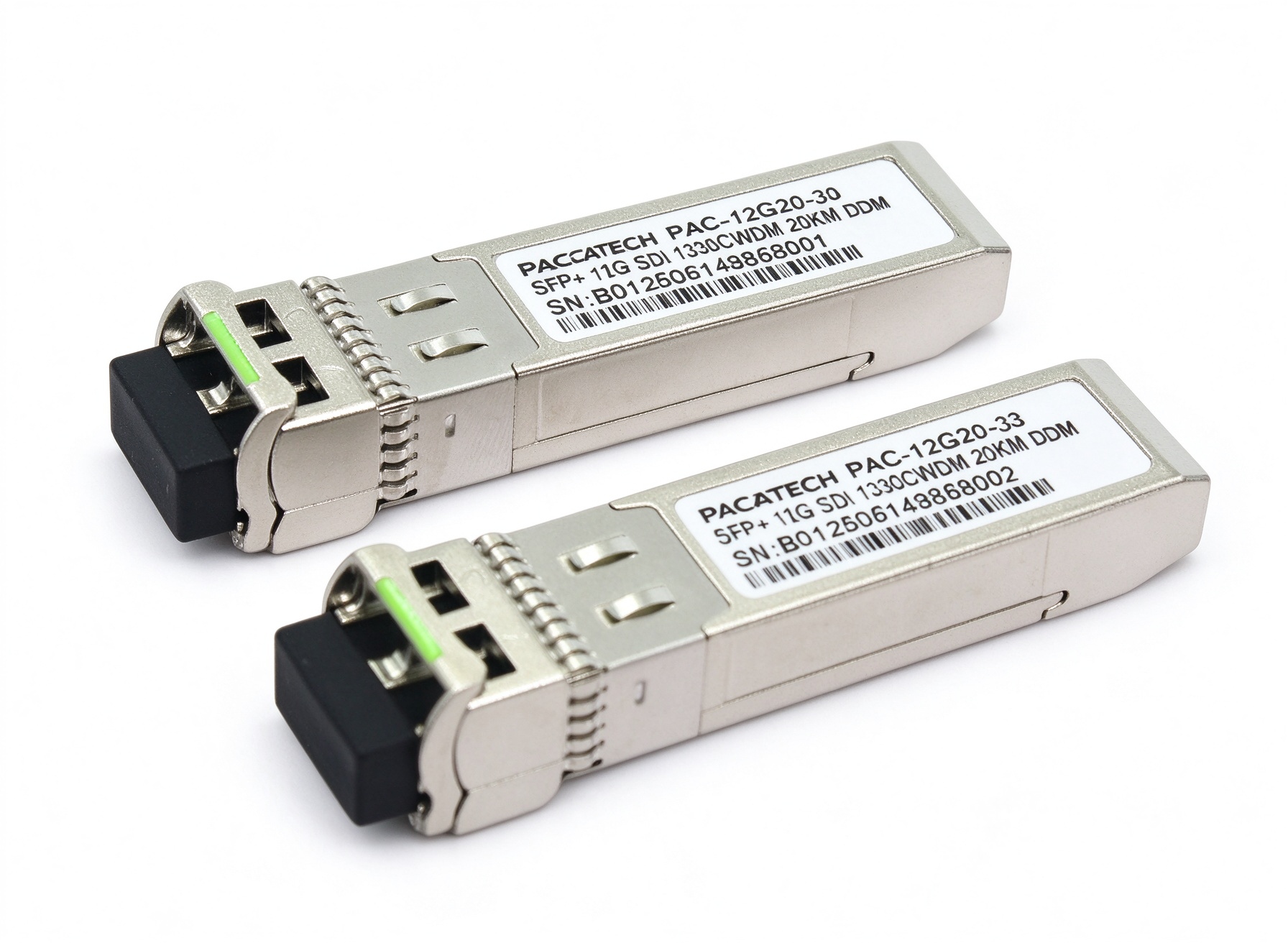

PAC‑12G20‑XX3G/6G/12G SDI SFP CWDM Type 2 Fiber Bidirectional 20km
Wavelength Optional: 1270/1290/1310/1330/1350/1370/1390/1410/1430/1450/1470/1490/1510/1530/1550/1590/1610nm		Piece

Features

  • Supports 12Gb/s bit rate for 4K 60HZ Video

  • 3G/6G compatible

  • Single TX and single RX over a single fiber, LC Connector

  • Hot‑Pluggable SFP form factor

  • Digital diagnostic monitoring support

  • Single 3.3V power supply

  • RoHS‑10 compliant and lead‑free

  • All‑metal housing for superior EMI performance

  • Case operating temperature: 0℃ to +70℃ / ‑40℃ to +85℃

  • Supports 12Gb/s serial optical interface

  • Up to 20km transmission on SMF

  • 1310nm DFB laser and PIN receiver

  • Hot‑pluggable SFP+ footprint

  • SFI high speed electrical interface

  • Built‑in digital diagnostic functions

  • Power consumption less than 1.0 W

  • SFP+ MSA package with duplex LC connector

Applications

  • 12GBASE‑LR/LW 10G Ethernet

  • Other optical links

Compliance Standards

  • Compliant with SFF‑8472 and SFP+ MSA

  • Compliant to SFF‑8431 and SFF‑8432

  • Compliant with IEEE 802.3ae 10GBASE‑LR/LW

  • Compliant with FCC 47 CFR Part 15, Class B

  • Compliant with Telcordia GR‑468‑CORE

  • RoHS Compliant

Regulatory Compliance

FeatureStandardPerformance
Electrostatic Discharge(ESD) to the Electrical PinsMIL‑STD‑883 Method 3015.7Class 1(>1000V for SFI pins, >2000V for other pins.)
Electrostatic Discharge (ESD) to the Duplex LC ReceptacleIEC 61000‑4‑2, GR‑1089‑CORECompatible with standards
Electromagnetic interference (EMI)FCC Part 15 Class BCompatible with standards
ImmunityIEC 61000‑4‑3Compatible with standards
Laser Eye SafetyFDA 21CFR 1040.10 and 1040.11Compatible with Class I laser product
