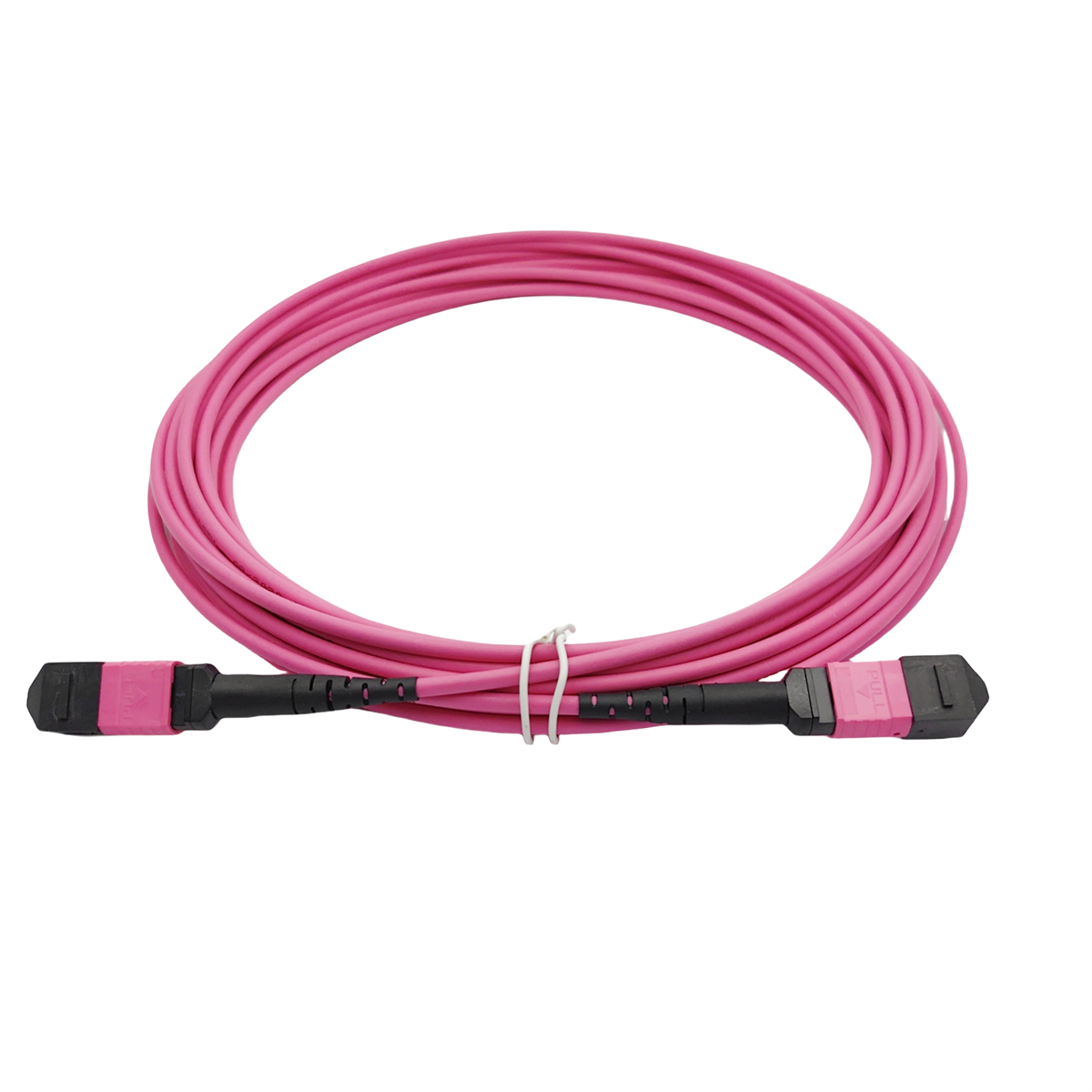

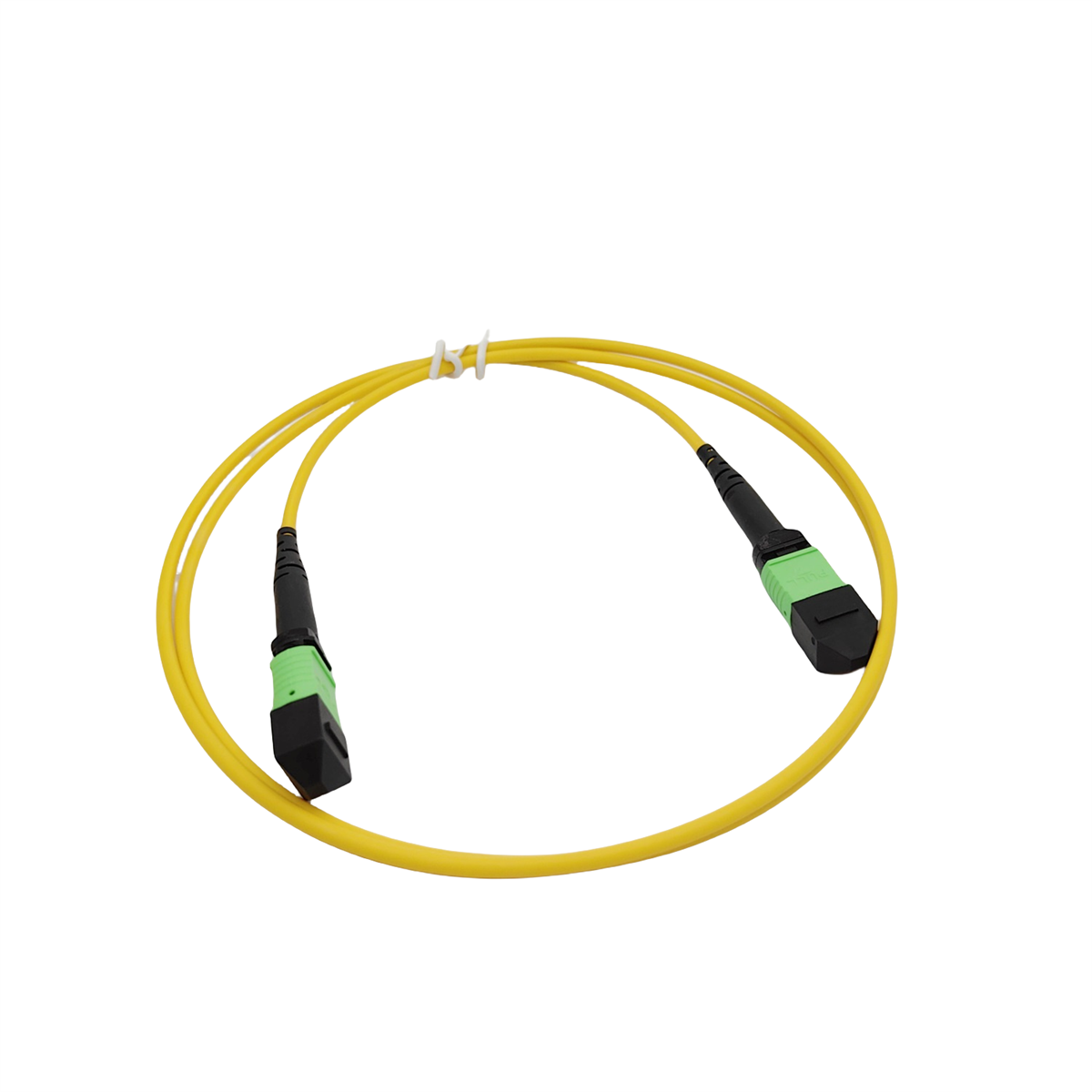

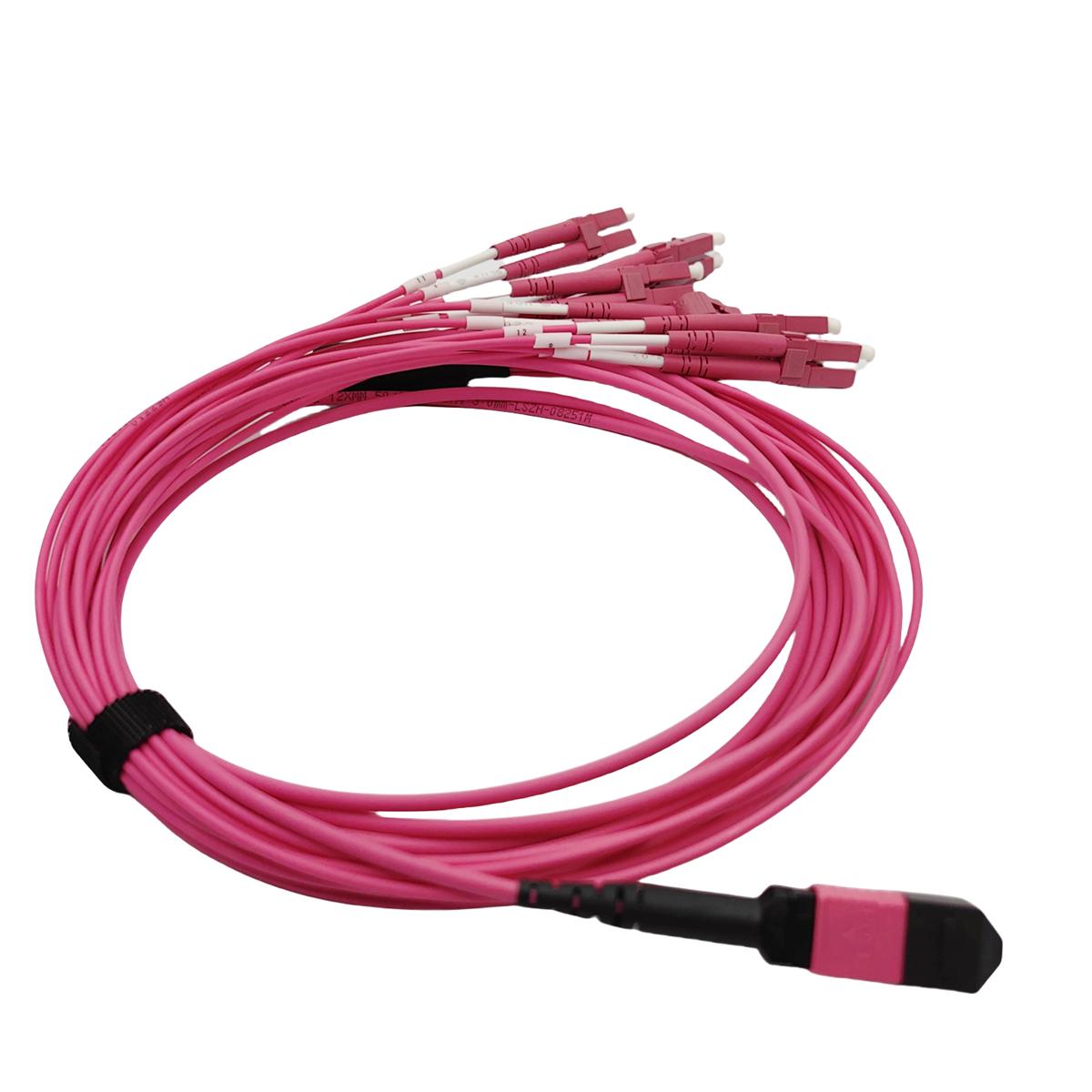

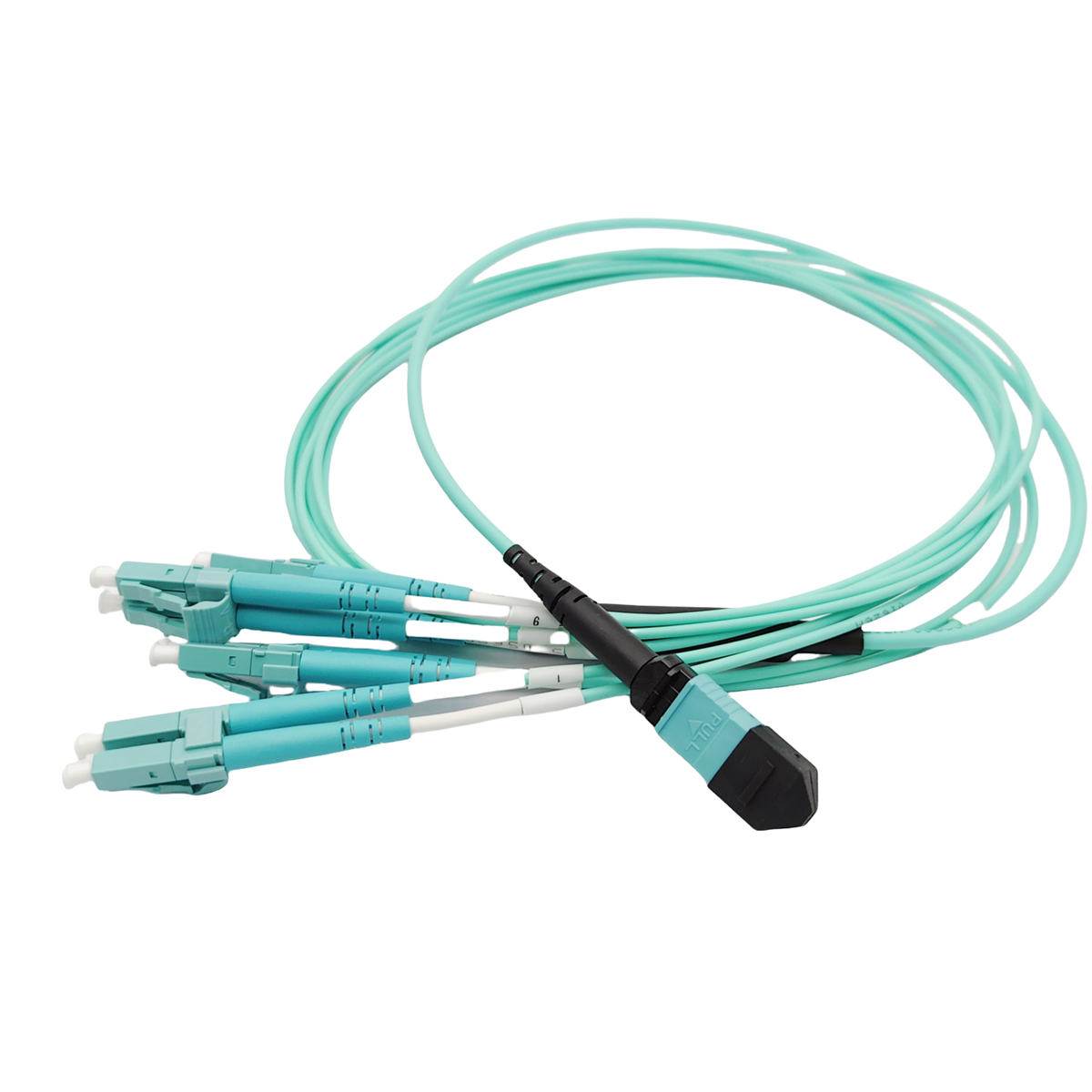

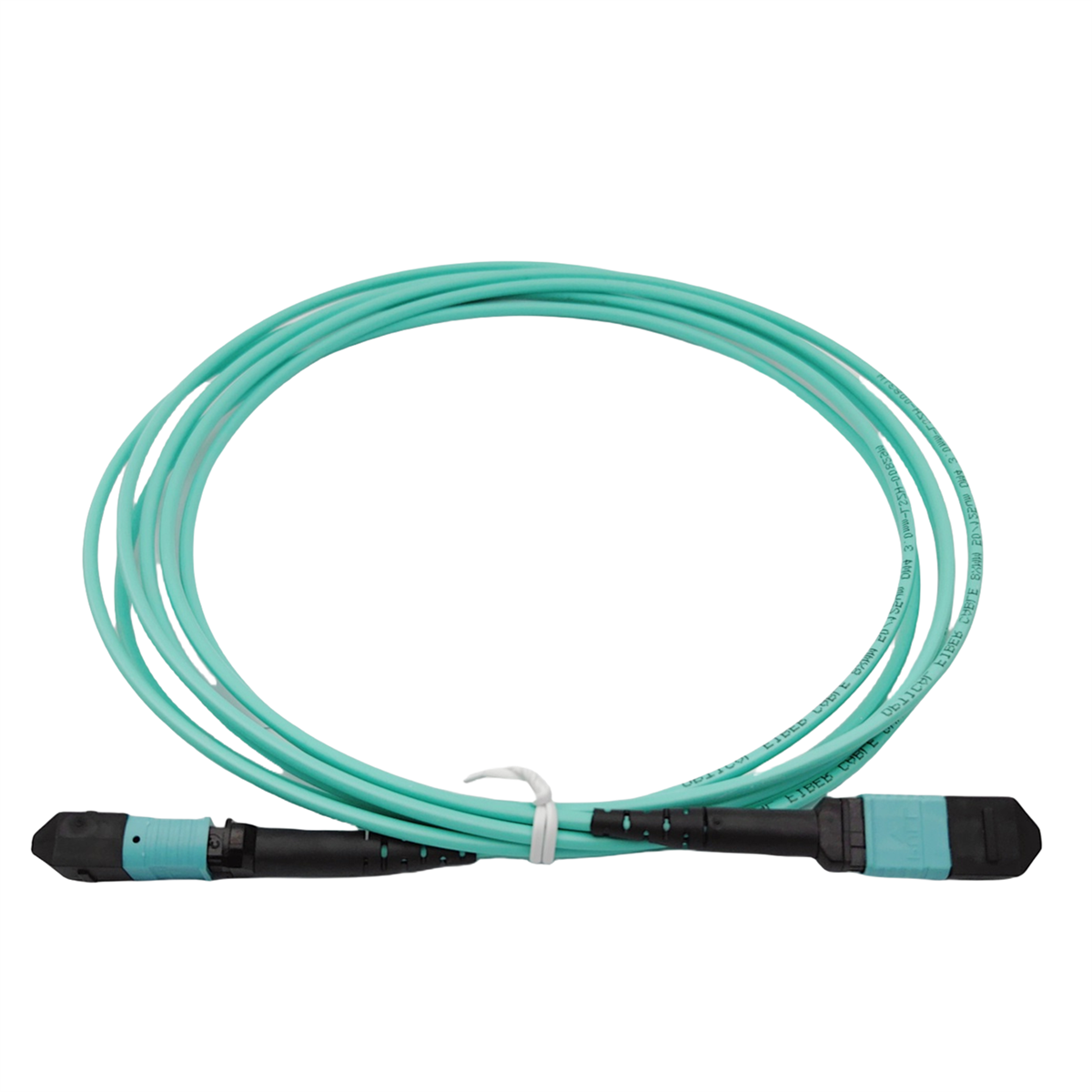

MPO Patch Cord

The single-mode and multimode MPO products are multi-fiber connectors used in high-density backplane and Printed Circuit Board (PCB) applications in data and telecommunications systems. The MPO connector offers up to 12 times the density of standard connectors, providing significant space and cost savings.

MPO patch cords utilize precision molded MT ferrules, with metal guide pins and precise housing dimensions to ensure fiber alignment when mating. The MPO can be mass terminated in combinations of 4, 8, 12 or 24 fibers.

Features

• Precision molded MT ferrule

• High precision guide pins for exact alignment

• Compact design, up to 4, 8, 12, 24 fibers

• IEC 61754-7 Compliant

• Telcordia GR-1435-CORE Compliant

Applications

• Asynchronous Transmission Mode (ATM)

• Gigabit Ethernet

• Active Devices / Transceiver Interface

• CATV, Video and Multimedia

• Premise Installations

• Telecommunication Networks

• Parallel optical interconnect between PC Cards and patch panels

• Interconnection for O/E modules

• Industrial & Military

• Optical Switch interframe connections

Specifications
