Home > Product > Optical Transceivers > 1*9 Transceiver
1*9pin 155Mb/s

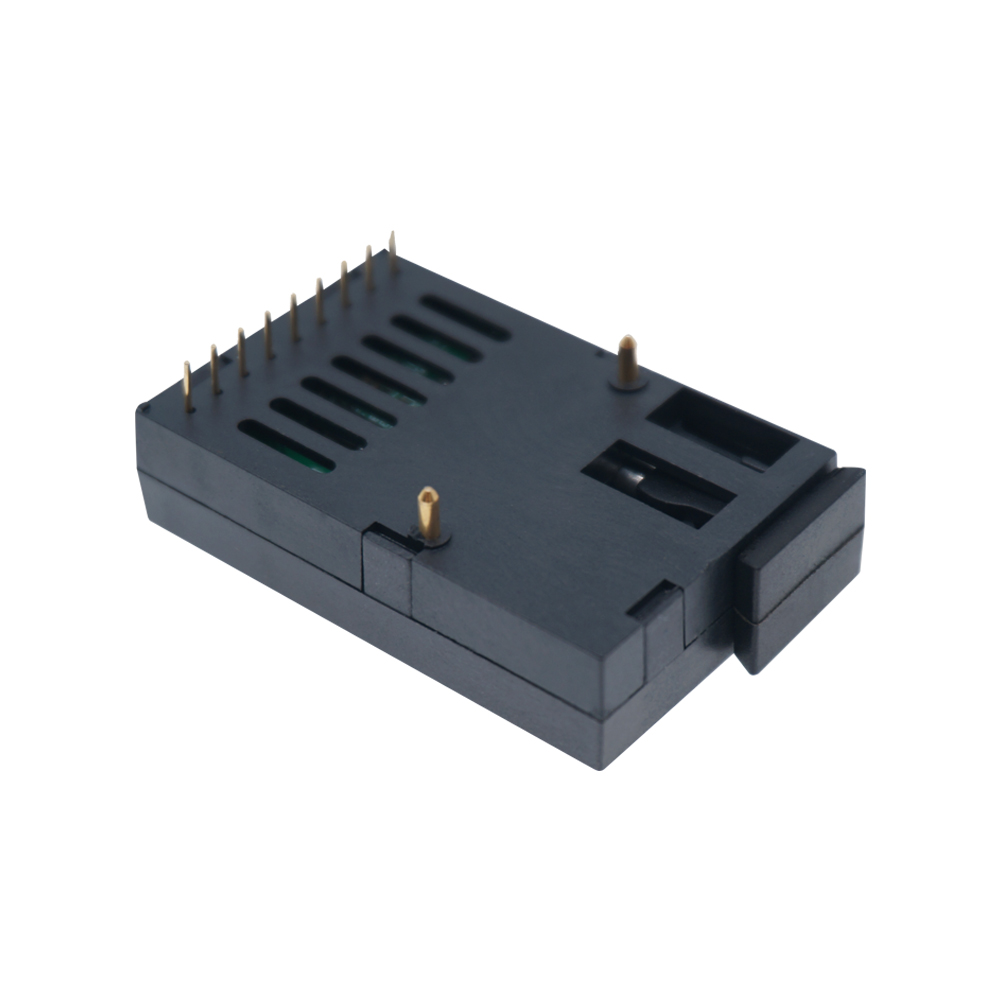

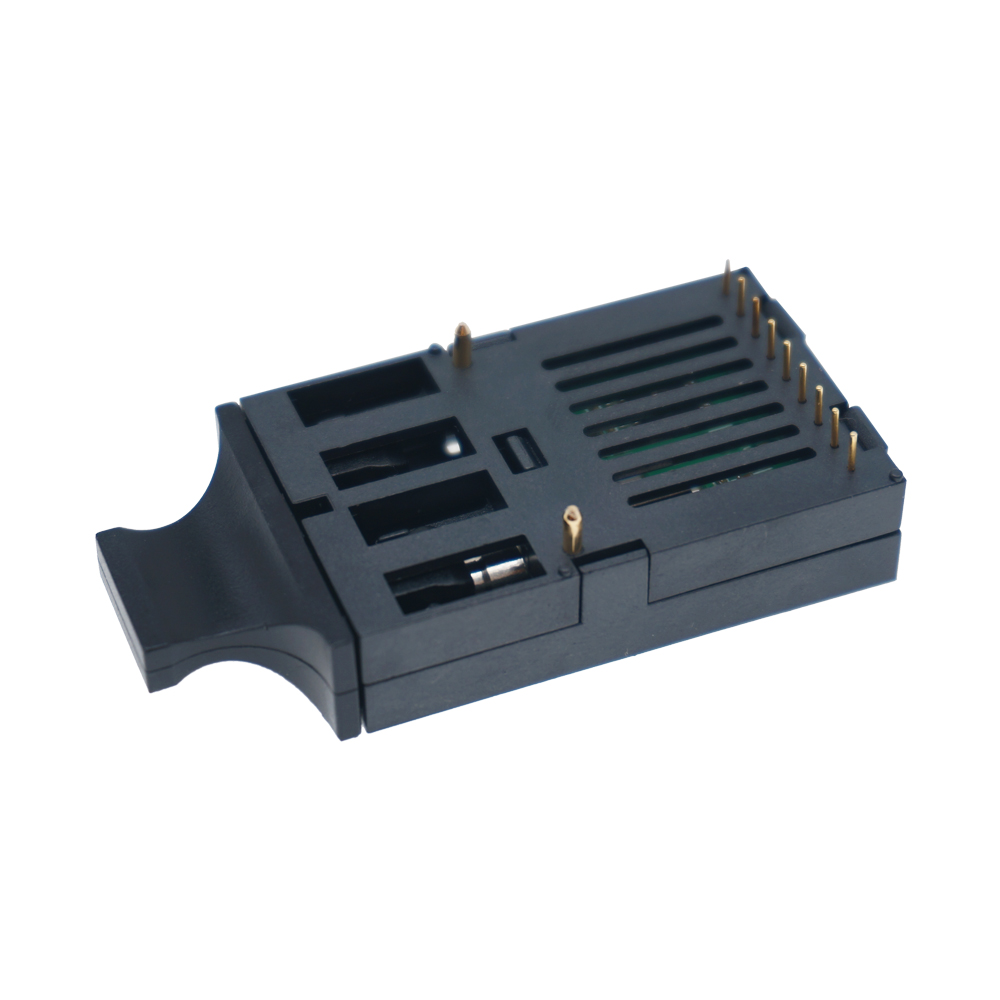

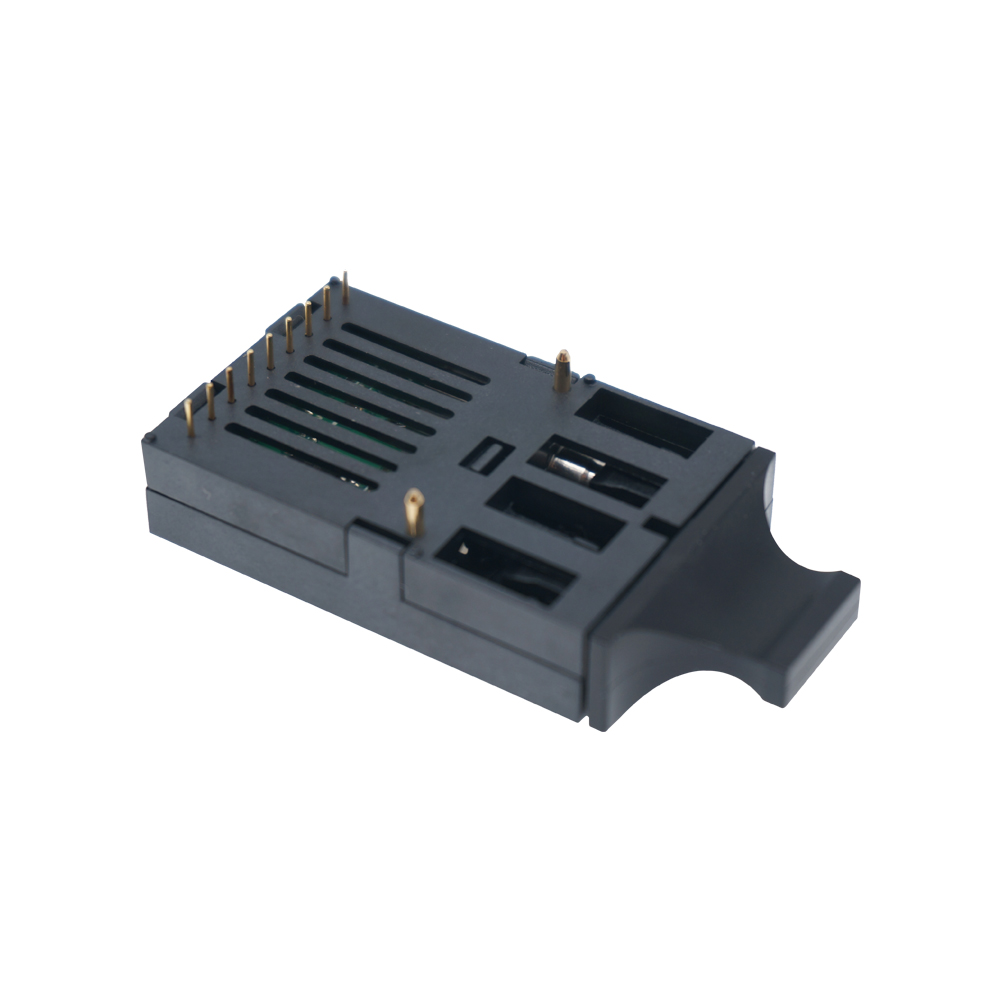

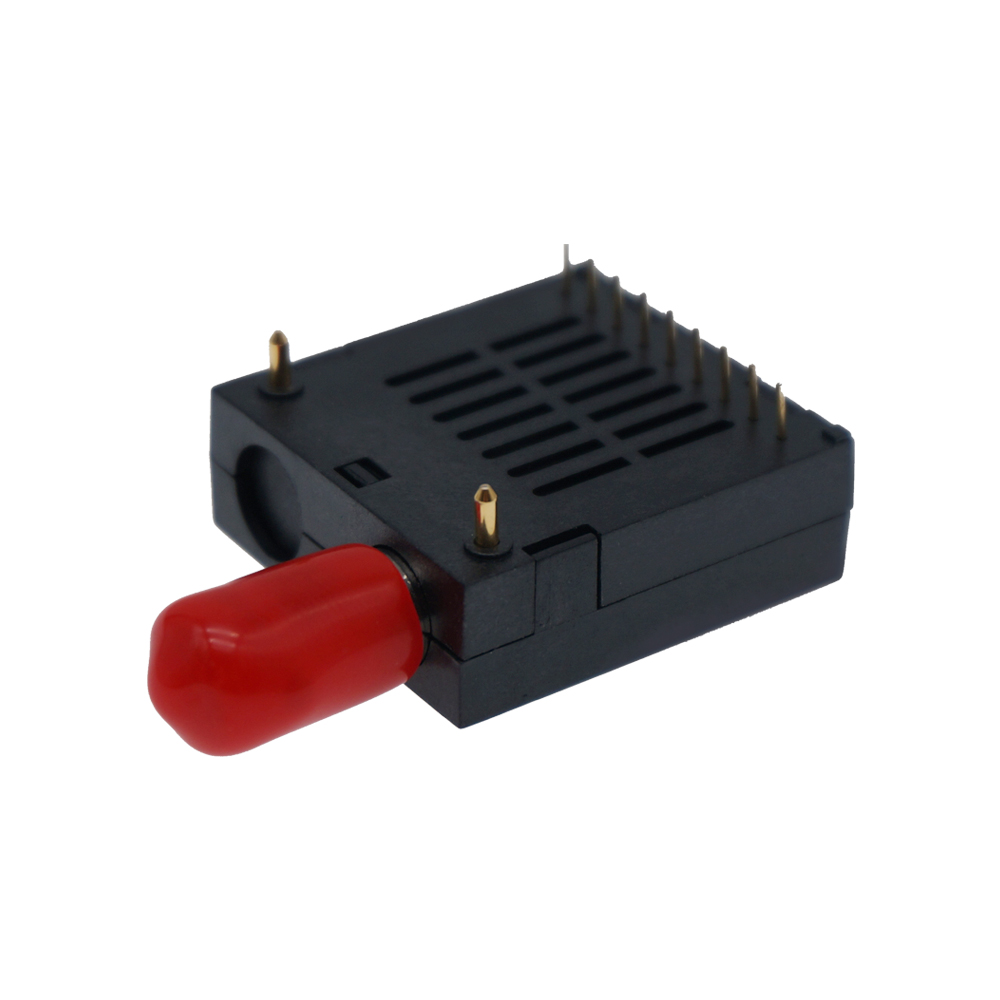

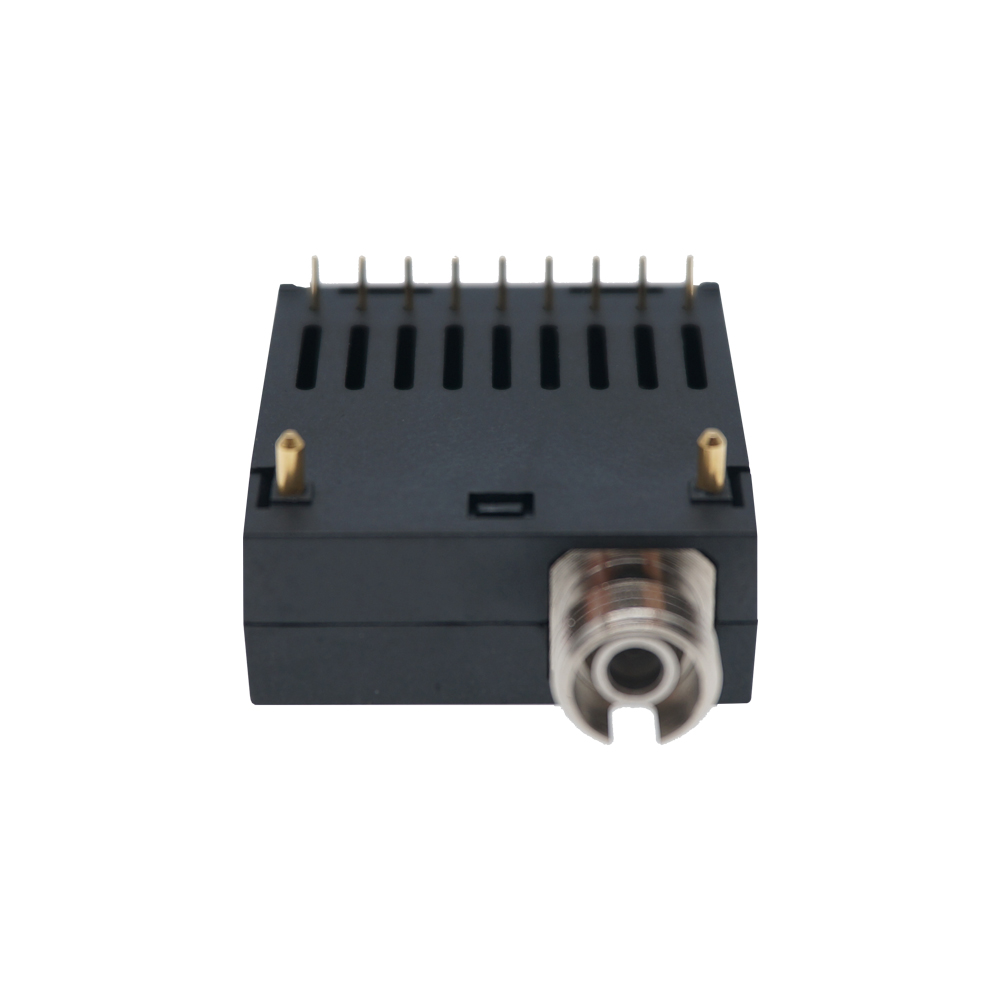

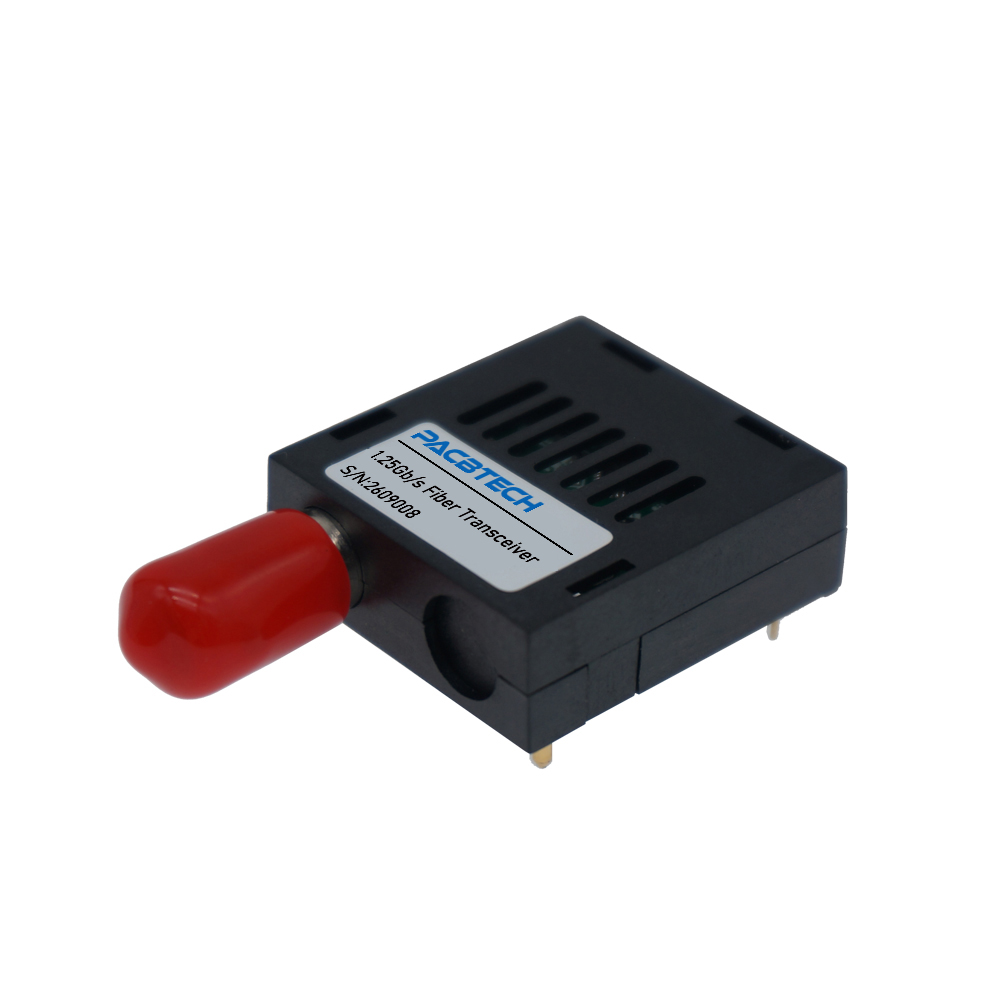

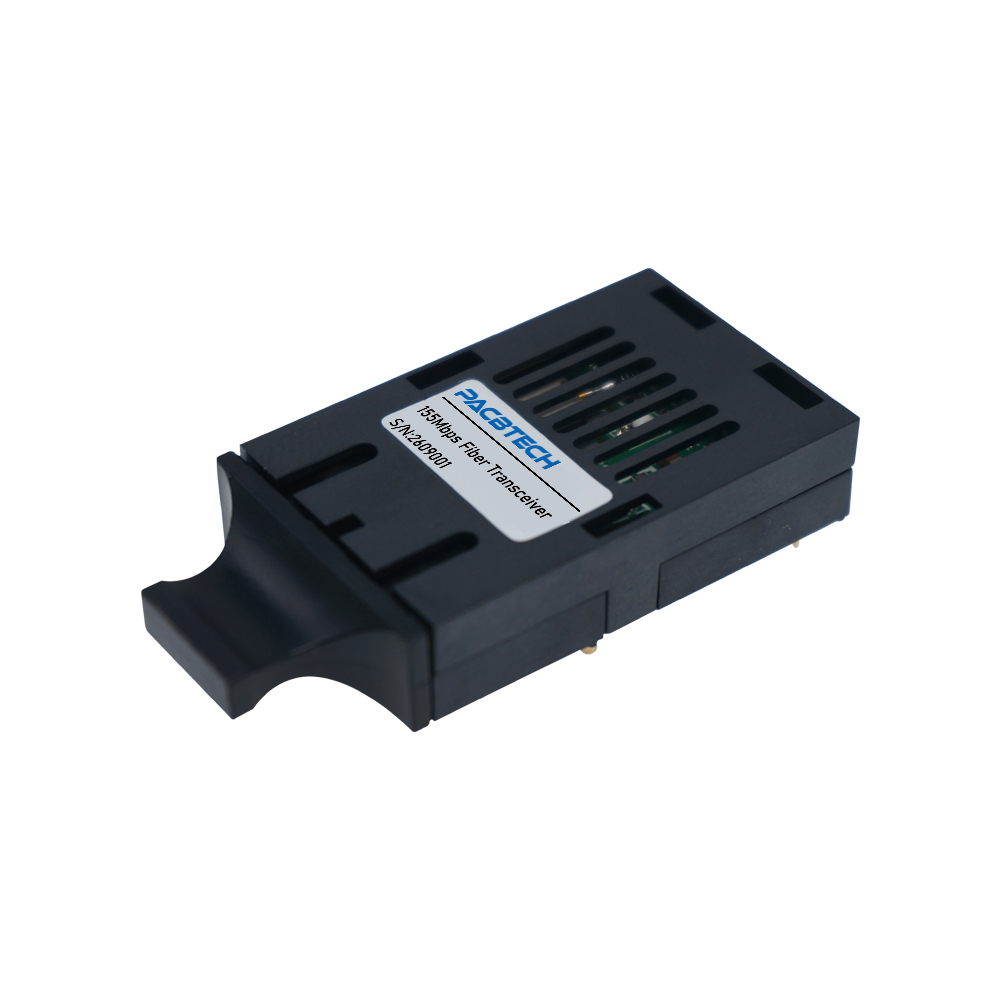

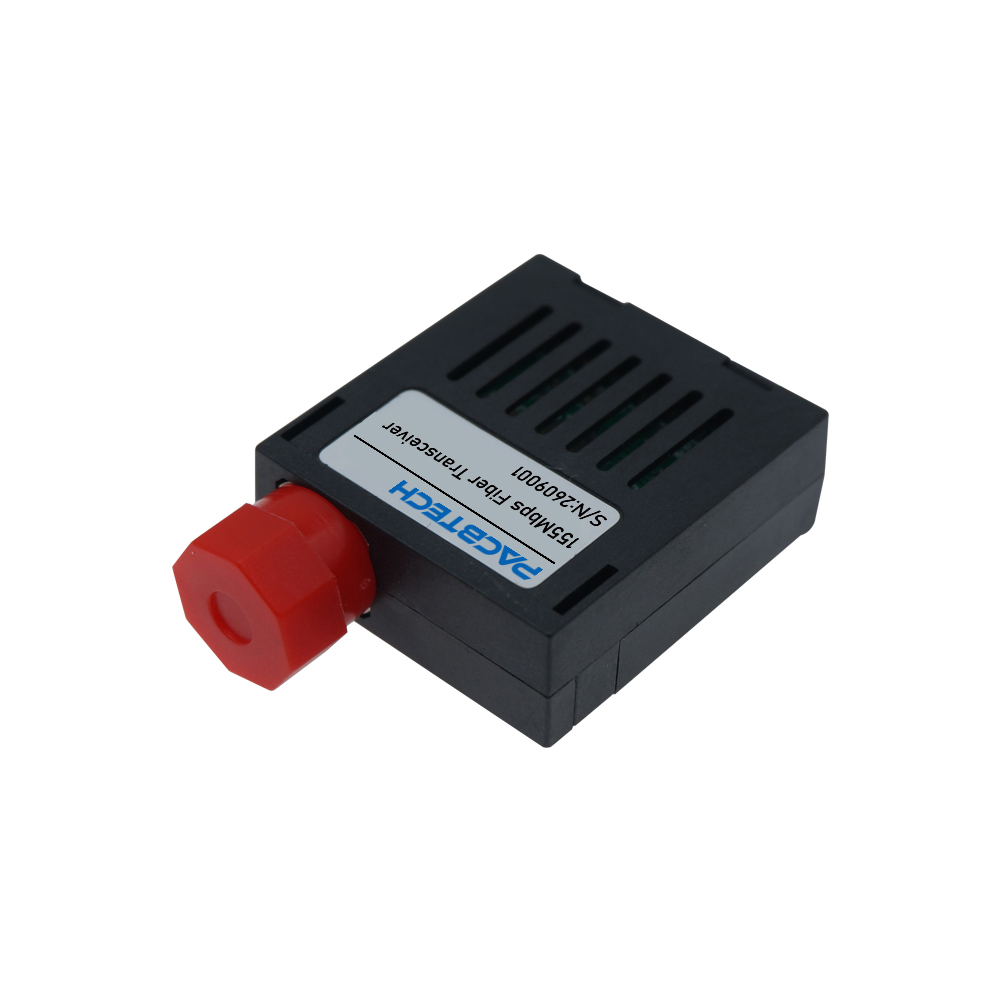

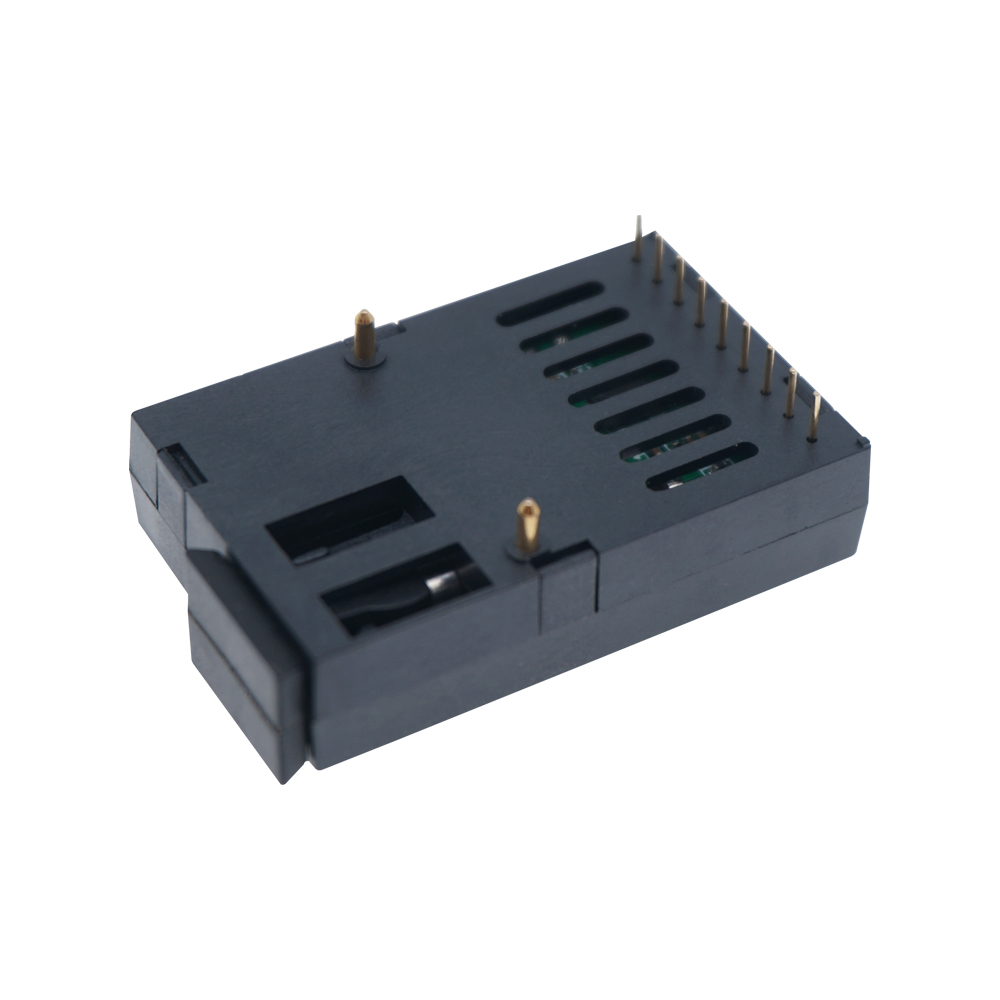

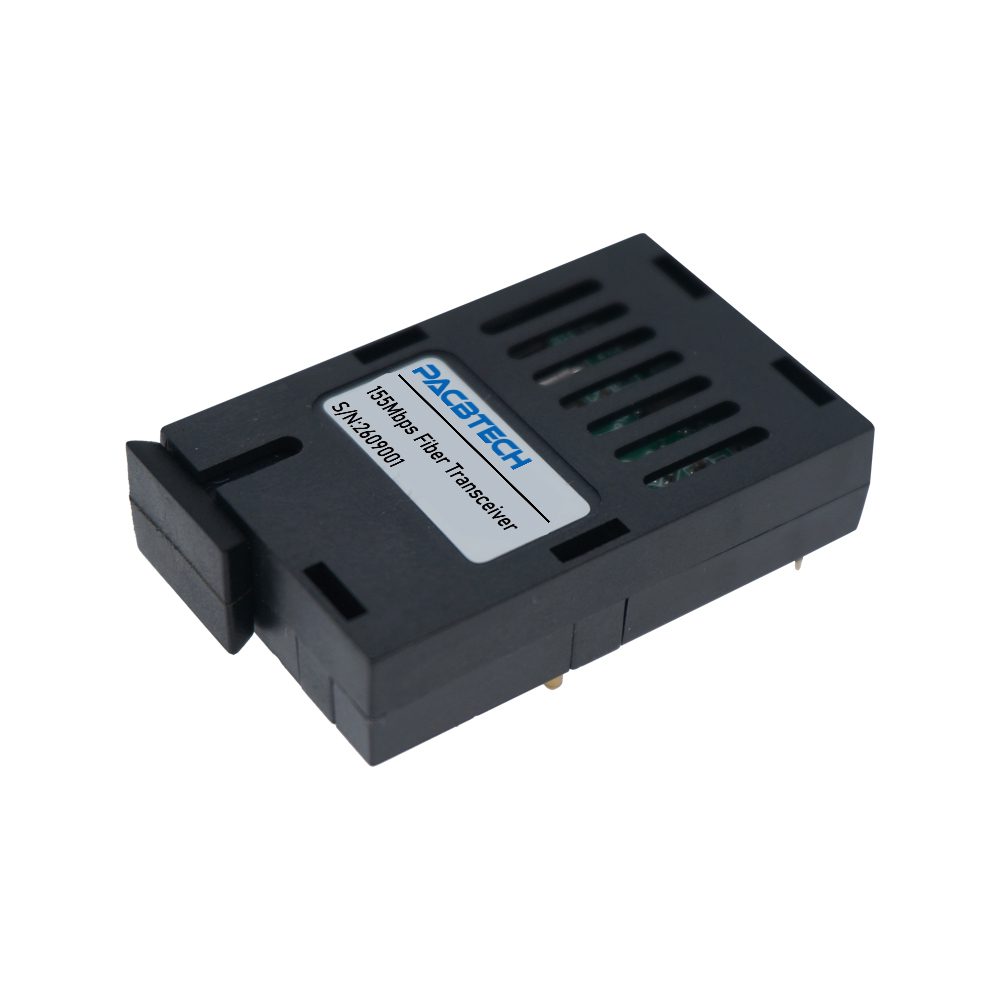

This 1x9 optical transceiver supports both dual fiber and single fiber (BiDi bidirectional) transmission, with wide compatibility of +5V / 3.3V power supply. Adopting standard 1x9 package, it features TTL/CMOS interface, SC/FC/ST connector options, single mode & multimode available, and stable performance for industrial communication, media converters, fiber data transmission and Ethernet equipment. RoHS compliant, low power consumption, high reliability, available in 155Mbps/1.25G/2.5G rates and 2km~120km transmission distance.
Model:
1x9 Optical Transceiver Dual Fiber and Single Fiber + 5V/3.3V
Inquiry
Optical Transceivers
DAC/AOC Cable
Fiber to Ethernet
OLT
ONU/ONT
Accessory

Features

  • Standard +3.3V / +5V Power Supply

  • SC/FC/ST and pigtail optical interface

  • Standard TTL data output with signal detect indication, compatible with CMOS level

  • Standard 1x9 package

  • Super low power consumption, applied to some special requirement

  • Optional transmission bit rate with down to 0bps and up to 10Mbps

Standard Part

Part NumberData RateWavelengthLDPower SupplyTx Power(dBm)Rx SensReach

155Mb/s Dual Fiber

PAC-1x9FE-1155Mbps850nmFP3.3/5V≥-18dBm≤-28dBm1km
PAC-1x9FE-5155Mbps1310nmFP3.3/5V≥-18dBm≤-34dBm5km
PAC-1x9FE-20155Mbps1310nmFP3.3/5V≥-14dBm≤-33dBm20km
PAC-1x9FE-40155Mbps1310nmFP3.3/5V≥-11dBm≤-33dBm40km
PAC-1x9FE-60155Mbps1310nmFP3.3/5V≥-5dBm≤-35dBm60km
PAC-1x9FE-80155Mbps1550nmDFB3.3/5V≥-8dBm≤-36dBm80km
PAC-1x9FE-100155Mbps1550nmDFB3.3/5V≥-3dBm≤-36dBm100km
PAC-1x9FE-120155Mbps1550nmDFB3.3/5V≥-1dBm≤-37dBm120km
155Mbps Single Fiber
PAC-1x9FE-5T155MbpsT1310/R1550nmFP3.3/5V≥-18dBm≤-33dBm5km
PAC-1x9FE-5R155MbpsT1550/R1310nmDFB3.3/5V≥-18dBm≤-33dBm5km
PAC-1x9FE-20T155MbpsT1310/R1550nmFP3.3/5V≥-14dBm≤-33dBm20km
PAC-1x9FE-20R155MbpsT1550/R1310nmDFB3.3/5V≥-14dBm≤-33dBm20km
PAC-1x9FE-40T155MbpsT1310/R1550nmFP3.3/5V≥-11dBm≤-33dBm40km
PAC-1x9FE-40R155MbpsT1550/R1310nmDFB3.3/5V≥-10dBm≤-33dBm40km
PAC-1x9FE-60T155MbpsT1310/R1550nmFP3.3/5V≥-5dBm≤-35dBm60km
PAC-1x9FE-60R155MbpsT1550/R1310nmDFB3.3/5V≥-10dBm≤-35dBm60km
PAC-1x9FE-80T155MbpsT1490/R1550nmDFB3.3/5V≥-8dBm≤-36dBm80km
PAC-1x9FE-80R155MbpsT1550/R1490nmDFB3.3/5V≥-8dBm≤-36dBm80km
PAC-1x9FE-100T155MbpsT1490/R1550nmDFB3.3/5V≥-3dBm≤-36dBm100km
PAC-1x9FE-100R155MbpsT1550/R1490nmDFB3.3/5V≥-3dBm≤-36dBm100km
PAC-1x9FE-120T155MbpsT1490/R1550nmDFB3.3/5V≥-1dBm≤-37dBm120km
PAC-1x9FE-120R155MbpsT1550/R1490nmDFB3.3/5V≥-1dBm≤-37dBm120km
