Home > Product > Optical Transceivers > 3G/12G SDI SFP
3G SDI SFP
3G SDI SFP+ Transceiver Module for High-Speed Transmission This 3G SDI SFP transceiver supports data rates of 3G, enabling high-performance video transmission over fiber optic networks with minimal latency and maximum reliability.

Non-Powered, Plug-and-Play Operation As a non-powered module, it requires no external power source and works instantly upon insertion, making it ideal for quick deployment and reliable operation in professional environments.
Model:
3G SDI SFP+ Transceiver Module, LC Interface, 20KM Optical Fiber Transceiver Converter Work with Blackmagic
Inquiry Datasheet
Optical Transceivers
DAC/AOC Cable
Fiber Converter
OLT
ONU/ONT
Passive Fiber Accessory
Fiber Tools
SFP 3G SDI 20KM LC SFP Transceiver For Black Magic Device

3G SDI 20KM LC SFP Transceiver to Fibre Optical Converter



3G error handling optical module, designed for Black Magic equipment, convert SDI signal to optical fiber transmission, support long-distance 20km single mode fiber transmission. Available in single fiber / dual fiber, unidirectional / bidirectional transmission versions.

Order Information

ModelDescriptionUnit

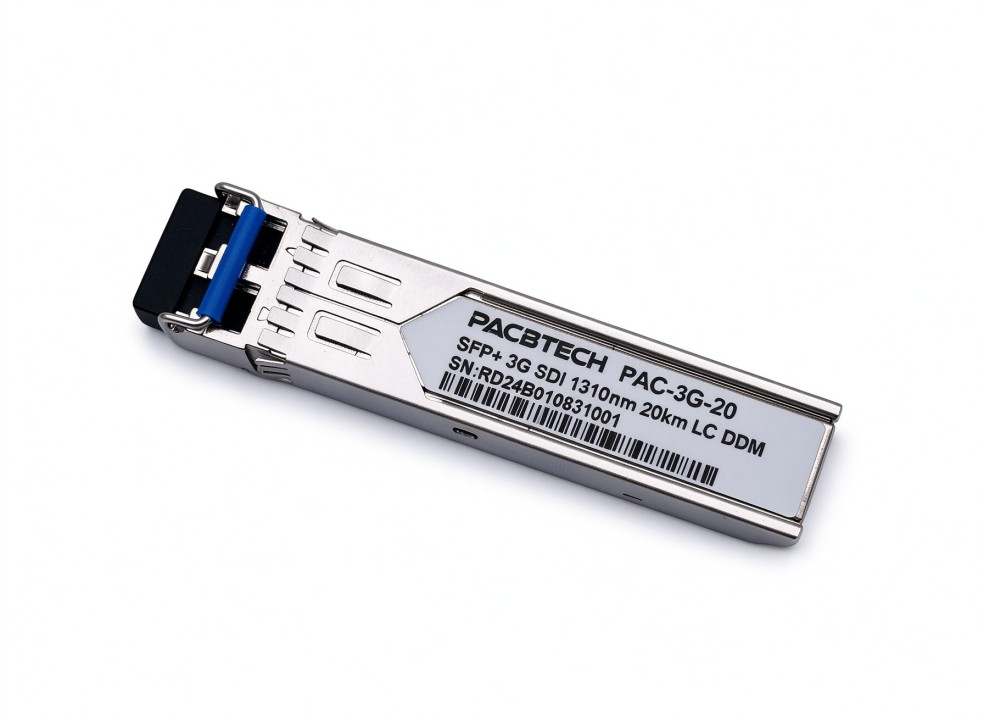

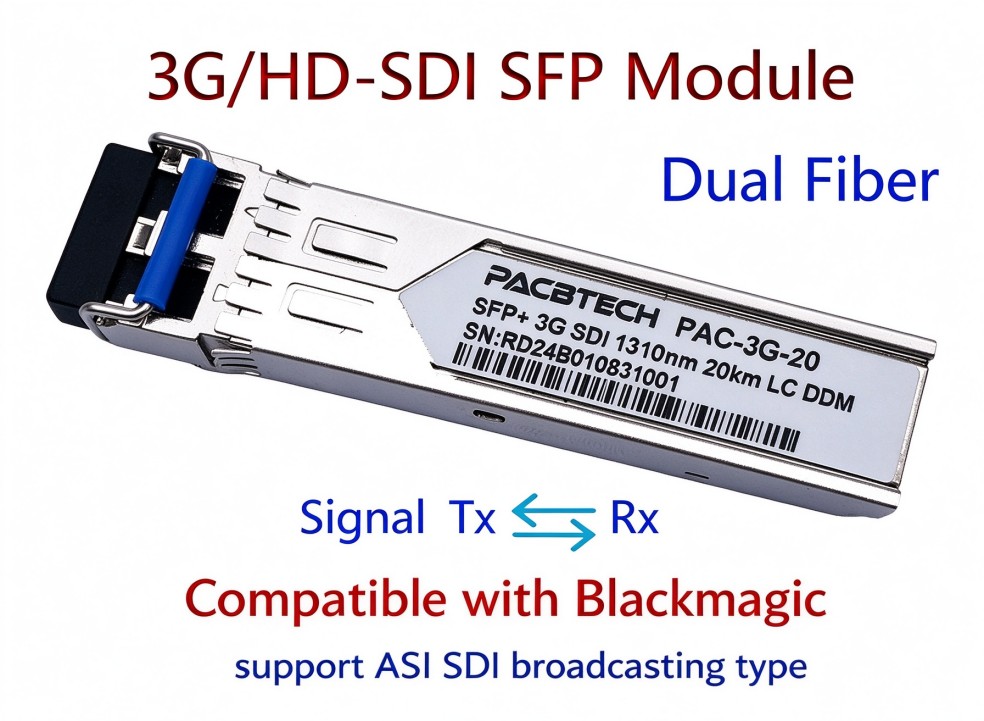

PAC-3G-203G SDI SFP Singlemode Dual Fiber Bidirectional Transmission 20kmPiece

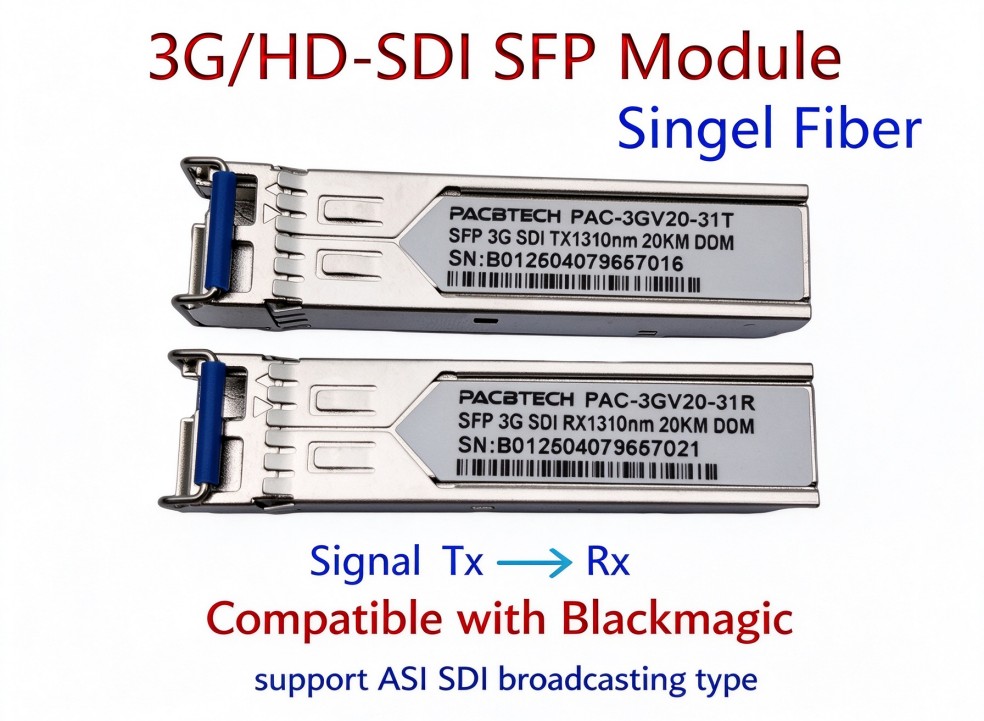

PAC-3GV20-31T/R3G SDI SFP Singlemode 1 Fiber 1Way Transmission (Signal only from Transmitter to Receiver) 20kmPair

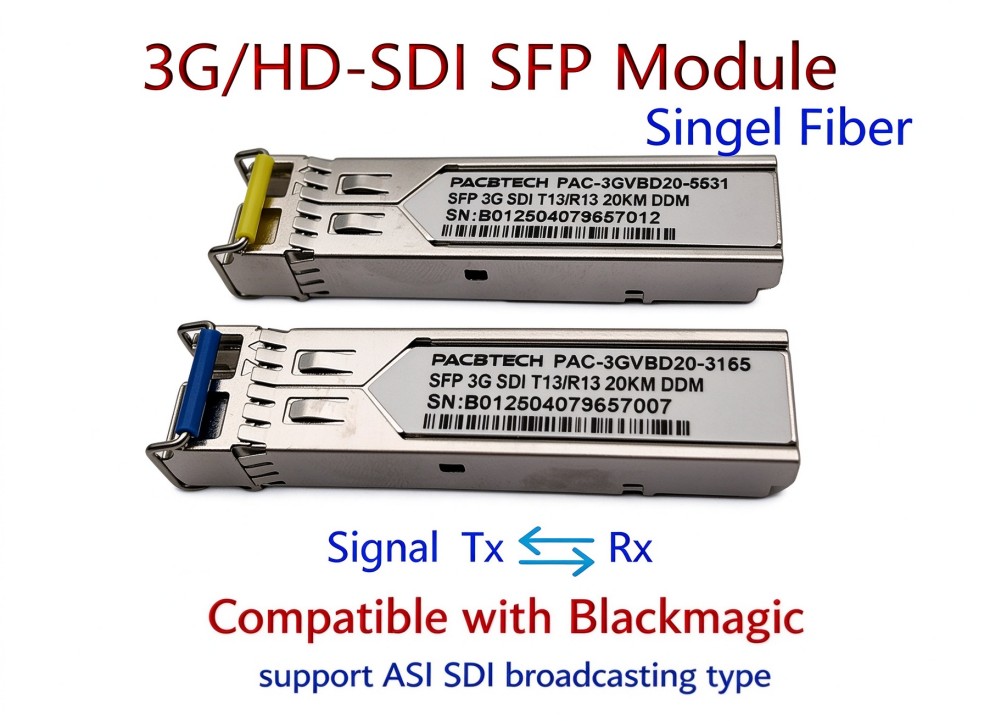

PAC-3GVBD20-5531/31553G SDI SFP Singlemode 1 Fiber Bidirectional Transmission 20kmPair
PAC-3GCWDM1W-20XX3G SDI SFP CWDM Type 1 Fiber 1Way 20km
Wavelength Optional: 1270/1290/1310/1330/1350/1370/1390/1410/1430/1450/1470/1490/1510/1530/1550/1590/1610nm		Piece
PAC-3GCWDM-20XX3G SDI SFP CWDM Type 2 Fiber Bidirectional 20km
Wavelength Optional: 1270/1290/1310/1330/1350/1370/1390/1410/1430/1450/1470/1490/1510/1530/1550/1590/1610nm		Piece

Features

  • HD-SDI SFP Transceiver available

  • SD-SDI SFP Transceiver available

  • 3G-SDI SFP Transceiver available

  • SMPTE 297-2006 Compatible

  • Metal closure for Lower EMI

  • 1310nm/1550nm DFB laser and PIN photodetector

  • Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI

  • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

  • Digital Diagnostic functions available through the I2C interface

  • Compatible with RoHS

  • +3.3V single power supply

  • Operating case temperature:

    • Standard: 0 to +70°C

    • Industrial: -40 to +85°C

Applications

  • SMPTE 297-2006 Compatible Electrical-to-Optical Interfaces

  • HDTV/SDTV Service Interfaces
