Telephone to Fiber Converter

Telephone to Fiber Converter
The converter provides 1-128Channel telephone, Ethernet 100Mbps or 1000Mbps can be selected if required together, Ethernet can support VLAN as optional choice

Model:

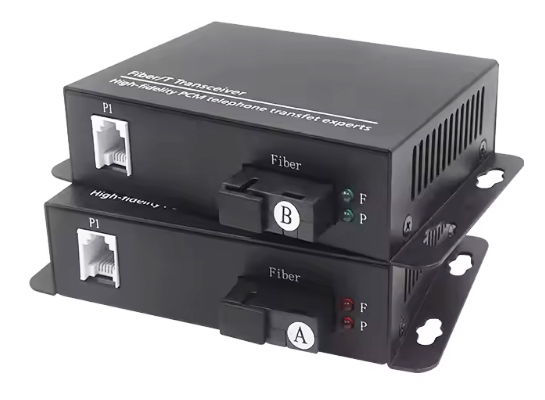

RJ11 Telephone to Fiber Converter

Inquiry

Optical Transceivers

10G SFP+ Transceiver

SFP Transceiver

40G QSFP Transceiver

100G QSFP28 Transceiver

16/25/32G Transceiver

200/400/800G Transceiver

PON SFP

1*9 Transceiver

DAC/AOC Cable

DAC-Direct Attach Cable

AOC-Active Optical Cable

Fiber to Ethernet

Fiber Media Converter

Fiber Switch

Industrial Fiber Switch

Converter Over Fiber

OLT

ONU/ONT

1.25G/2.5G XPON STICK

Accessory

Telephone to Fiber Converter

POTS to fiber converters provide 1-128 channel telephone and 1-4 channel 1000M Ethernet interface, 2 Ethernet interfaces are switch interfaces, and can choose to support VLAN.

The telephone voice port supports FXO/FXS. The FXO port is connected to a PBX, while the FXS port is connected to the telephone set;

Supported caller ID, fax transmission,

Include transmitter and receiver

Parameter	Detailed Specification
Fiber Type	1310nm/1550nm for single mode(0-120km); 850nm /1310nm for multi-mode(0-500m); SC(FC optional)
Physical Properties	Metal casing Working temperature: -10°C ~ 55°C Working Humidity: 5%~95 % (no condensation) Storage temperature: -30°C ~ 75°C Storage Humidity: 5%~95 % (no condensation)
Power Supply	Power supply:DC5V; AC110V ~ 240V; Power consumption: ≤5W Power adapter (EU/UK/US is optional)
RJ11 Interface	FXO (PBX side):Two-wire input impedance: 600Ω (off-hook) FXS (Phone side):Ringing voltage: 75V, ringing frequency: 25HZ Return loss: 40 db, ringing detection voltage: 35V
Connection	Point-to-Point, Plug and play
Installation	Standalone or rack-mount or DIN-rail
Indicator Light	LEDs for power supply and optical fiber link, telephone status indication can monitor the operating status of the system
