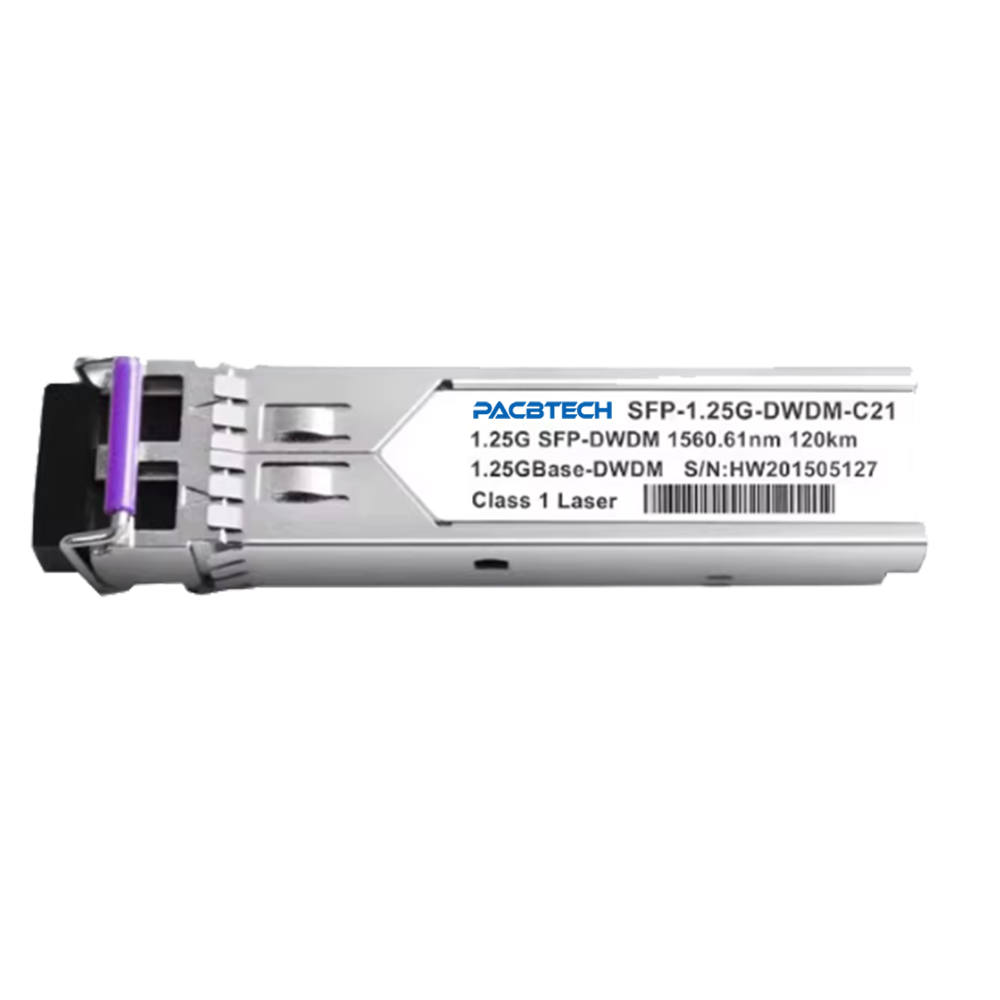

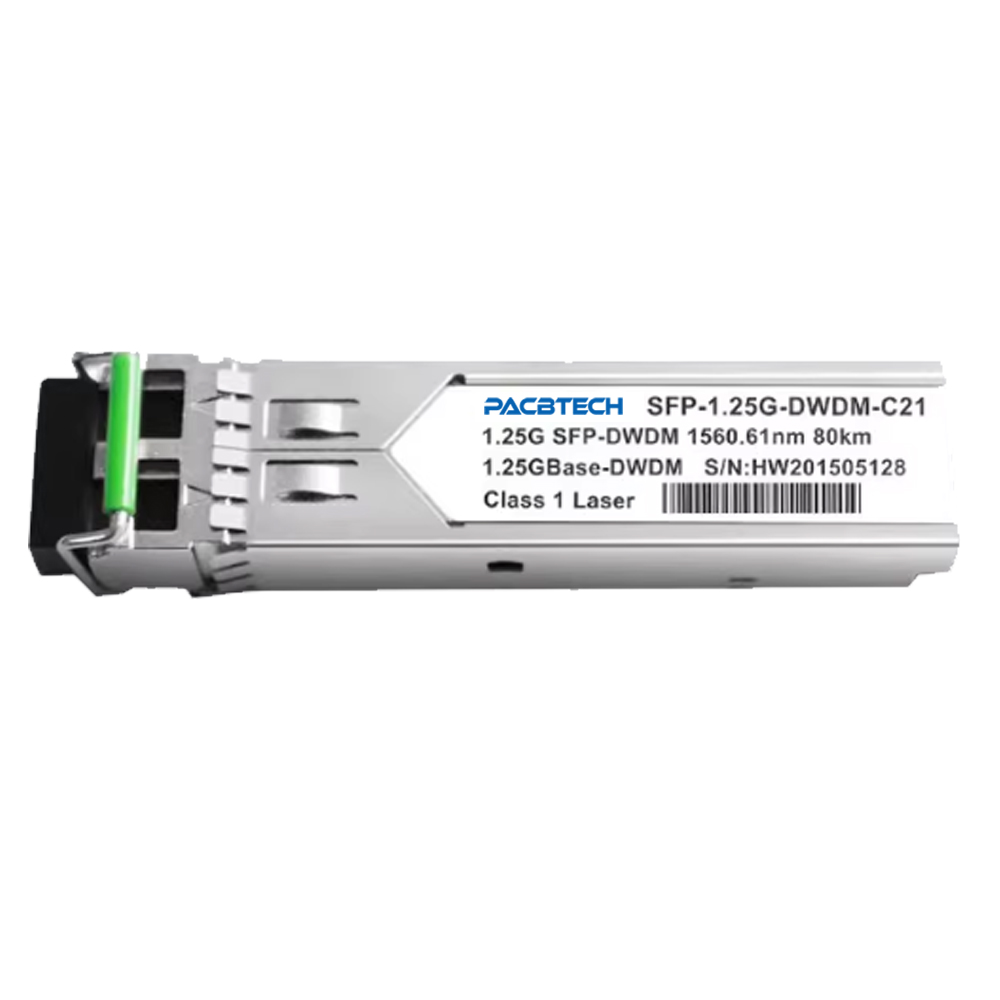

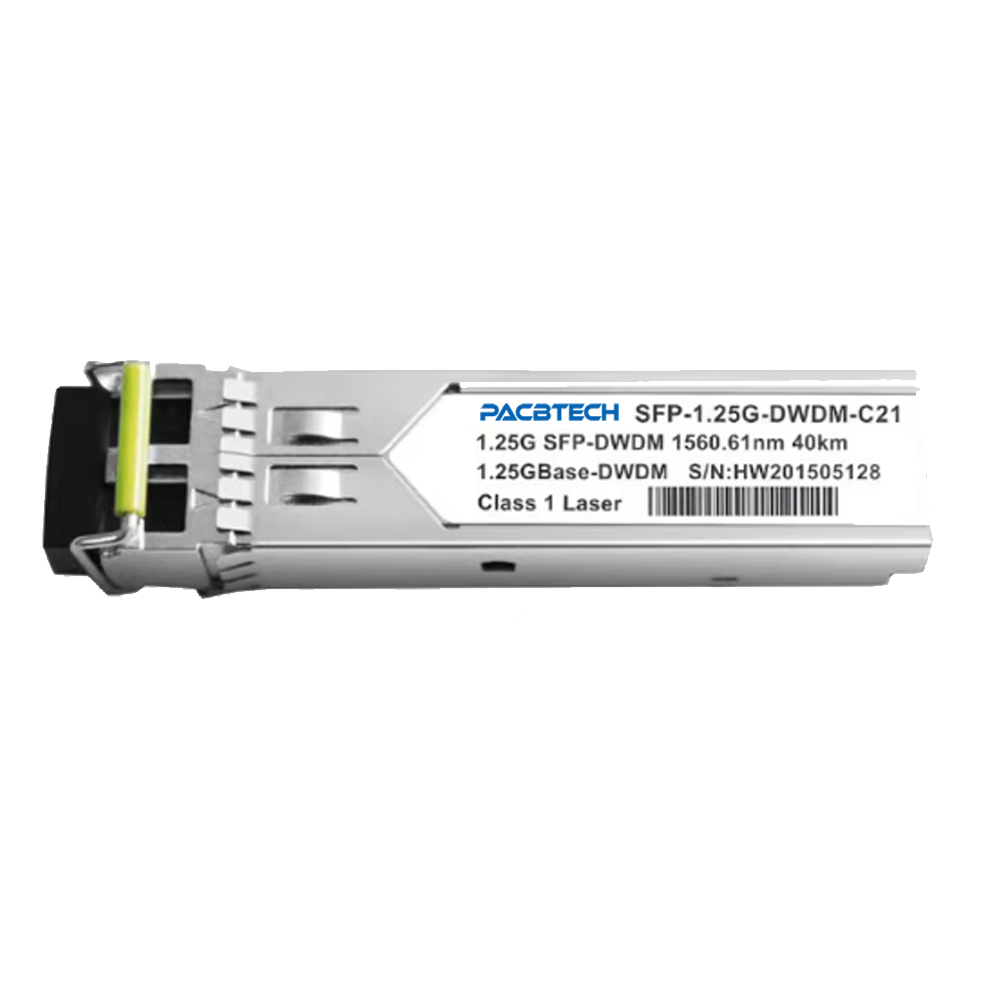

1.25G DWDM SFP

1.25G DWDM SFP module supports 40-120km transmission, ITU wavelengths, DDM, LC connector, SFP MSA compliant, commercial/industrial temp for telecom & data centers

Model:

1.25G/2.5G DWDM SFP Module 40km~120km

Inquiry

Optical Transceivers

10G SFP+ Transceiver

SFP Transceiver

40G QSFP Transceiver

100G QSFP28 Transceiver

16/25/32G Transceiver

200/400/800G Transceiver

PON SFP

1*9 Transceiver

DAC/AOC Cable

DAC-Direct Attach Cable

AOC-Active Optical Cable

Fiber Converter

Fiber Media Converter

Fiber Switch

Industrial Fiber Switch

OLT

ONU/ONT

1.25G/2.5G XPON STICK

Accessory

Features

Hot-pluggable SFP package
Dual LC Connector
Wide distance supported from 40km to 120km
Built-in Digital Diagnostic Monitor functions optional
Metal Enclosure for Lower EMI
Compliant with SFP MSA / SDH/SONET
Compliant with IEEE Std 802.3
Operating Temperature Range 0~70°C or -40~85°C optional
DWDM 100GHz ITU Grid C Band Available
Single +3.3V Power Supply
Low Power Dissipation
RoHS-6 Compliant

Standard Part

155Mbps~2.5Gbps DWDM SFP

P/N	Data Rate	Reach	Wavelength	Rx	Output Power	Sensitivity
PAC-OC3-80Dxx	155Mbps	80KM	DWDM DFB	PIN	-5~0dBm	≦-34dBm
PAC-1G-80Dxx	1.25Gbps	80KM	DWDM DFB	PIN	0~5dBm	≦-25dBm
PAC-1G-120Dxx	1.25Gbps	120KM	DWDM DFB	APD	0~5dBm	≦-32dBm
PAC-1G-160Dxx	1.25Gbps	160KM	DWDM DFB	APD	≥3dBm	≦-34dBm
PAC-2.5G-40Dxx	2.5Gbps	40KM	DWDM DFB	PIN	0~5dBm	≦-18dBm
PAC-2.5G-80Dxx	2.5Gbps	80KM	DWDM DFB	APD	0~5dBm	≦-28dBm
PAC-1G-120Dxx	2.5Gbps	120KM	DWDM DFB	APD	0~5dBm	≦-31dBm

Note: .Dxx defines DWDM central wavelength of ITU-T 1528.77~1563.86nm range, such as D17=1563.86nm, D18=1563.05nm,…D61=1528.77nm.

DWDM Wavelength

Channel No.	Wavelength(nm)	Frequency(THz)	Channel No.	Wavelength(nm)	Frequency(THz)	Channel No.	Wavelength(nm)	Frequency(THz)
17	1563.86	191.7	32	1551.72	193.2	47	1539.77	194.7
18	1563.05	191.8	33	1550.92	193.3	48	1538.98	194.8
19	1563.23	191.9	34	1550.12	193.4	49	1538.19	194.9
20	1561.42	192.0	35	1549.32	193.5	50	1537.40	195.0
21	1560.61	192.1	36	1548.51	193.6	51	1536.61	195.1
22	1559.79	192.2	37	1547.72	193.7	52	1535.82	195.2
23	1558.98	192.3	38	1546.92	193.8	53	1535.04	195.3
24	1558.17	192.4	39	1546.12	193.9	54	1534.25	195.4
25	1557.36	192.5	40	1545.32	194.0	55	1533.47	195.5
26	1556.55	192.6	41	1544.53	194.1	56	1532.68	195.6
27	1555.75	192.7	42	1543.73	194.2	57	1531.90	195.7
28	1554.94	192.8	43	1542.94	194.3	58	1531.12	195.8
29	1554.13	192.9	44	1542.14	194.4	59	1530.33	195.9
30	1553.33	193.0	45	1541.35	194.5	60	1529.55	196.0
31	1552.52	193.1	46	1540.56	194.6	61	1528.77	196.1
