10G CWDM SFP+_Shenzhen Pacific Technology Co.,Ltd

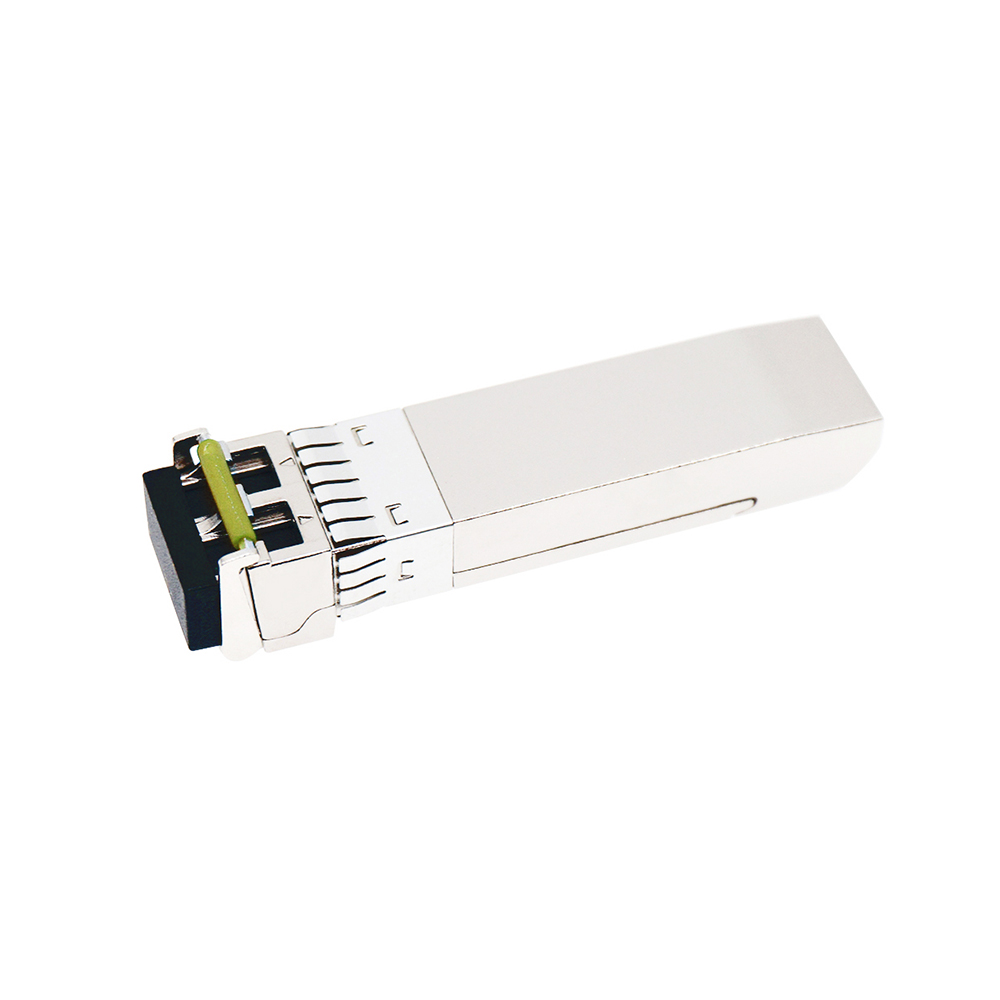

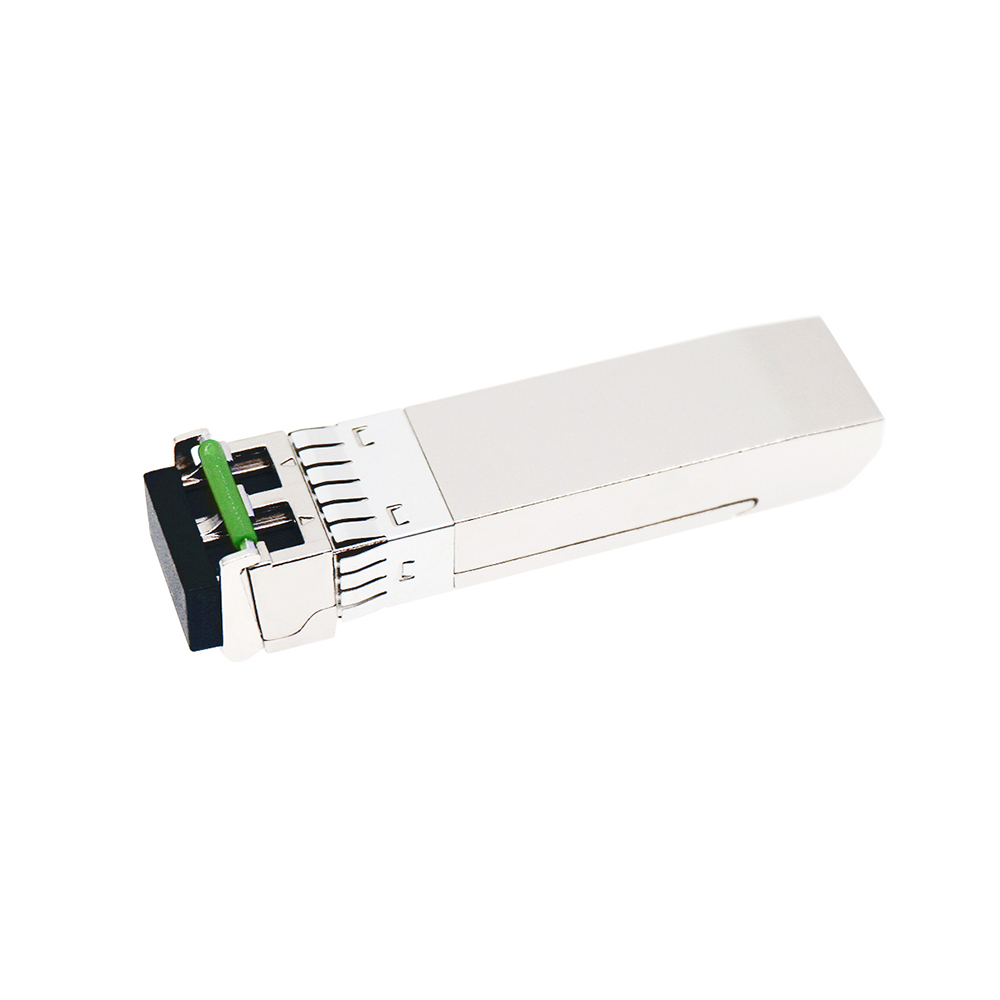

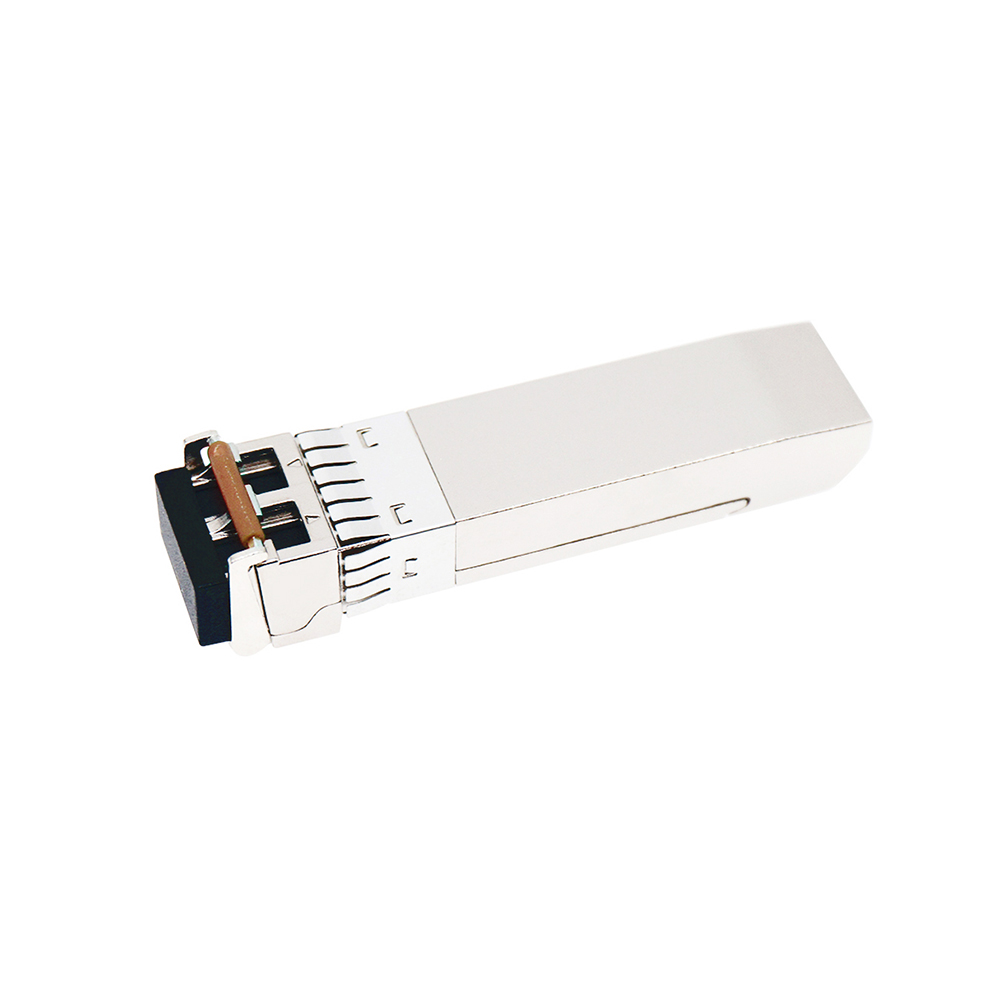

10G CWDM SFP+

The 10G CWDM SFP+ series optical transceiver can support a variety of transmission distance from 10km to 80km. The series products adopt LC optical interface, which has the characteristics of low power consumption, small size, high reliability, wide temperature range and so on. It is mainly used in SDH/SONET transmission environment.

Model:

10G CWDM SFP+ Transceiver

Inquiry

Optical Transceivers

10G SFP+ Transceiver

SFP Transceiver

40G QSFP Transceiver

100G QSFP28 Transceiver

16/25/32G Transceiver

200/400/800G Transceiver

PON SFP

1*9 Transceiver

DAC/AOC Cable

DAC-Direct Attach Cable

AOC-Active Optical Cable

Fiber Converter

Fiber Media Converter

Fiber Switch

Industrial Fiber Switch

OLT

ONU/ONT

1.25G/2.5G XPON STICK

Accessory

10G CWDM SFP Transceiver Module

Features

Hot pluggable SFP+ MSA form package, SFP+ MSA compliant
Compliant with SDH STM64/SONET OC-192/10G FC
Support Multi Protocol from 9.9Gb/s to 11.3Gb/s
18-Wavelengths CWDM (1270~1610nm) are available
Duplex LC Connector
2-wire Interface for Management, Built-in digital diagnostic functions
Low power consumption
Supports a variety of transmission distances from 220m to 100km
RoHS compliant
Operating temperature range: 0~70°C (Commercial) / -40~85℃ (Industrial)

Standard Part

P/N	Data Rate	Reach	Wavelength	Rx	Output Power	Sensitivity
PAC-SFP+-20Cxxxx	10Gbps	20KM	CWDM 1270~1610nm DFB	PIN	-1~5.5dBm	≤-15dBm
PAC-SFP+-ERCxxxx	10Gbps	40KM	CWDM 1270~1450nm DFB	PIN	0~5.5dBm	≤-15dBm
PAC-SFP+-ERCxxxx	10Gbps	40KM	CWDM 1470~1610nm EML	PIN	0~5.5dBm	≤-16dBm
PAC-SFP+-ZRCxxxx	10Gbps	80KM	CWDM 1470~1610nm EML	APD	0~5.5dBm	≤-23dBm

Note

1. xxxx defines CWDM central wavelength of 1270~1610nm range, such as xXXX=1270nm,1290nm,…1610nm.

18 Standard CWDM Wavelengths

1270nm / 1290nm / 1310nm / 1330nm / 1350nm / 1370nm / 1390nm / 1410nm / 1430nm / 1450nm / 1470nm / 1490nm / 1510nm / 1530nm / 1550nm / 1570nm / 1590nm / 1610nm
