Fusion Splicer-6Motor
Extended-life electrodes, 5,000 splices (replaceable)

Auto Splice & Auto Heat Function

World’s most compact, Lightweight and Fast Design

Stable aerial operation Design

Tool-less Electrodes replacement

Fast-splicing 8s, Fast-heating 18s

Support 120 times of splicing + heating when fully charged

Innovatively no need tools to replace electrodes
Model:
Automatic Core Alignment Fiber Splicing Machine - Professional Grade for Optical Networks
Inquiry Datasheet
Optical Transceivers
DAC/AOC Cable
Fiber Converter
OLT
ONU/ONT
Passive Fiber Accessory
Fiber Tools

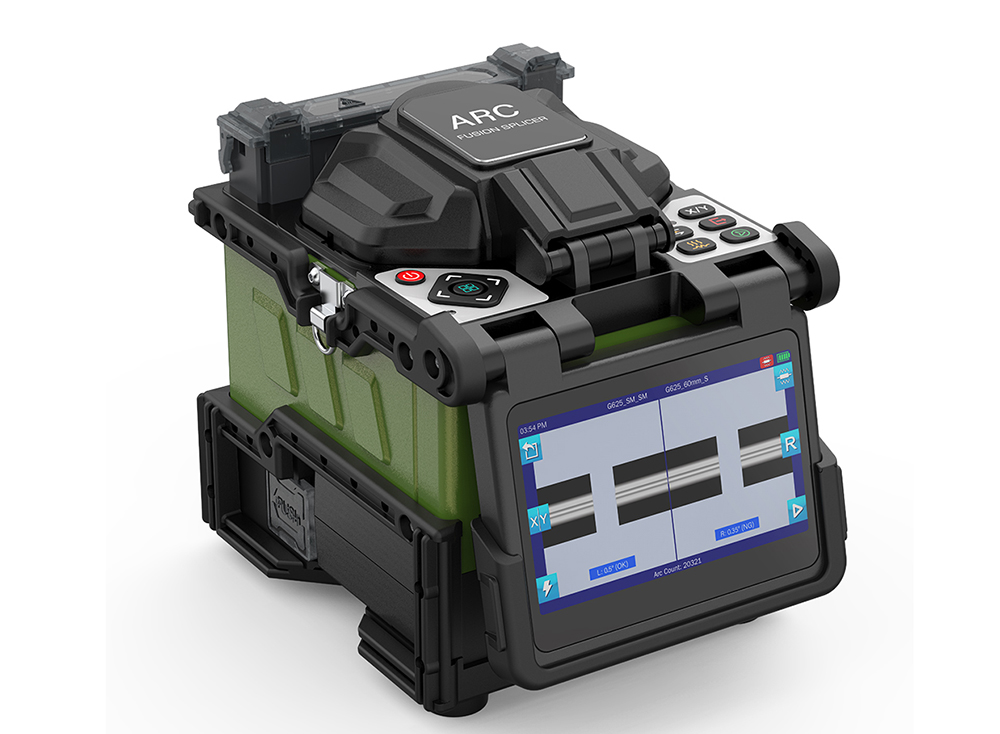

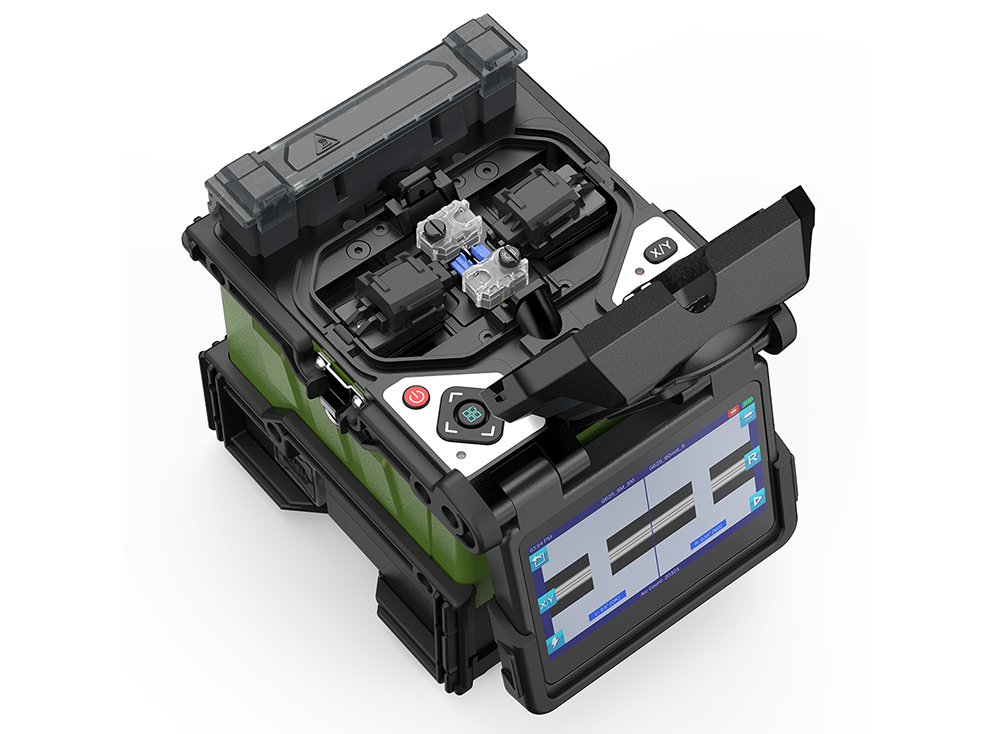

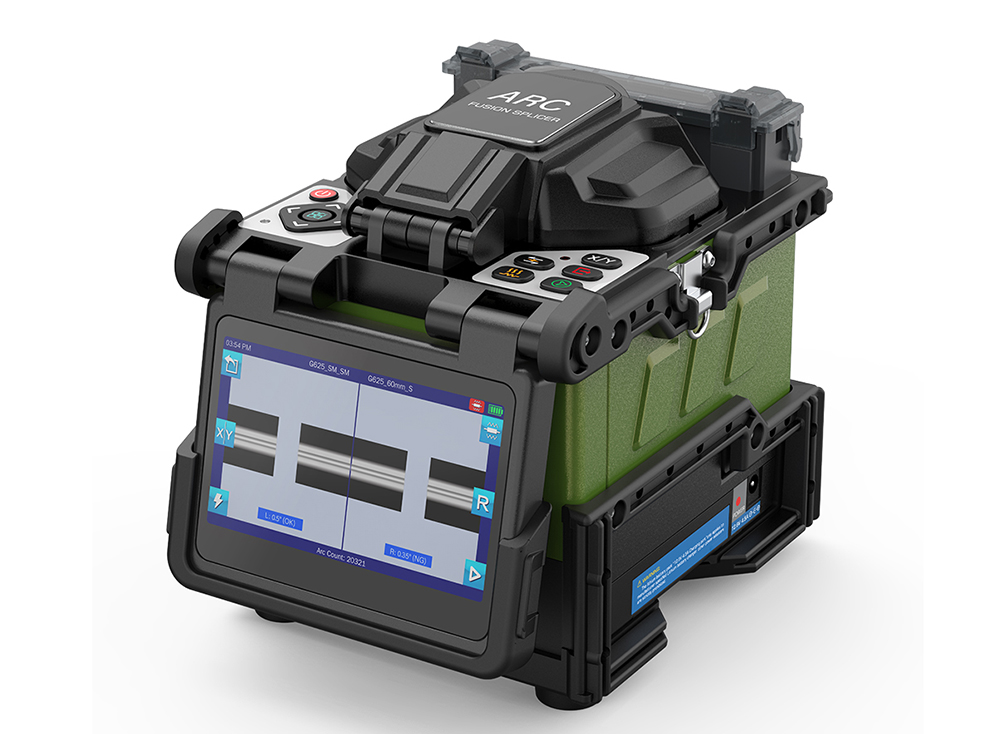

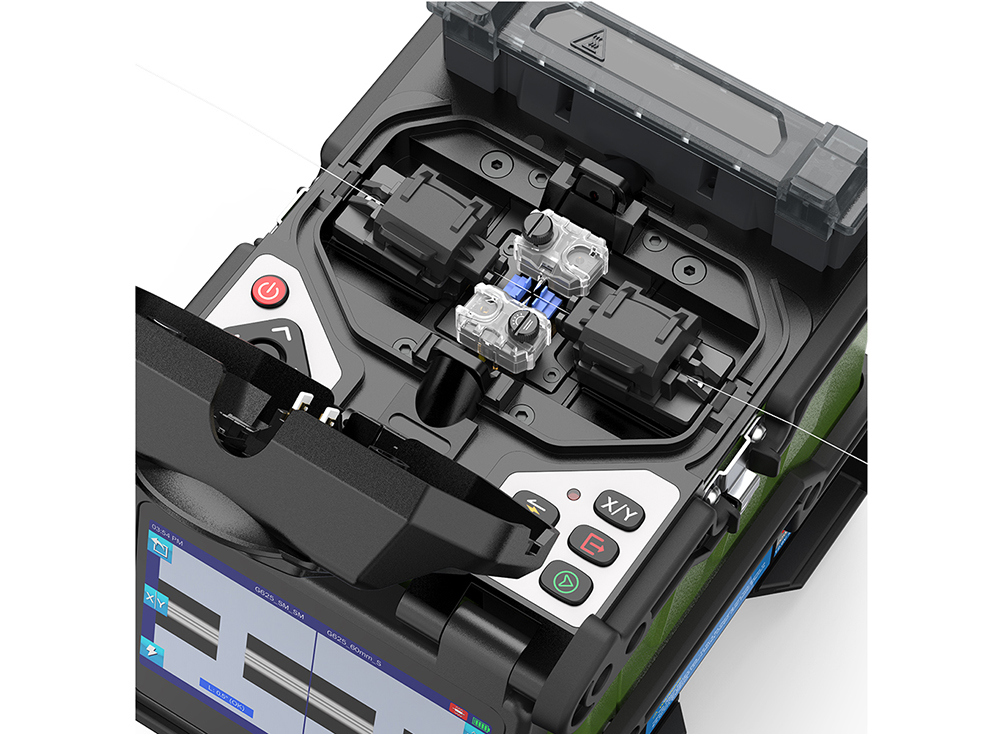

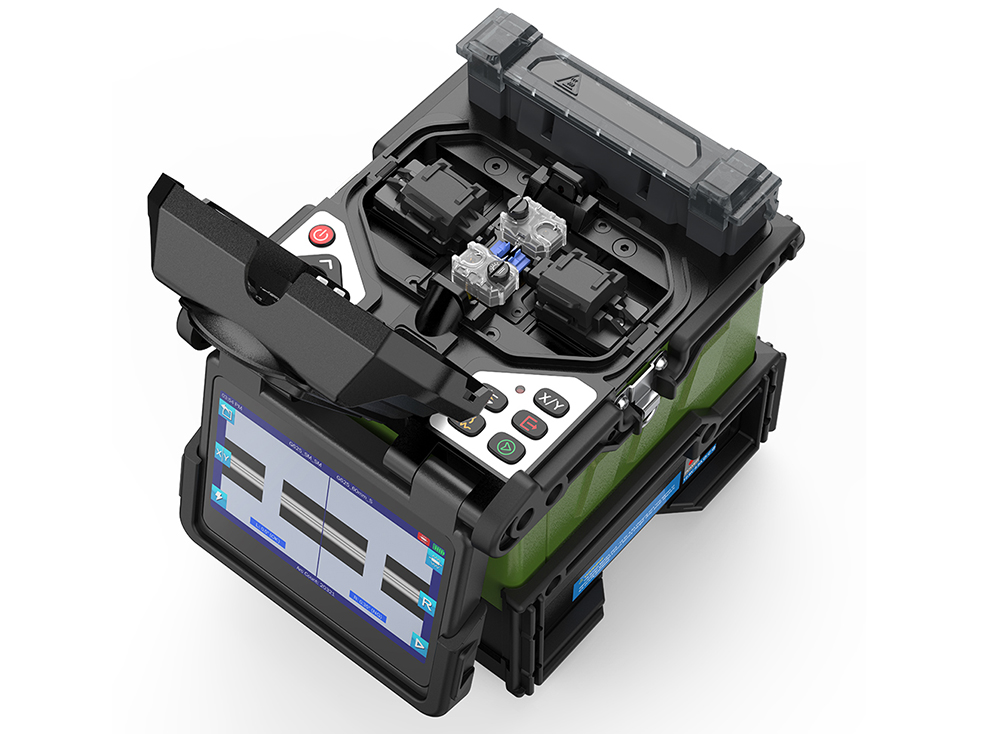

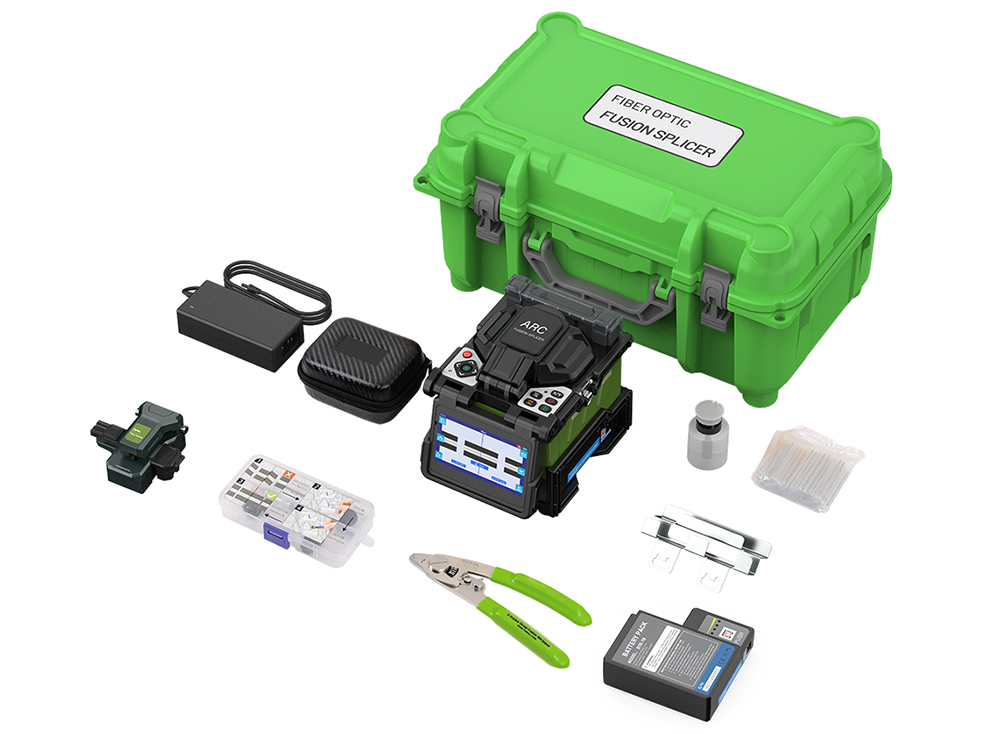

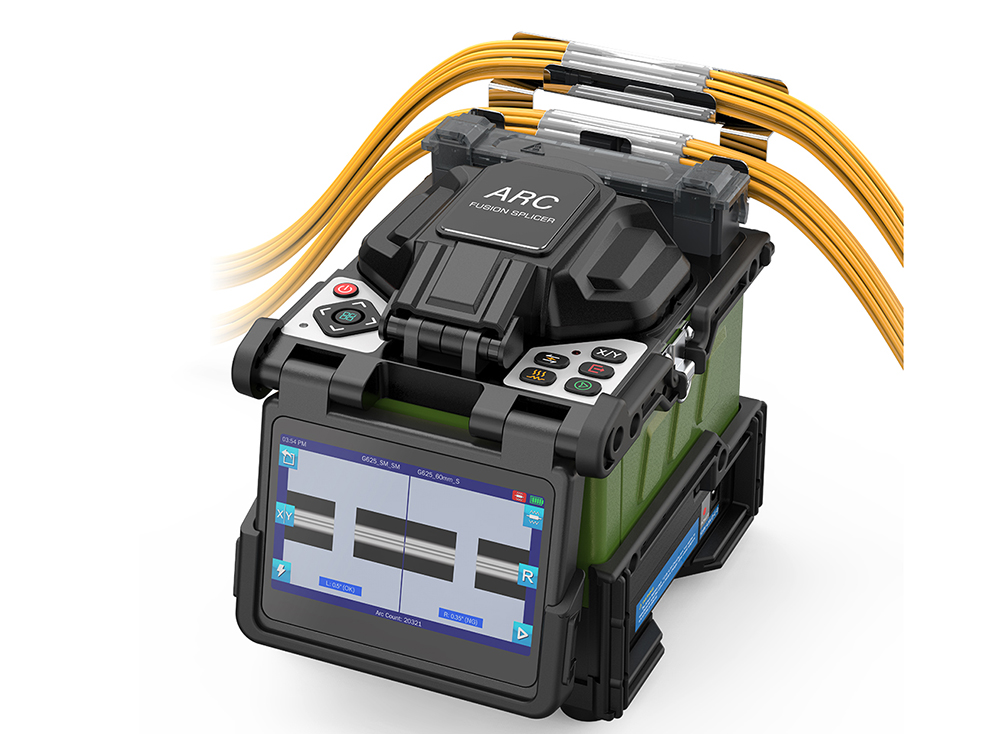

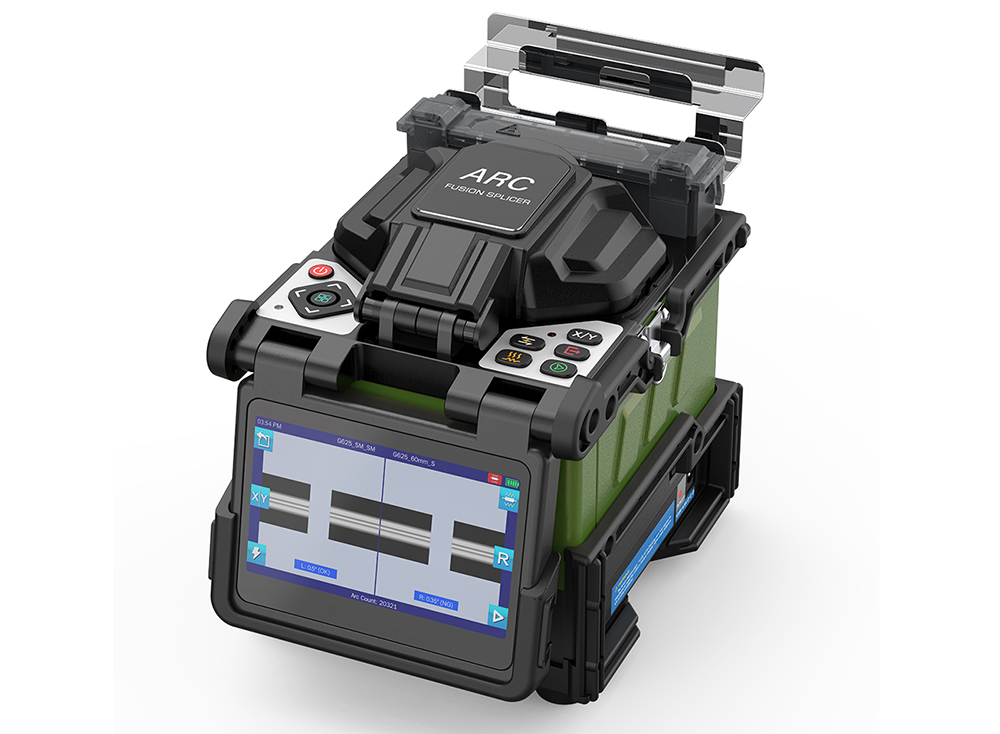

PAFX4 Six Motor Core Alignment Fusion Splicer

  •            6s splice in SM Quick Mode

  •            16s heat shrink time

  •            Electrode life: 5000 times

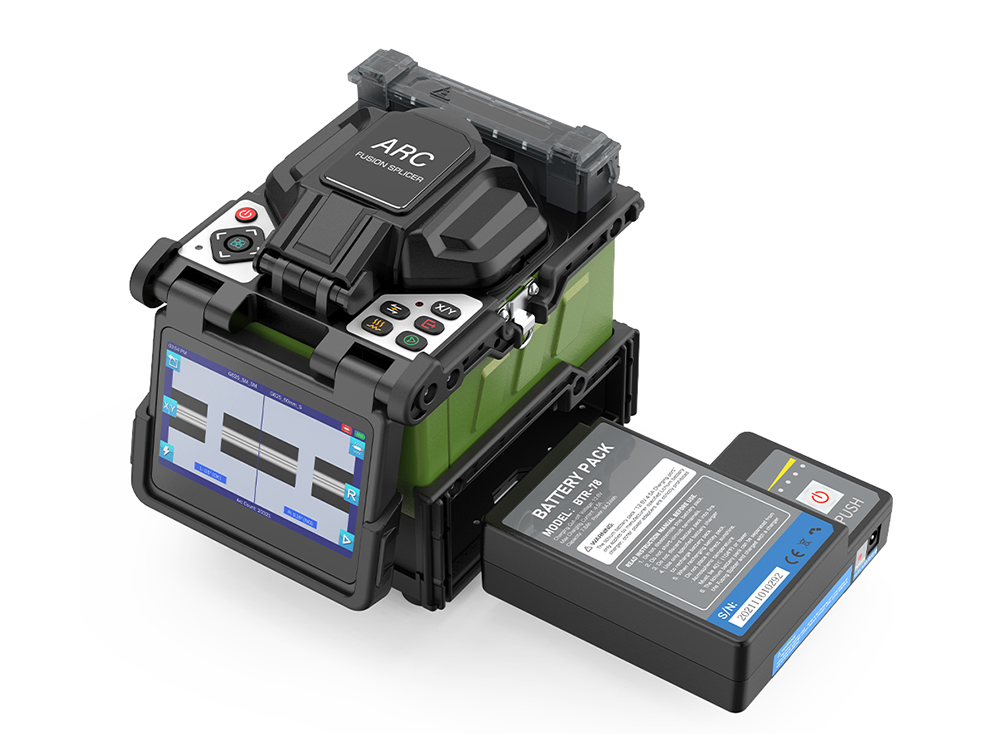

  •            7800mAh Battery Capacity, Typical 450 Cycles (Splice&Heat) per Charge

  •            Average loss under 0.01dB

  •            Saved 10000 groups splicing results 2000 sets of Images

  •            4.3" color high resolution (800 x 480) display

  •            USB interface; Convenient for data download and software update

  •            320X(X-axis or Y-axis)/(X-axis or Y-axis) magnification

  •            Automatic arc calibration by air pressure and temperature

  •            Widely used in long-haul trunk line, FTTx and Access network installation


Technical Specifications

Splice Method6 Motors Real Core Alignment
Applicable FibersSM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
Typical Splice LossSM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.02dB ★①
Fiber DiameterCladding: 80-150 μm, Coating: 100~1000 μm
Fiber Cleave Length8~16 mm
Return Loss>60dB
Splicing TimeSM Quick mode : 6 sec / SM Average: 15 Sec.
Heating TimeQuick mode 16 sec(SM G652 250 μm 40mm Sleeve) adjustable
Battery7800mAh Battery Capacity, Typical 400 Cycles (Splice&Heat) per Charge ★②
Display4.3" color high resolution (800 x 480) display
TerminalUSB2.0
Electrode Life5000 arcs, can be extended by using an electrode grinder ★③

★① With identical fibres(in room temperature). Measured by cut-back method relevant to ITU-T and IEC standards.
       ★② Splice & Heat cycles may vary depending on the battery status and the operating environment.
       ★③ Electrode life may vary depending on the operating environment.
