Quality first, customer supreme, crafting high-quality products for the communication industry.
Home > Product > Optical Transceivers > 1*9 Transceiver
1*9pin 1.25Gb/s

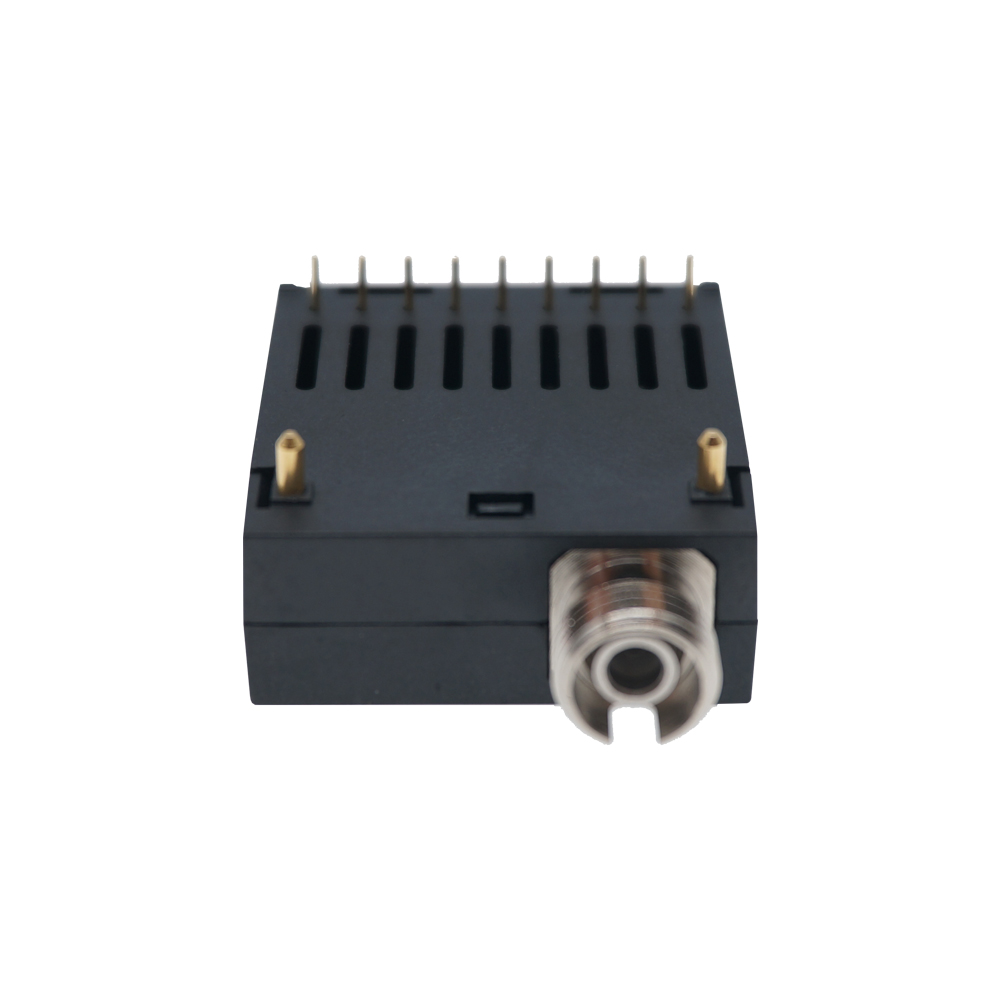

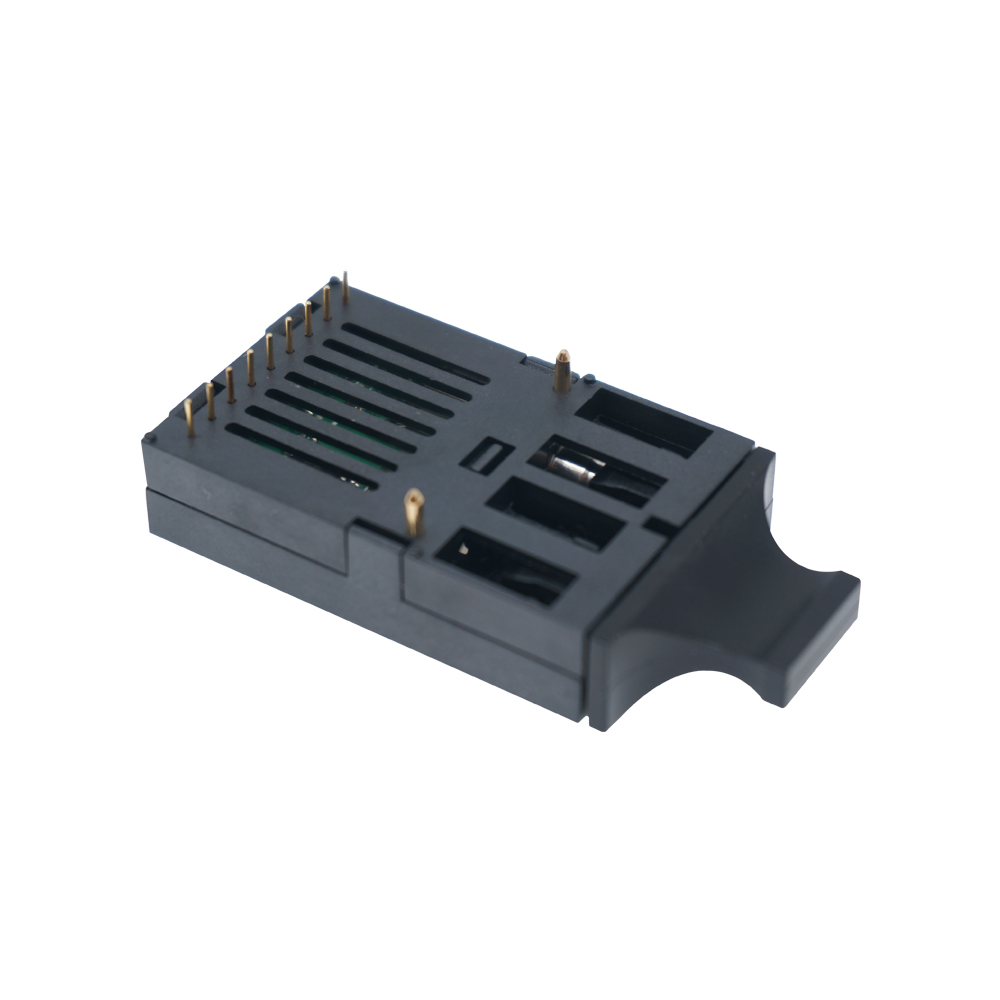

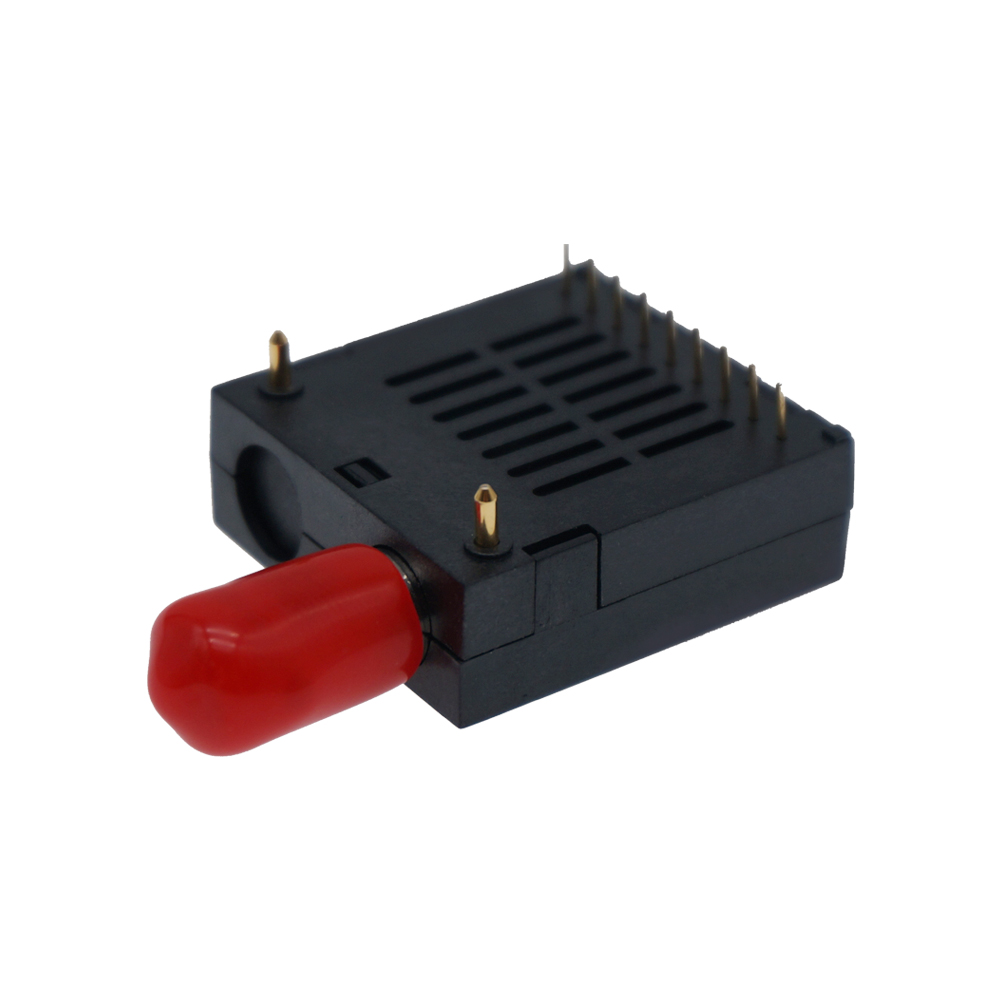

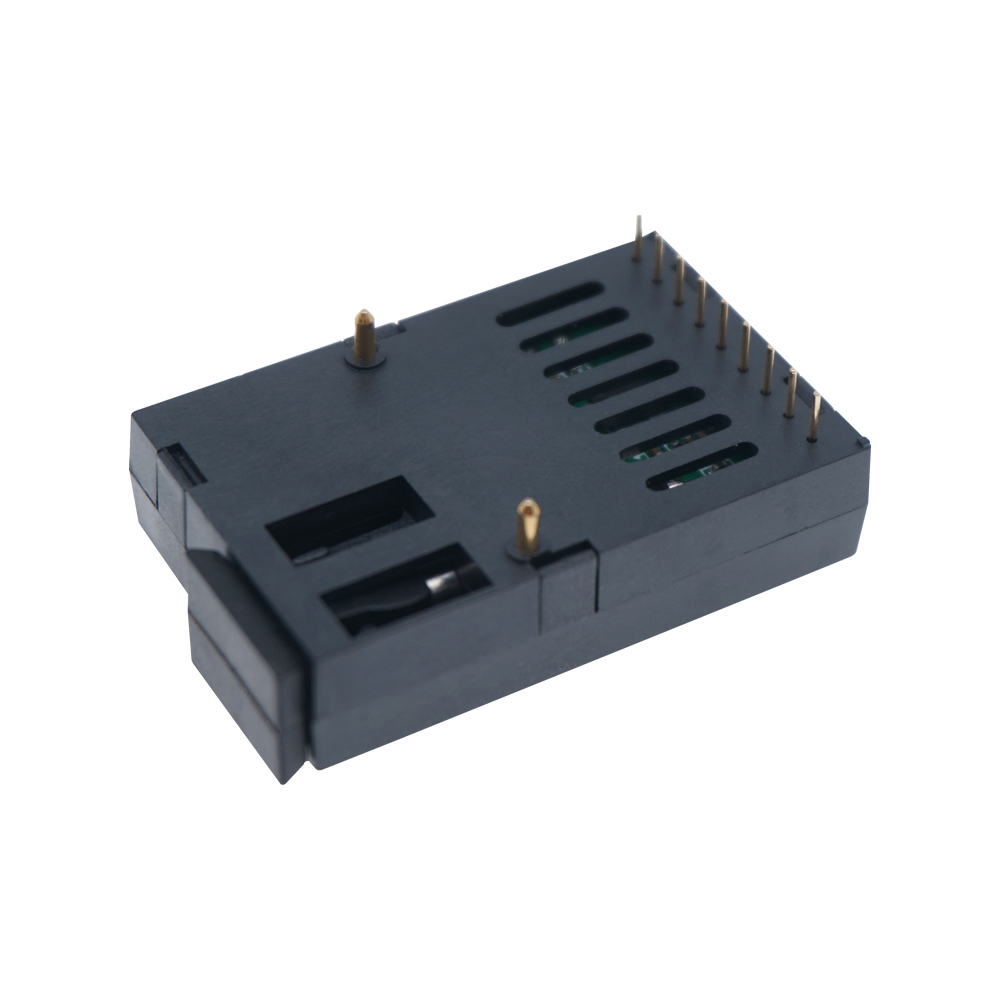

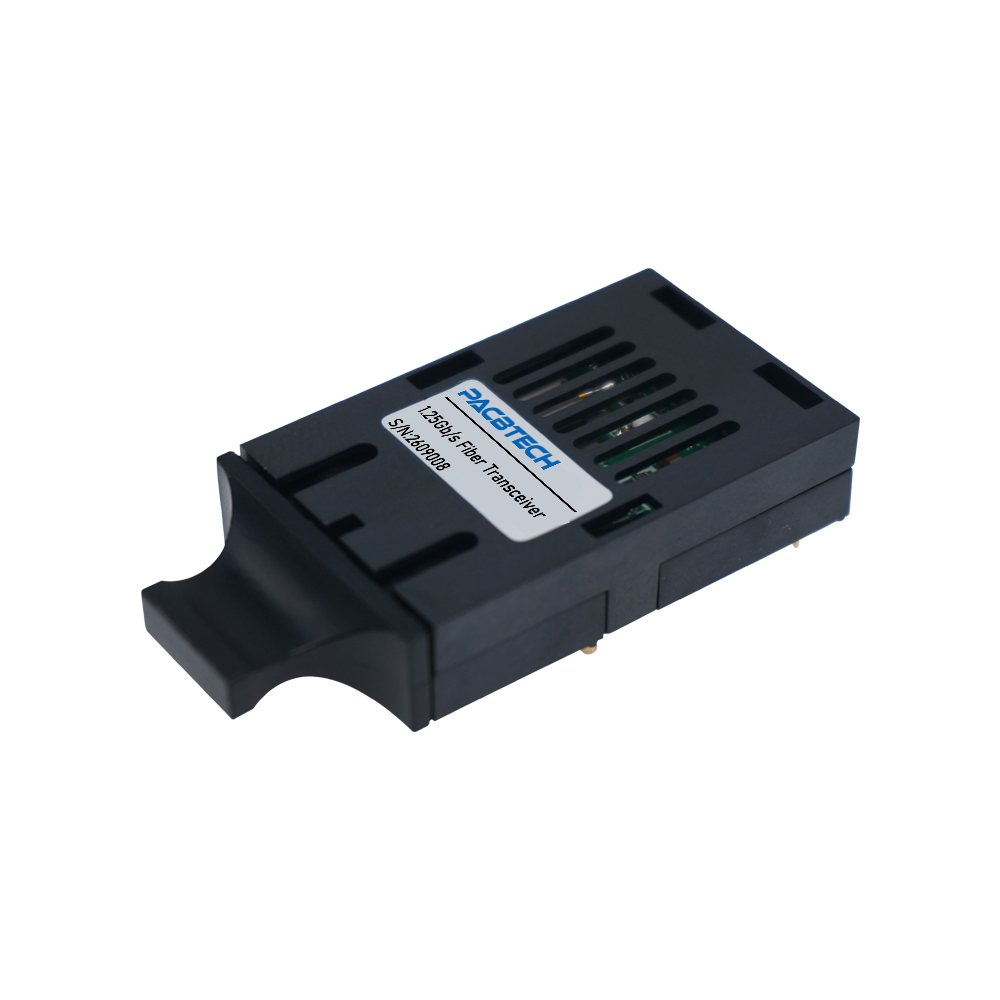

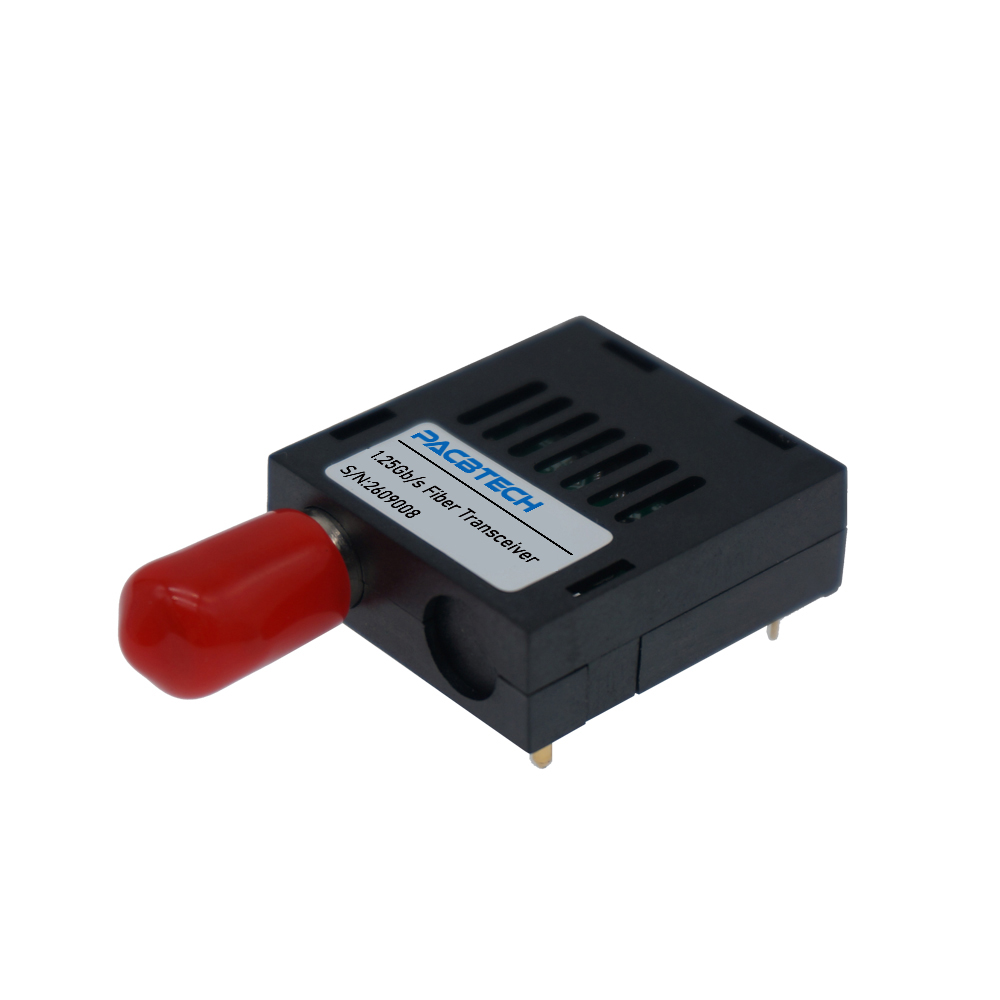

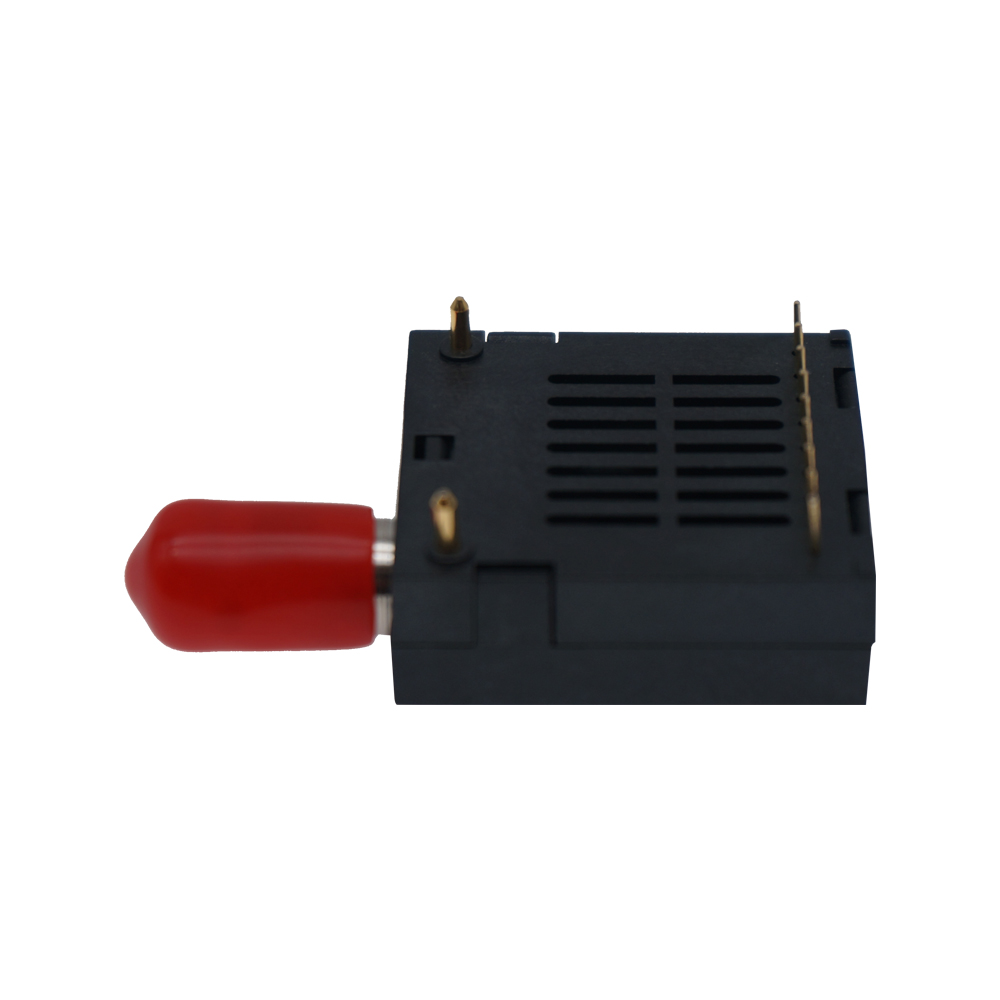

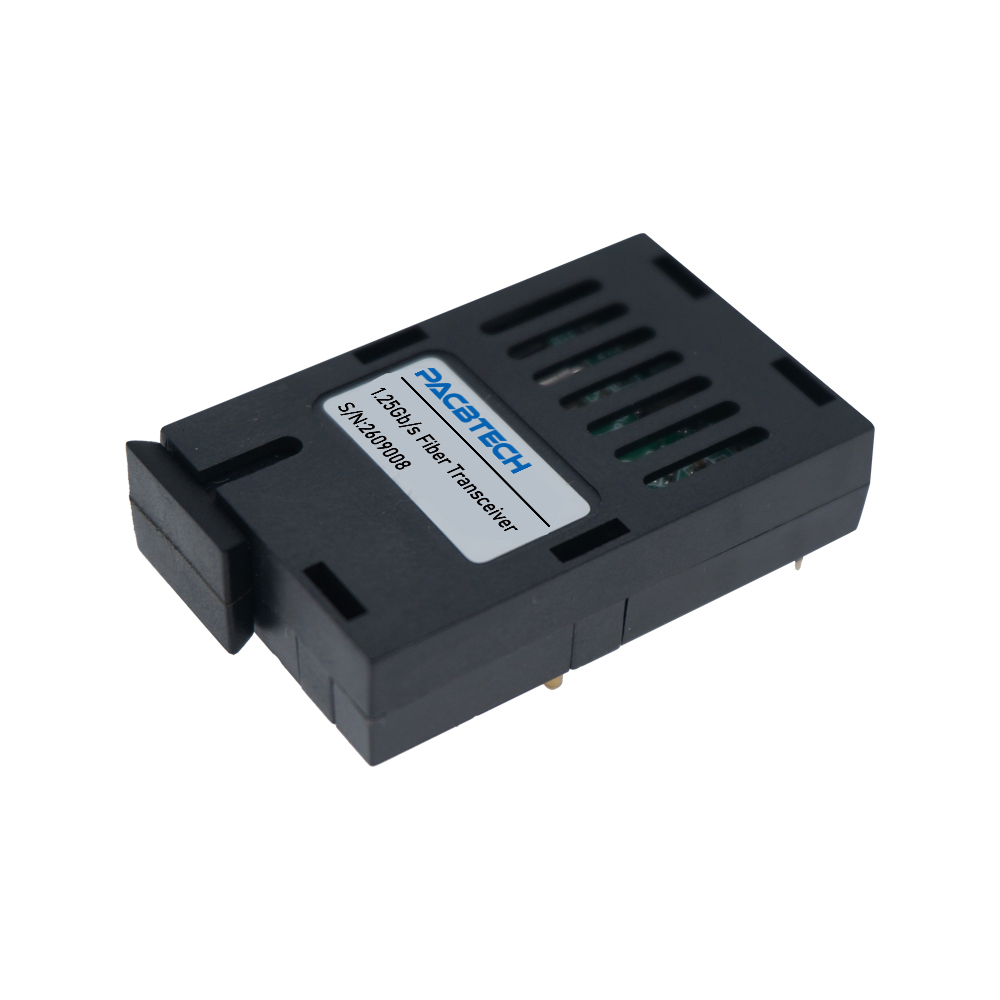

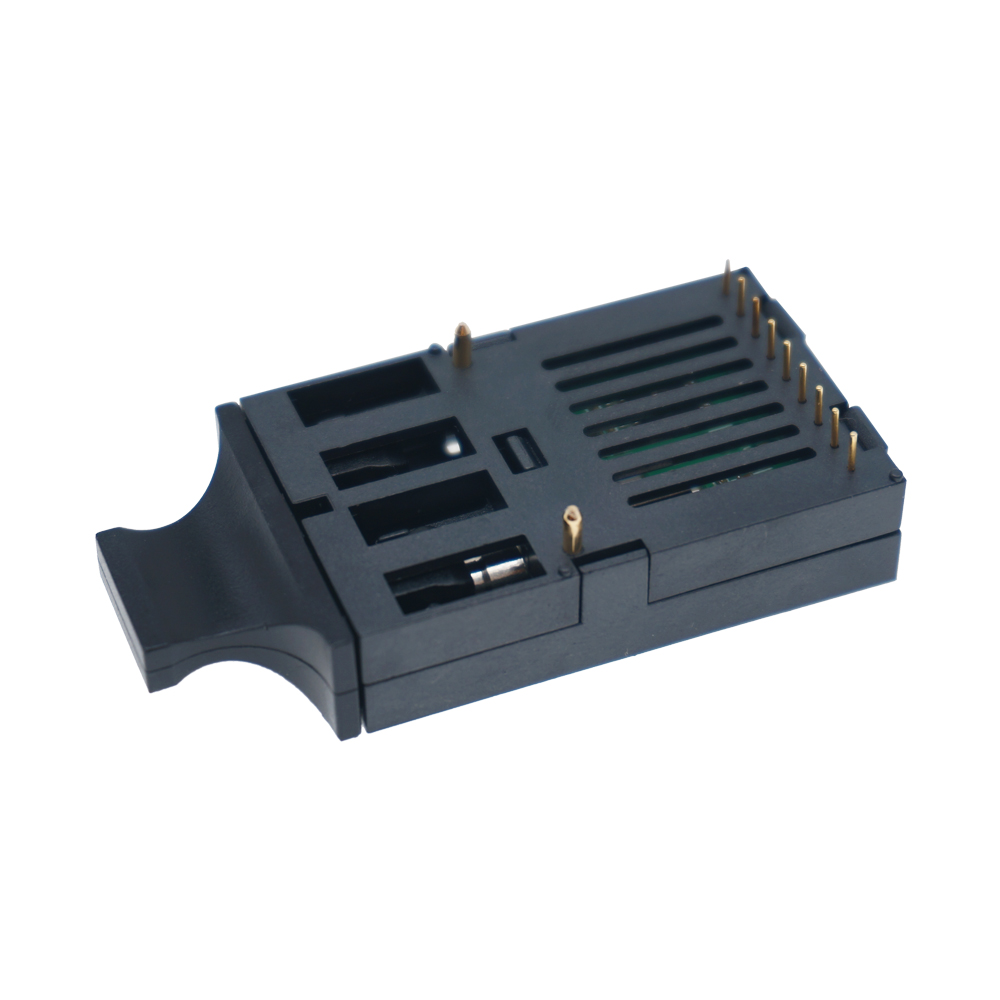

This 1x9 optical transceiver supports both dual fiber and single fiber (BiDi bidirectional) transmission, with wide compatibility of +5V / 3.3V power supply. Adopting standard 1x9 package, it features TTL/CMOS interface, SC/FC/ST connector options, single mode & multimode available, and stable performance for industrial communication, media converters, fiber data transmission and Ethernet equipment. RoHS compliant, low power consumption, high reliability, available in 155Mbps/1.25G/2.5G rates and 2km~120km transmission distance.
Model:
1x9 Optical Transceiver Dual Fiber and Single Fiber + 5V/3.3V
Inquiry
Optical Transceivers
DAC/AOC Cable
Fiber to Ethernet
OLT
ONU/ONT
Accessory

Features

  • Standard +3.3V / +5V Power Supply

  • SC/FC/ST and pigtail optical interface

  • Standard TTL data output with signal detect indication, compatible with CMOS level

  • Standard 1x9 package

  • Super low power consumption, applied to some special requirement

  • Optional transmission bit rate from 0bps up to 10Mbps

Standard Part

Part NumberData RateWavelengthLDPower SupplyTx Power(dBm)Rx SensReach
1.25Gb/s Dual Fiber
PAC-1x9GE-0551.25Gbps850nmVCSEL3.3/5V≥-12dBm≤-24dBm0.5km
PAC-1x9GE-11.25Gbps1310nmFP3.3/5V≥-12dBm≤-24dBm1km
PAC-1x9GE-51.25Gbps1310nmFP3.3/5V≥-12dBm≤-23dBm5km
PAC-1x9GE-201.25Gbps1310nmFP3.3/5V≥-10dBm≤-24dBm20km
PAC-1x9GE-401.25Gbps1310nmFP3.3/5V≥-4dBm≤-25dBm40km
PAC-1x9GE-601.25Gbps1550nmDFB3.3/5V≥-6dBm≤-26dBm60km
PAC-1x9GE-801.25Gbps1550nmDFB3.3/5V≥-1dBm≤-27dBm80km
1.25Gb/s Single Fiber
PAC-1x9GE-51.25GbpsT1310/R1550nmFP3.3/5V≥-12dBm≤-23dBm5km
PAC-1x9GE-51.25GbpsT1550/R1310nmFP3.3/5V≥-12dBm≤-23dBm5km
PAC-1x9GE-201.25GbpsT1310/R1550nmFP3.3/5V≥-10dBm≤-24dBm20km
PAC-1x9GE-201.25GbpsT1550/R1310nmDFB3.3/5V≥-10dBm≤-24dBm20km
PAC-1x9GE-401.25GbpsT1310/R1550nmFP3.3/5V≥-4dBm≤-25dBm40km
PAC-1x9GE-401.25GbpsT1550/R1310nmDFB3.3/5V≥-10dBm≤-25dBm40km
PAC-1x9GE-601.25GbpsT1490/R1550nmDFB3.3/5V≥-6dBm≤-26dBm60km
PAC-1x9GE-601.25GbpsT1550/R1490nmDFB3.3/5V≥-6dBm≤-26dBm60km
PAC-1x9GE-801.25GbpsT1490/R1550nmDFB3.3/5V≥-1dBm≤-27dBm80km
PAC-1x9GE-801.25GbpsT1550/R1490nmDFB3.3/5V≥-1dBm≤-27dBm80km
