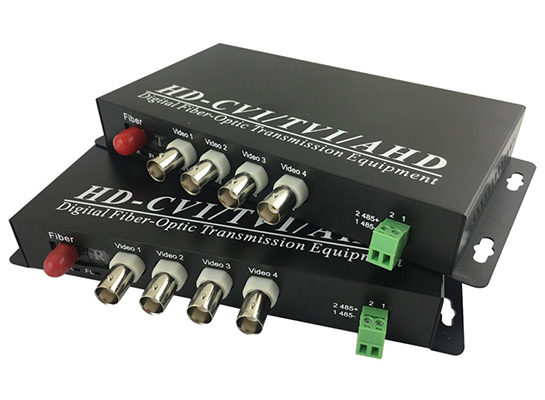

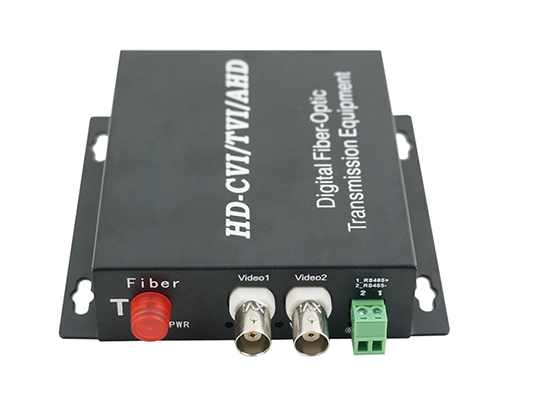

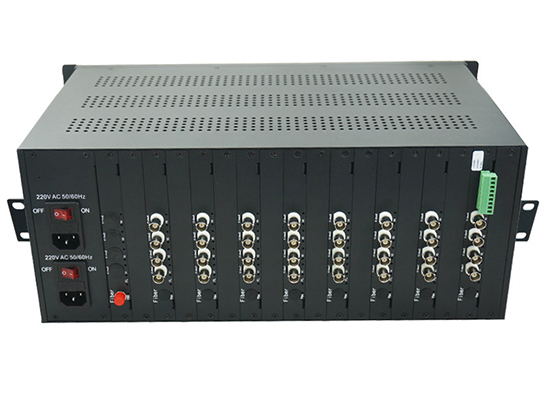

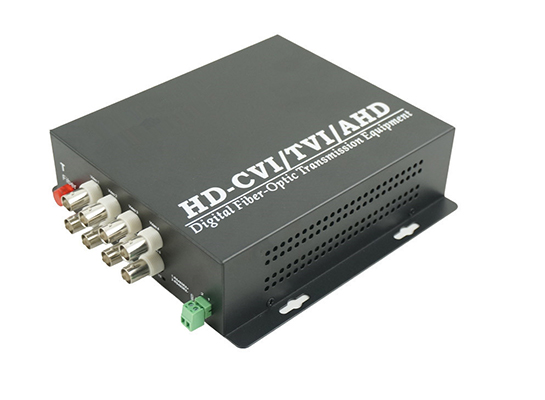

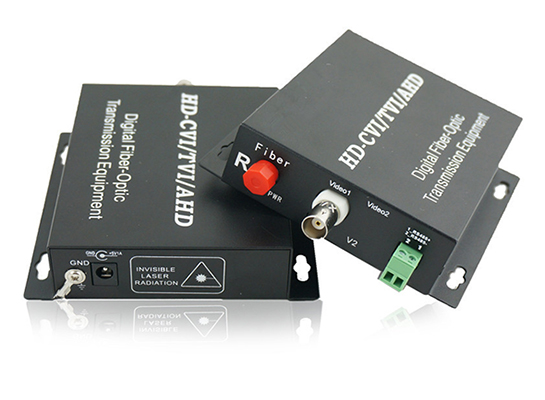

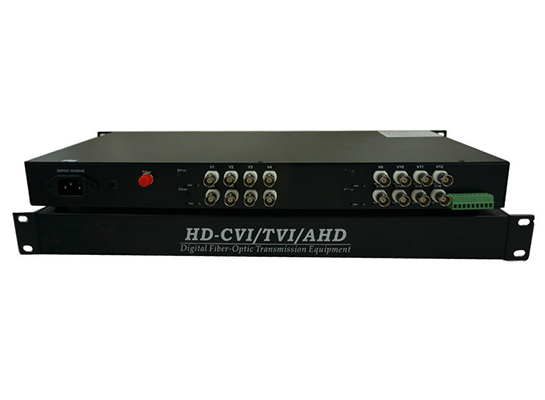

HD-CVI/TVI/AHD to Fiber Converter

The converter can simultaneously transmit 1-16 channels HD-CVI/TVI/AHD over one multimode or single-mode optical fiber. LED indicates instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. It is without loss and non-compression real time transmission.

Feature

> Non-compression coding technology.

> Automatically identify formats of input videos.

> Support 1~16ch HD-CVI/TVI/AHD signal and controlling data simultaneously

through coaxial cable.

> DC 5V power supply.

> Support 720p/25,720p/30,720p/50,720p/60,960p,1080p/25,1080p/30 video etc.

> Through LED indicators to inform its functional mode.

> Industrial wide range of operational temperature.

> Plug and play, simple installation.

Application

> City traffic monitoring system

> Public security, safe city monitoring system

> Highway security protection, charging system

> Building, campus monitoring net

> Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)

> Military monitoring (storehouse, frontier defense, guard, nation defense, etc)

> electric power, oilfield, television program transmission system

> Gymnasium (live video, audio transmission)

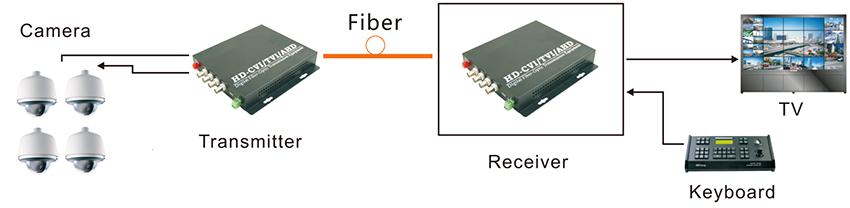

System Connection Diagram

Technical Specification

Feature	Description
Optical	Fiber Type	Multi-mode fiber or Single mode fiber
	Fiber Connector	FC/ST/SC
	Distance	0~80km (Optional)
	Wavelength	Transmitter Tx1310nm, Rx1550nm. Receiver Tx1550nm,Rx1310nm.
Tx	Input level	>500mVp-p
	self-adaption cable equilibrium	1080p:75-5 coaxial cable,300m 720p:75-5 coaxial cable,500m
	Input/Output Impedance	75Ω
	Physical Interface	1/2/4/8 channel BNC connector
Rx	Output level	1Vp-p
	Input/Output Impedance	75Ω
	Physical Interface	1/2/4/8 channel BNC connector
Data	Transmission Media	Terminal blocks Data cable
	Baud Rate	1200～9600bit/s
	Bit Error Rate	≦10
	Operation Mode	Half-Duplex
	Indicators	LOS,PWR,DATA,VIDEO
	Mean time between failures (MTBF)	＞100 000 hours
General	EPS	DC5V
	Power Consumption	≦5W
	Operation Temperature	-40℃～75℃
	Operation Humidity	10%～90%
	Atmospheric Pressure	86kpa~106kpa
	Mounting Method	Wall-mounted

Ordering Information

(Single Fiber, Single mode, FC, 20km Transmitter and Receiver)

Model	Description
PAC-H1VF-T/R	1ch HD-CVI/TVI/AHD 720P
PAC-H1V1DF-T/R	1ch HD-CVI/TVI/AHD 720P, 1ch Reverse RS485 Data
PAC-H2VF-T/R	2ch HD-CVI/TVI/AHD 720P
PAC-H2V1DF-T/R	2ch HD-CVI/TVI/AHD 720P, 1ch Reverse RS485 Data
PAC-H4VF-T/R	4ch HD-CVI/TVI/AHD 720P
PAC-H4V1DF-T/R	4ch HD-CVI/TVI/AHD 720P, 1ch Reverse RS485 Data
PAC-H8VF-T/R	8ch HD-CVI/TVI/AHD 720P
PAC-H8V1DF-T/R	8ch HD-CVI/TVI/AHD 720P, 1ch Reverse RS485 Data
PAC-H16VF-T/R	16ch HD-CVI/TVI/AHD 720P
PAC-H16V1DF-T/R	16ch HD-CVI/TVI/AHD 720P, 1ch Reverse RS485 Data
PAC-HD1VF-T/R	1ch HD-CVI/TVI/AHD 1080P
PAC-HD1V1DF-T/R	1ch HD-CVI/TVI/AHD 1080P, 1ch Reverse RS485 Data
PAC-HD2VF-T/R	2ch HD-CVI/TVI/AHD 1080P
PAC-HD2V1DF-T/R	2ch HD-CVI/TVI/AHD 1080P, 1ch Reverse RS485 Data
PAC-HD4VF-T/R	4ch HD-CVI/TVI/AHD 1080P
PAC-HD4V1DF-T/R	4ch HD-CVI/TVI/AHD 1080P, 1ch Reverse RS485 Data
PAC-HD8VF-T/R	8ch HD-CVI/TVI/AHD 1080P
PAC-HD8V1DF-T/R	8ch HD-CVI/TVI/AHD 1080P, 1ch Reverse RS485 Data
PAC-HD16VF-T/R	16ch HD-CVI/TVI/AHD 1080P
PAC-HD16V1DF-T/R	16ch HD-CVI/TVI/AHD 1080P, 1ch Reverse RS485 Data
