Home > Product > Optical Transceivers > 10G SFP+ Transceiver
10G DWDM SFP
10G DWDM SFP transceiver module operates over C-band wavelengths, supports 40km‑80km transmission, compliant with 10G Ethernet/SDH standards, hot‑pluggable LC duplex, DDM, RoHS, ideal for long‑haul DWDM optical networks
Model:
10G DWDM SFP Transceiver 40km/80km
Inquiry
Optical Transceivers
DAC/AOC Cable
Fiber Converter
OLT
ONU/ONT
Accessory

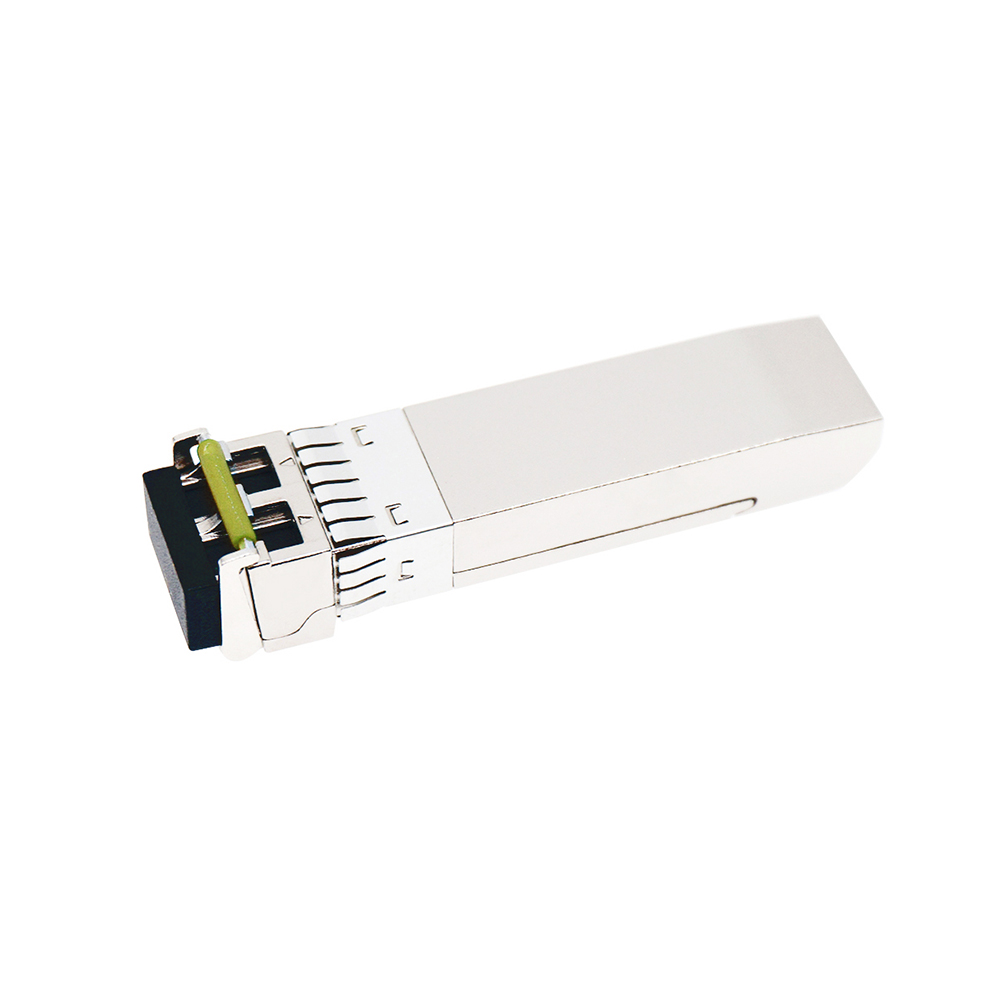

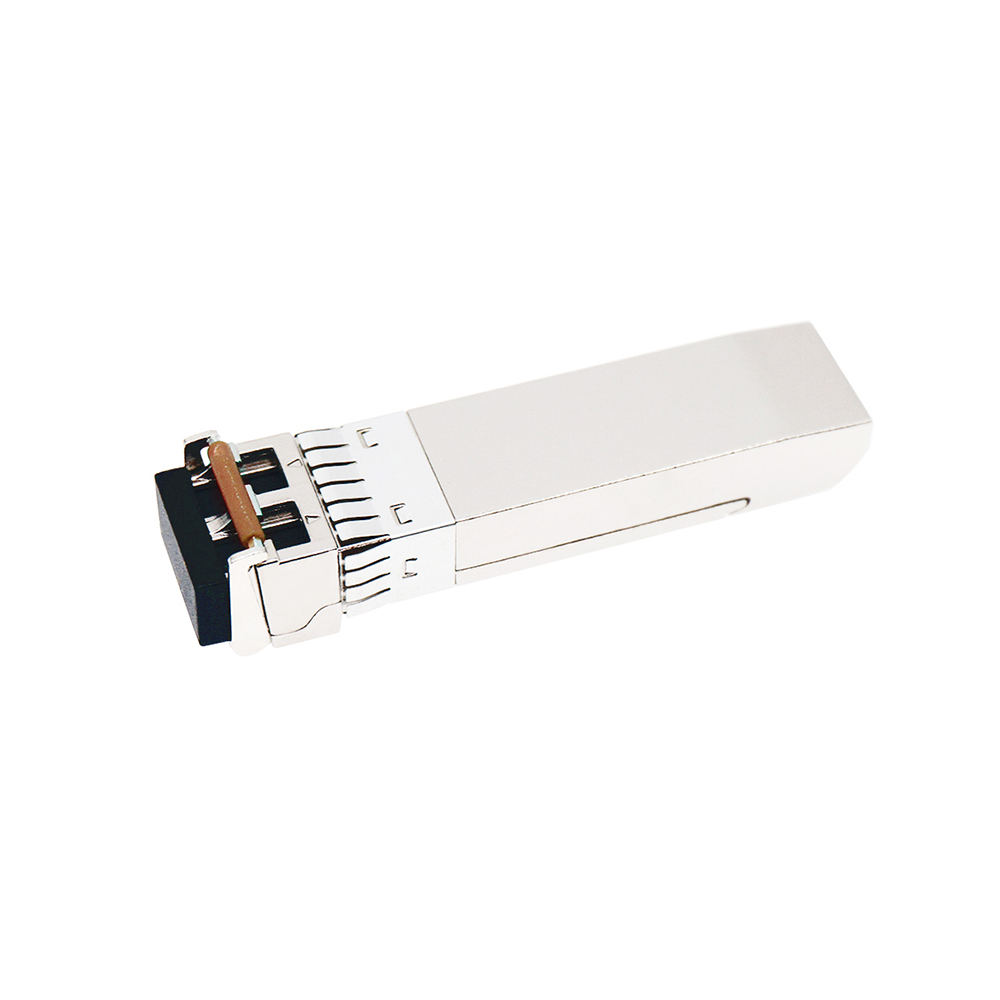

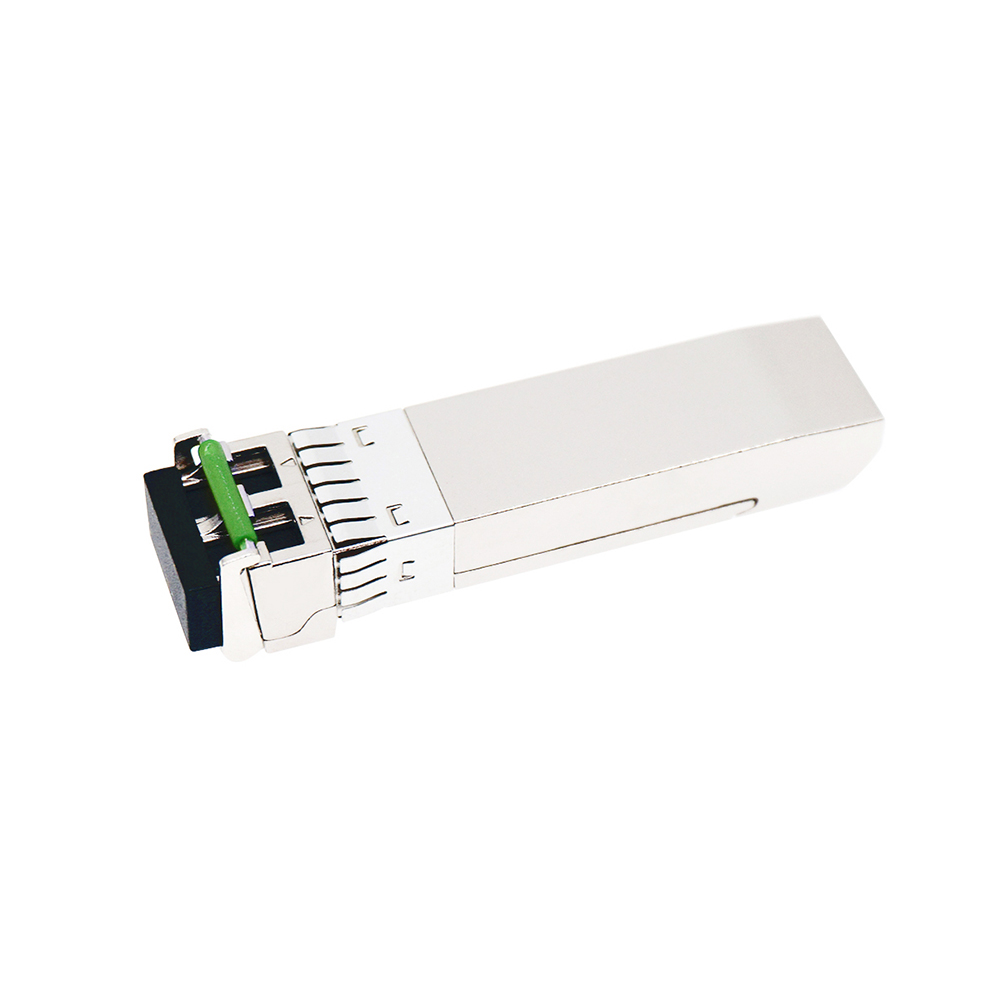

10G DWDM SFP Transceiver Module

Features

  • Hot pluggable SFP+ MSA form package, SFP+ MSA compliant

  • Compliant with SDH STM64/SONET OC-192/10G FC

  • Support Multi Protocol from 9.9Gb/s to 11.3Gb/s

  • DWDM 100GHz ITU Grid C-band wavelength is available

  • Duplex LC Connector

  • 2-wire Interface for Management, Built-in digital diagnostic functions

  • Low power consumption

  • Supports a variety of transmission distances from 220m to 100km

  • RoHS compliant

  • Operating temperature range: 0~70°C (Commercial) / -40~85℃ (Industrial)

Standard Part

P/NData RateReachWavelengthRxOutput PowerSensitivity
PAC-SFP+-ERDxx10Gbps40KMDWDM EMLPIN-1~4dBm≤-16dBm
PAC-SFP+-ZRDxx10Gbps80KMDWDM EMLAPD-1~5dBm≤-23dBm
PAC-SFP+-ZRD8210Gbps80kmDWDM TunableAPD-1~5dBm≤-23dBm

Note

Dxx DWDM central wavelength of ITU-T 1528.77~1563.86nm range, such as D17=1563.86nm,D18=1563.05nm,…D61=1528.77nm.

100GHZ ITU Grid DWDM Wavelength

Channel No.Central Wavelength(nm)Frequency(THz)Channel No.Central Wavelength(nm)Frequency(THz)Channel No.Central Wavelength(nm)Frequency(THz)
171563.86191.7321551.72193.2471539.77194.7
181563.05191.8331550.92193.3481538.98194.8
191563.23191.9341550.12193.4491538.19194.9
201561.42192.0351549.32193.5501537.40195.0
211560.61192.1361548.51193.6511536.61195.1
221559.79192.2371547.72193.7521535.82195.2
231558.98192.3381546.92193.8531535.04195.3
241558.17192.4391546.12193.9541534.25195.4
251557.36192.5401545.32194.0551533.47195.5
261556.55192.6411544.53194.1561532.68195.6
271555.75192.7421543.73194.2571531.90195.7
281554.94192.8431542.94194.3581531.12195.8
291554.13192.9441542.14194.4591530.33195.9
301553.33193.0451541.35194.5601529.55196.0
311552.52193.1461540.56194.6611528.77196.1
