40G QSFP SR4_Shenzhen Pacific Technology Co.,Ltd

40G QSFP SR4

40G QSFP+ SR4 transceiver module: 850nm MMF, 100m(OM4)/70m(OM3) reach, MPO-12 connector, DDM, IEEE 802.3ba compliant for data center connectivity

Model:

40G QSFP+ SR4 transceiver module: 850nm MMF, 100m(OM4)/70m(OM3) reach, MPO-12 connector,

Inquiry

Optical Transceivers

DAC/AOC Cable

Fiber to Ethernet Converter

OLT

ONU/ONT

Accessory

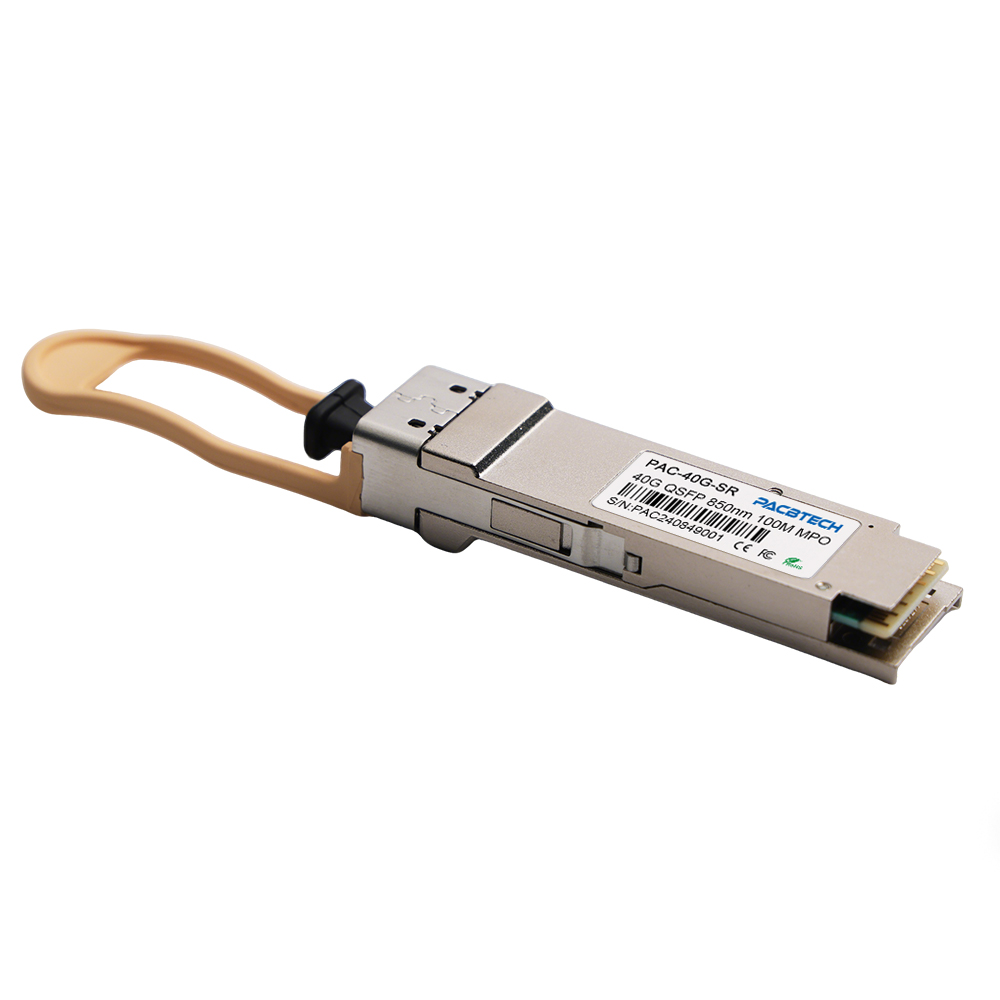

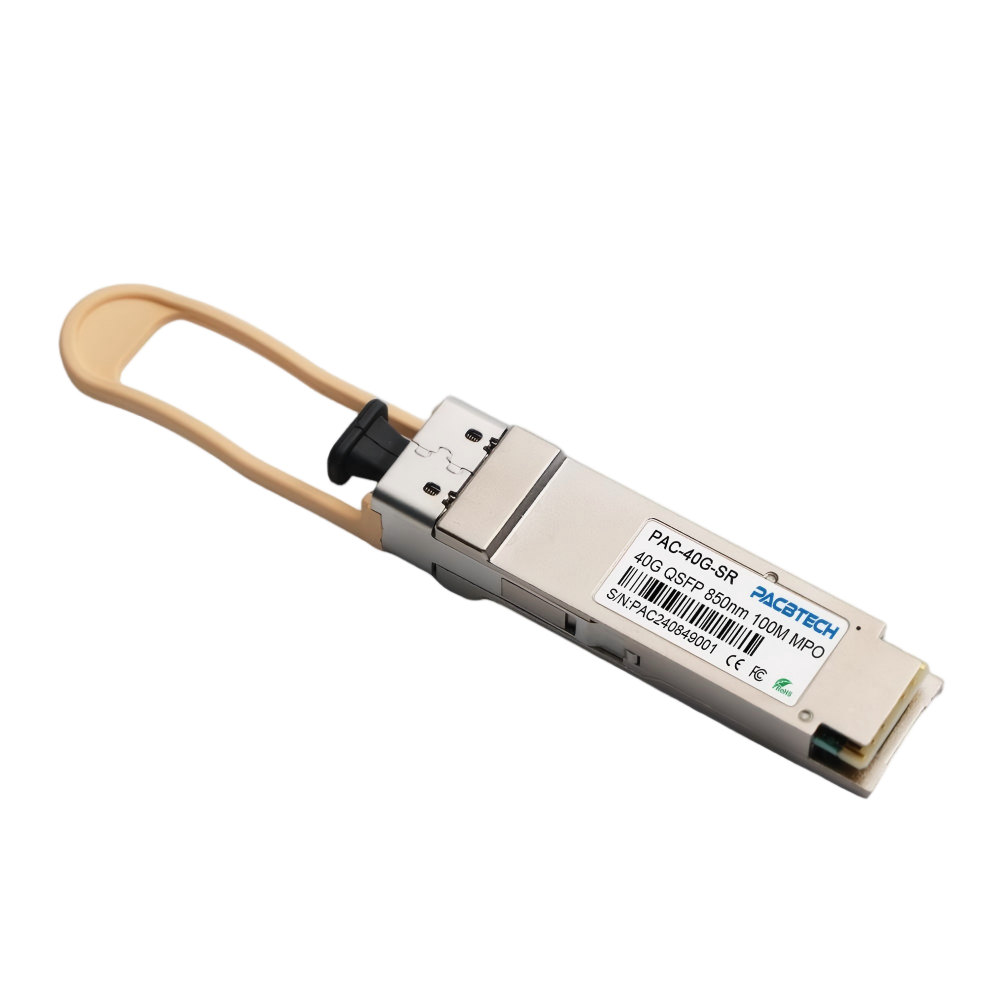

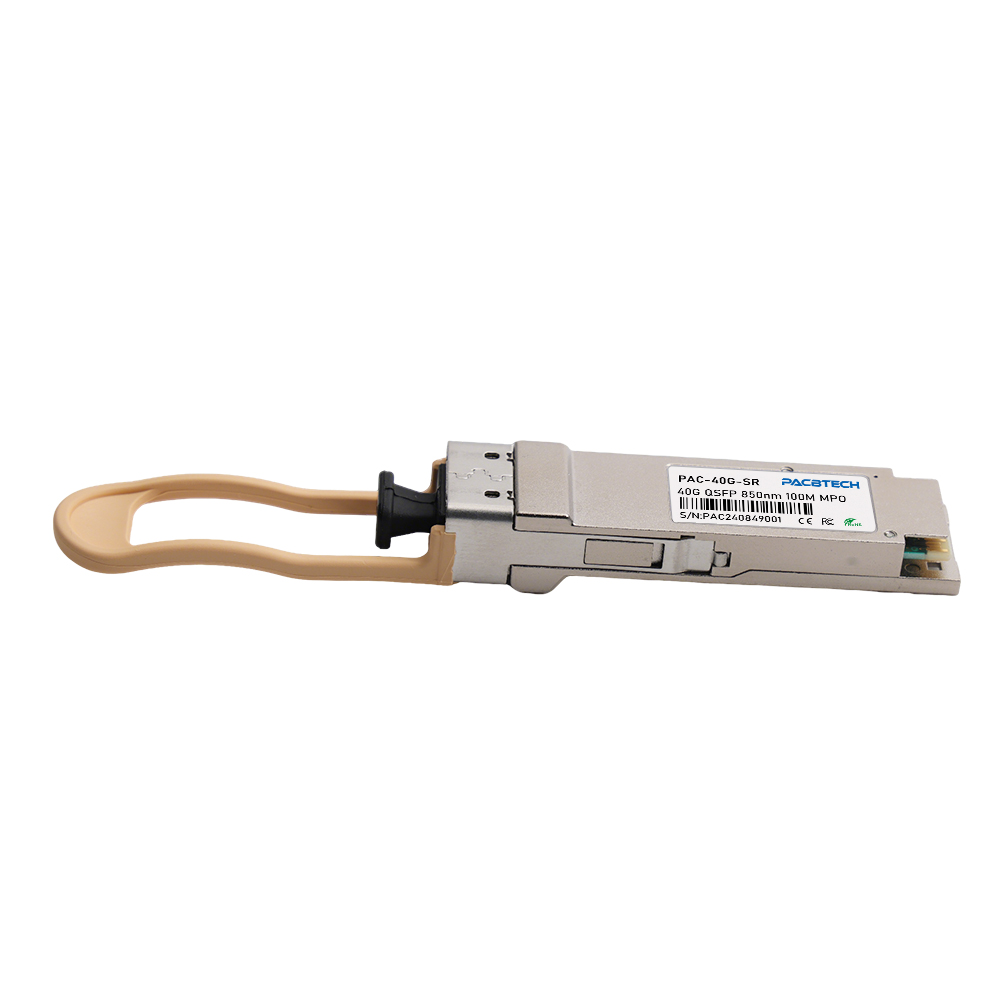

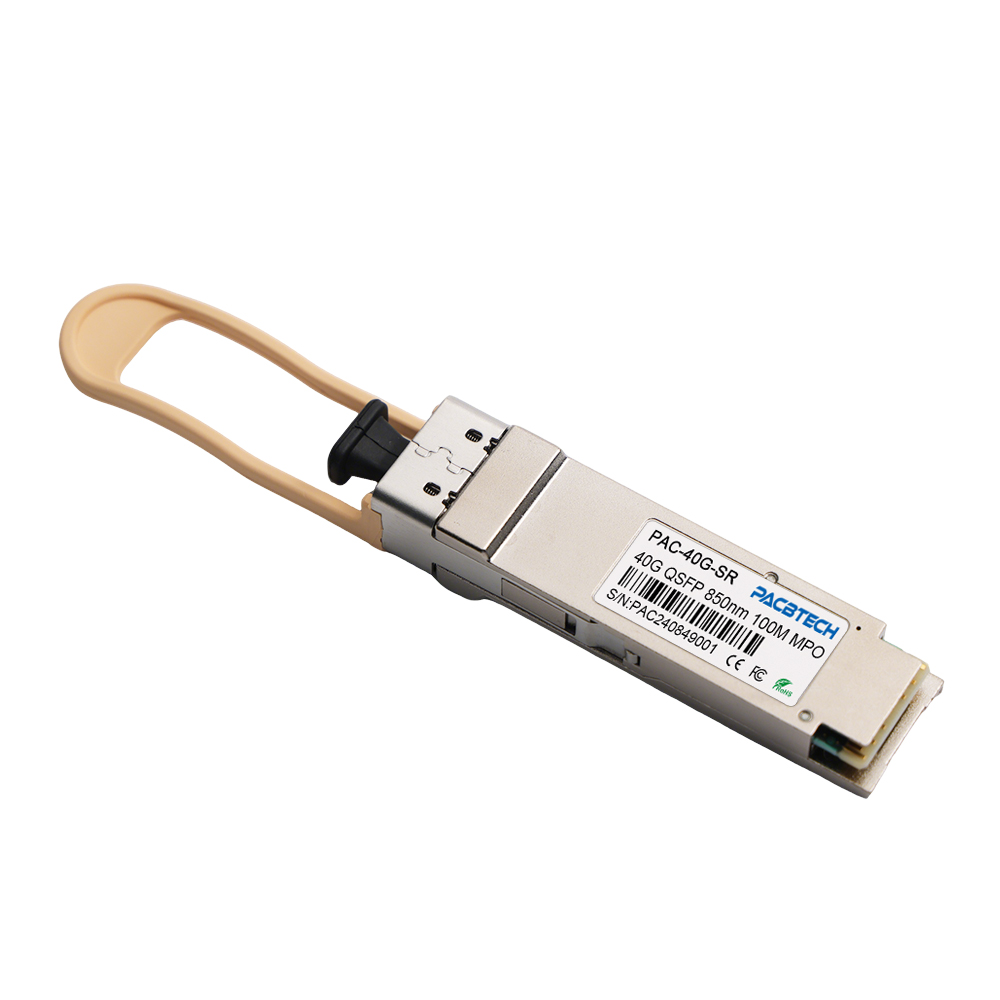

40G QSFP+ SR4 Transceiver Module

Features

Hot pluggable QSFP+ MSA form package, QSFP+ MSA compliant
4 independent full-duplex channels, Each channel has a maximum bandwidth of 11.2Gb/s
4*10Gb/s VCSEL/DFB/EML laser
I2C management interface
RoHS compliance
Operating temperature range: 0~70°C (Commercial)

P/N	Data Rate	Wavelength	Reach	Connector	Tx Power	Rx Sensitivity	Source
PAC-QSFP+-SR4	40Gbps	850nm	150m	MPO	-7~1dBm	≤-11.1dBm	VCSEL+PIN
PAC-QSFP+-cSR4	40Gbps	850nm	400m	MPO	-7.5~0dBm	≤-9.9dBm	VCSEL+PIN
