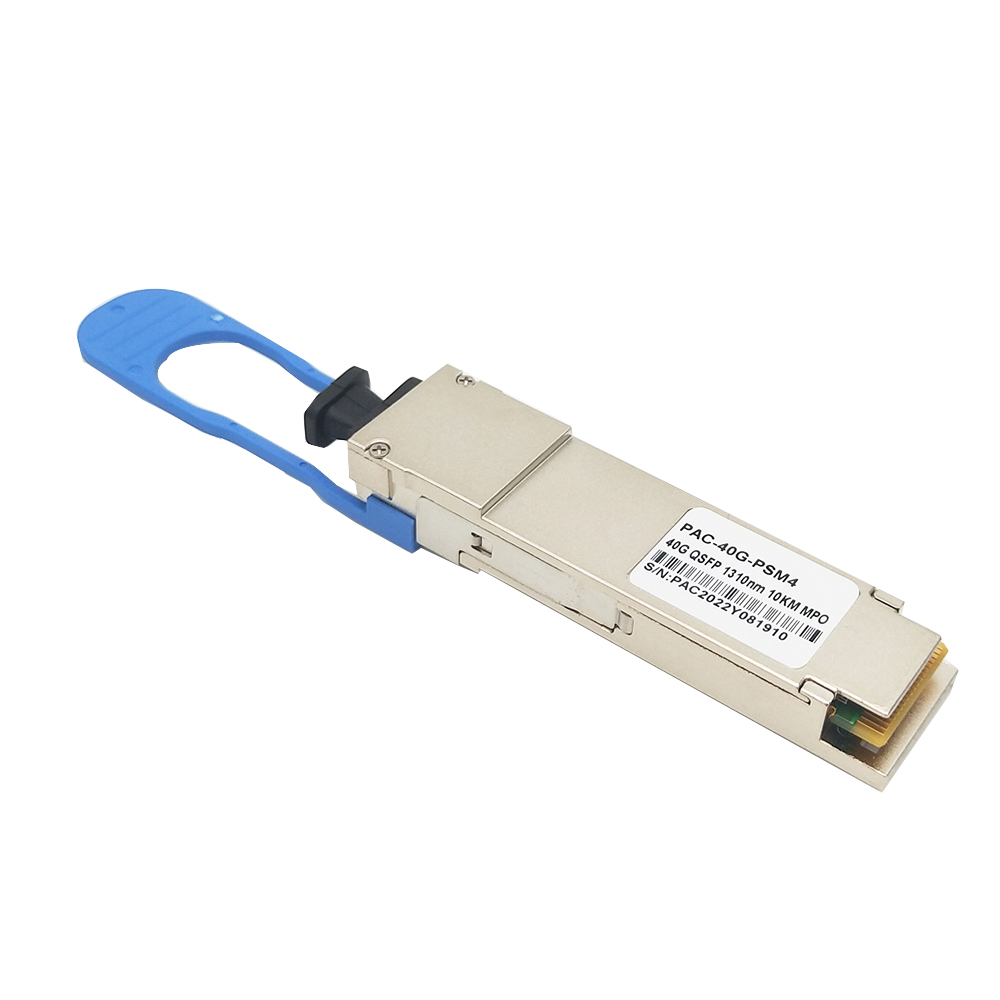

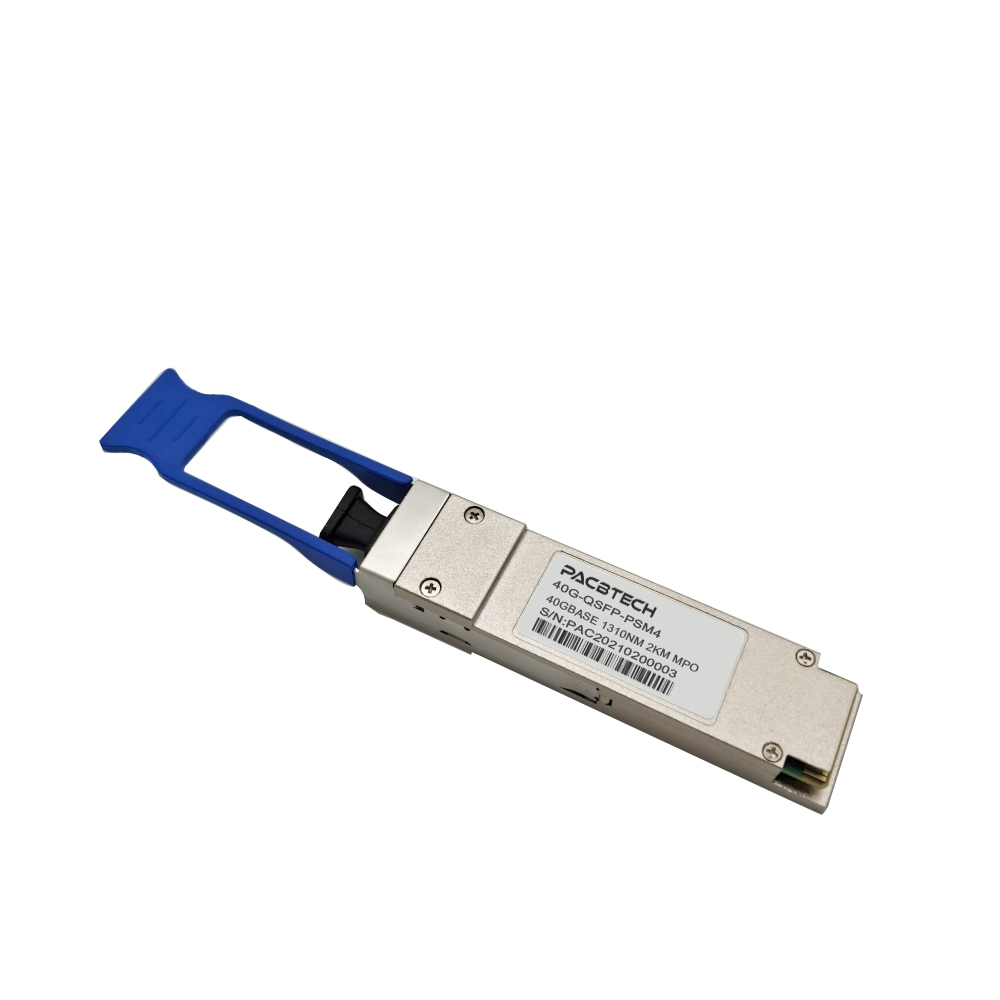

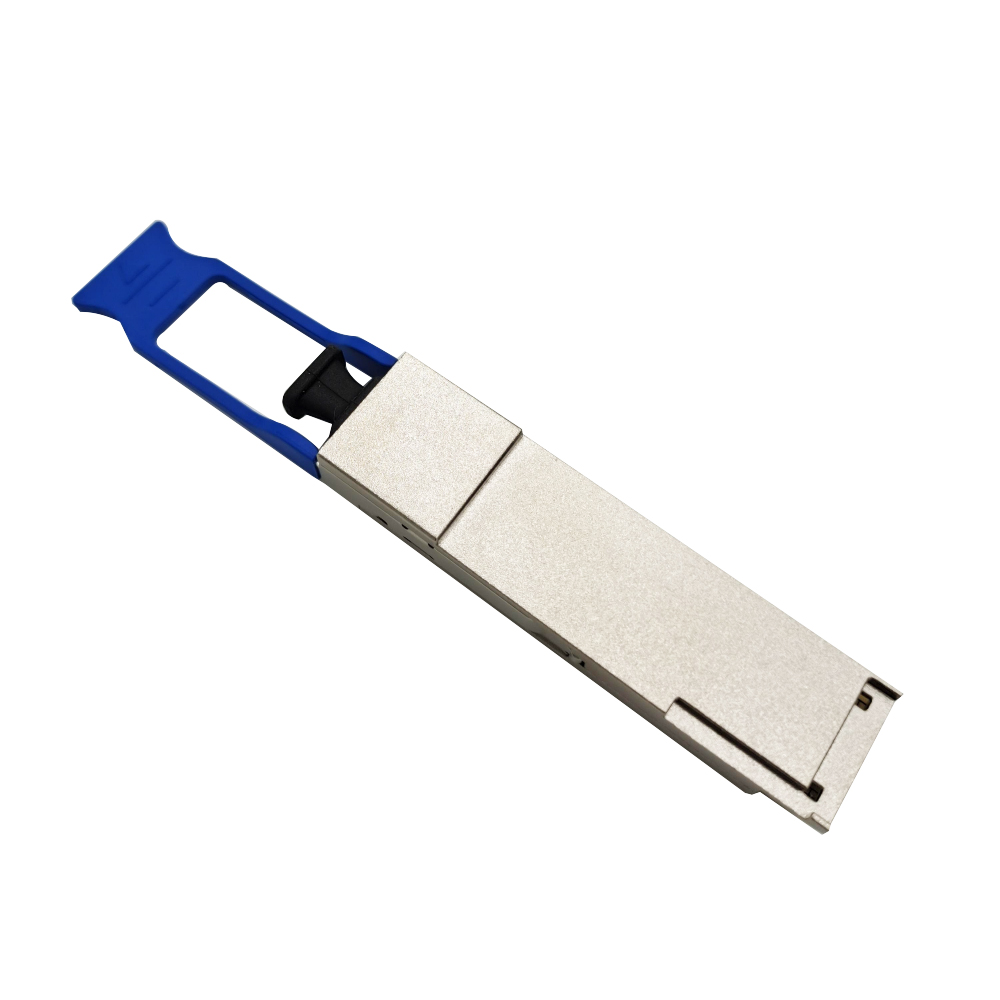

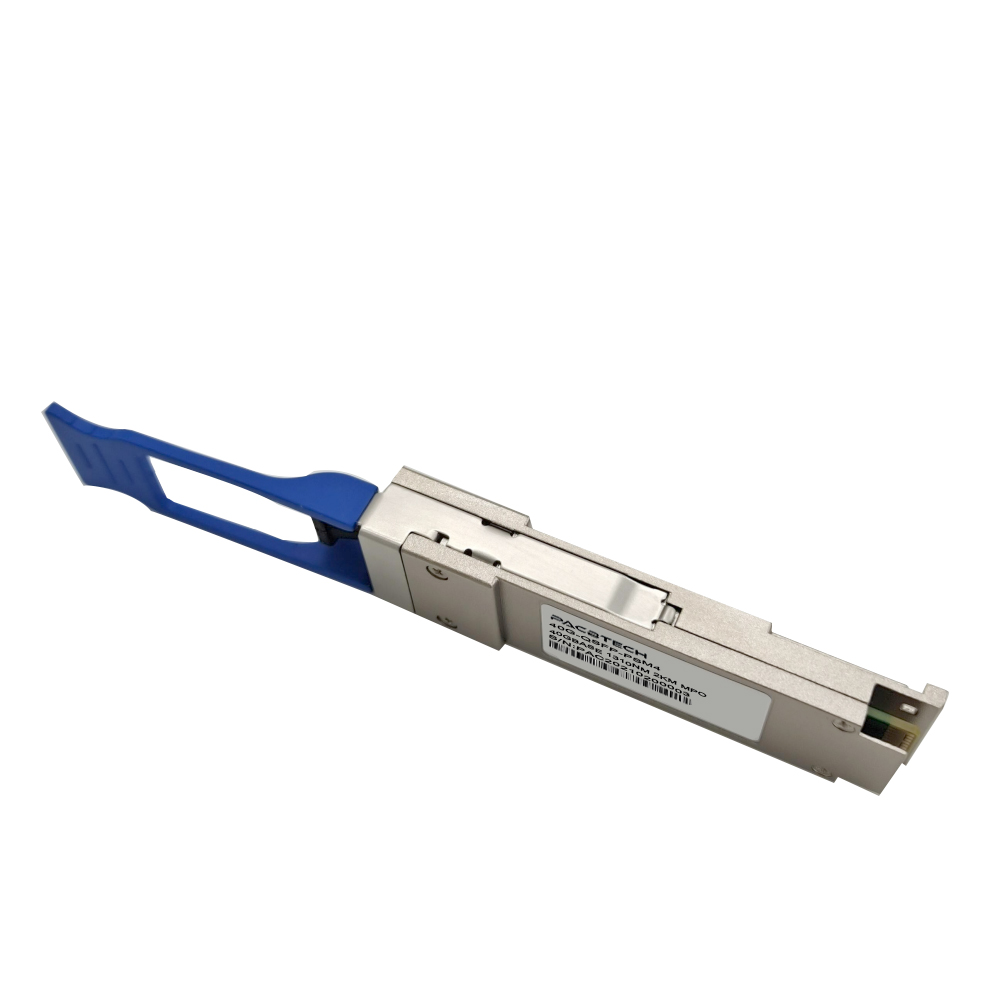

40G QSFP+ PSM4 transceiver module, 10km over SMF, MPO interface, parallel single mode, RoHS compliant for data center

Model:

40G QSFP PSM4 10KM MPO

Inquiry

Optical Transceivers

10G SFP+ Transceiver

SFP Transceiver

40G QSFP Transceiver

100G QSFP28 Transceiver

16/25/32G Transceiver

200/400/800G Transceiver

PON SFP

1*9 Transceiver

DAC/AOC Cable

Fiber to Ethernet Converter

OLT

ONU/ONT

1.25G/2.5G XPON STICK

Accessory

SFP Programmer

40G QSFP+ PSM4 10KM MPO Transceiver

Features

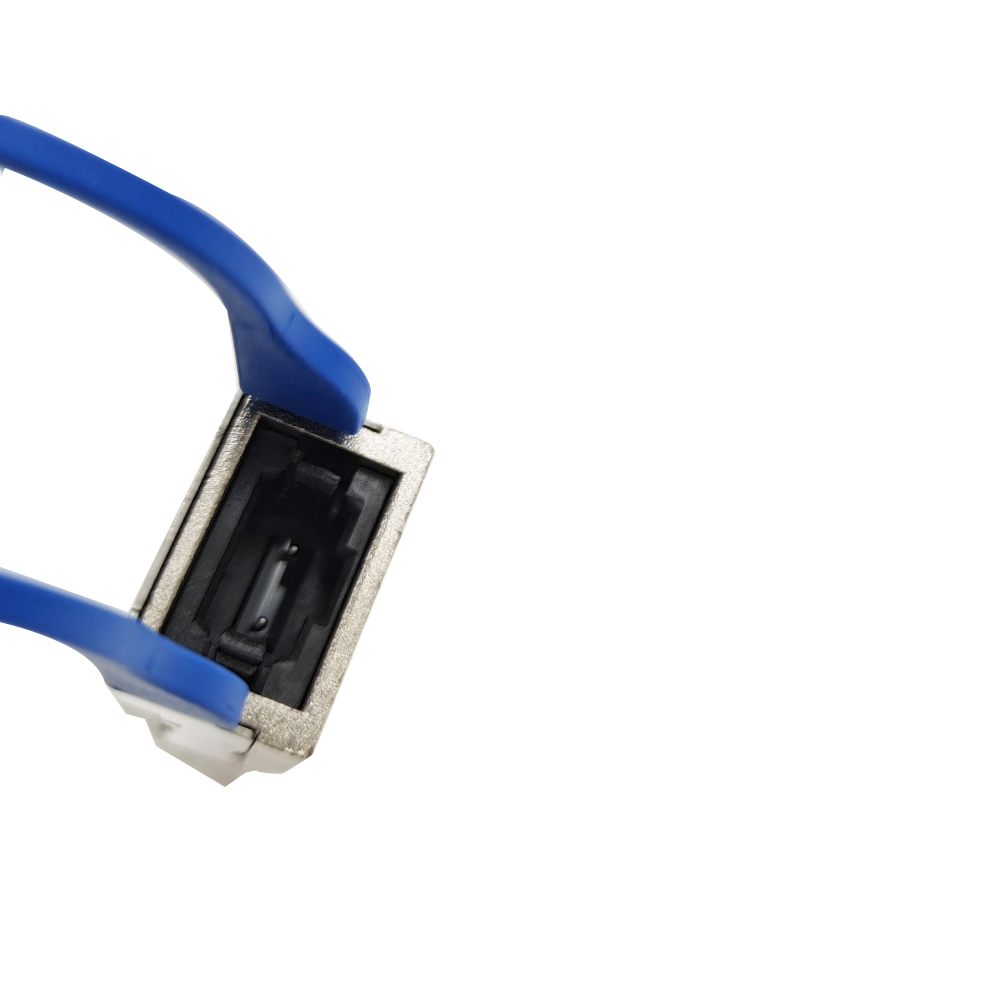

40Gb/s QSFP+ PSM4 10KM is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for InfiniBand QDR/DDR/SDR, 10G/8G/4G/2G fiber channel, PCIe and SAS Applications. The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10.3Gbps operation for an aggregate data rate of 40Gbps 10km using single mode fiber. These modules are designed to operate over single mode fiber systems using 1310nm DFB laser array. An optical fiber ribbon cable with an MPO/MTPTM connector can be plugged into the QSFP module receptacle. QSFP+ PSM LR4 is one kind of parallel transceiver which provides increased port density and total system cost savings.

Key Feature Parameters

Parameter	Symbol	Min	Typical	Max	Unit	Notes
Transmitter Center Wavelength	λC	1270	1310	1350	nm	1
RMS Spectral Width	λrms			3.5	nm	1
Average Launch Power, each lane	PAVG	-5.5	-0.5	+2.3	dBm
Optical Modulation Amplitude (OMA)	POMA	-4.5	-0.5	+3.5	dBm	1
Difference in Launch Power between any two lanes	Ptx,diff			5.0	dB
Launch Power in OMA minus Transmitter and Dispersion Penalty (TDP), each Lane	OMA-TDP	-9.7			dBm	1
Rise/Fall Time	Tr/Tf			50	ps
Extinction Ratio	ER	3.5			dB
Relative Intensity Noise	Rin			-128	dB/Hz
Optical Return Loss Tolerance	TOL			12	dB
Transmitter Reflectance	RT			-12	dB
Transmitter Eye Mask Margin	EMM	10			%	2
Transmitter Eye Mask Definition {X1, X2, X3, Y1, Y2, Y3}		{0.25, 0.4, 0.45, 0.25, 0.28, 0.4}
Average Launch Power OFF Transmitter, each Lane	Poff			-30	dBm
Receiver Center Wavelength	λC	1270	1310	1350	nm
Damage Threshold	THd	+3			dBm
Overload, each lane	OVL	+1			dBm
Receiver Sensitivity in OMA, each Lane	SEN			-12.5	dBm
Difference in Receive Power between any two Lanes (OMA)	Prx,diff			5.0	dB
Signal Loss Assert Threshold	LOSA	-30			dBm
Signal Loss Deassert Threshold	LOSD			-15	dBm
LOS Hysteresis	LOSH	0.5		6	dB
Optical Return Loss	ORL			-12	dBm
Receive Electrical 3 dB upper Cutoff Frequency, each Lane	Fc			12	GHz

Notes:

1. Transmitter wavelength, RMS spectral width and power need to meet the OMA minus TDP specs to guarantee link performance.

2. The eye diagram is tested with 1000 waveform.

Standard Part

P/N	Data Rate	Reach	Connector	Wavelength	Rx	Output Power	Sensitivity
PAC-QSFP-PSM4	40Gbps	2KM	SMF MPO-12	1310nm DFB	PIN	-5.5~1.5dBm	≤-12.5dBm
