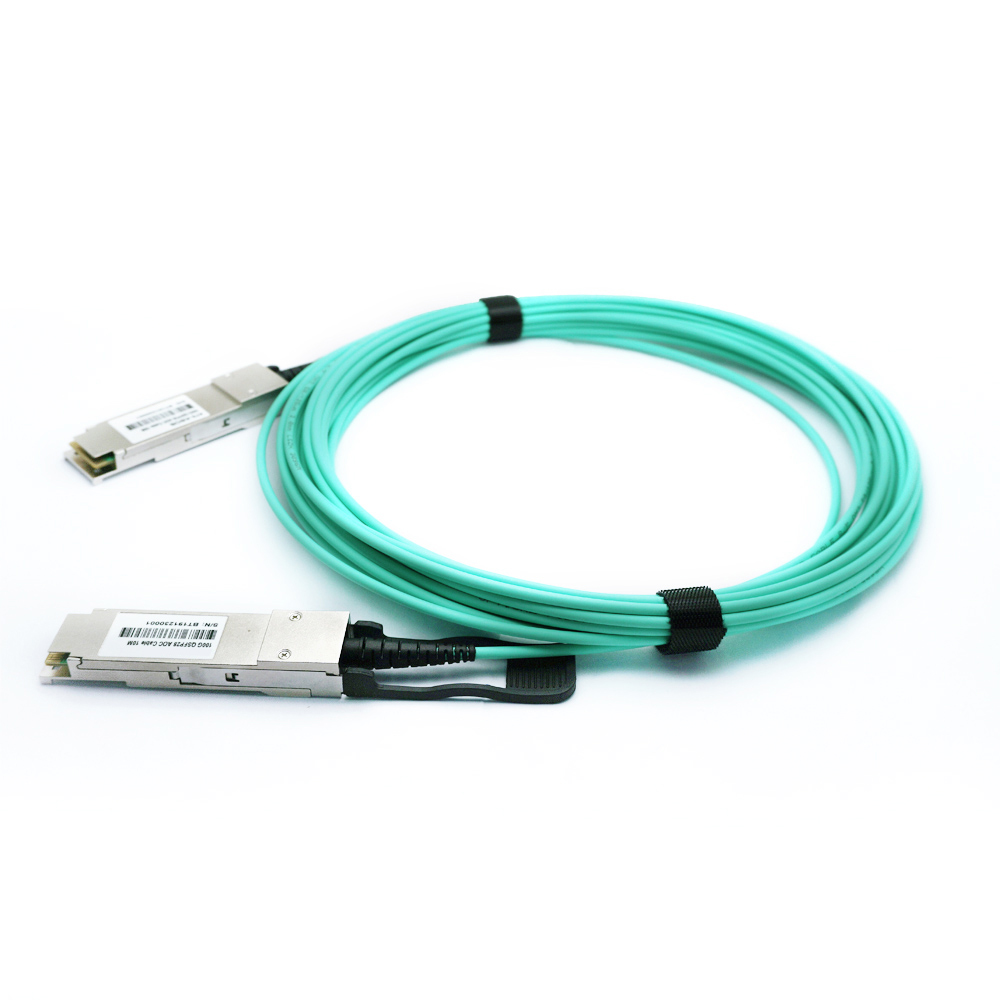

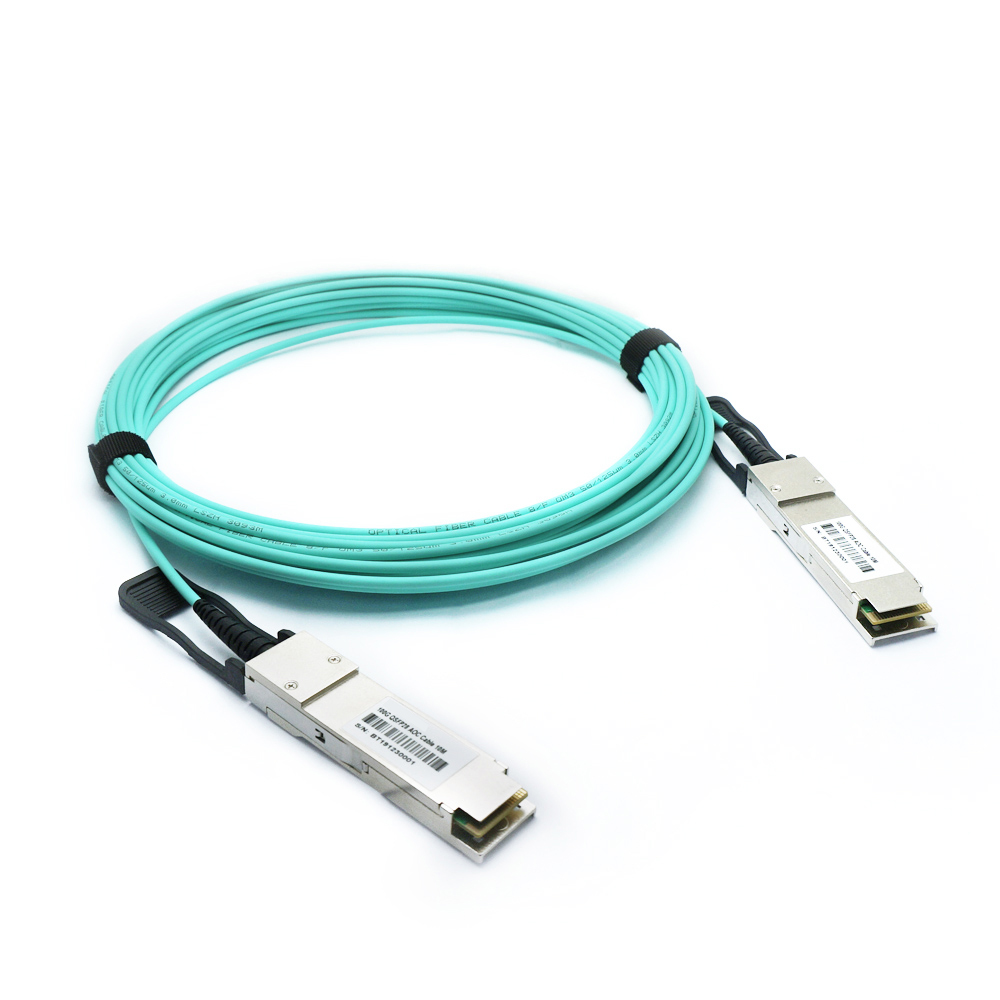

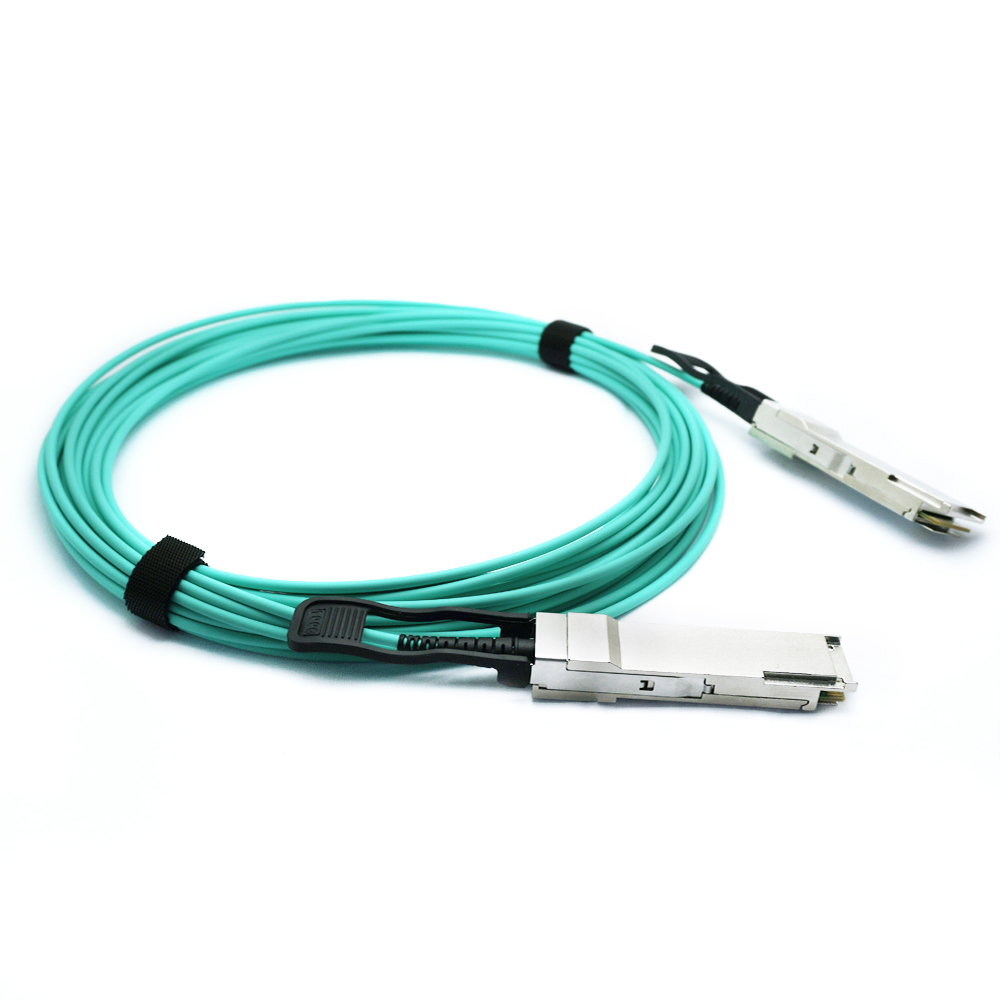

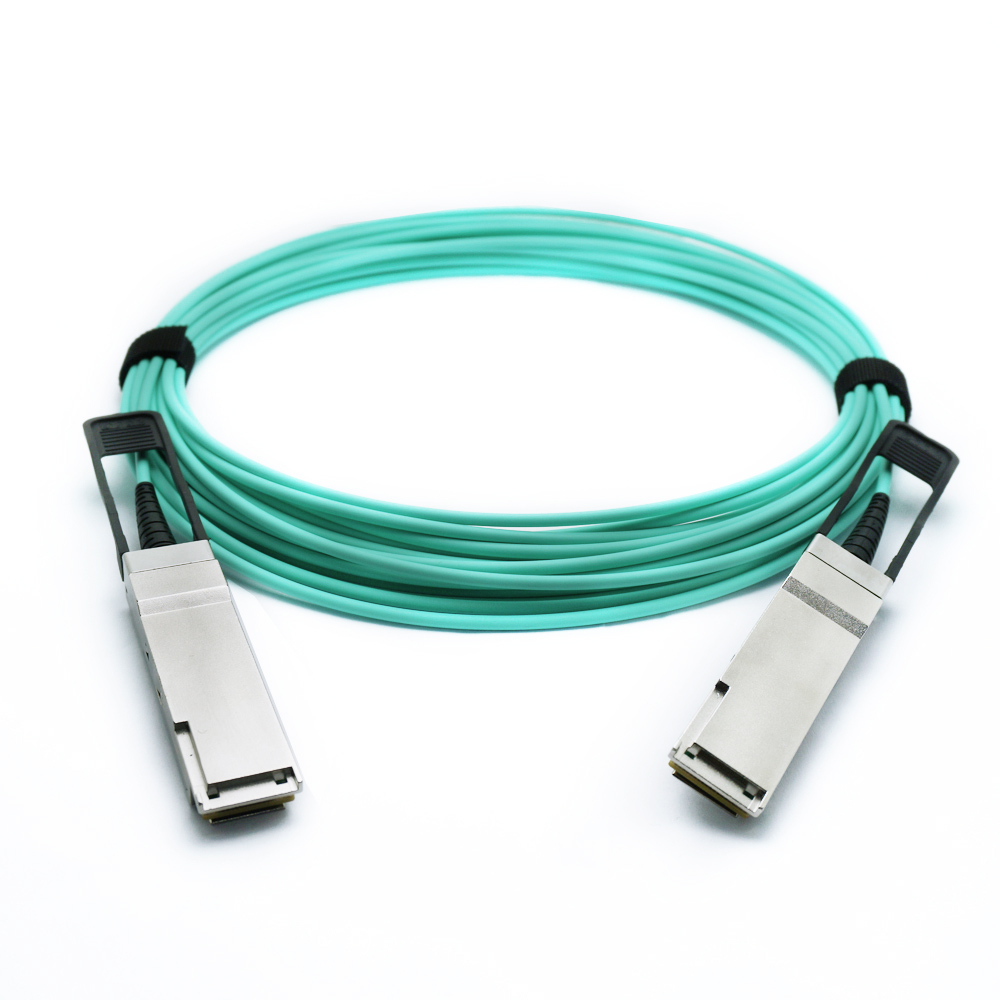

100Gbps QSFP28 Active Optical Cable

Applications

• Low-latency and high-speed interconnections for high performance computing (HPC)

• 100G Ethernet

• Other high-throughput data transmission network

Features

• Quad Small Form-factor Pluggable (QSFP)

• Maximum Aggregate Data Rate 100Gbps

• EDR, FDR, QDR, DDR, SDR (Infiniband)

• 10/25/40/100G Ethernet

• Bi-directional parallel link

• BER<1e-12 0="" 50="" from="" to="" degree="" case="" temp="">

• CDR no/off automatically

• 10/14/25/28Gb/s per lane, x4 channels

• Up to 70m (OM3)

• Up to 100m (OM4)

• Low power consumption

• Round multi-mode fiber array

• 850nm VCSEL four array

• PIN diode four array

• Hot-Pluggable

• I2C management interface

• 3.3V power supply voltage

• Maximum 2W power consumption

Description

100G QSFP28 AOC Cable series are active optical cables (AOC) that allow bi-directional 100Gbps transmission suitable for high performance computing (HPC) clustering and other high-throughput data network, with advantages such as high speed, high density, low latency, low power consumption and light weight.

Standard Part
