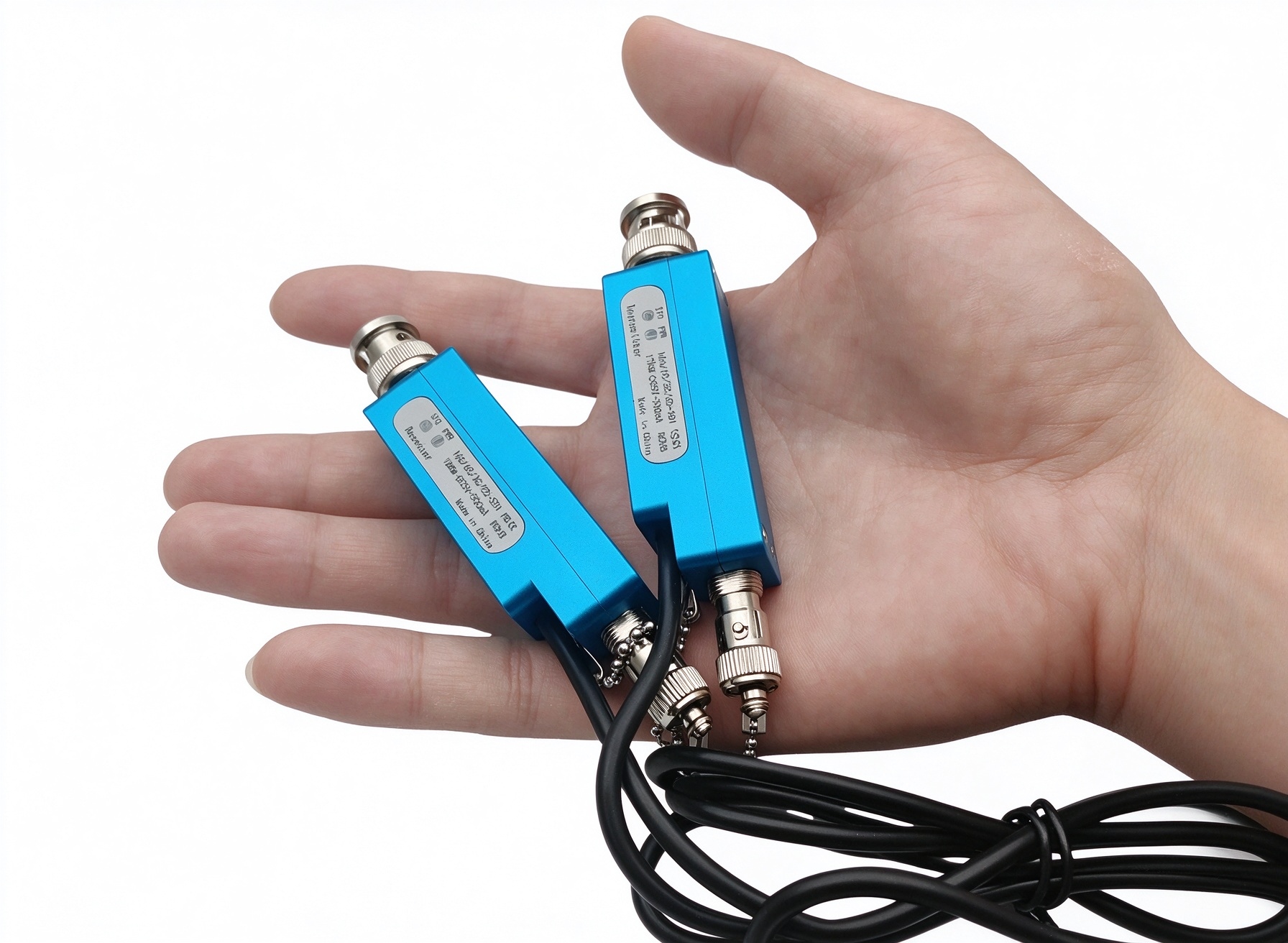

12G 4K SDI Fiber Converter
Our Mini Type 3G/12G SDI Fiber Converter is a broadcast-grade SDI over fiber optic transceiver, supporting multi-rate signal auto detection: 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI and ASI signal. It delivers uncompressed, zero-latency 4K@60Hz video over a single optical fiber, max reach up to 20km.

Compact mini metal housing for space-saving installation. LED indicators show power, signal link status. Compliant with SMPTE broadcast standards, ideal for live streaming, outdoor events, TV studio, stadium, video production and professional AV projects. Sold as a pair (Transmitter & Receiver). Optional reverse RS485/Tally data channel available.
Model:
3G/12G SDI Fiber Converter Mini Type | Uncompressed SDI Over Fiber Extender
Inquiry
Optical Transceivers
DAC/AOC Cable
Fiber Converter
OLT
ONU/ONT
Passive Fiber Accessory
Fiber Tools

Product Features

  • Supports ST-2082-1(12G),ST-2081-1 (6G),ST-424 (3G),ST-292 (HD), and ST-259 (SD);Compatible with DVB-ASI and AES10 (MADI);

  • Clock restorer locks to 11.88Gbps,5.94Gbps, 2.97Gbps, 1.48Gbps or 1.001 sub rate and270Mbps SMPTE rate;

  • The signal input has automatic cable equalization (EQ)function, and the output has drive (CD) function;

  • Supports fiber optic interface dust prevention and anti drop design to prevent dust cover loss;

  • Support single-mode single fiber transmission for 10 kilometers;

  • Support status light display;

  • Support USB device power supply

  • Support status light indication ;

  • Plug and play, no debugging required ;

Interface and silk screen description

Screen printingCorresponding indicator lightCorresponding functions
POWERPWRPower Supply
SIGSIGThe signal light is on, indicating that there is a signal
interfacecorresponding position
SDIV1
SDI signal input and output
ST光口ST port
Connect the fiber optic cable

Specification Parameters

SDI indicator
Protocol standardsSMPTE ST-2082
SMPTE rate270Mbit/s,1.48Gbit/s,2.97Gbit/s,5.94Gbit/s,11.88Gbit/s
Support standards (digital video format)SMPTE 259M SD-SDI 480i , 576i
SMPTE 292M HD-SDI 720P, 1080i
SMPTE 424M 3G-SDI 1080P60Hz
SMPTE ST-2081 6G-SDI 2160P30Hz
SMPTE ST-2082 12G-SDI 2160P60Hz
EQ mode cable transmission distance75m at 11.88Gbps
120m at 5.94Gbps
200m at 2.97Gbps
300m 1.485Gbps
600m at 270Mbps
signal amplitude800mV ±10%
impedance75Ω
connectorBNC complies with the IEC 169-8 standard
Power indicators
Input Current≤300MA
INPUT VOLTAGE5V
Overload current protectionsupport
Power physical interfaceUSB
power consumption<1.5W

Connectivity Solution

Transmit 12G-SDI signal via optical fiber between transmitter(TX) and receiver(RX). Widely used for live broadcast, video recording, capture card workflow, 4K display terminal.

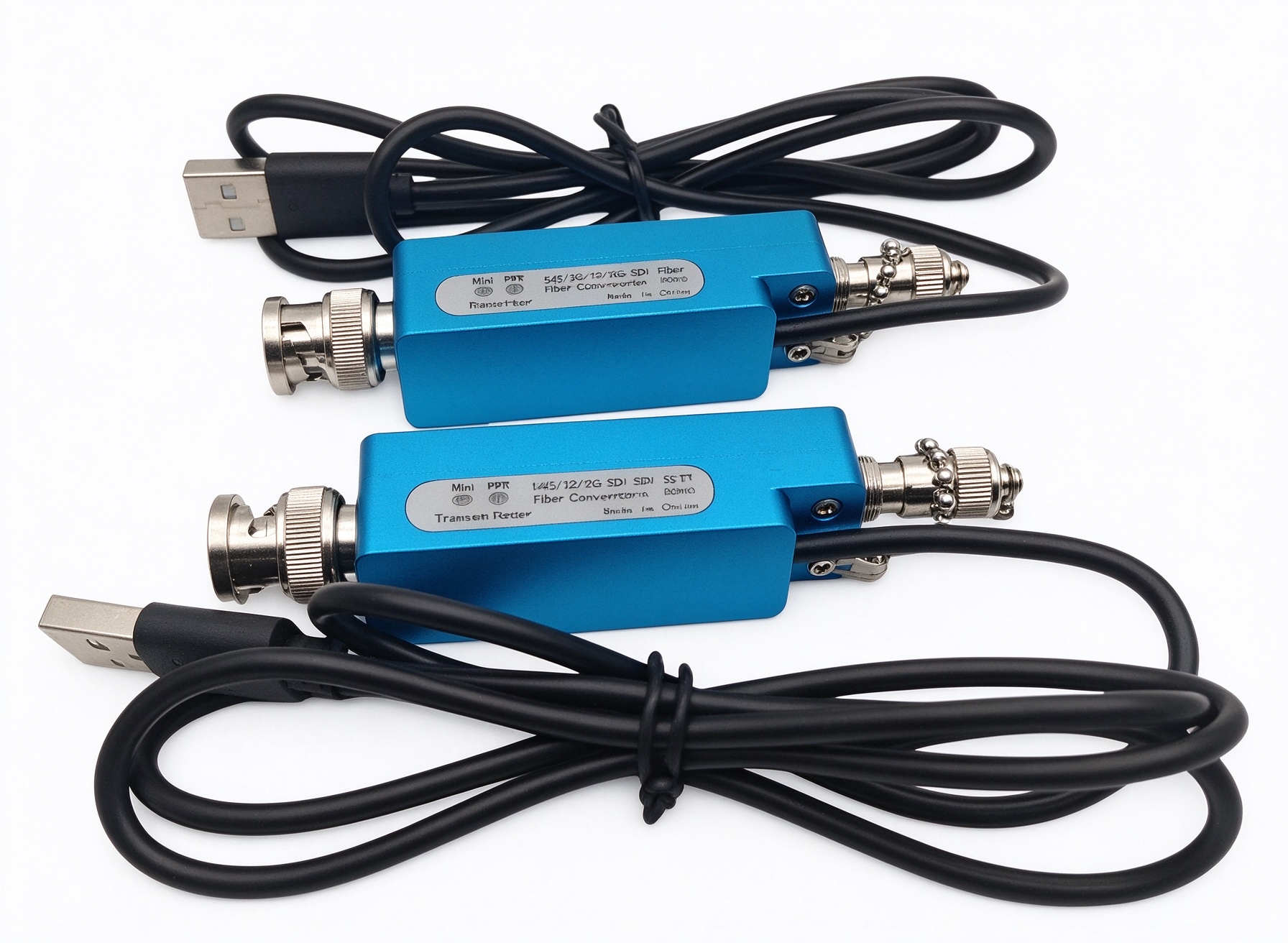

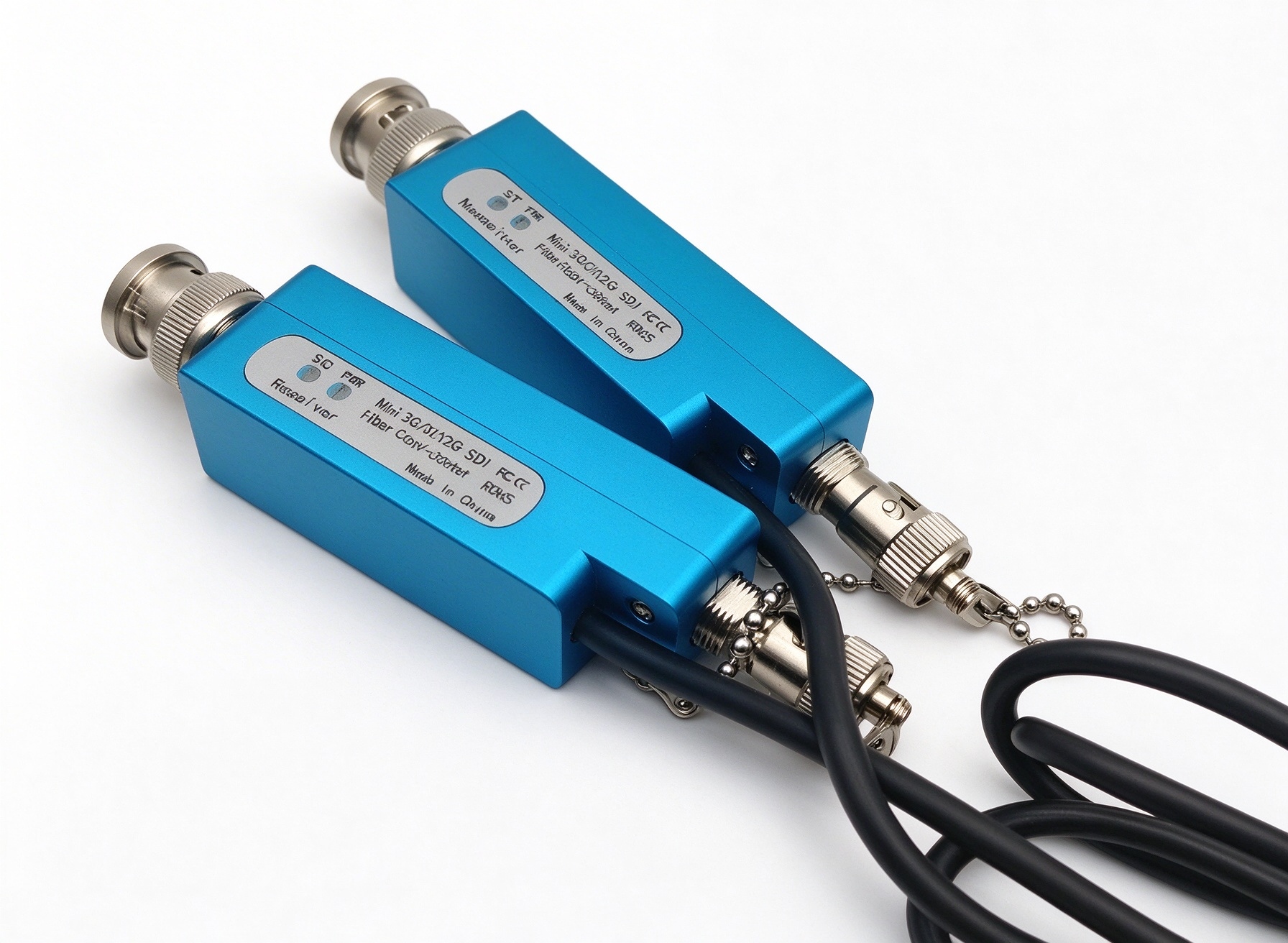

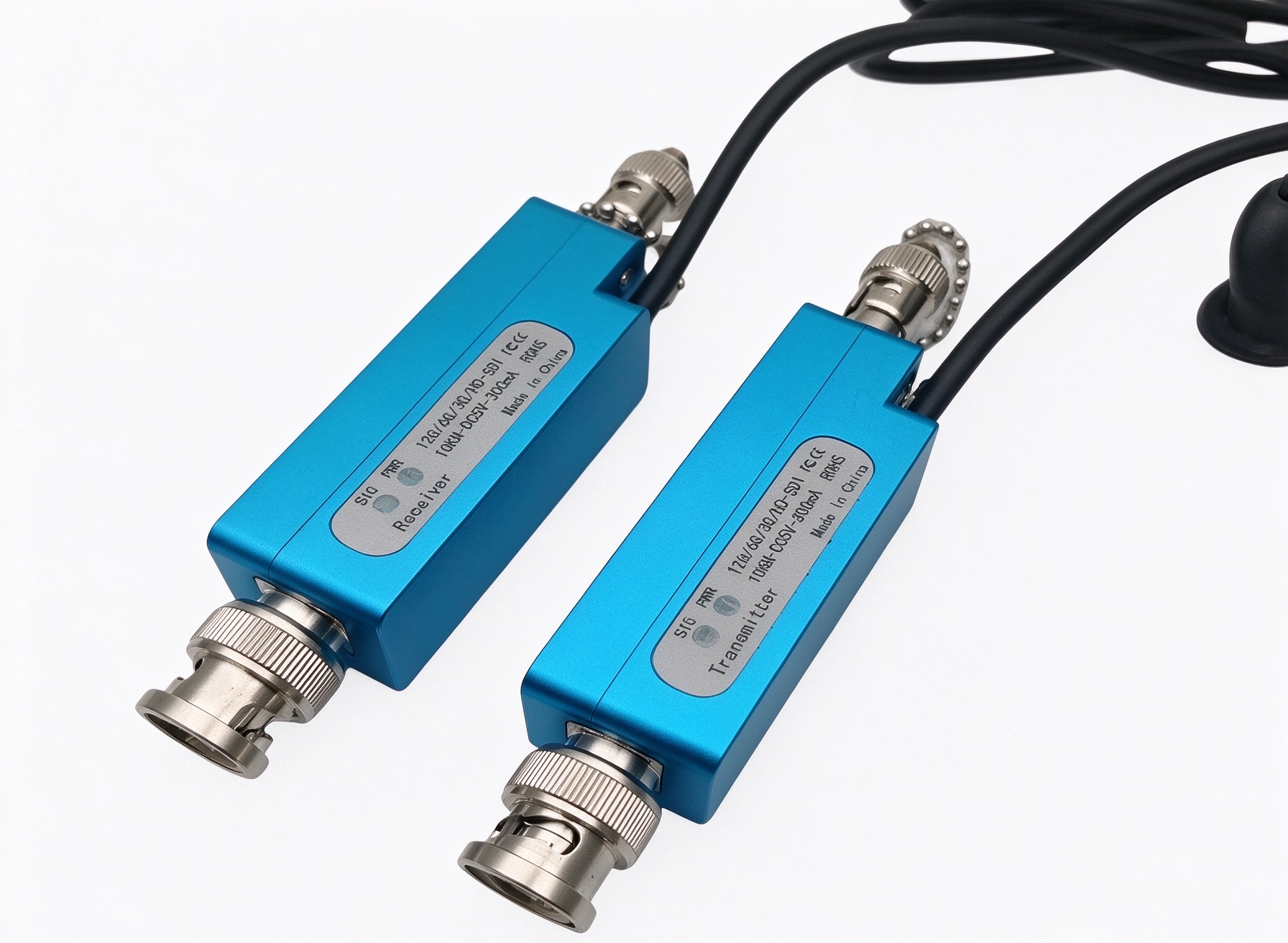

Product Details

  • SDI port: BNC port for SDI signal input/output

  • Signal lights: PWR & SIG indicator for power and signal status

  • Power Supply: USB 5V power input

  • ST port: Fiber optic interface with dust-proof & anti-drop chain design to avoid dust cap loss

  • Dimension: 203*112*70mm

  • Weight: 0.4kg
