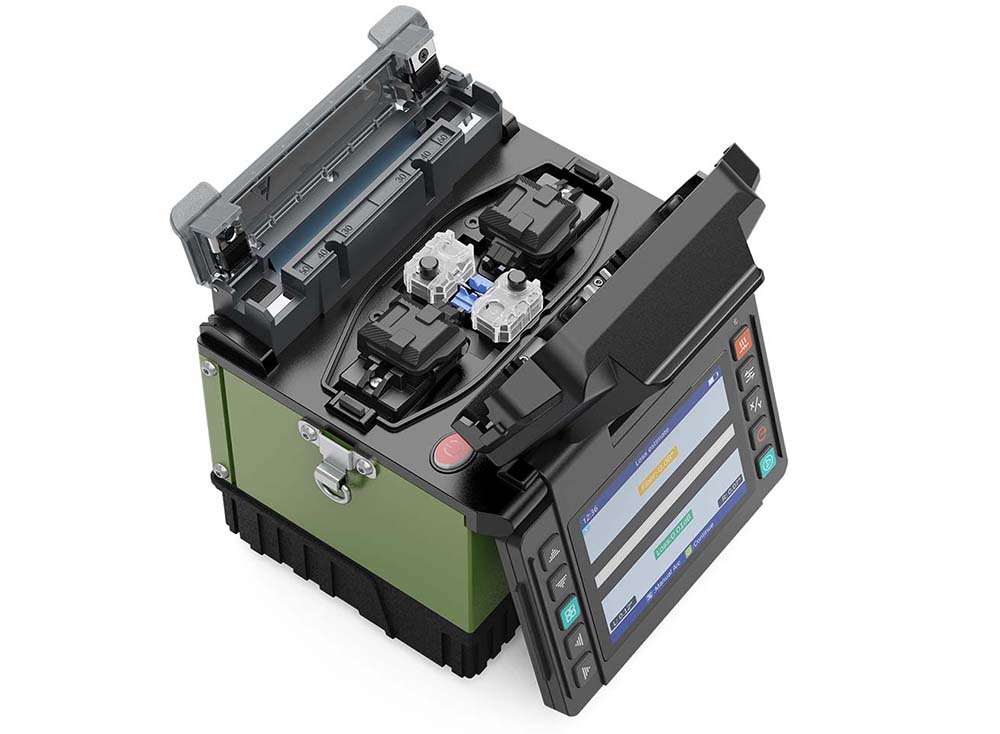

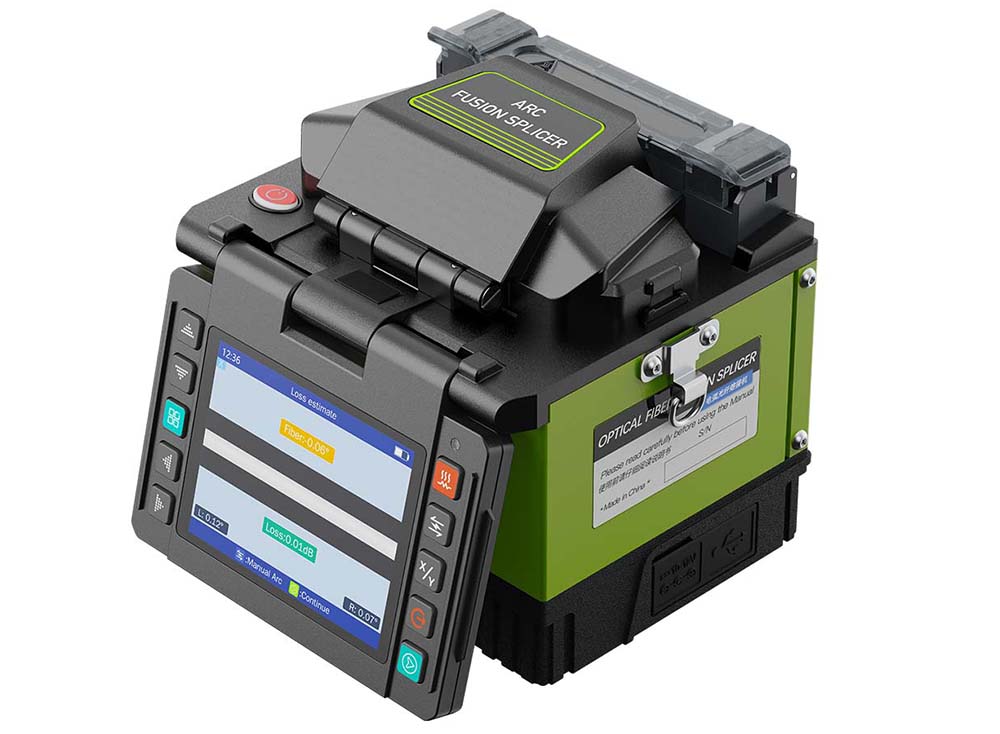

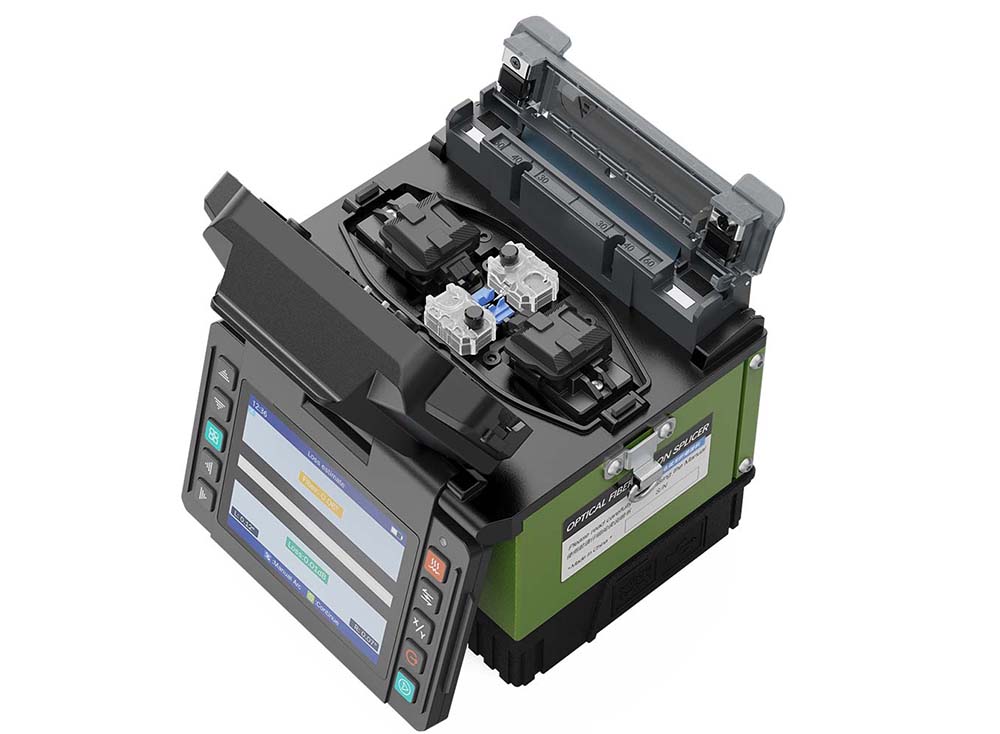

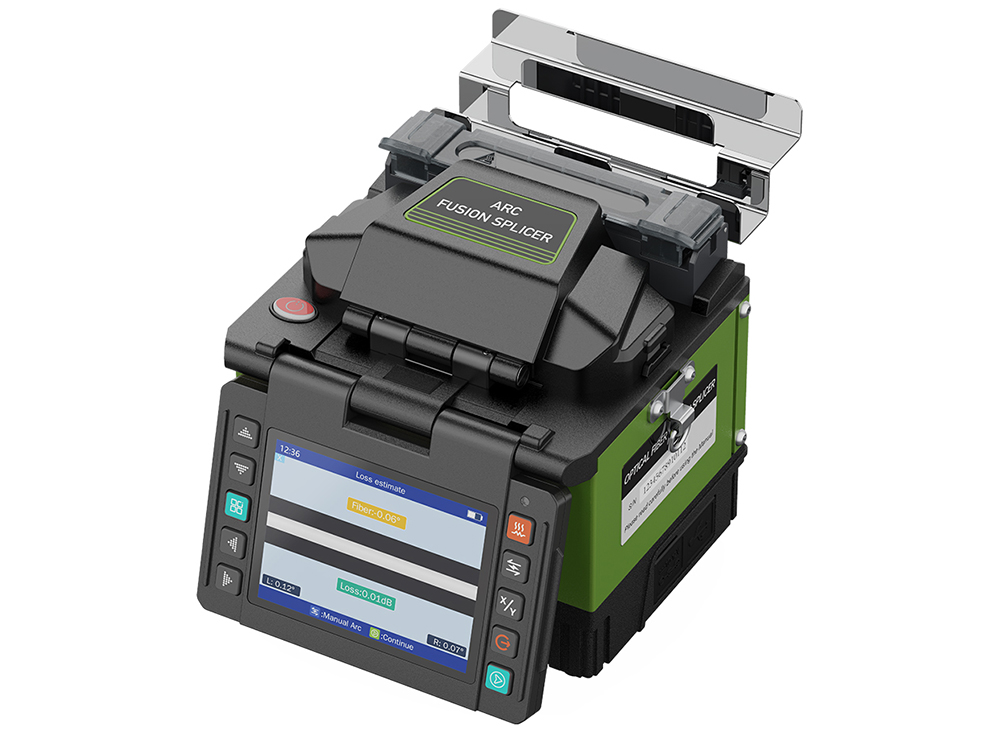

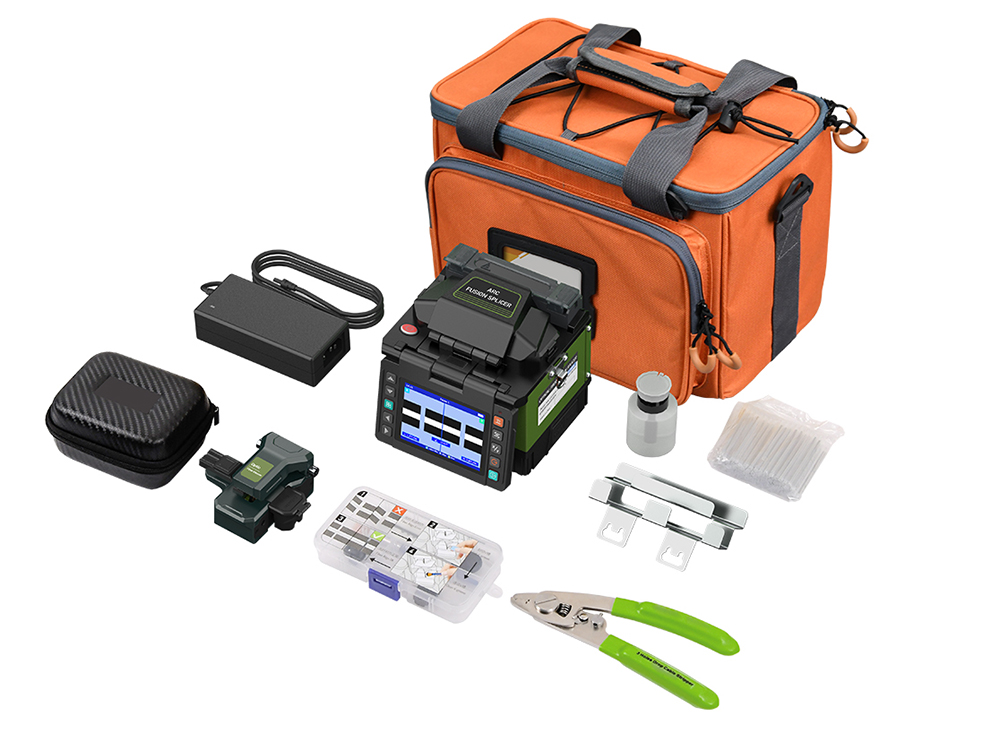

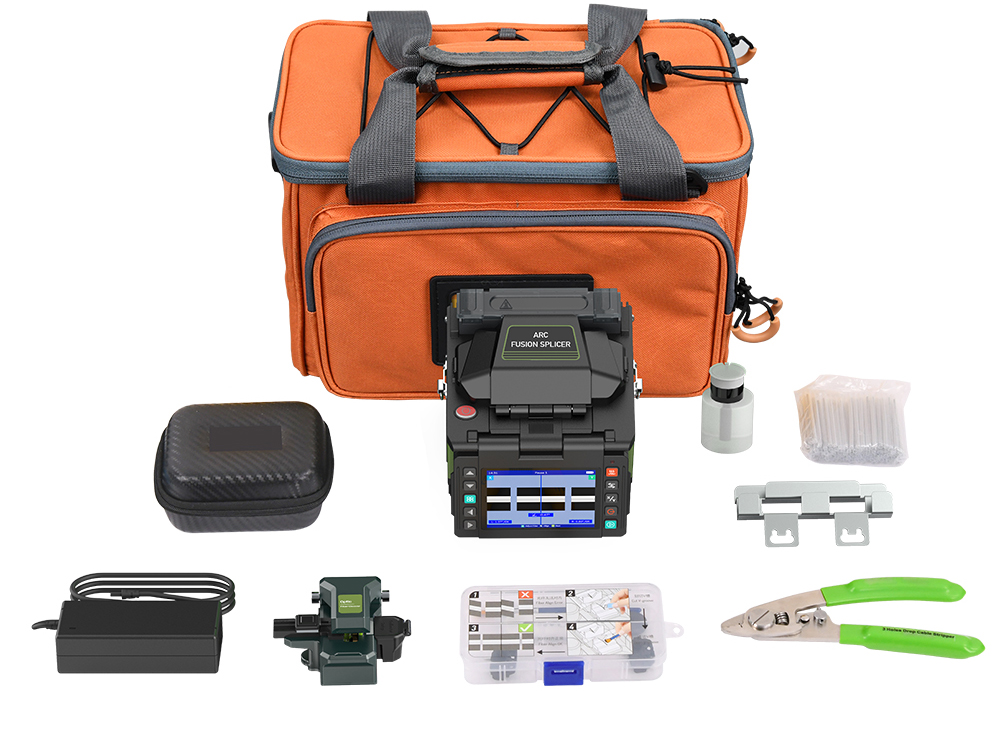

PAEX4 Mini FTTx Fusion Splicer

Extended-life electrodes, 5,000 splices (replaceable)
Auto Splice & Auto Heat Function

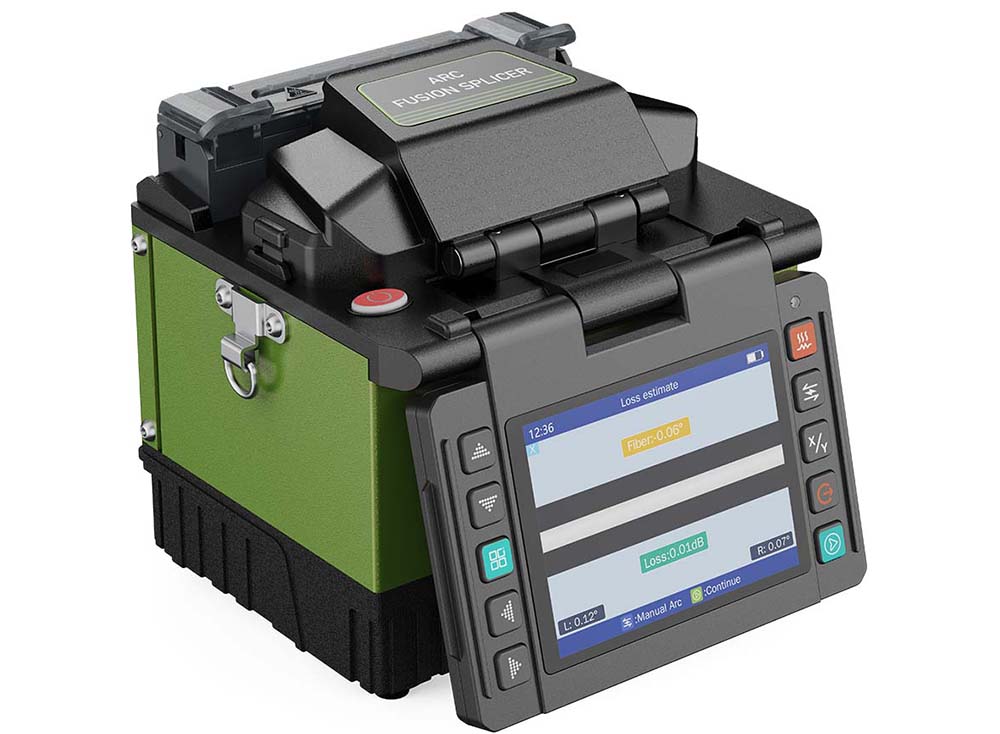

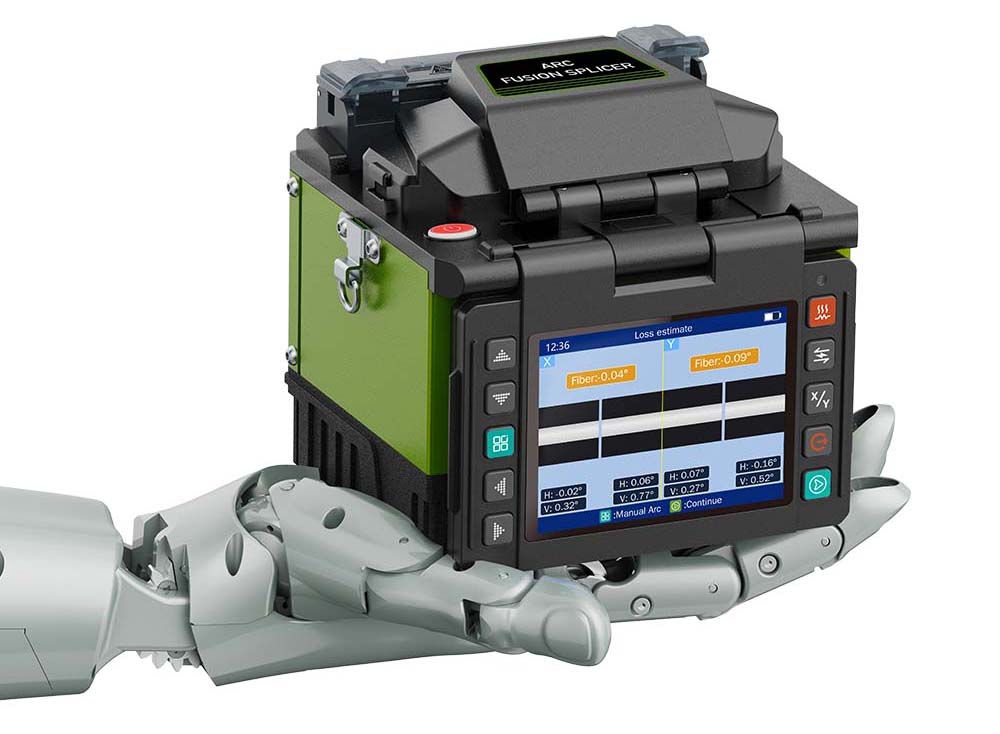

World’s most compact, Lightweight and Fast Design

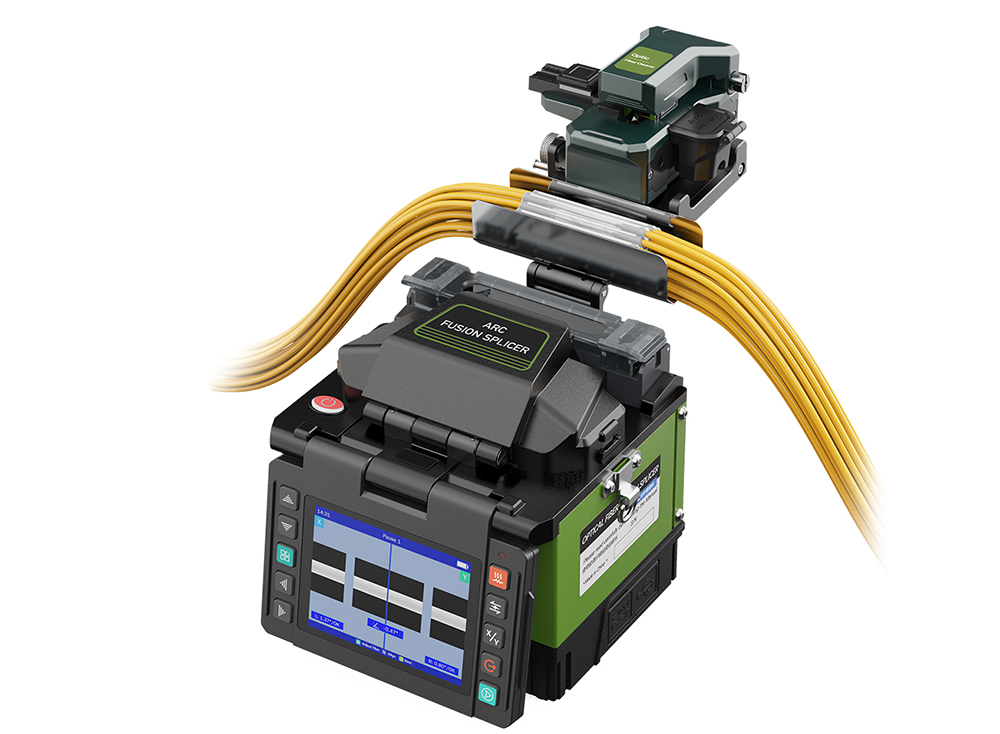

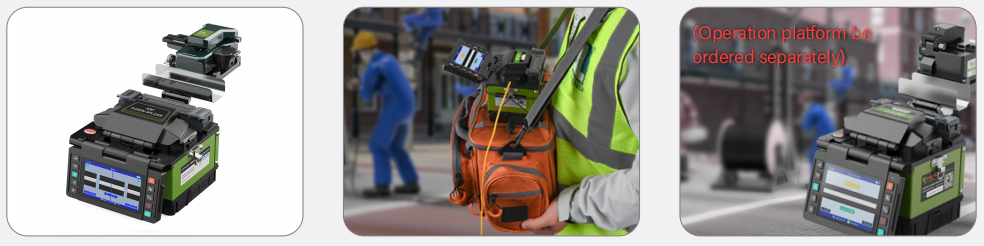

Stable aerial operation Design

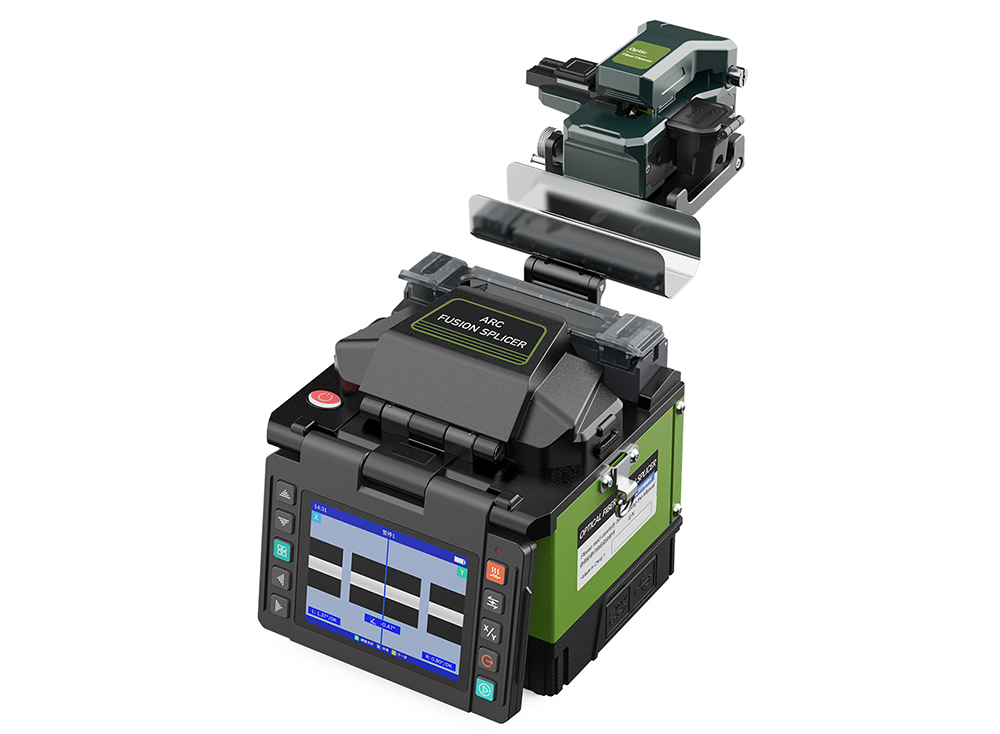

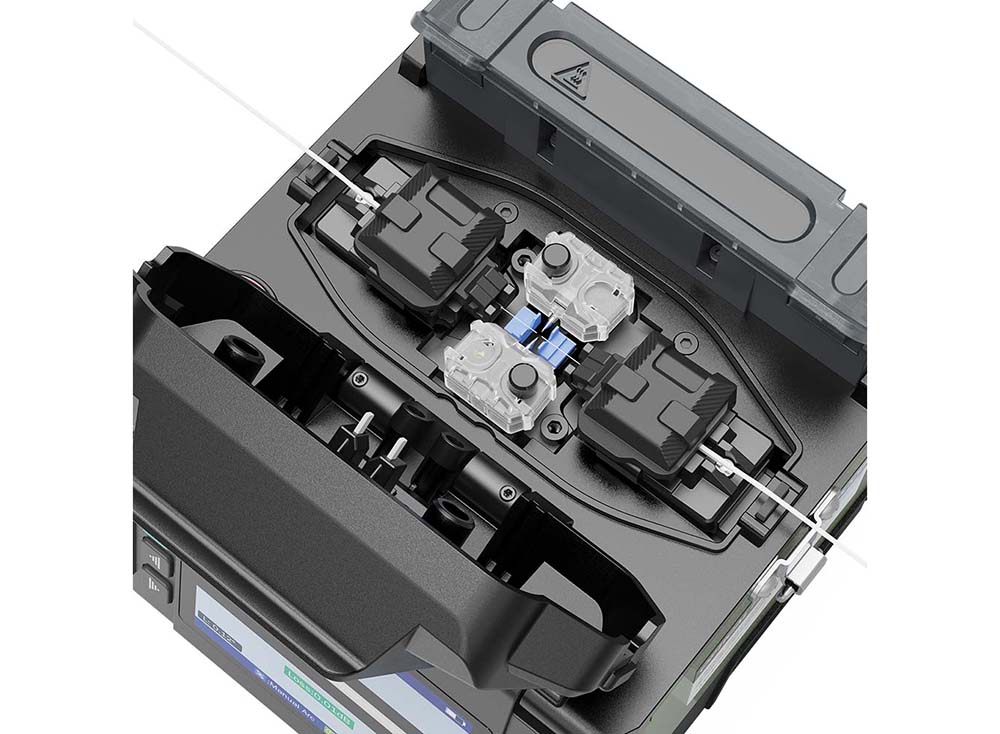

Tool-less Electrodes replacement
Fast-splicing 8s, Fast-heating 18s
Support 120 times of splicing + heating when fully charged
Innovatively no need tools to replace electrodes

Technical Specifications

Splice Method	Active Clad-Alignment
Applicable Fibers	SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
Compatible Fiber/Cable	0.25~3.0 mm / indoor cable
Typical Splice Loss	SM: 0.03dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.03dB ★①
Fiber Diameter	Cladding: 80-150 μm, Coating: 100~1000 μm
Fiber Cleave Length	8~16 mm
Return Loss	>>60dB
Splicing Time	SM Quick mode : 8 sec / SM Average: 10 Sec.
Heating Time	Quick mode 18 sec(SM G652 250 μm 40mm Sleeve) adjustable
Electrode Life	5000 arcs (replaceable) ★③
Protection Sleeve Length	20mm, 30mm, 40mm, 50mm, 60mm
Fiber Holder	Replaceable

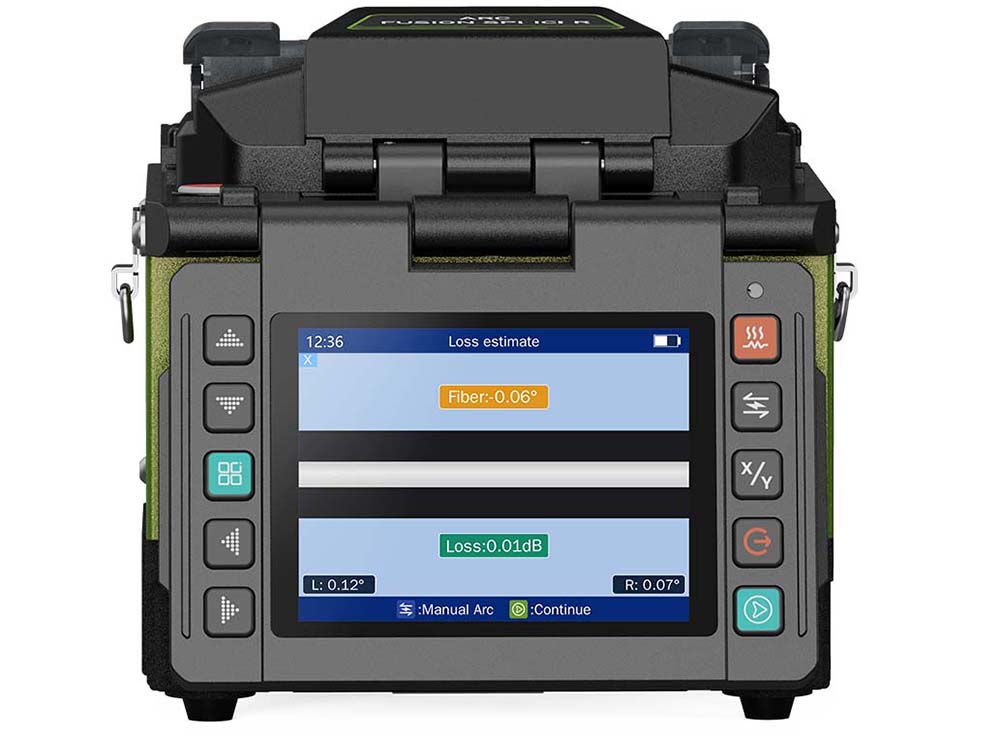

Display	3.5" color high resolution (800 x 480) display
Terminal	USB2.0
Battery	4000mAh Battery Capacity, Typical 120 Cycles (Splice&Heat) per Charge ★②
Power Supply	AC Input 100-240V, DC Input 9-14V

★① With identical fibres(in room temperature). Measured by cut-back method relevant to ITU-T and IEC standards.
★② Splice & Heat cycles based on 40mm shrink tube/0.25mm fiber,may vary depending on the battery status and operating environment.
★③ Electrode life may vary depending on the operating environment.
