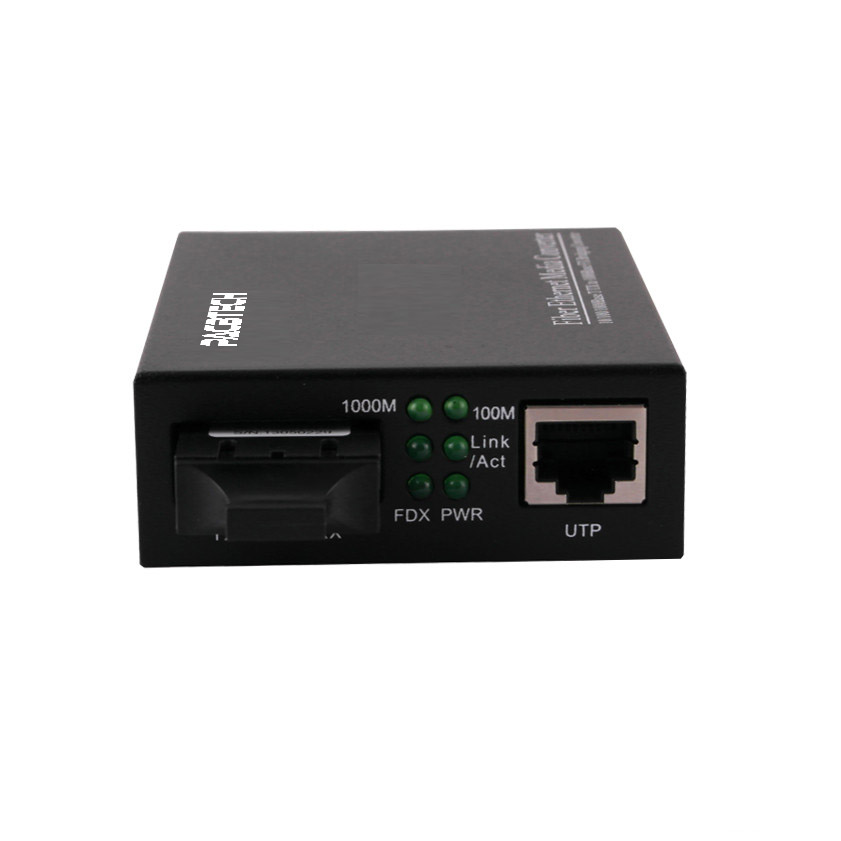

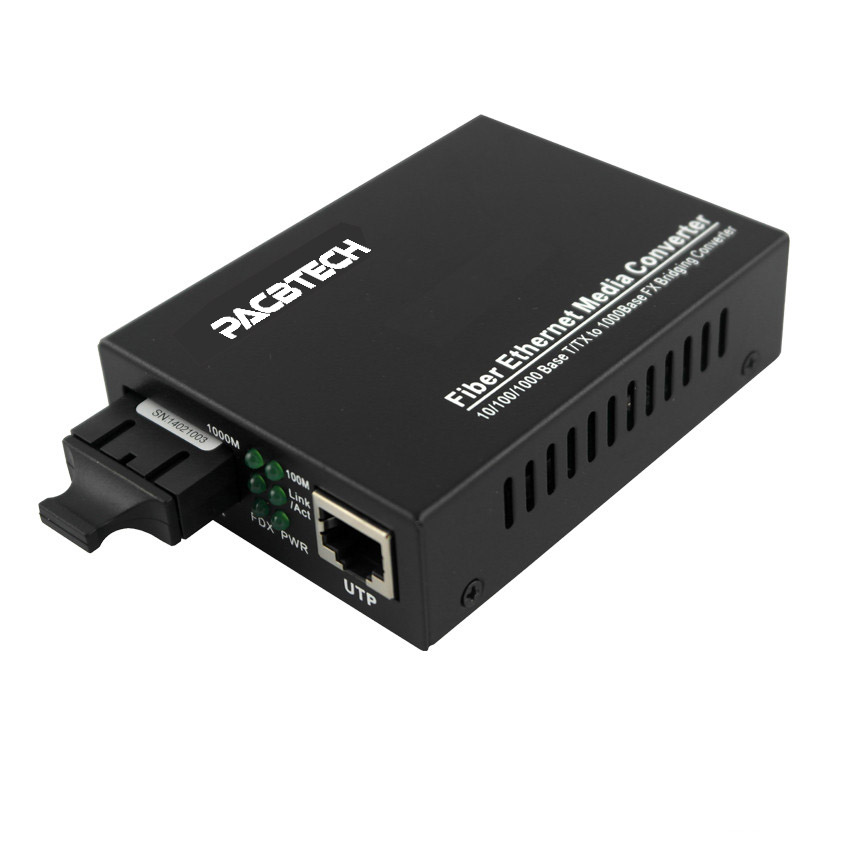

Fiber Media Converter

The non-managed media converters, which give you economic solutions for media conversion between fiber and copper Ethernet. It provides you SC, FC or ST connectors for your fiber optic cables and RJ45 for twisted pair UTP cable connection. The maximum extension is up to 120km over fiber.

Features

• In conformity to IEEE802.3 10base-T, IEEE802.3u 100 base-TX/FX, IEEE802.3ab 1000 base-T, IEEE802.3z, 1000base-SX/LX, IEEE802.1a, IEEE802.1PQ0S, IEEE802.1d Spanning Tree.

• Hot Plug-gable & Wall-Mountable.

• Stable performance more than 50 thousand hours with fault-free.

• Unique IC solution applied.

• Supports 10/100Mbps and 10/100/1000M full/half duplex, easy upgrades.

• Auto MDI/MDI-X.

• Auto Negotiation.

• Support flow control.

• Concentrated into EF16-D220 (16 slot for media converter cards) or EF14-D220 (14 slot for media converter standalone type) 2U rack-mount chassis.

• In conformity with safety code of FCC, CE and RoHS.

Specifications

Optical Interface

Connector: 1x9 SC/UPC
Data Rate: 100Mbps, 1000Mbps
Duplex Mode: Full duplex
Fiber: MM 50/125um, 62.5/125um; SM 9/125um
Distance:
- 10/100Mbps: MM 2km, SM 25/40/60/80/100/120km
- 10/100/1000Mbps: MM 550m/2km, SM 20/40/60/80/100km
Wavelength:
- MM 850nm, 1310nm
- SM 1310nm, 1550nm
- WDM Tx1310/Rx1550nm (A side), Tx1550/Rx1310nm (B side)
- WDM Tx1490/Rx1550nm (A side), Tx1550/Rx1490nm (B side)

UTP Interface

Connector: RJ45
Data Rate: 10/100Mbps, 10/100/1000Mbps
Duplex Mode: Half/full duplex
Cable: Cat5, Cat6

Power Input

Adapter Type: DC5V
Power Built-in Type: AC100~240V
Power Consumption: ＜3W

Weight

Adapter Type: 0.39kg
Power Built-in Type: 0.67kg

Dimensions

Adapter Type: 94*70.5*26.5cm
Power Built-in Type: 140.5*111*30cm

Temperature: 0~50℃ Operating; -40~70℃ Storage
Humidity: 5~95% (no condensing)
MTBF: ≥100000h
Certification: CE, FCC, RoHS

Application

• Extend your Ethernet connection up to 0~120km away using fiber optics

• Creates an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber optic networks/backbones

• Converts Ethernet to fiber, fiber to copper/Ethernet, ensuring optimum network scalability for connecting two or more Ethernet network nodes (e.g. connecting two buildings on the same campus)

• Designed to provide high-speed bandwidth for demanding large scale work groups
