1*XPON+1GE Wall Plate ONU

PAC2801P is 86‑type panel‑mount built‑in XPON ONT with 1×XPON(EPON PX20+ / GPON Class B+) and 1×GE RJ45 port. Dual‑mode auto‑access EPON/GPON OLT, max 20KM transmission with SC/UPC connector. Supports OMCI/OAM management, L2/L3 functions, IPv4/IPv6 stack, VLAN, IGMP multicast, QoS and firewall DDoS protection. AC 100‑240V power supply, fits standard 86‑type electrical box. Ideal for carrier FTTH, MDU, hotel and enterprise campus network deployment

Model:

86‑Type Wall Plate XPON ONT | 1XPON+1GE Dual‑mode EPON GPON ONU

Inquiry

Optical Transceivers

10G SFP+ Transceiver

SFP Transceiver

40G QSFP Transceiver

100G QSFP28 Transceiver

16/25/32G Transceiver

200/400/800G Transceiver

PON SFP

1*9 Transceiver

3G/12G SDI SFP

DAC/AOC Cable

DAC-Direct Attach Cable

AOC-Active Optical Cable

Fiber Converter

Fiber Media Converter

Fiber Switch

Industrial Fiber Switch

POE Fiber Switch

Telephone Over Fiber

Audio to Fiber

Video to Fiber Converter

OLT

ONU/ONT

1.25G/2.5G XPON STICK

ONU/ONT

Passive Fiber Accessory

Fiber Tools

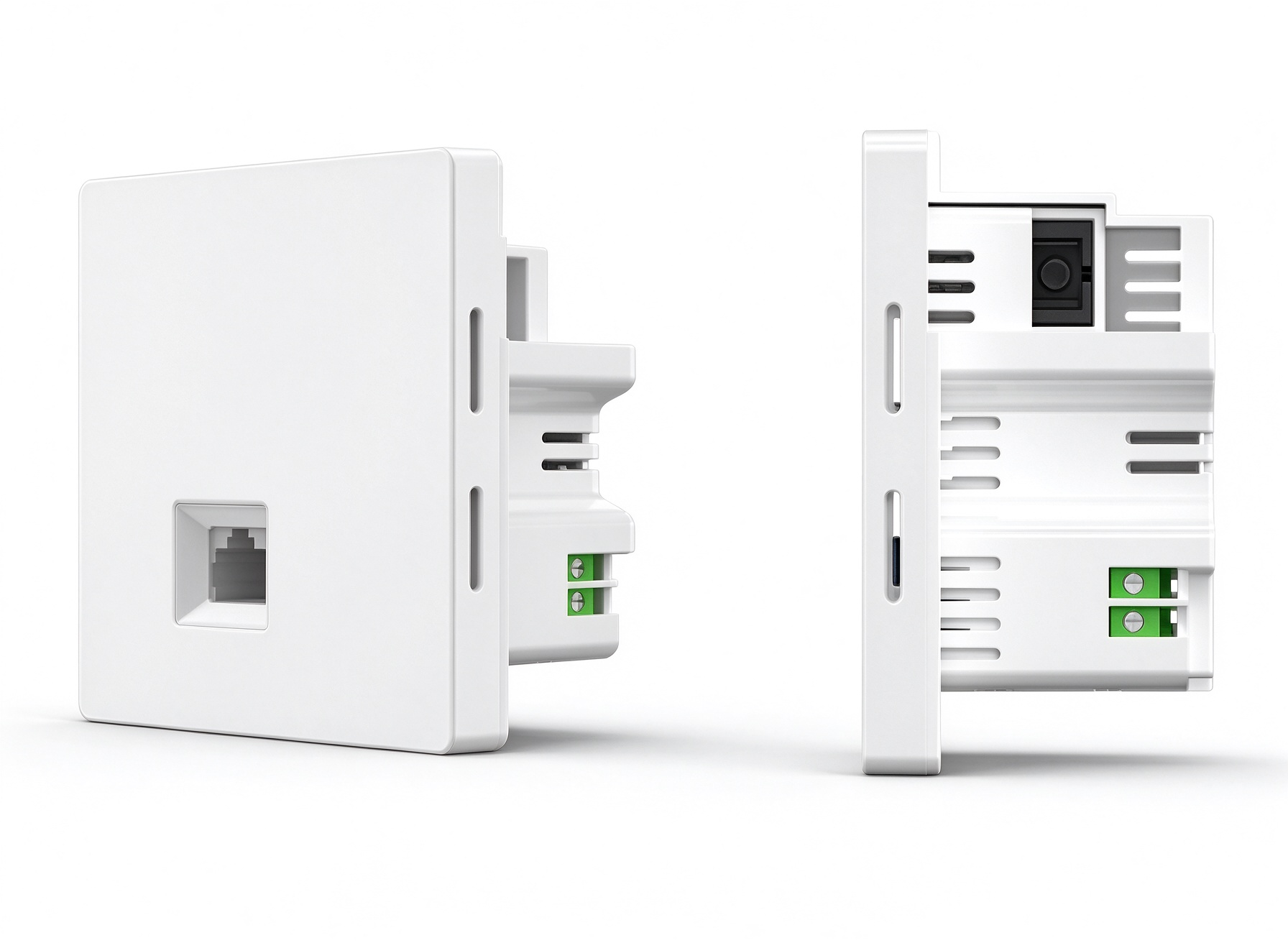

PAC2801P 1*XPON+1GE Built‑in ONT (86 Type)

Introduction

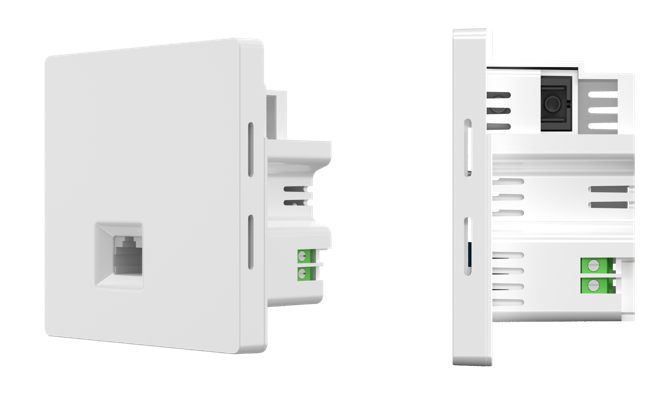

PAC2801P (1*XPON+1GE Built‑in ONT(86 Type)) is a broadband access device specially designed to meet the needs of fixed network operators for FTTH. The panel‑type ONU can be easily installed in 86‑type electrical boxes on enterprise campuses.

The ONT is based on high‑performance chip solutions, supports XPON dual‑mode technology (EPON and GPON), and also supports Layer 2/Layer 3 functions, providing data service for carrier‑grade FTTH applications. In addition, the ONT also supports the OAM/OMCI protocol, and we can configure or manage various services of the ONT on the VSOL OLT.

The ONT has high reliability, is easy to manage and maintain, and has QoS guarantees for various services. It conforms to a series of international technical standards such as IEEE802.3ah and ITU‑T G.984.

Key Features

High performance chip solution
Guaranteed QoS for multiple services
Compatible with standard 86‑Type installation panel
XPON dual‑mode: auto‑access EPON / GPON OLT
Complete Layer2 / Layer3 function, IPv4 / IPv6 stack
Support OMCI / CTC OAM remote management
Multiple alarm protection: Dying Gasp, Port Loop Detect
Rich VLAN, Multicast, QoS and firewall functions
AC 100‑240V wide‑voltage power supply

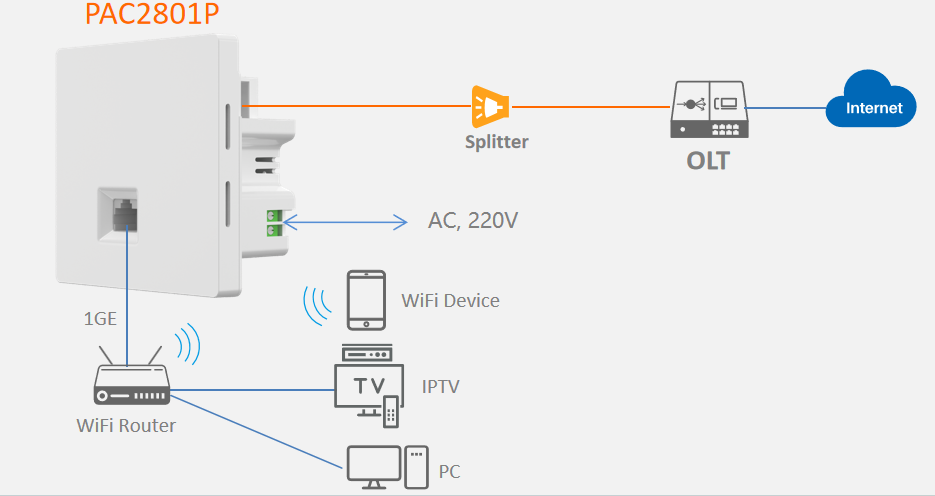

Application Diagram

Hardware Parameters

Item	Description
Dimension	86mm×86mm×49mm(L×W×H)
Operating condition	Operating temp: -10 ~ +55°C Operating humidity: 5 ~ 95% (non‑condensing)
Storing condition	Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non‑condensing)
Power supply	100 ~ 240V AC, 50/60Hz
User Interface	1×GE RJ45 port, auto‑negotiation
Indicators	PWR, PON, LOS, LAN1

PON Interface Parameters

Item	Description
PON port	1 XPON port(EPON PX20+ & GPON Class B+)
Connector	SC/UPC single mode
TX optical power	0～+4dBm
RX sensitivity	-27dBm
Overload optical power	-3dBm(EPON) / -8dBm(GPON)
Max transmission distance	20KM
Wavelength	TX 1310nm, RX 1490nm

Function Specifications

Function Module	Description
Basic PON	Support MPCP discover&register Mac / Loid / Mac+Loid / Loid+Psw authentication Triple Churning, DBA bandwidth Auto‑detecting, auto‑configuration, auto firmware upgrade
Alarm	Dying Gasp, Port Loop Detect, Eth Port Los
LAN	Port rate limiting, Loop detection, Flow control, Storm control
VLAN	VLAN tag / transparent / trunk / 1:1 translation mode, Auto VLAN detection
Multicast	IGMPv1/v2 Snooping, Max Multicast vlan 8, Max Multicast Group 64
QOS	4 queues, SP and WRR scheduling, 802.1P priority
L3 Function	IPv4/IPv6, DHCP/PPPOE/Static IP, Static route, NAT
Management	CTC OAM 2.0 &2.1, ITU‑T G.984.x OMCI, WEB, TELNET, CLI
XPON Mode	Dual‑mode, Auto‑access to EPON/GPON OLT
Uplink Mode	Bridging and Routing Mode
Abnormal protection	Rogue ONU detect, Hardware Dying Gasp
Firewall	DDOS protection, Filtering Based on ACL/MAC/URL

Application Scenarios

Carrier‑grade FTTH broadband access network
MDU, hotel room network deployment
Enterprise campus, office building optical access
IPTV & multi‑service operator network
