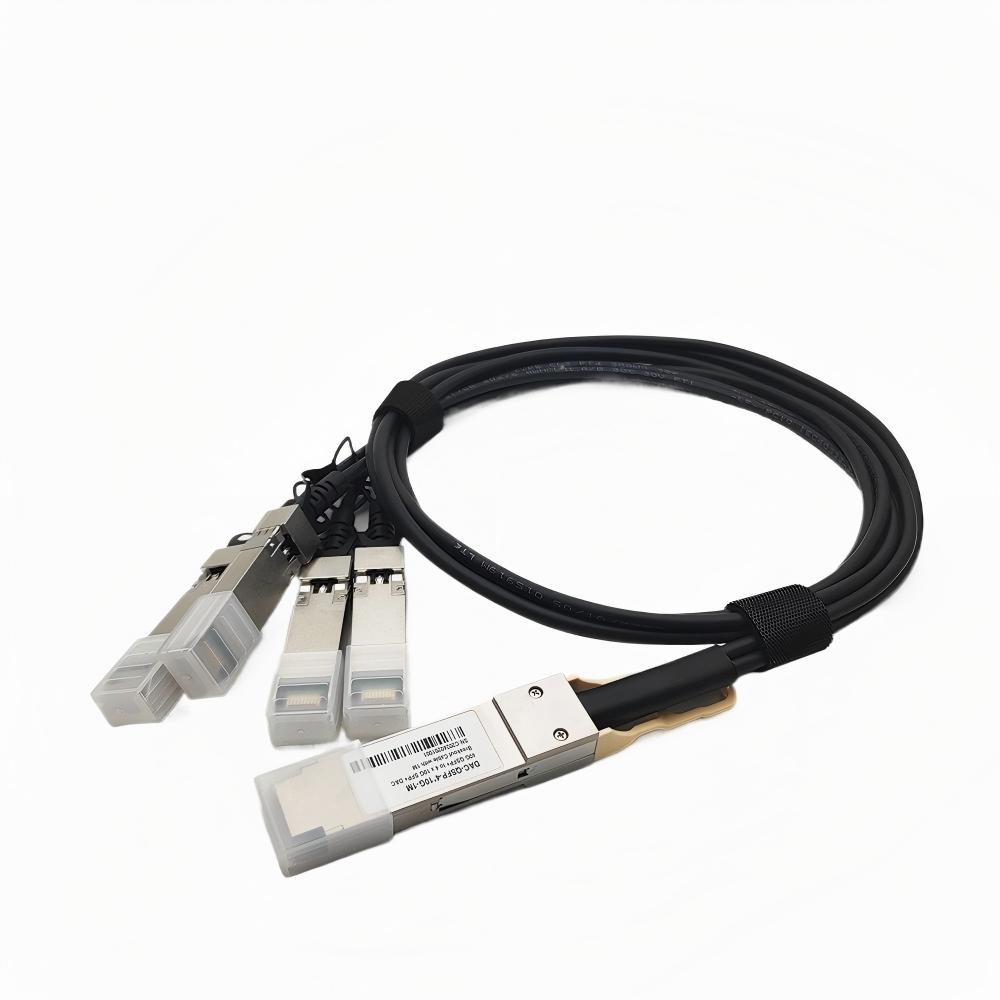

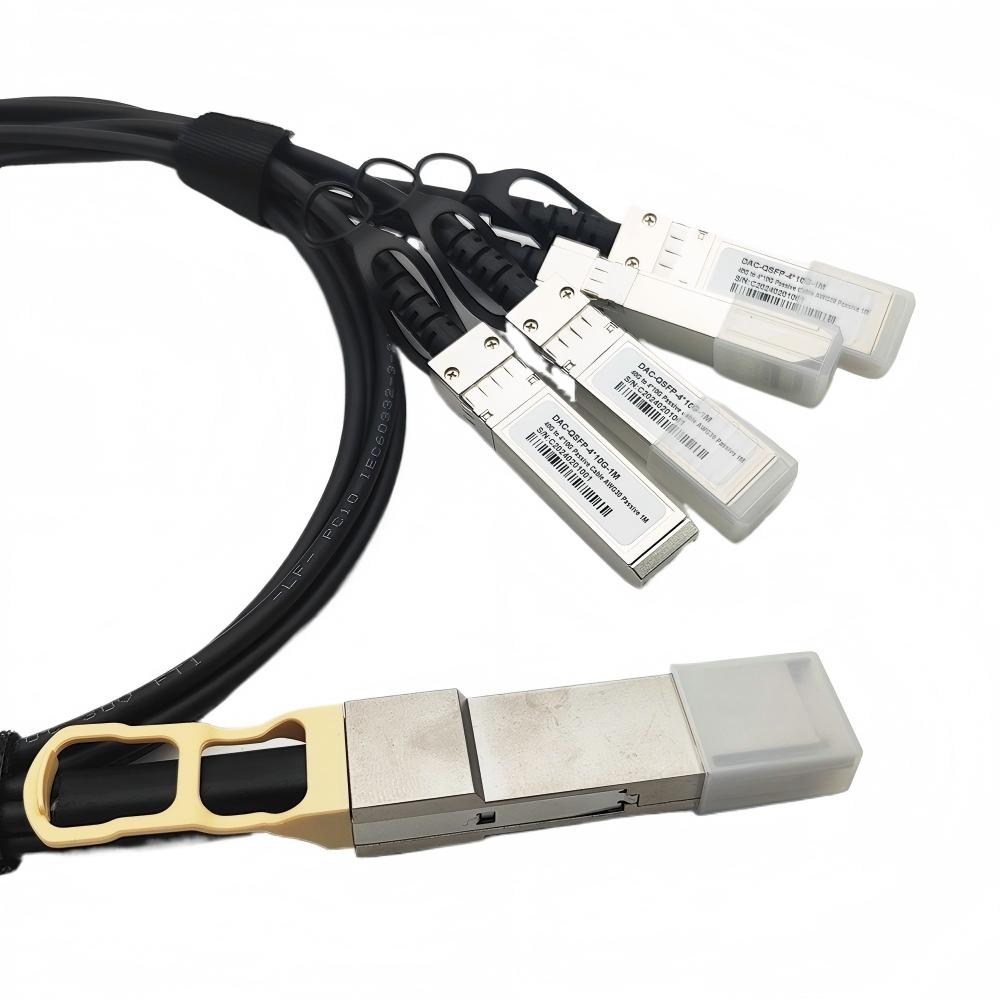

40G QSFP-4*SFP Passive Direct Copper Cables

1. Applications

• 10G/40G Ethernet

• InfiniBand, Fiber Channel 4G/8G/10G

• Sonet Multiplatform support

• High Performance Computing Clusters

• High End Servers

• Metro Network Switch/Cross Connect

2. Features

• Passive Copper (Paddle cards plus Copper cable) (Cable Length: 1~5m)

• 4-Channel Full Passive Copper Cable Transceiver

• QSFP+ conforms to the Small Form Factor SFF-8436 and SFF-8431

• Support for multi-gigabit data rates up to 10.5Gbps

• Data rates backward compatible to 1Gbps

• Maximum aggregate data rate: 40 Gbps (4 x 10Gbps)

• Hot-Density QSFP 38-PIN footprint

• I/O Connector designed for high speed differential signal applications

• Improved Pluggable Form Factor(IPF) compliant for enhanced EMI/EMC performance

• Compatible with industry standard SFP cages +Switches

• EEPROM signature can be customized

• Temperature Range: 0~70 °C

• RoHS-6 Compliant

3. Description

40G QSFP+ to 4×10G SFP+ Direct Attach Cable copper cable assemblies are a low cost alternative for short reach 4X applications. They are designed to be fully compatible in form factor and optical/electrical connections according to the QSFP Multi-Source Agreement.

QSFP+ connectors provide four channels of data in one pluggable interface. Each channel is capable of transferring data at 10Gbps and supports a total of aggregate 40Gbps as specified for QSFP+. These interconnects have three times the density of SFP+ interconnects (MSA) and have been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

QSFP+ cable assemblies are hot swappable and the programmed EEPROM signature enables the host to differentiate between a copper cable assembly and a fiber optic module.

Low power consumption assists in making the passive copper cable assembly an economic solution for within rack, or rack-to-rack applications.
