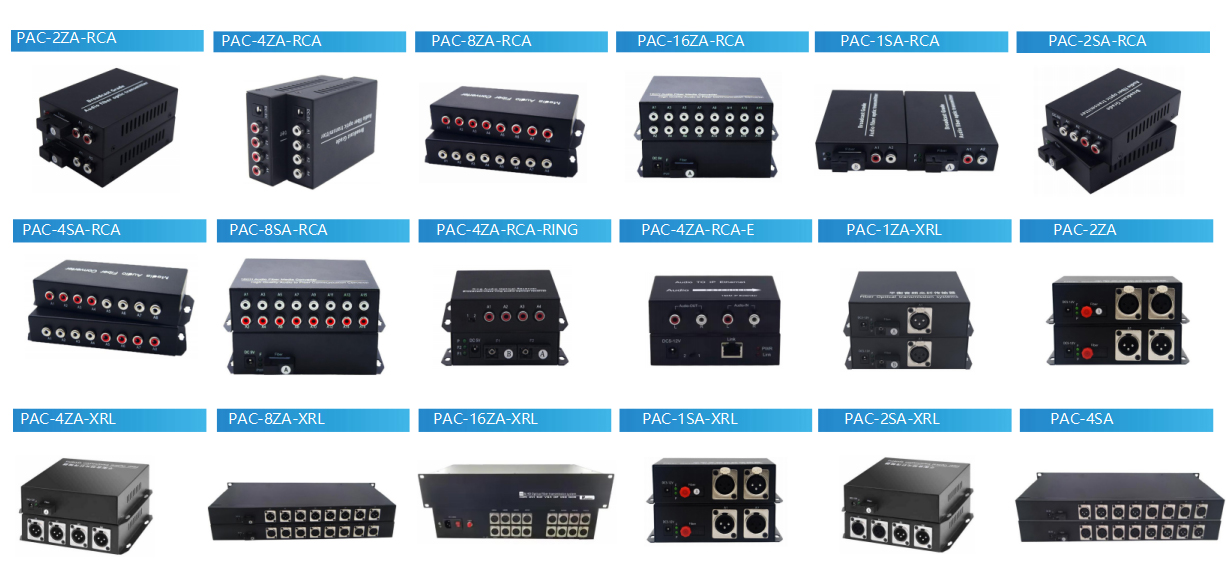

Audio Over Fiber Extender Kit, 1-16 Channel RCA Unbalanced / 1-8 Channel XLR Balanced Audio to Fiber Optic Transmitter Receiver for Long Distance Studio Audio Transmission

Inquiry

Optical Transceivers

10G SFP+ Transceiver

SFP Transceiver

40G QSFP Transceiver

100G QSFP28 Transceiver

16/25/32G Transceiver

200/400/800G Transceiver

PON SFP

1*9 Transceiver

DAC/AOC Cable

DAC-Direct Attach Cable

AOC-Active Optical Cable

Fiber Converter

Fiber Media Converter

Fiber Switch

Industrial Fiber Switch

OLT

ONU/ONT

1.25G/2.5G XPON STICK

Accessory

Audio Over Fiber Extender - Product Details

Audio Over Fiber Extender

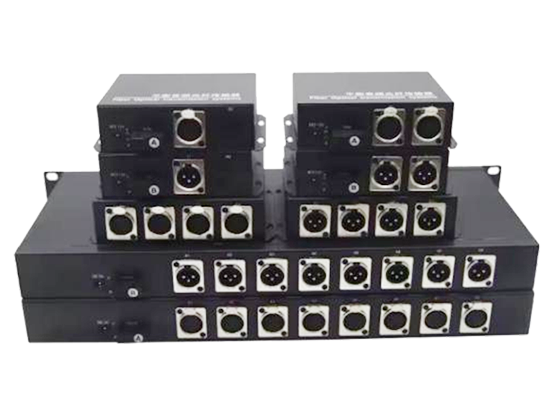

Audio over fiber extenders provide 1-16 channel unbalanced RCA audio or 1-8 channel 3-PAC balanced XLR Audio to fiber cable. Extend Your Studio Quality Audio Signal transmission for long distances, transmitter and receiver kits.

This design improves system impedance matching for inputs and outputs, which allows for a cleaner low noise signals. No Loss, No Delay, Pure & Clean fiber optic audio signal transmission.
Typically used in Stadiums, Live Event Stages, Broadcast TV, Theme Parks and Professional AV, etc.

Fiber Type

Single Mode	1310nm / 1550nm (0-120km)
Multi-mode	850nm / 1310nm (0-500m)
Connector	SC / (FC optional)

Physical Properties

Casing	Metal casing
Working Temperature	-10 °C ~ 50°C
Working Humidity	5%~95 % (no condensation)
Storage Temperature	-40 °C ~ 85°C
Storage Humidity	5%~95 % (no condensation)

Power Supply

Power Supply	DC –5V; AC110V ~ 240V
Power Consumption	≤5W
Power Adapter	EU/UK/US optional

XLR Audio Specifications

Sample Rate	48kHz 16K bit rate
Frequency Response	10Hz - 20kHz
Input Impedance	50KΩ

RCA Audio Specifications

Sample Rate	48kHz 24K bit rate
Frequency Response	10Hz ~ 29KHz
Input Impedance	600KΩ (unbalanced)

Connection & Indicator

Connection	Point-to-Point, Plug and Play
Indicator Light	LEDs for power supply and optical fiber link, audio status indication can monitor the operating status of the system
